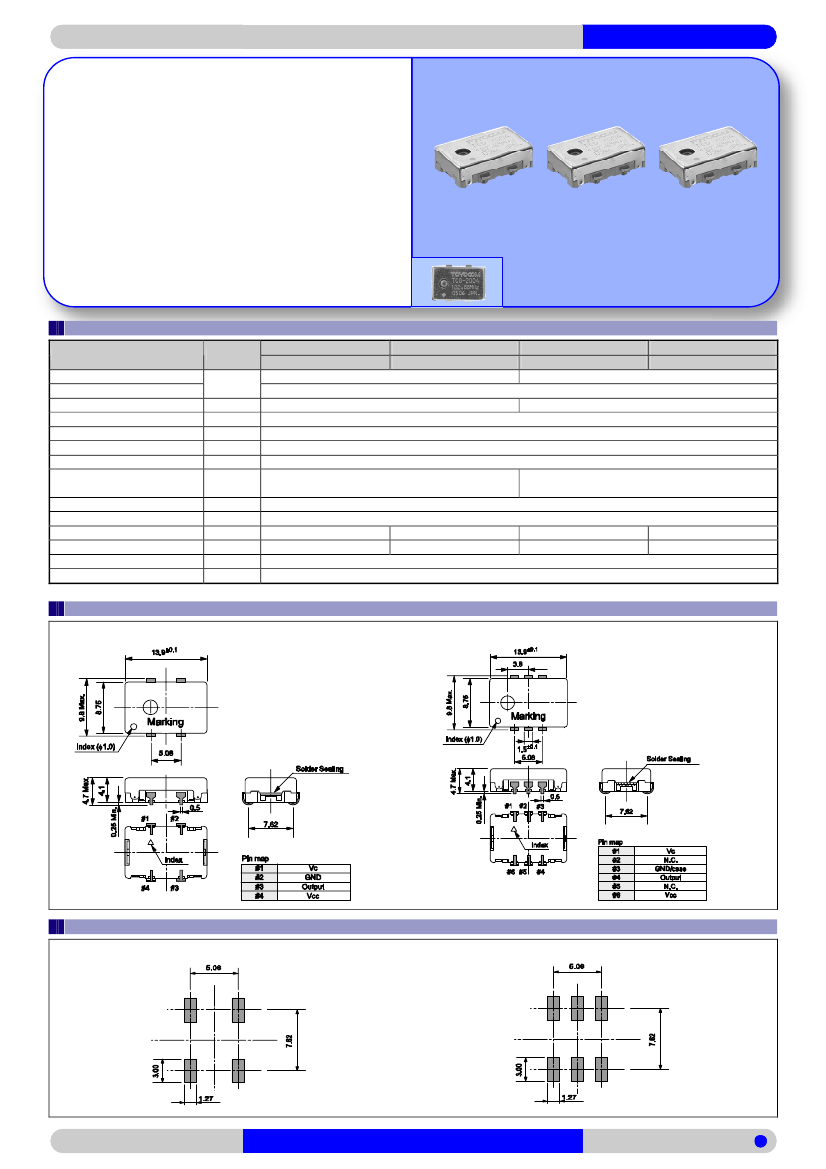

Crystal oscillator
VOLTAGE -CONTROLLED CRYSTAL OSCILLATOR (VCXO)
TCO-2000
/
2100
Series
•
Frequency range
•
Supply voltage
•
Frequency control range
•
Features
•
Lead(Pb)-free
:
8 MHz to 125 MHz
:
3.3 V or 5.0 V
-6
:
±100 ×
10
:
Wide frequency control range
:
Fundamental mode oscillator with HFF-XTAL
(fo≥60MHz)
:
Contains Pb in this product exempted by
RoHS directive.
Actual size
Specifications (characteristics)
Item
Symbol
TCO-2001A
TCO-2003A
TCO-2002A
TCO-2004A
TCO-2101A
TCO-2103A
TCO-2102A
TCO-2104A
8.000 MHz to 78.000 MHz
8.000 MHz to 125.000 MHz
32.768 MHz, 44.736 MHz, 51.84 MHz, 77.76 MHz
5.0 V ±0.25 V
3.3 V ±0.165 V
-40 °C to +85 °C
-40 °C to +85 °C
±35 × 10
-6
Max. / -40 °C to +85 °C
50 mA Max.
-6
±100 × 10 Min.
±100 × 10
-6
Min.
V
C
=2.5 V ±2 V
V
C
=1.65 V ±1.65 V
100 kΩ Min. (DC level)
Positive slope
2 TTL Max.
-
2 TTL Max.
-
-
15 pF Max.
-
15 pF Max.
10 ms Max.
※
1
-6
±5 × 10 / year Max. (+25 °C, First year)
(Unit:mm)
●TCO-2101A
/ 2102A / 2103A / 2104A
Output frequency range
f
O
Standard frequency
Supply voltage
V
CC
Storage temperature range
T_stg
Operating temperature range
T_use
Frequency tolerance
F_tol(osc)
Current consumption
I
CC
Frequency control range
Fcont
Input resistance
Rin
Frequency change polarity
-
Output load condition (TTL)
L_TTL
Output load condition (CMOS) L_CMOS
Oscillation start up time
t
osc
Frequency aging
F_aging
*1
Time at minimum supply voltage to be 0 s.
External dimensions
●TCO-2001A
/ 2002A / 2003A / 2004A
Footprint (Recommended)
●TCO-2001A
/ 2002A / 2003A / 2004A
●TCO-2101A
/ 2102A / 2103A / 2104A
(Unit:mm)
