LH28F160S3-L10 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> LH28F160S3-L10

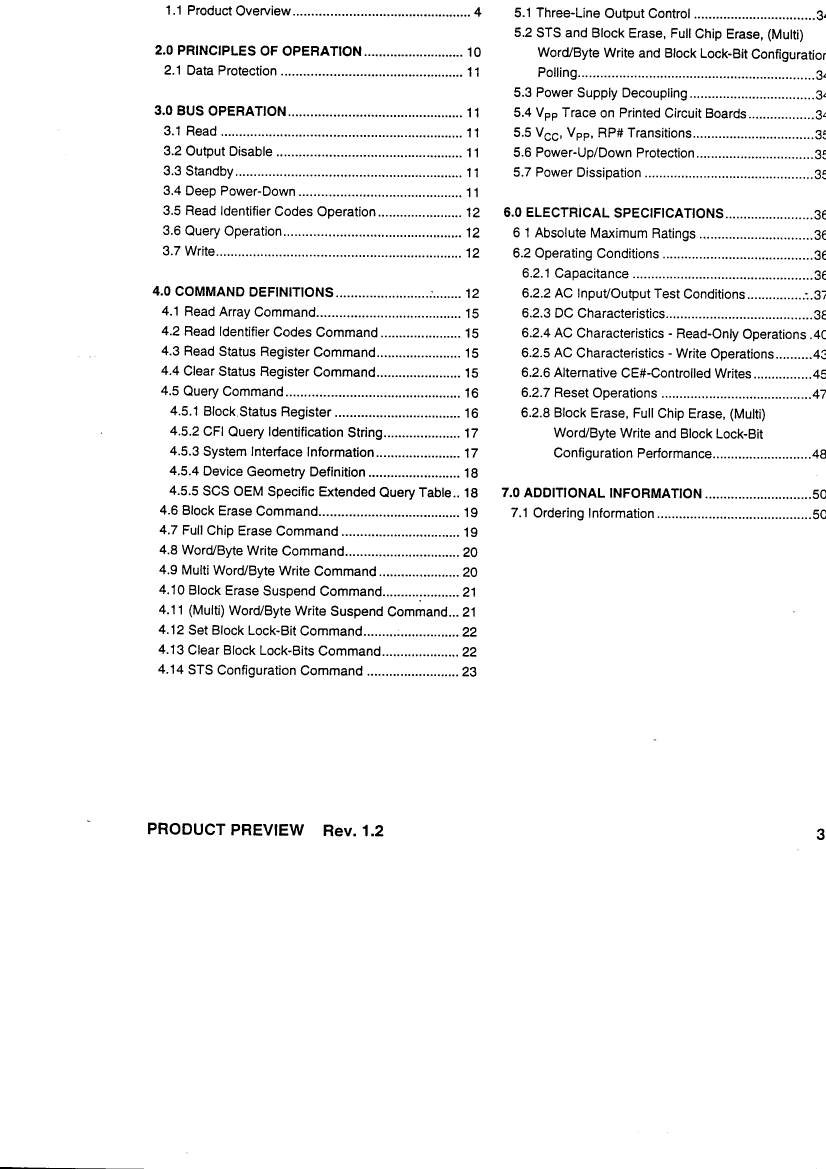

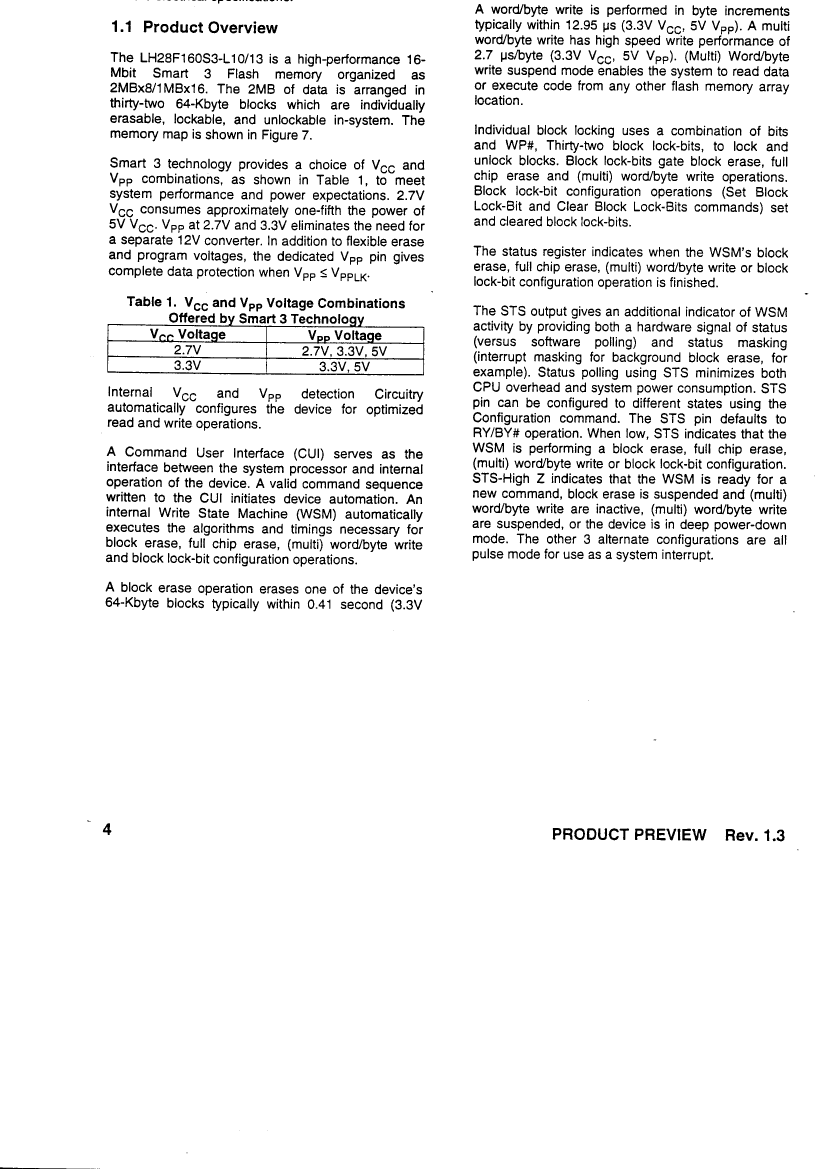

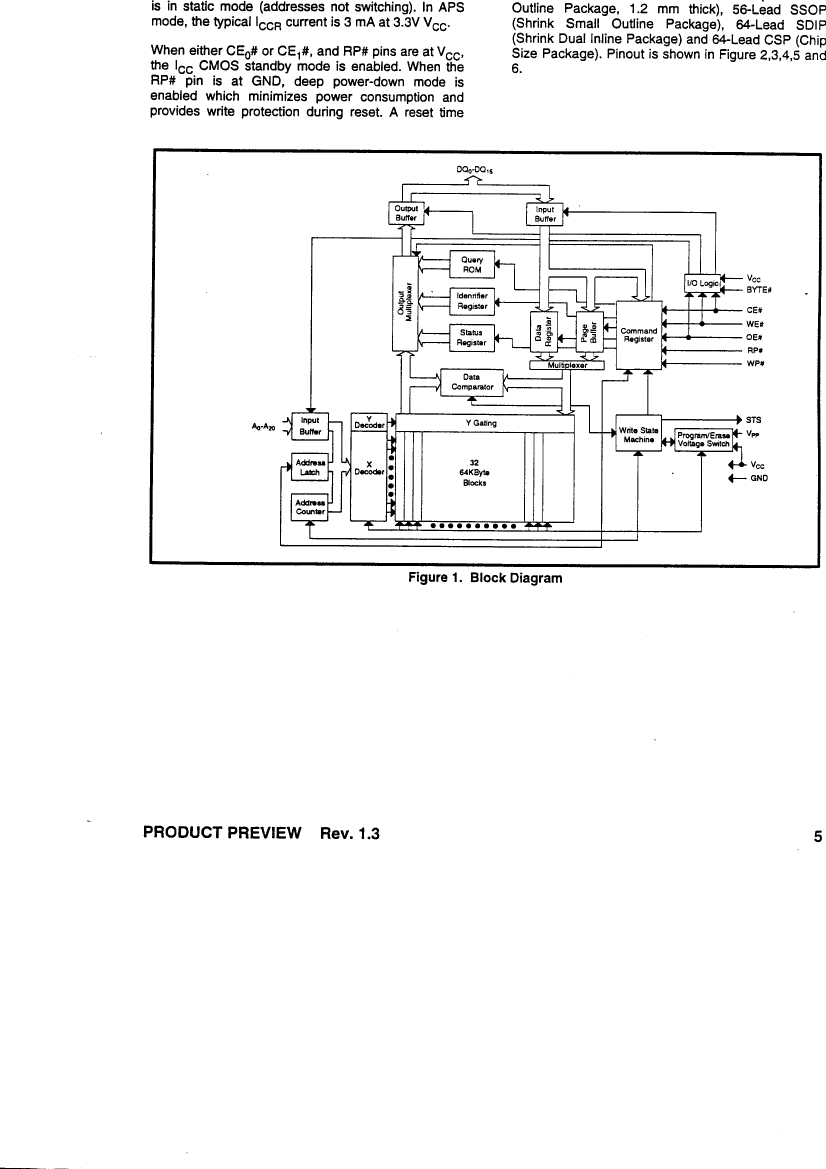

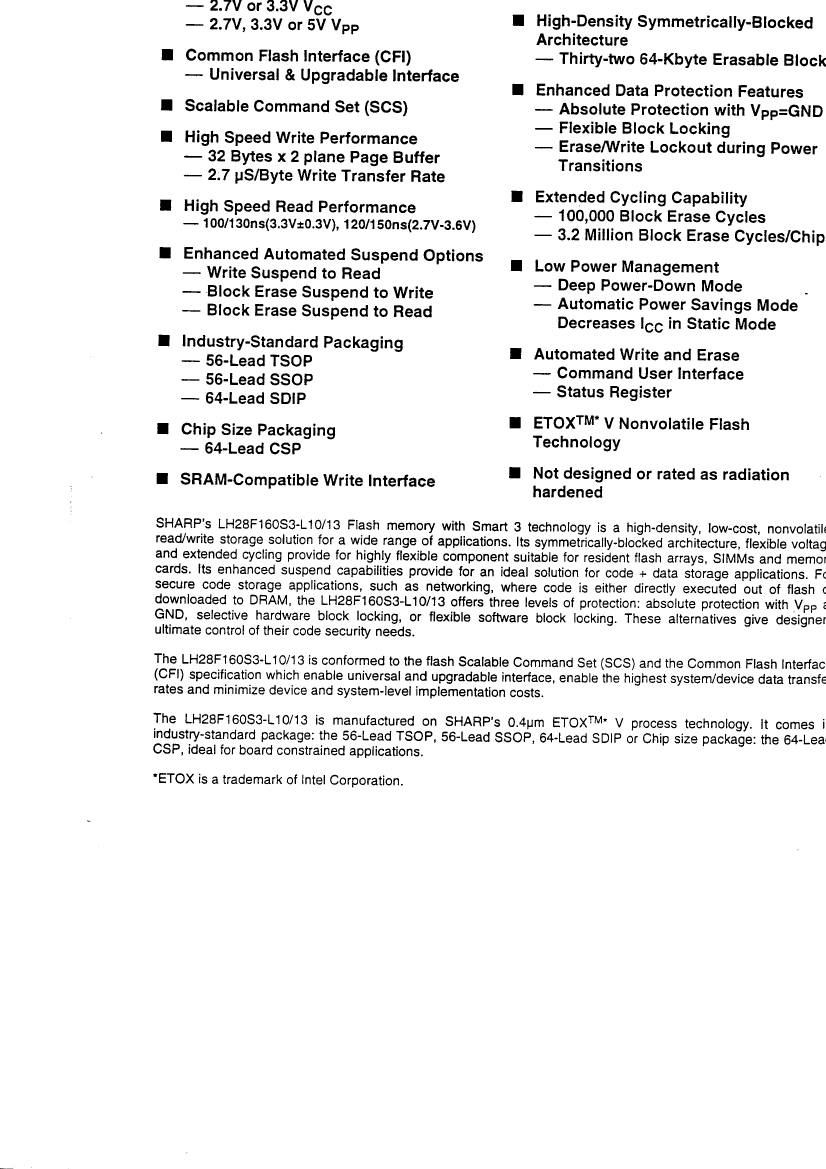

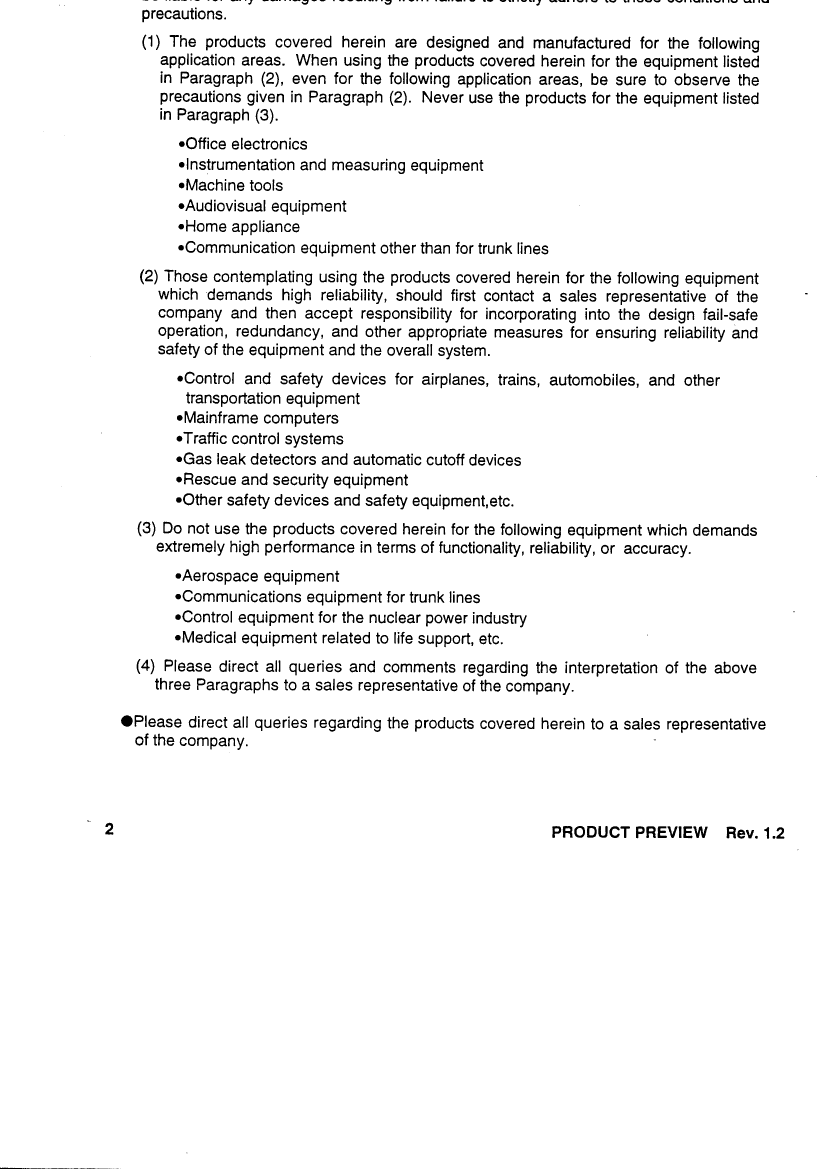

Preview

LH28F160S3-L10: Description1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64; Categorystorage; File Size4MB，51 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F160S3-L10 Overview

1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64

LH28F160S3-L10 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Maximum supply/operating voltage	3.6 V
Minimum supply/operating voltage	2.7 V
Rated supply voltage	3 V
maximum access time	150 ns
Processing package description	8 × 11 MM, plastic, CSP, FBGA-64
state	DISCONTINUED
packaging shape	Rectangle
Package Size	GRID ARRAY, THIN PROFILE, FINE PITCH
surface mount	Yes
Terminal form	BALL
Terminal spacing	0.8000 mm
Terminal location	BOTTOM
Packaging Materials	Plastic/Epoxy
Temperature level	COMMERCIAL
memory width	16
organize	1M × 16
storage density	1.68E7 deg
operating mode	ASYNCHRONOUS
Number of digits	1.05E6 words
Number of digits	1M
Spare memory width	8
Memory IC type	FLASH 2.7V programmable read-only memory
serial parallel	parallel

Preview

Download Datasheet

View All

LH28F160S3-L10 Related Products

	LH28F160S3-L10	LH28F160S3	LH28F160S3-L13	LH28F160S3NS-L10	LH28F160S3HNS-L13	LH28F160S3HB-L10	LH28F160S3D-L13	LH28F160S3B-L13	LH28F160S3B-L10
Description	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64	1M X 16 FLASH 2.7V PROM, 150 ns, PBGA64
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	64	64	64	56	56	64	64	64	64
Maximum operating temperature	70 Cel	70 Cel	70 Cel	70 °C	85 °C	85 °C	70 °C	70 °C	70 °C
Minimum operating temperature	0.0 Cel	0.0 Cel	0.0 Cel	-	-40 °C	-40 °C	-	-	-
surface mount	Yes	Yes	Yes	YES	YES	YES	NO	YES	YES
Terminal form	BALL	BALL	BALL	GULL WING	GULL WING	BALL	THROUGH-HOLE	BALL	BALL
Terminal location	BOTTOM	BOTTOM	BOTTOM	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	BOTTOM
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
memory width	16	16	16	16	8	16	16	16	16
organize	1M × 16	1M × 16	1M × 16	1MX16	2MX8	1MX16	1MX16	1MX16	1MX16
Spare memory width	8	8	8	8	-	8	8	8	8
Maker	-	-	-	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	-	-	-	0.600 INCH, PLASTIC, SSOP-56	SSOP-56	8 X 11 MM, PLASTIC, CSP, FBGA-64	0.750 INCH, PLASTIC, SDIP-64	8 X 11 MM, PLASTIC, CSP, FBGA-64	8 X 11 MM, PLASTIC, CSP, FBGA-64
Reach Compliance Code	-	-	-	unknow	unknow	unknow	unknow	unknow	unknow
Maximum access time	-	-	-	120 ns	130 ns	120 ns	150 ns	150 ns	120 ns
Other features	-	-	-	ACCESS TIME 100 NS AT VCC 3.3+/-0.3V	CONFIGURABLE AS 1M X 16	ACCESS TIME 100 NS AT VCC 3.3+/-0.3V	ACCESS TIME 130 NS AT VCC 3.3+/-0.3V	ACCESS TIME 130 NS AT VCC 3.3+/-0.3V	ACCESS TIME 100 NS AT VCC 3.3+/-0.3V
JESD-30 code	-	-	-	R-PDSO-G56	R-PDSO-G56	R-PBGA-B64	R-PDIP-T64	R-PBGA-B64	R-PBGA-B64
length	-	-	-	23.7 mm	23.7 mm	11 mm	58 mm	11 mm	11 mm
memory density	-	-	-	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi
Memory IC Type	-	-	-	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
word count	-	-	-	1048576 words	2097152 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	-	-	-	1000000	2000000	1000000	1000000	1000000	1000000
Operating mode	-	-	-	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Package body material	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	-	-	SSOP	SSOP	TFBGA	SDIP	TFBGA	TFBGA
Package shape	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	IN-LINE, SHRINK PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial	-	-	-	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	-	-	-	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Certification status	-	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	-	-	1.85 mm	1.85 mm	1.2 mm	5.7 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	-	-	-	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	-	-	2.7 V	-	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	-	-	-	3 V	3.3 V	3 V	3 V	3 V	3 V
technology	-	-	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal pitch	-	-	-	0.8 mm	0.8 mm	0.8 mm	1.778 mm	0.8 mm	0.8 mm
type	-	-	-	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	-	-	-	13.3 mm	13.3 mm	8 mm	19.05 mm	8 mm	8 mm
