PCH125-200-BA5V datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PCH125-200-BA5V

PCH125-200-BA5V: DescriptionSingle Color LED, Amber, T-1, 3.05mm,; CategoryLED optoelectronic/LED photoelectric; File Size133KB，2 Pages; ManufacturerDDP Engineered LED Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

PCH125-200-BA5V Overview

Single Color LED, Amber, T-1, 3.05mm,

PCH125-200-BA5V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color	AMBER
color@wavelength	Amber
Configuration	SINGLE WITH BUILT-IN RESISTOR
Nominal luminous intensity	8.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7.37 mm
method of packing	BULK
peak wavelength	583 nm
shape	ROUND
size	3.05 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

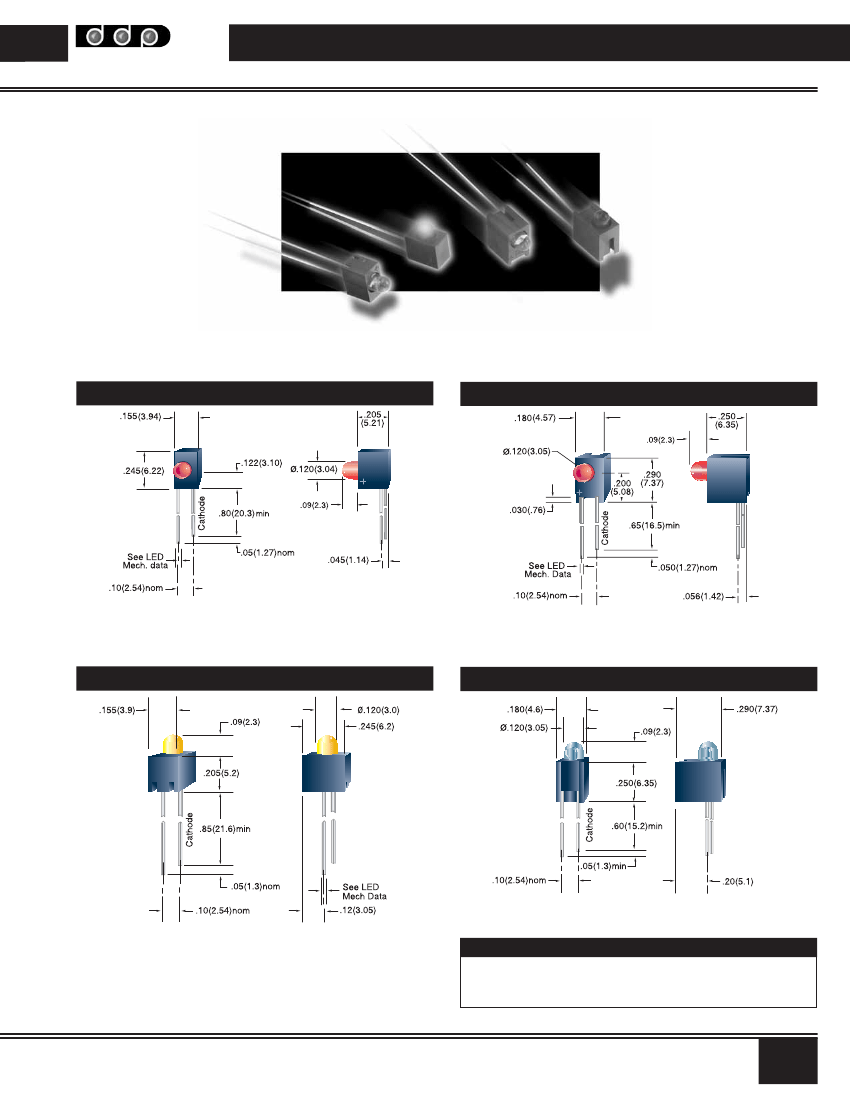

T-1 PCB MOUNT LEDs

Single

- For Detailed LED Data, See Discrete Section, MODEL 125

Data Display Products

Model

PCH125

PCH125-200

PCV125

PCV125-200

Right Angle Mount

Vertical Mount

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

Model

LED

PCH125

-BCA

➜

Part Number

PCH125-BCA

LED

-BR

-BA

-BG

STANDARD INTENSITY -

DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

[1]

(mcd)

Viewing

Angle

635

583

565

MEDIUM INTENSITY -

TINTED ENCAPSULATION

LED

-BCR

-BCA

-BCG

λpk

Color

RED

AMB

GRN

(nm)

[1]

(mcd)

Viewing

Angle

635

583

565

SPECIALTY LEDs

LED

-RLP

-ALP

-GLP

-DRG

-BR5V

-BA5V

-BG5V

-BR12V

-BA12V

-BG12V

λpk

Color

RED

AMB

GRN

RED/GRN

RED

AMB

GRN

RED

AMB

GRN

(nm)

[1]

(mcd)

Viewing

Angle

118

Description

Low Power

Bi-Color, Cathode on right, longer lead

Integrated Resistor for 5VDC

Integrated Resistor for 12VDC

635

583

565

635/567

635

583

565

635

583

565

2.1

1.6

2.1

4.3/3.7

[1] Iv = typical luminous intensity @ If = 20mA (Ta=25°C), Low Power LEDs @ If = 2mA, Integrated

Resistor LEDs @ Vf = 5VDC or @ Vf = 12VDC. Bi-color LEDs @ lf=10mA.

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com

PCH125-200-BA5V Related Products

	PCH125-200-BA5V	PCV125-BR	PCV125-200-BR5V	PCH125-BG12V	PCV125-200-BCG	PCH125-RLP	PCV125-BA5V	PCH125-200-BCA	PCH125-200-BR	PCH125-BA
Description	Single Color LED, Amber, T-1, 3.05mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Red, T-1, 3.05mm,	Single Color LED, Green, Diffused, T-1, 3.04mm, 2PIN	Single Color LED, Green, Tinted, T-1, 3.05mm, 2PIN	Single Color LED, Red, Diffused, T-1, 3.04mm, 2PIN	Single Color LED, Amber, Diffused, T-1, 3mm, 2PIN	Single Color LED, Amber, Tinted, T-1, 3.05mm, 2PIN	Single Color LED, Red, Diffused, T-1, 3.05mm, 2PIN	Single Color LED, Amber, Diffused, T-1, 3.04mm, 2PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
color	AMBER	RED	RED	GREEN	GREEN	RED	AMBER	AMBER	RED	AMBER
color@wavelength	Amber	Red	Red	Green	Green	Red	Amber	Amber	Red	Ambe
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE	SINGLE	SINGLE WITH BUILT-IN RESISTOR	SINGLE	SINGLE	SINGLE
Nominal luminous intensity	8.0 mcd	14.0 mcd	8.0 mcd	8.0 mcd	44.0 mcd	2.1 mcd	8.0 mcd	30.0 mcd	14.0 mcd	14.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.37 mm	7.5 mm	8.65 mm	6.22 mm	8.65 mm	6.22 mm	7.5 mm	7.37 mm	7.37 mm	6.22 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	583 nm	635 nm	635 nm	565 nm	565 nm	635 nm	583 nm	583 nm	635 nm	583 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3.05 mm	3 mm	3.05 mm	3.04 mm	3.05 mm	3.04 mm	3 mm	3.05 mm	3.05 mm	3.04 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	45 deg	50 deg	60 deg	45 deg	60 deg	60 deg
Maker	-	DDP Engineered LED Solutions	-	-	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions	DDP Engineered LED Solutions
Lens type	-	DIFFUSED	-	DIFFUSED	TINTED	DIFFUSED	DIFFUSED	TINTED	DIFFUSED	DIFFUSED
package instruction	-	-	-	2PIN	2PIN	2PIN	2PIN	2PIN	2PIN	2PIN
