T-2 SLIDE BASED
LAMPS 24LS SERIES
PowerLine LEDs

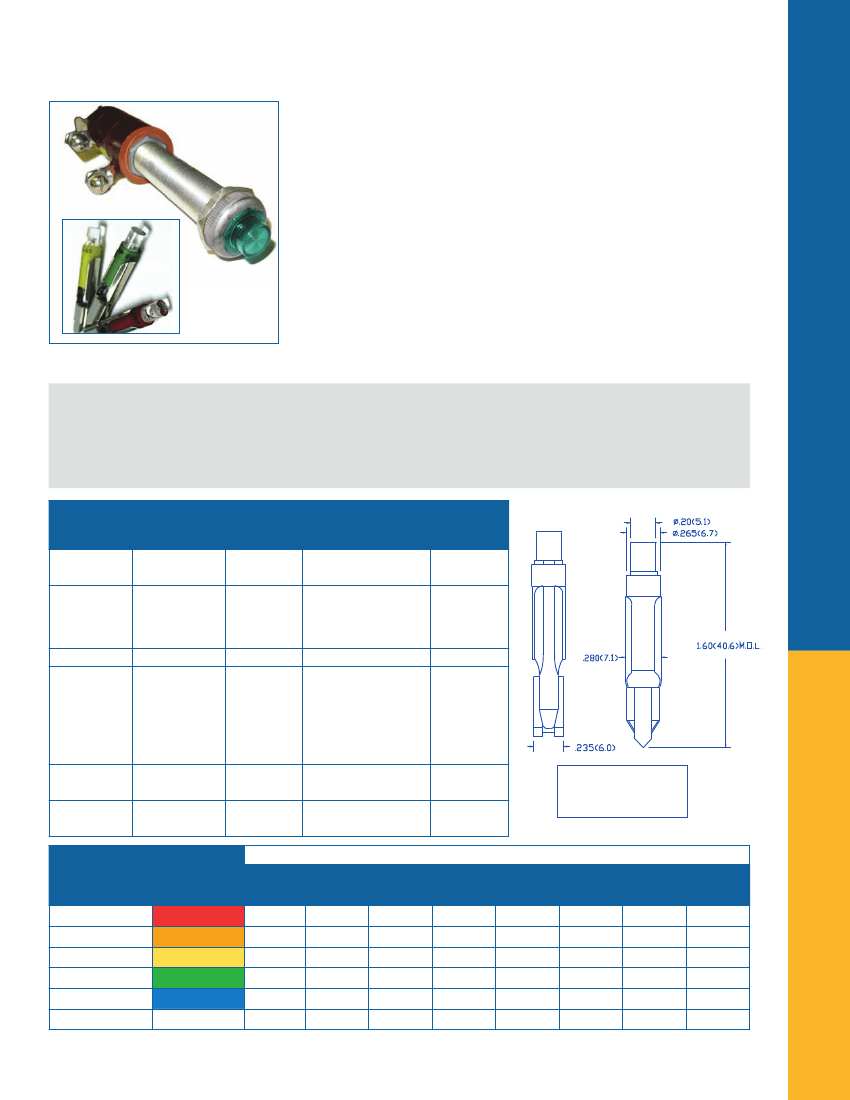

The PowerLine® 24LS series LED lamps are designed as drop-in
replacements for the industry-standard 24E and 24X incandescent
bulbs. Several models are available designed specifically for
operation in GE ET-5, ET-6 and Westinghouse Minalite sockets.
No modification to input voltage or series resistance is required.
ET-5 socket not included
To select a PowerLine® LED lamp:
1. Identify your input voltage and series resistor from the chart below.
Series resistor values are usually marked on the socket.
2. Select the appropriate PowerLine® LED part number.
3. Replace “X1” in the part number with the color code (see LED color code chart below)
INPUT
VOLTAGE
130AC/DC
48DC
130DC
24DC
48DC
600DC
130DC
67AC
115AC
230AC
250AC
460AC
575AC
125DC
250DC
115AC
230AC
SERIES
RESISTOR
3.2KΩ
900Ω
3.2KΩ
110Ω
900Ω
20KΩ
2KΩ
1.5KΩ
2.8KΩ
6.3KΩ
7.2KΩ
13KΩ
17KΩ
MAXIMUM PowerLine® LED
VOLTAGE
PART #
BI-POLAR
140
56
140
26
56
650
140
75
125
250
280
500
630
140
280
125
250
24LS4-X1
YES
24LS2-X1
NO
24LS8-X1
YES
Dim/Bright
Dim/Bright
24LS12-X1
24LS16-X1
YES
YES
24LS Series
Slide Base #3
LED
COLOR
CODE
-R1
-O1
-A1
-G1
-B1
-W1
EMITTED
COLOR
Red
Orange
Amber
Green
Blue
White
Used to illuminate the following lenses
Red
*
Orange Amber
*
*
*
Yellow
Green
Blue
White
*
*
*
*
*
*
Clear
*
*
*
*
*
*
*
*
*
All dimensions are in inches (mm)
Tolerances: .xx”(.x) ±.025:”(.63)/ .xxx”(.xx)±.010”(.25) Specifications are subject to change without notice.
www.powerlineleds.com l Tel. 800-421-6815 l Fax 310-640-7639 © 2008 DDP
www.powerlineleds.com
9
24LS10-X1
YES
T-2 SLIDE BASED LAMPS 24LS SERIES
• Replaces 24E and 24X incandescent bulbs
• For GE ET-5, ET-6 and Westinghouse Minalite Socket
• Built-in shunt resistor to clamp noise current
• Bi-polar (optional)
• High-intensity
• Up to 100,000-hour life
• Shock and vibration resistant
PowerLine LEDs

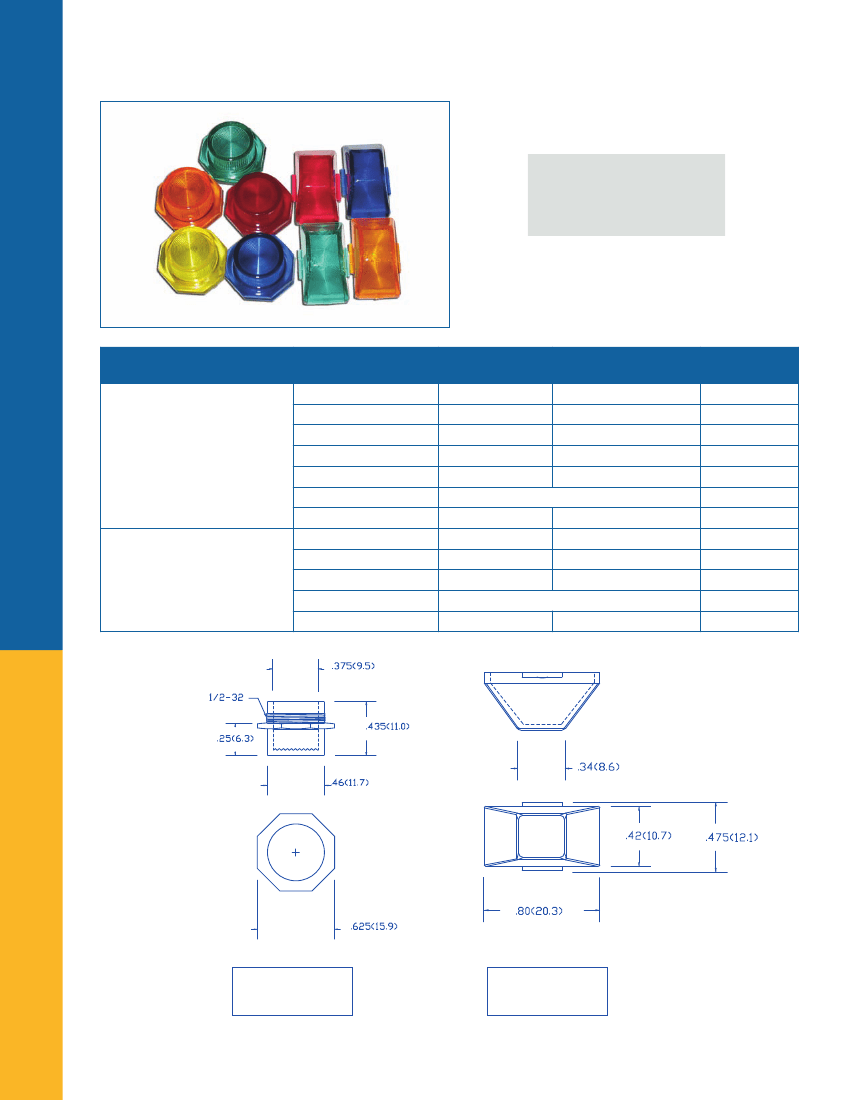

REPLACEMENT LENSES
- GE ET-5
- GE ET-6
- Westinghouse Minalite
REPLACEMENT LENSES
SOCKET MODEL
NUMBER
PowerLine® LENS
PART #
BB3-CR
BB3-CA
BB3-CY
DIFFUSION
Clear
Clear
Clear
Clear
Clear
Water Clear
Translucent
Clear
Clear
Clear
Water Clear
Translucent
COLOR
Red
Amber
Yellow
Green
Blue
FIG#
1
1
1
1
1
1
GE ET-5 & ET-6
BB3-CG
BB3-CB
BB3-CW
BB3-NW
BB2-CR
BB2-CA
White
Red
Amber
Green
1
2
2
2
2
Westinghouse Minalite
BB2-CG
BB2-CW
BB2-NW
White
2
www.powerlineleds.com
BB3
Figure 1
BB2
Figure 2
10
All dimensions are in inches (mm)
Tolerances: .xx”(.x) ±.025:”(.63)/ .xxx”(.xx)±.010”(.25) Specifications are subject to change without notice.
www.powerlineleds.com l Tel. 800-421-6815 l Fax 310-640-7639 © 2008 DDP
