T-11-2500-D3-SLC-GR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> T-11-2500-D3-SLC-GR

T-11-2500-D3-SLC-GR: DescriptionReceiver, 1100nm Min, 1650nm Max, 2500Mbps, LC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Optical fiber; File Size128KB，4 Pages; ManufacturerSource Photonics; Environmental Compliance

Download Datasheet Parametric Compare View All

T-11-2500-D3-SLC-GR Overview

Receiver, 1100nm Min, 1650nm Max, 2500Mbps, LC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE

T-11-2500-D3-SLC-GR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body height	14.3 mm
Body length or diameter	5.8 mm
Built-in features	AMPLIFIER
Communication standards	ATM, SDH, SONET
Connection Type	LC CONNECTOR
data rate	2500 Mbps
Emitter/Detector Type	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1650 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Receive type	DIGITAL
minimum return loss	27 dB
Sensitivity	-21 dBm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

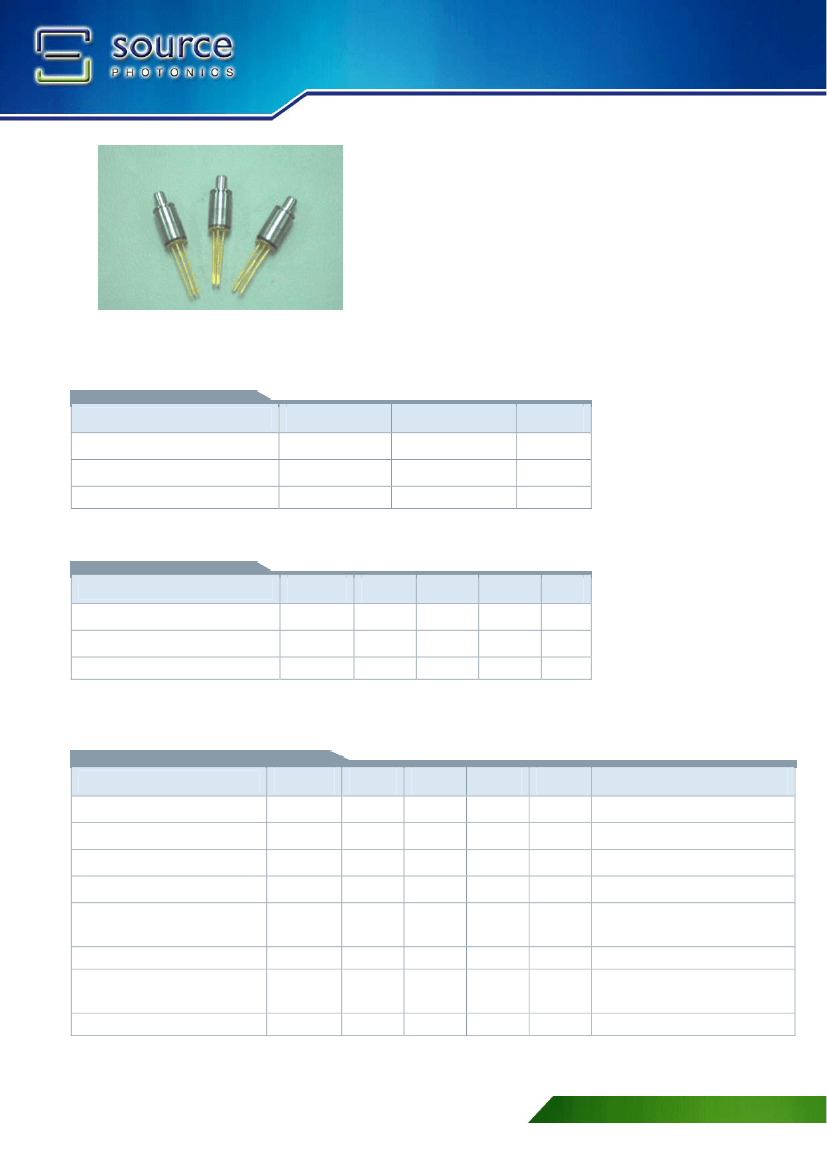

P/N: T-11-2500-D3-SXX-XX

2.5 Gbps PIN-TIA Receiver Modules-ROSA (3.3V)

Features

InGaAs/InP

PIN Photodiode with transimpedance amplifer

High Sensitivity with AGC*

Differential ended output

Single Supply Voltage 3.3V

-40~85°C operating temperature

Packaging

SC/LC/MU ROSA package

Application

2.5Gbps SDH/SONET/ATM receivers

RoHS Compliant available

Absolute Maximum Ratings

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

(Tc=25

℃

)

Symbol

opr

stg

Rating

3.8

-40 ~ 85

Unit

°C

DC Electrical Characteristics

Parameter

Power Supply

Differential Output Voltage

Supply Current (no load)

(Tc=25

℃

)

Symbol

Min.

Typ.

3.3

0.6

Max.

3.6

Unit

(Operating at Vcc=3.3V , Tc=25°

λ=1310nm,

9/125μm SM fiber)

Parameter

Detection Range

Gain@10Mbps differential

Bandwidth

Saturation Power

Sensitivity

Output Resistance

Low frequency cutoff

Optical Return Loss

ORL

sat

Sens

out

Symbol

Min.

1100

1.7

-3

Typ.

1310

1.9

-21

100

Max.

1650

-20

Unit

V/mW

GHz

dBm

KHz

Notes

λ=1310nm

BER<10

-10

@2.5Gbps,

PRBS 23

Measured at AC coupled via22nF

Capacitor into 50Ω load

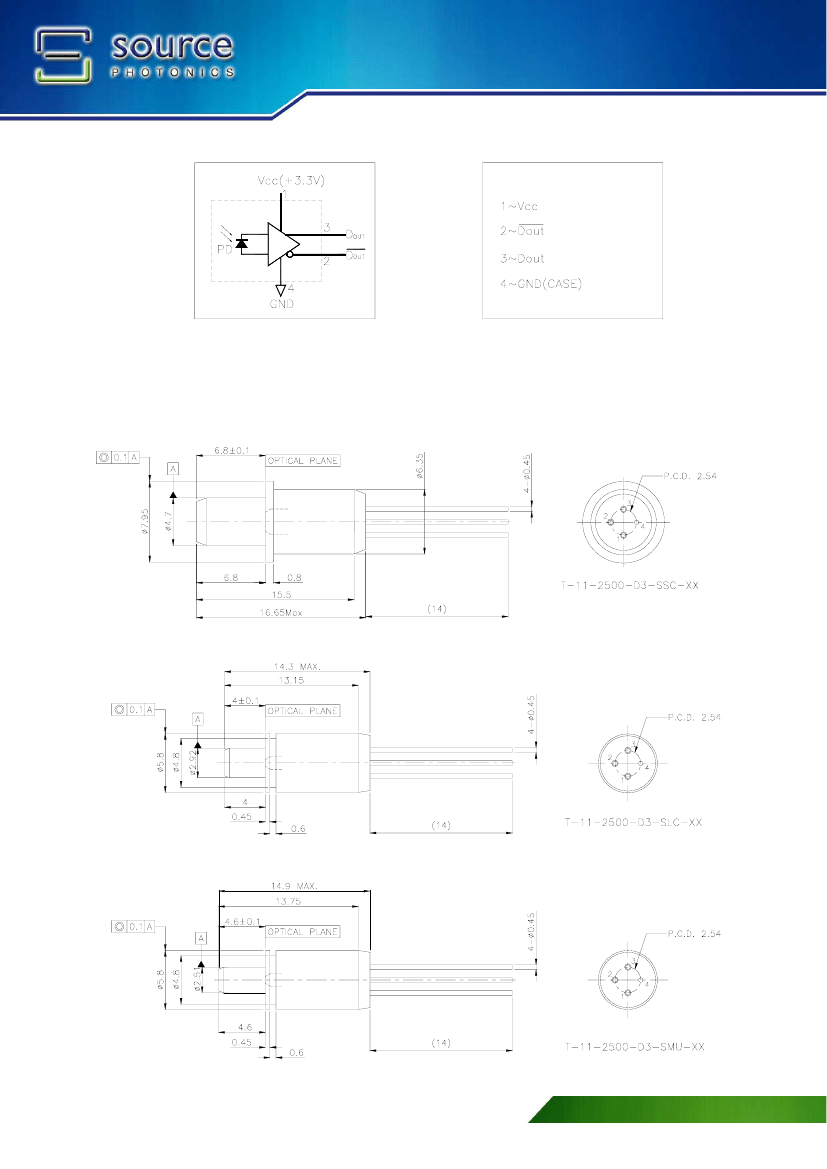

Note: 1. Pin assignment can be customized.

2. Specifications subject to change without notice.

DS-5976 Rev 0.1 2010-02-02

P/N: T-11-2500-D3-SXX-XX

2.5 Gbps PIN-TIA Receiver Modules-ROSA (3.3V)

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static

free environment is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or

indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Source Photonics’s sole and

absolute discretion. Source Photonics warrants performance of its products to current specifications only in

accordance with the company’s standard one-year warranty; however, specifications designated as

“preliminary”

are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said

products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular

purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for

further warranty information.

Source Photonics assumes no liability for applications assistance, customer product design, software performance,

or infringement of patents, services, or intellectual property described herein. No license, either express or implied,

is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no

representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual

property rights. Products described in this document are NOT intended for use in implantation or other life support

applications where malfunction may result in injury or death to persons. Source Photonics customers using or

selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source

Photonics for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN

“AS

IS” BASIS. Customer agrees

that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or

indirectly from any use of the information contained in this document. Customer must contact Source Photonics to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is

current.

DS-5976 Rev 0.1 2010-02-02

T-11-2500-D3-SLC-GR Related Products

	T-11-2500-D3-SLC-GR	FP-U8999-11-1842-Q-B-2	T-11-2500-D3-SSC	T-11-2500-D3-SLC	T-11-2500-D3-SMU-GR	T-11-2500-D3-SSC-GR	T-11-2500-D3-SLC-G5	T-11-2500-D3-SMU-G5	T-11-2500-D3-SSC-G5
Description	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, LC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE	Array/Network Resistor, Isolated, Thin Film, 0.025W, 18400ohm, 50V, 0.02% +/-Tol, -15,15ppm/Cel, 3925,	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, SC Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, LC Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, MU Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, SC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, LC Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, MU Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 2500Mbps, SC Connector, Through Hole Mount
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	conform to	conform to	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Installation features	THROUGH HOLE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
surface mount	NO	YES	NO	NO	NO	NO	NO	NO	NO
body height	14.3 mm	-	16.65 mm	14.3 mm	14.9 mm	16.65 mm	14.3 mm	14.9 mm	16.65 mm
Body length or diameter	5.8 mm	-	6.35 mm	5.8 mm	5.8 mm	6.35 mm	5.8 mm	5.8 mm	6.35 mm
Built-in features	AMPLIFIER	-	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Communication standards	ATM, SDH, SONET	-	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET
Connection Type	LC CONNECTOR	-	SC CONNECTOR	LC CONNECTOR	MU CONNECTOR	SC CONNECTOR	LC CONNECTOR	MU CONNECTOR	SC CONNECTOR
data rate	2500 Mbps	-	2500 Mbps	2500 Mbps	2500 Mbps	2500 Mbps	2500 Mbps	2500 Mbps	2500 Mbps
Emitter/Detector Type	PIN PHOTODIODE	-	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER	-	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER
Fiber type	9/125, SMF	-	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF
Maximum operating wavelength	1650 nm	-	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm
Minimum operating wavelength	1100 nm	-	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm
Nominal operating wavelength	1310 nm	-	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm
Receive type	DIGITAL	-	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL
minimum return loss	27 dB	-	27 dB	27 dB	27 dB	27 dB	27 dB	27 dB	27 dB
Sensitivity	-21 dBm	-	-21 dBm	-21 dBm	-21 dBm	-21 dBm	-21 dBm	-21 dBm	-21 dBm
Maximum supply voltage	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	-	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Base Number Matches	1	-	1	1	1	1	-	-	-
