Characteristics and dimensions of terminals
Part number 28195.122.179
Claw terminal
Specification for M8 screw
connection
Material
CuZn
Surface /
frSn 3
Colour
Form
Chain form
Normal
Transport
transverse
transport
Assembly
X
Packing unit
300
/ piece
Section area
25.00-35.00
(mm
2
)
Nominal
M8-35
size
Material
thickness
1.20
(mm)
Footnote
Keying R
a
1
19.00
a
2
8.00
b
1
b
2
h
l
1
16.40
3.00
12.30
34.00

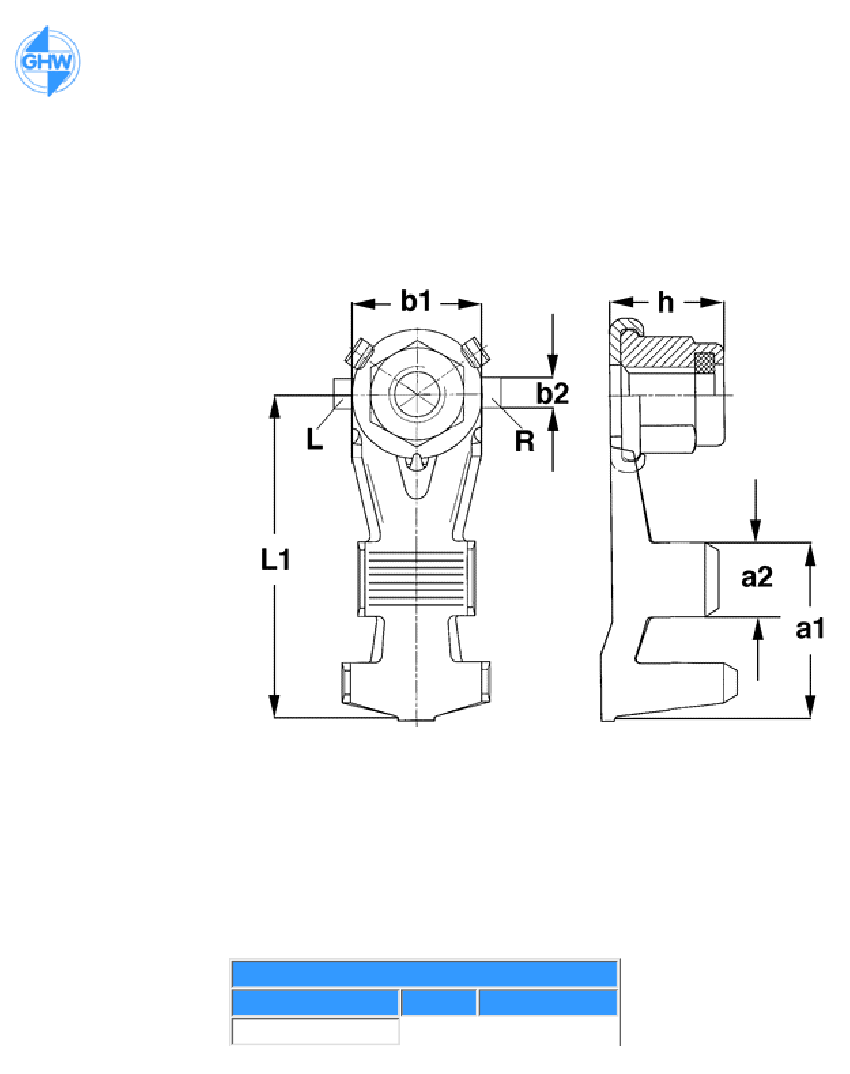

Note: The drawing only gives an overview of the geometry of the part. The crimp area is shown as supplied
in strip form. A technical drawing is available on request.
Part list
Specification
Material Surface / Colour
Hexagonal screw M8
