2N2015 datasheet, PDF - EEWORLD Datasheet

2N2015: DescriptionPower Bipolar Transistor, 10A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-36, Metal, 2 Pin, TO-36, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size190KB，4 Pages; ManufacturerSilicon Transistor Corp.oration

Download Datasheet Parametric View All

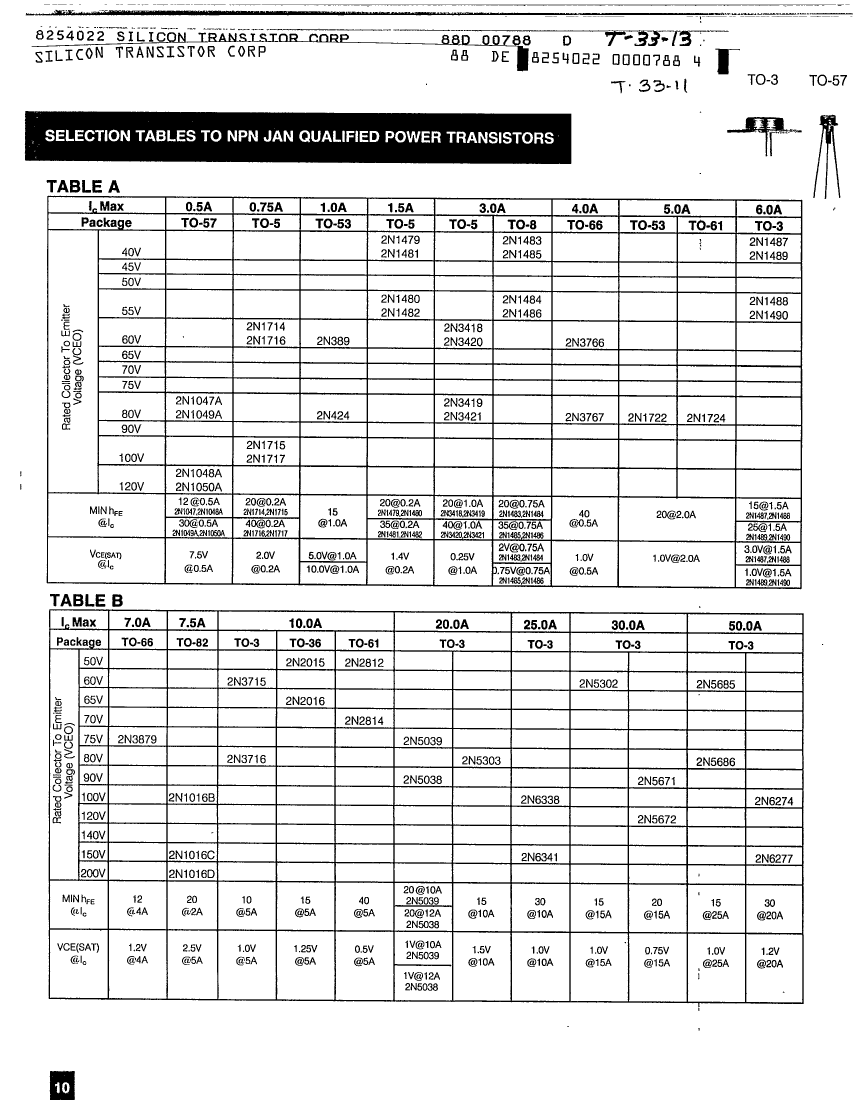

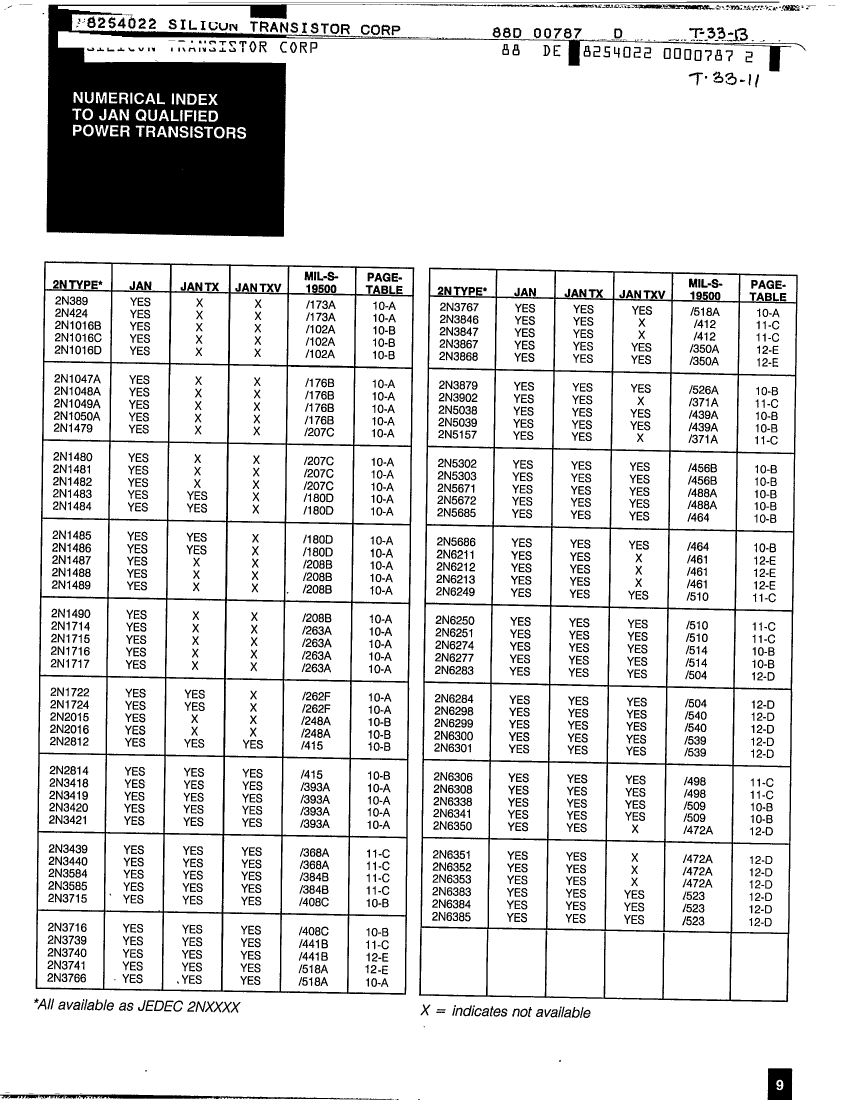

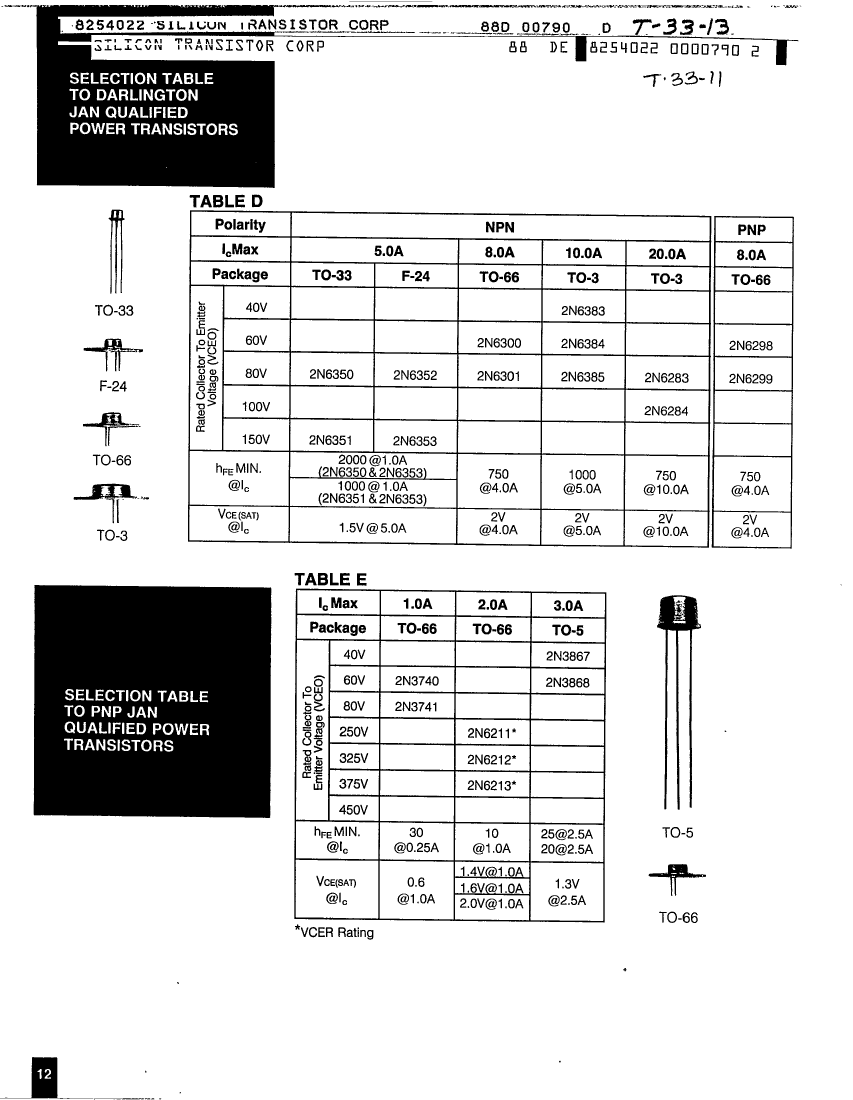

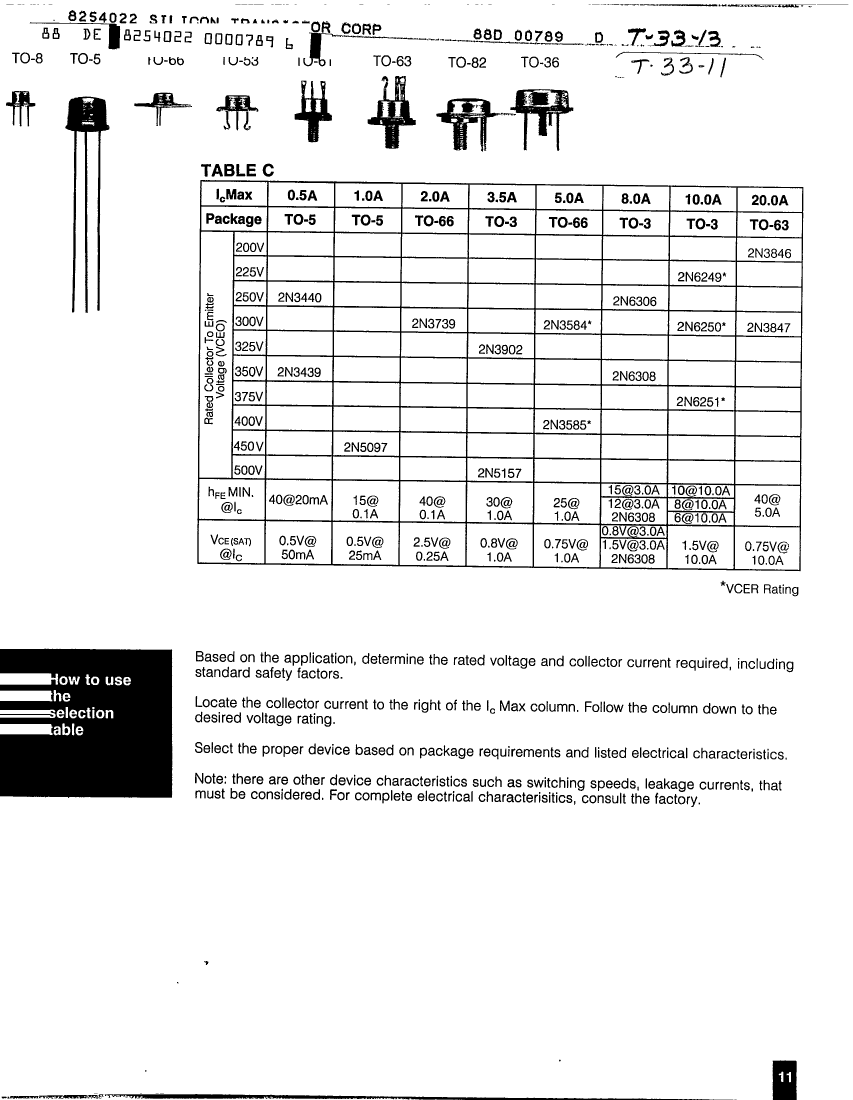

2N2015 Overview

Power Bipolar Transistor, 10A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-36, Metal, 2 Pin, TO-36, 2 PIN

Parameter Name	Attribute value
Parts packaging code	TO-36
package instruction	POST/STUD MOUNT, O-MBPM-D2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-36
JESD-30 code	O-MBPM-D2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	150 W
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	0.012 MHz
Base Number Matches	1
