FULL SIZE CRYSTAL CAN RELAY
5 AMPERE
Series
BN
Product Description

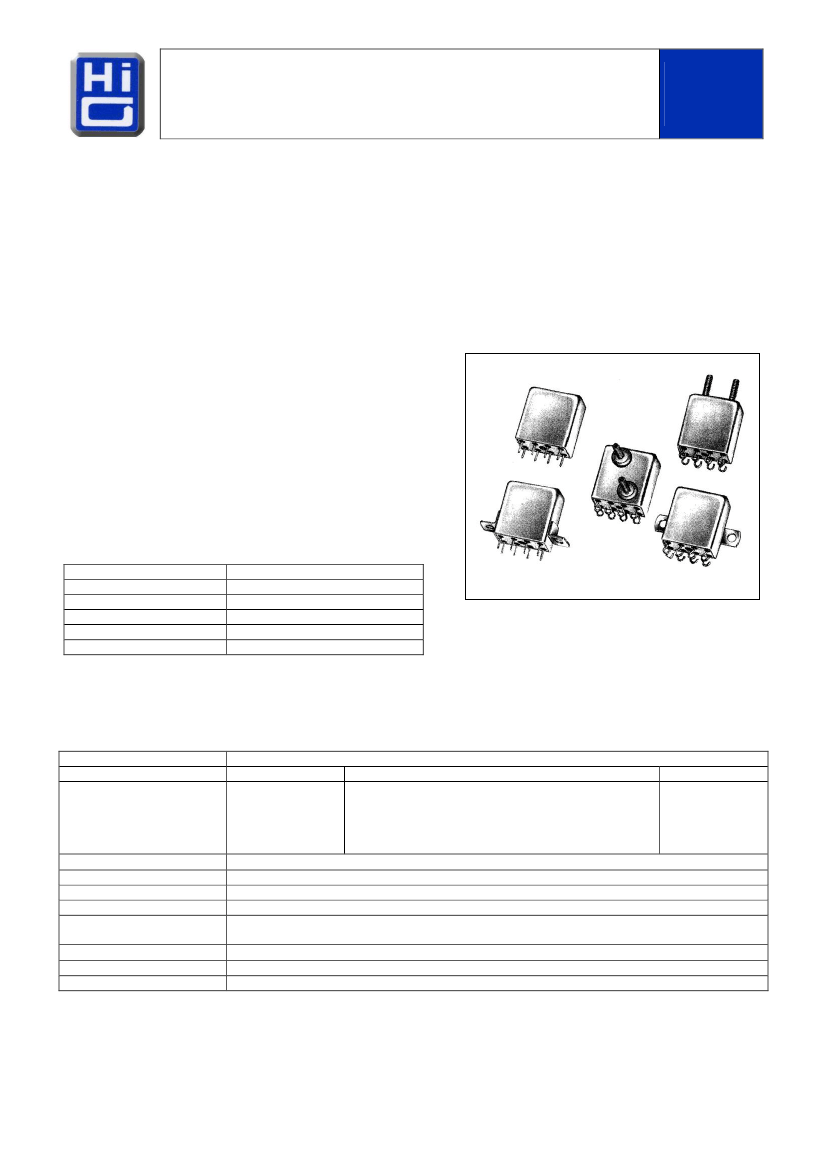

An innovation in design with emphasis on material technology developments have allowed Hi-G to manufacture this high sensitivity 5
amperes crystal can relay. The selection of contacts and all current currying parts, have resulted in this highly reliable, sensitive, full
hermetically sealed workhouse.
This relay meets all the switching and environmental conditions of demanding military environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensures maximum internal cleanliness
-
5 amperes switching
-
1 or 2 form C, SPDT or DPDT contacts, special metal alloy with gold plating.
Series Types
-
-
1BN
2BN
1 form C, SPDT
2 form C, DPDT
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Acceleration
Sealing
Weight
- 65°C to + 125°C
100 g, 6 ms.
20 g, 10 to 2000 Hz
30 g
All welded, Hermetic
1,0 oz. (28,35 grams) max.
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
Contact Rating
(Note: All ratings with grounded
case)
Contact Resistance
Operate Time
Release Time
Contact Bounce
Dielectric Strength
Insulation Resistance
Intercontact Capacitance
Sensitivity
See Typical Characteristics chart
Type Load
Contact Load
Resistive
5 A / 28 Vdc
3 A / 115Vac, 400 Hz
2 A / 115 Vac, 60 Hz
Overload
10 A / 28 Vdc
Inductive
1 A / 28 Vdc (200 mH)
0,02
max. initial
6,0 ms. max. at 25°C
3,0 ms. max. at 25°C
2,0 ms. max. at 25°C
1.000 Vrms min., 60 Hz, between contact to case, 500 Vrms min., 60 Hz, between
case, at sea level
1.000 M min. all points at 500 Vdc
2,5 pF between contacts
280 mW at pick-up, 1,3 W typical at nominal rated coil voltage, at 25 °C
Cycles min.
100.000
100.000
100.000
100
100.000
contacts and coil to
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
73
REV. 0/2012
FULL SIZE CRYSTAL CAN RELAY
5 AMPERE
Typical Characteristics
Voltage
Code
106
112
126
148
176
Coil Voltage [Vdc]
Nominal
6,0
12,0
26,5
48,0
76,0
Max.
7,2
14,4
32,0
58,0
90,0
Coil Resistance
[Ω]
10% at 25°C
35
140
600
2200
4400
Pick-up
[Vdc]
Max. at 25°C
3,1
6,3
13,0
25,0
35,0
Drop-out
[Vdc]
Min. at 25°C
0,5
0,75
1,5
2,5
3,0
Series
BN
Coil Suppression
[Vdc]
47
47
47
109
109

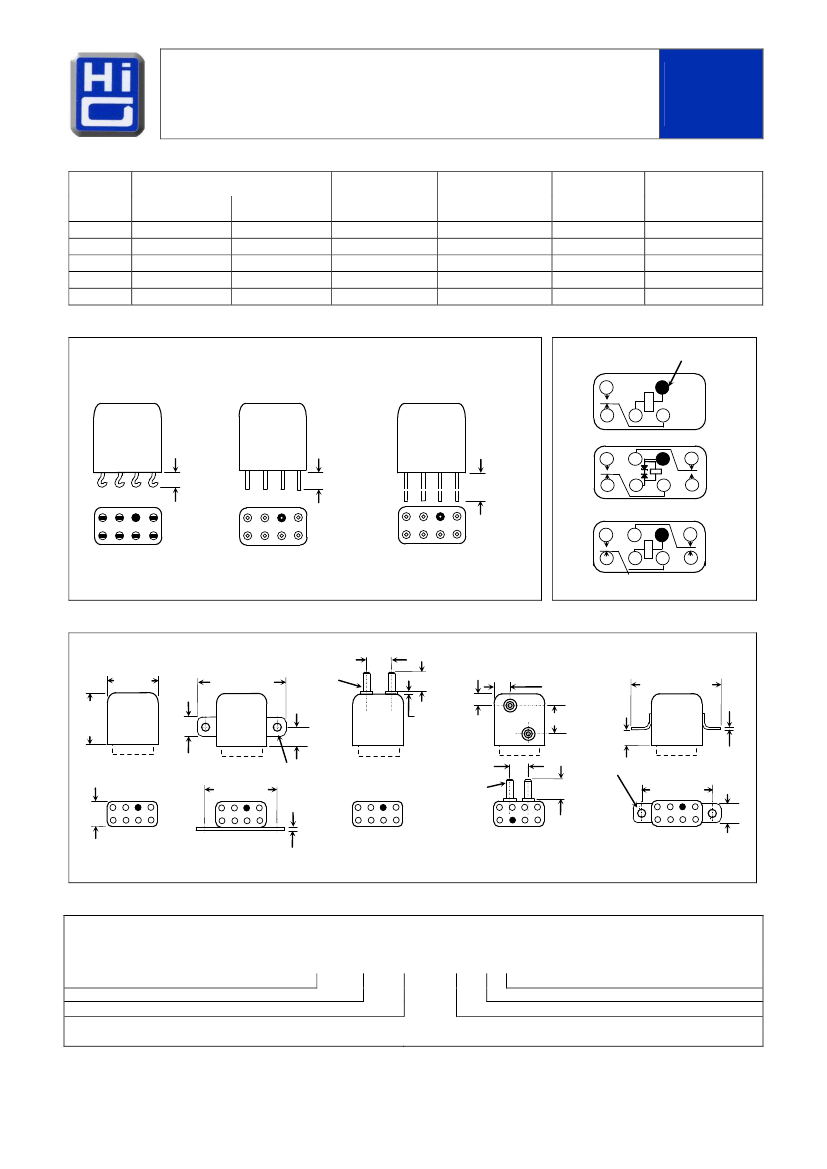

Terminal Styles
1
Solder Lug
Schematic Diagrams
2
Plug in
4
Wire Lead
Blue Bead
1BN
.190 (4,82)
max.
.187 (4,75)
± .020 (0,51)
BN..E
1.500 (38,1)
min.
2BN
Note:
- Dimensions are shown in inches (millimetres)
- Terminal spacing is .200 (5,08). Terminal diameter is .030 (0,76) + .003 (0,08) - .002 (0,05)
Note:
- Schematics are viewed from terminals
Mounting Styles
.412 (10,47)
.810 (20,57)
max.
.900
(22,86)
max.
.370 (9,40)
.410
(10,41)
max.
.250
(6,35)
1.062 (26,97)
.045 (1,14)
.040 (1,02)
Ø .120 (3,05)
.230 (5,8)
.210 (5,3)
4 - 40 UNC
.375 (9,5)
1.320 (33,53)
max.
4 - 40 UNC
.375 (9,53)
.157 (3,99)
.177 (4,53)
.295 (7,49)
.275 (6,99)
.498 (12,65)
.478 (12,14)
.125
(3,18)
.031
(0,79)
Ø .096 (2,44)
1.078 (27,38)
.310
(7,8)
1.320 (33,53)
max.
.030 (0,76)
A
B
C
D
E
Note:
- Dimensions are shown in inches (millimetres)
How to Order (Part Numbering System)
2BN
Series
Terminal Style
Mounting Style
-2
A
- 126 P E
With internal voltage suppressor
Insulating Pad (optional)
Voltage Code
