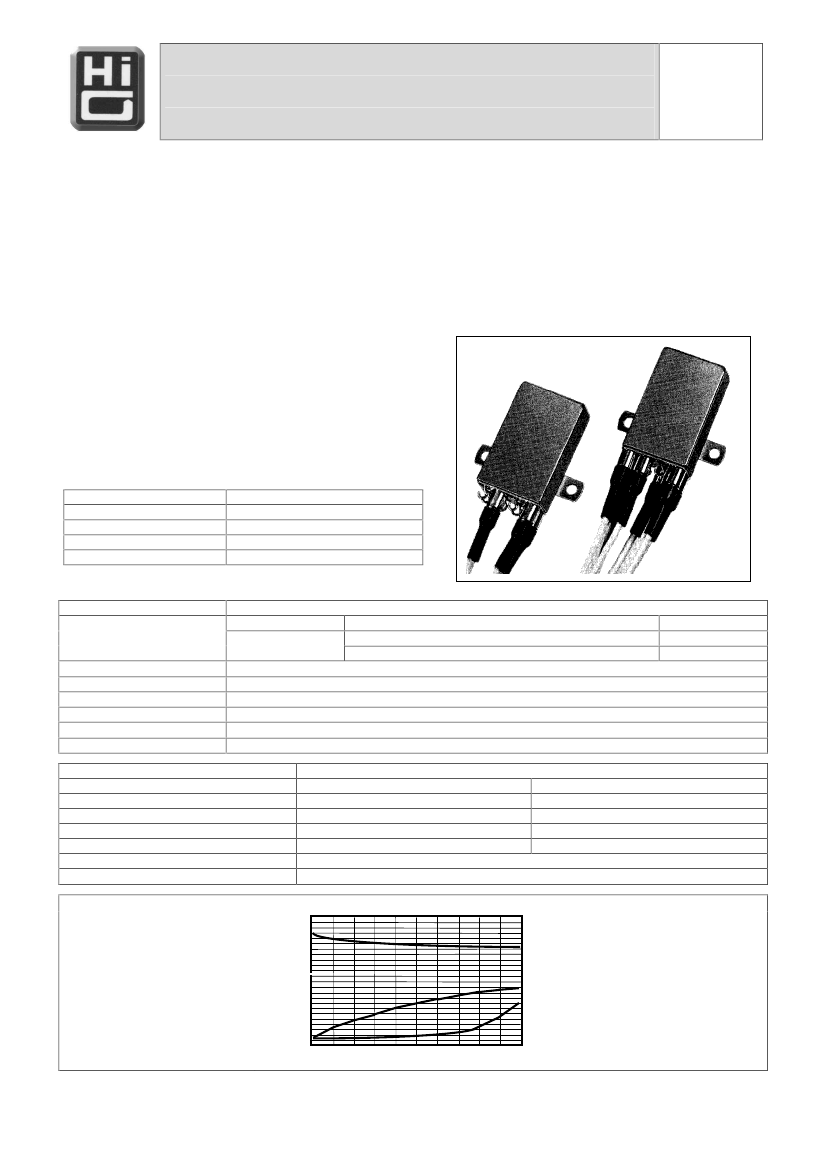

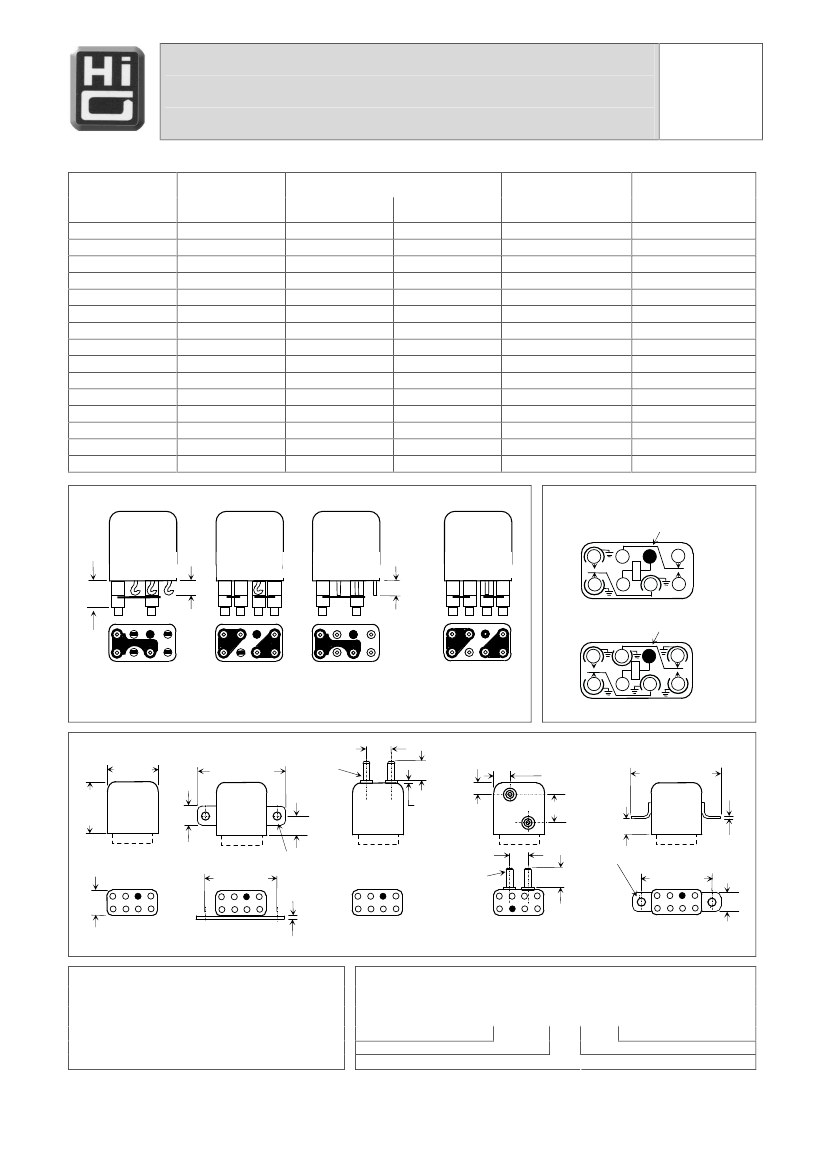

CRYSTAL CAN
RADIO FREQUENCY RELAY
75 WATT, 40 MilliWatts SENSITIVE
Product Description
Series
RFBC
This series of coaxial terminated hermetically sealed relays have been designed to provide reliable switching functions in the most
demanding radio frequency applications. The use of 2BC relays in the basic construction, has been coupled with a unique and improved
termination network to insure faultless performance under severe environmental conditions.
The design concepts employed in each of this series have been time tested through thousands of hours testing and millions of field
operations to provide the highest degree of reliability.
The following construction features ensure the highest reliability in extreme environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensures maximum internal cleanliness
-
Low level to 2 amperes auxiliary switching
-
1 or 2 form C, RF contacts, special metal alloy with gold plating
-
Frame, armature designs and force / mass ratio provides exceptional shock and vibration immunity
-
Coax interconnections
-
200 watt RF carry capability
-
75 watt RF switching capability
-
Terminated with 6 inches length RG 196A/u Teflon cable.
-
-
Series Types
RFBC
2RFBC
1 form C, SPDT
2 form C, DPDT
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Acceleration
Sealing
- 65°C
to + 125°C
100 g, 6 ms.
15 g, 10 to 2000 Hz
30 g
All welded, Hermetic
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
See Typical Characteristics chart
Type Load
Contact Load
2 A / 28 Vdc (aux)
Resistive
75 Watts RF Switching, 200 Watts carry (cold switching)
0,05
max. initial aux. Contact
15,0 ms. max. at 25°C
3,0 ms. max. at 25°C
500 Vrms, 60 Hz, all mutually insulated points, at sea level
1.000 M min. all points at 500 Vdc
40 mW at pick-up, at 25
°C
Cycles min.
100.000
100.000
Contact Rating
Contact Resistance
Operate Time
Release Time
Dielectric Strength
Insulation Resistance
Sensitivity
Frequency range
Voltage Standing Wave Ratio (VSWR)
Insertion Loss
Crosstalk
Power Switching
Power Handling
Characteristic Impedance
0 to 500 MHz (derated characteristics to 1000 MHz)
Typical at 100 MHz
Typical at 500 MHz
< 1,1 : 1
< 1,2 : 1
0,16 dB
0,5 dB
50 dB
40 dB
75 Watts
50 Watts
200 Watts max.
50 or 75
(other impedances available on special order)
100
80
60
40
20
Figure 1
–
Radio Frequency Curves
Note:
Typical characteristics are based on
factory knowledge. Test to ensure
compliance, are not performed.
Values shown are in a 50
impedance coaxial system.
dB
1,4
C
1,3
VSWR
1,2
1,1
A
–
Insertion loss
B
–
Return loss (VSWR)
C
–
Isolation across contacts (Crosstalk)
0,4
0,3
0,2
A
0,1
B
0
100
200
300
400
500
FREQUENCY (MHz)
Hi-G ITALIA S.r.l.
Tel: + 39 06 9699666
SS. Appia Km. 56.420
Fax: + 39 069698688
Cisterna di Latina - Italy
96
REV. 10/2006
CRYSTAL CAN
RADIO FREQUENCY RELAY
75 WATT, 40 MilliWatts SENSITIVE
Typical Characteristics
Nominal Rated Coil
Voltage
Code
101
102
103
104
105
106
107
109
112
113
118
120
128
135
140
Coil Resistance
10% at 25°C
20
30
50
75
100
200
300
500
875
1000
2000
2500
5000
8000
10000
Voltage (Vdc)
1,8
2,2
2,8
3,5
4,0
5,7
7,0
9,0
12,0
12,6
18,0
20,0
28,0
36,0
40,0
Current (mA)
89,2
73,0
56,6
46,2
40,0
28,4
23,0
17,8
13,5
12,6
8,9
8,0
5,6
4,5
4,0
Pick-up
mA
Max. at 25°C
44,6
36,5
28,3
23,1
20,0
14,2
11,5
8,9
6,8
6,5
4,5
4,0
2,8
2,3
2,0
Series
RFBC
Drop-out
mA
Min. at 25°C
4,5
3,7
2,8
2,3
2,0
1,4
1,2
0,9
0,7
0,6
0,5
0,4
0,3
0,2
0,2
Terminal Styles
.400
(10,16)
max.
Schematic Diagrams
1 Pole RF, 1 Pole aux.
Blue Bead
.190
(4,82)
max.
.187 (4,75)
± .020 (0,51)
2RF Poles
Blue Bead
Note:
- Dimensions are shown in inches (millimetres)
- Terminal spacing is .200 (5,08), all headers. Aux. Terminal diameter is .030 (0,76) all headers
-2-
-1-
Note:
- Schematics are viewed from terminals
.412 (10,47)
Mounting Styles
.810 (20,57)
max.
1.281
(32,54)
max.
.370 (9,40)
.410
(10,41)
max.
.250
(6,35)
Ø .120 (3,05)
1.062 (26,97)
.045 (1,14)
.040 (1,02)
1.320 (33,53)
max.
4 - 40 UNC
.375 (9,53)
.157 (3,99)
.177 (4,53)
.295 (7,49)
.275 (6,99)
.885 (22,48)
.865 (21,97)
.125
(3,18)
.230 (5,8)
.210 (5,3)
1.320 (33,53)
max.
.030 (0,76)
.031
(0,79)
Ø .096 (2,44)
.375 (9,5)
1.078 (27,38)
.310
(7,8)
4 - 40 UNC
A
B
Note:
- Dimensions are shown in inches (millimetres)
Note:
E
D
C
How to Order (Part Numbering System)
1 Pole
RFBC - 2 A - 128
2 Poles
2RFBC - 2 A - 128
Contact factory for other cable types and lengths
Series Type
Terminal Style
Voltage Code
Mounting Style
Hi-G ITALIA S.r.l.
Tel: + 39 06 9699666
SS. Appia Km. 56.420
Fax: + 39 069698688
Cisterna di Latina - Italy
97
REV. 10/2006
