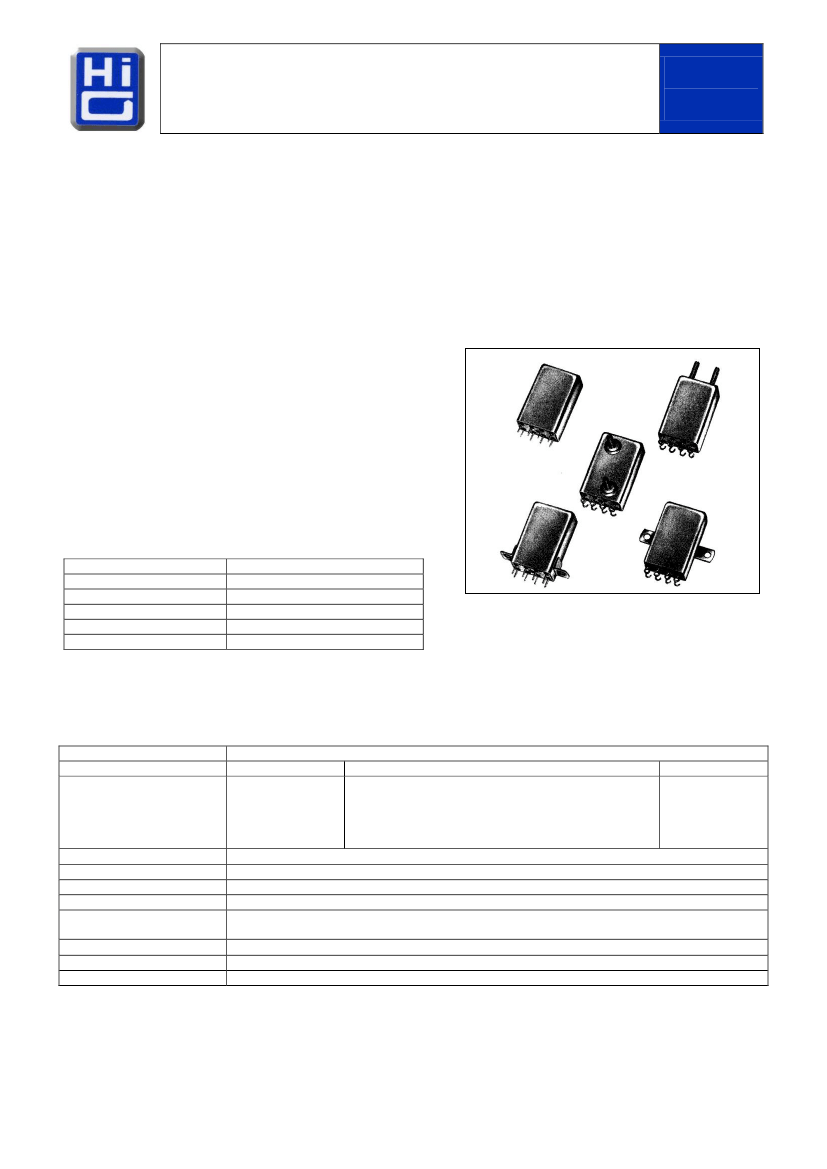

FULL SIZE CRYSTAL CAN RELAY
5 AMPERE SENSITIVE
Series
BCN
Product Description
An innovation in design with emphasis on material technology developments have allowed Hi-G to manufacture this high sensitivity 5
amperes crystal can relay. The selection of contacts and all current currying parts, have resulted in this highly reliable, sensitive, full
hermetically sealed workhouse.
This relay meets all the switching and environmental conditions of demanding military environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensure maximum internal cleanliness
-
5 amperes switching
-
1 or 2 form C, SPDT or DPDT contacts, special metal alloy with gold plating.
Series Types
-
-
1BCN
2BCN
1 form C, SPDT
2 form C, DPDT
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Acceleration
Sealing
Weight
- 65°C to + 125°C
100 g, 6 ms.
20 g, 10 to 2000 Hz
50 g
All welded, Hermetic
1,0 oz. (28,35 grams) max.
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
Contact Rating
(Note: All ratings with grounded
case)
Contact Resistance
Operate Time
Release Time
Contact Bounce
Dielectric Strength
Insulation Resistance
Intercontact Capacitance
Sensitivity
See Typical Characteristics chart
Type Load
Contact Load
Resistive
5 A / 28 Vdc
3 A / 115Vac, 400 Hz
2 A / 115 Vac, 60 Hz
Overload
10 A / 28 Vdc
Inductive
1 A / 28 Vdc (200 mH)
0,02
max. initial
15,0 ms. max. at 25°C
4,0 ms. max. at 25°C
2,0 msc. max. at 25°C
1.000 Vrms min., 60 Hz, between contact to case, 500 Vrms min., 60 Hz, between
case, at sea level
1.000 M min. all points at 500 Vdc
2,5 pF between contacts
80 mW at pick-up, 320 mW typical at nominal rated coil voltage, at 25 °C
Cycles min.
100.000
100.000
100.000
100
100.000
contacts and coil to
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
75
REV. 0/2012
FULL SIZE CRYSTAL CAN RELAY
5 AMPERE SENSITIVE

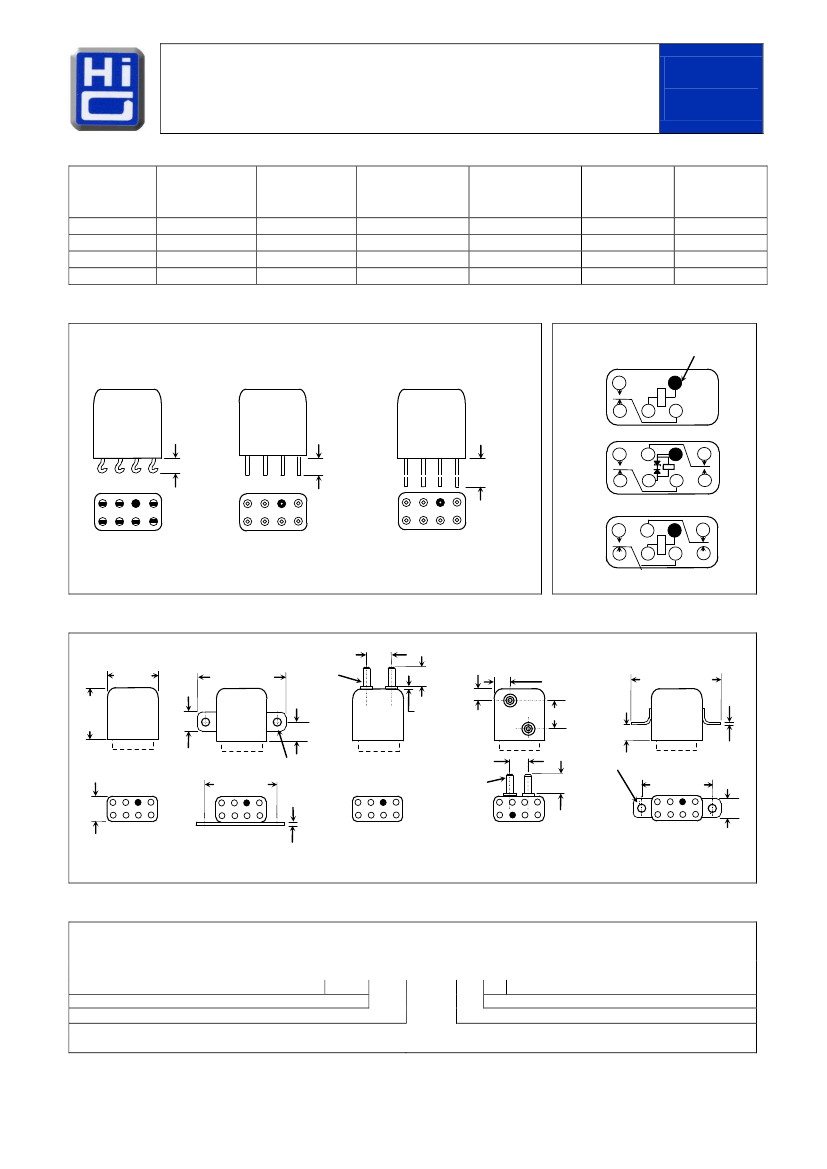

Typical Characteristics
Coil Voltage
Code
106
112
128
140
Nominal
Coil Voltage
[Vdc]
6,0
12,0
28,0
40,0
Nominal
Coil Current
[mA]
54,5
26,7
11,2
8,0
Coil Resistance
[Ω]
at 25°C ± 10%
110
450
2500
5000
Pick-up
[mA]
Max. at 25°C
27,3
13,4
5,6
4,0
Drop-out
[mA]
Min. at 25°C
3,0
1,4
0,6
0,4
Series
BCN
Coil
Suppression
[Vdc]
47
47
47
109
Terminal Styles
1
Solder Lug
Schematic Diagrams
2
Plug in
4
Wire Lead
Blue Bead
1BCN
.190 (4,82)
max.
.187 (4,75)
± .020 (0,51)
1.500 (38,1)
min.
BCN..E
Note:
- Dimensions are shown in inches (millimetres)
- Terminal spacing is .200 (5,08). Terminal diameter is .030 (0,76) + .003 (0,08) - .002 (0,05)
2BCN
Note:
- Schematics are viewed from terminals
Mounting Styles
.810 (20,57)
max.
1.281
(32,54)
max.
1.320 (33,53)
max.
.412 (10,47)
4 - 40 UNC
.375 (9,53)
.157 (3,99)
.177 (4,53)
.295 (7,49)
.275 (6,99)
.885 (22,48)
.865 (21,97)
.125
(3,18)
.230 (5,8)
.210 (5,3)
4 - 40 UNC
.375 (9,5)
1.320 (33,53)
max.
.030 (0,76)
.370 (9,40)
.410
(10,41)
max.
.250
(6,35)
1.062 (26,97)
Ø .120 (3,05)
.045 (1,14)
.040 (1,02)
.031
(0,79)
Ø .096 (2,44)
1.078 (27,38)
.310
(7,8)
A
B
C
D
E
Note:
- Dimensions are shown in inches (millimetres)
How to Order (Part Numbering System)
2BCN - 2
Series
Terminal Style
Mounting Style
A
- 128 P E
With internal voltage suppressor
Insulating Pad (optional) see half crystal series
Voltage Code
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
76
REV. 0/2012
