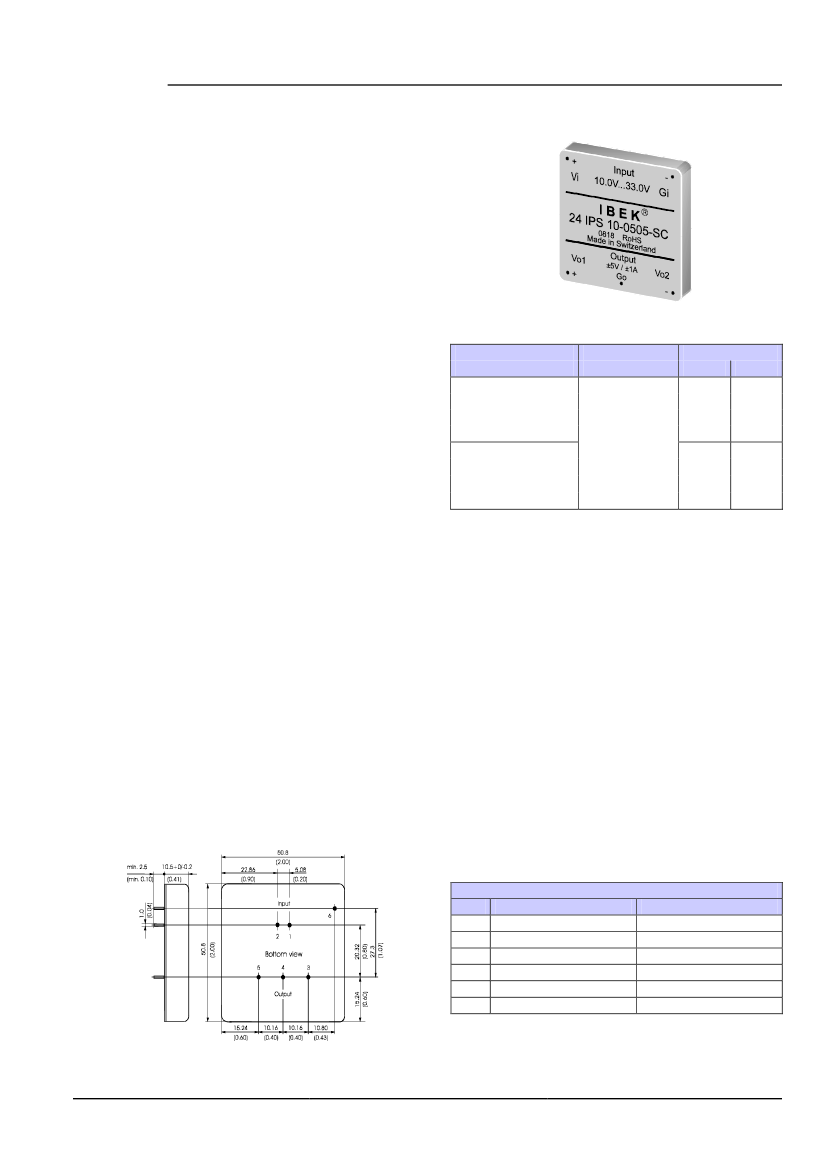

IBEK
€
www.ibek.ch
Single & double outputs
Input to output isolated
•
•
•
•
•
•
•
•
•
10 Watt
DC-DC-Converter
Family IPS10
Ultra wide 1:4 input voltage ranges
Shutdown input (optional)
Very high efficiency, typical 84%
High reliability
Continuous no-load and short-circuit proof
Extended ambient temperature range -40…+85‚C
2" x 2" x 0.41” case with industrial standard pinning
Made in Switzerland, accordingly ISO 9001:2000
2 years warranty
Electromagnetic emission EN 55022 < B
Conducted and radiated emissions
24 IPS
48 IPS
Standard Types
2
Single output
xx IPS10-05-TC
RoHS
xx IPS10-12-TC
RoHS
xx IPS10-15-TC
RoHS
Double output
3
xx IPS10-0505-TC
RoHS
xx IPS10-1212-TC
RoHS
xx IPS10-1515-TC
RoHS
2
Input voltage
VDC
10…33
(nominal 24)
35 V for 500 ms
repetition rate 50 s
45 V for 10 ms
repetition rate 10 s
Output
VDC
mA
5
12
15
5
12
15
2000
833
667
1000
417
333
No load input current
15
10
mA typ.
Input current in shutdown condition
3 mA typ.
Switching frequency
400 kHz typ.
Output voltage accuracy
• 1% max.
Static line regulation
• 15 mV typ.
Static load regulation FL to NL
0…50 mV typ.
Output voltage noise
5 VDC
12 VDC
15 VDC outputs
(20 MHz BW)
50
120
150
mVpp typ.
Efficiency
84% typ.
I/O Electric strength test voltage
1500 VDC
Coupling capacitance
1000 pF
Shutdown input (SD)
Apply -0.3…+2 VDC to shut down (switch off) the
output voltage(s). Normal operation with open pin.
Ambient temperature range
-T: -25…+71‚C;
-S: -40…+85‚C
1
Case temperature range
-T: -25…+95‚C;
-S: -40…+105‚C
Storage temperature range
-T: -55…+105‚C; -S: -55…+105‚C
Case material
Metal with plastic bottom cover, UL94 V-0 rated
MTBF, GB @ 40‚C case
> 1.850.000 hours
(MIL-HDBK-217F, Notice 2)
1
Power
18…75
(nominal 48)
To complete type number replace "xx" by the required nominal input
voltage, e.g. 24 IPS10-0505-TC
RoHS
.
3
Double outputs should have symmetrical load conditions to comply
with the specifications listed on the left side.
Extended temperature range -S is available for all types.
Replace -T by -S on type number, e.g. 24 IPS10-0505-SC
RoHS
.
Modifications and customs are available upon request.
derating from 100% to 80% load for 71‚C to 85‚C
Dimensions in mm (inches)
Pin
1
2
3
4
5
6
4
4
Pin Configuration
Single output
+Vi
-Gi
+Vo
No Pin
-Go
SD
Double output
+Vi
-Gi
+Vo
Go
-Vo
SD
Optional shutdown pin. If required replace C by G on type number,
e.g. 24 IPS10-05-TG
RoHS
.
Specifications subject to change without notice
15.12.2008
