MASW-007221
GaAs SPDT Switch
DC - 3.0 GHz
Features
•
•
•
•
•
•
•
•
Low Insertion Loss: < 0.3 dB @ 900 MHz
Low Power Consumption: < 15 µA @ -2.3 Volts
Positive or Negative 2.3 to 8 Volt Control
Lead-Free SC-70 (SOT-363) Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant version of SW-456
Rev. V1
Functional Schematic: Positive Control
Voltage
PIN 1
RF1
1000 pF
GND
RFC
1000 pF
RF2
1000 pF
V
CTL
2
V
CTL
1
Description
M/A-COM’s MASW-007221 is a GaAs monolithic
switch in a lead-free SC-70 (SOT-363) surface
mount plastic package. The MASW-007221 is
ideally suited for applications where very low power
consumption, low insertion loss, very small size, and
low cost are required. Typical applications are in
dual band systems where switching between small
signal components is required, i.e. filter banks,
single-band LNA’s, converters, etc.
The MASW-007221 can be used in applications up
to 0.25 watts in systems such as cellular, PCS,
DCS1800, GSM, CDMA, W-CDMA and other
analog / digital wireless communication systems.
The MASW-007221 is fabricated using a mature 0.5
micron PHEMT process. The process features full
passivation for performance and reliability.
Functional Schematic: Negative Control
Voltage
PIN 1
RF1
V
CTL
1
GND
RFC
RF2
V
CTL
2
Pin Configuration
PIN
1
2
Function
RF1
GND
RF2
V
CTL
2
RFC
V
CTL
1
Description
RF In/Out
RF Ground
RF In/Out
Voltage Control 2
RF Common
Voltage Control 1
2,3
Ordering Information
1
Part Number
MASW-007221-000000
MASW-007221-TR3000
Package
Bulk Packaging
3000 piece reel
3
4
5
6
1. Reference Application Note M513 for reel size information.
Absolute Maximum Ratings
Parameter
Input Power (0.5 - 3.0 GHz)
3 V Control
5 V Control
Operating Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+30 dBm
+33 dBm
+8.5 volts
-40°C to +85°C
-65°C to +150°C
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASW-007221
GaAs SPDT Switch
DC - 3.0 GHz
Parameter
Insertion Loss
5
Rev. V1

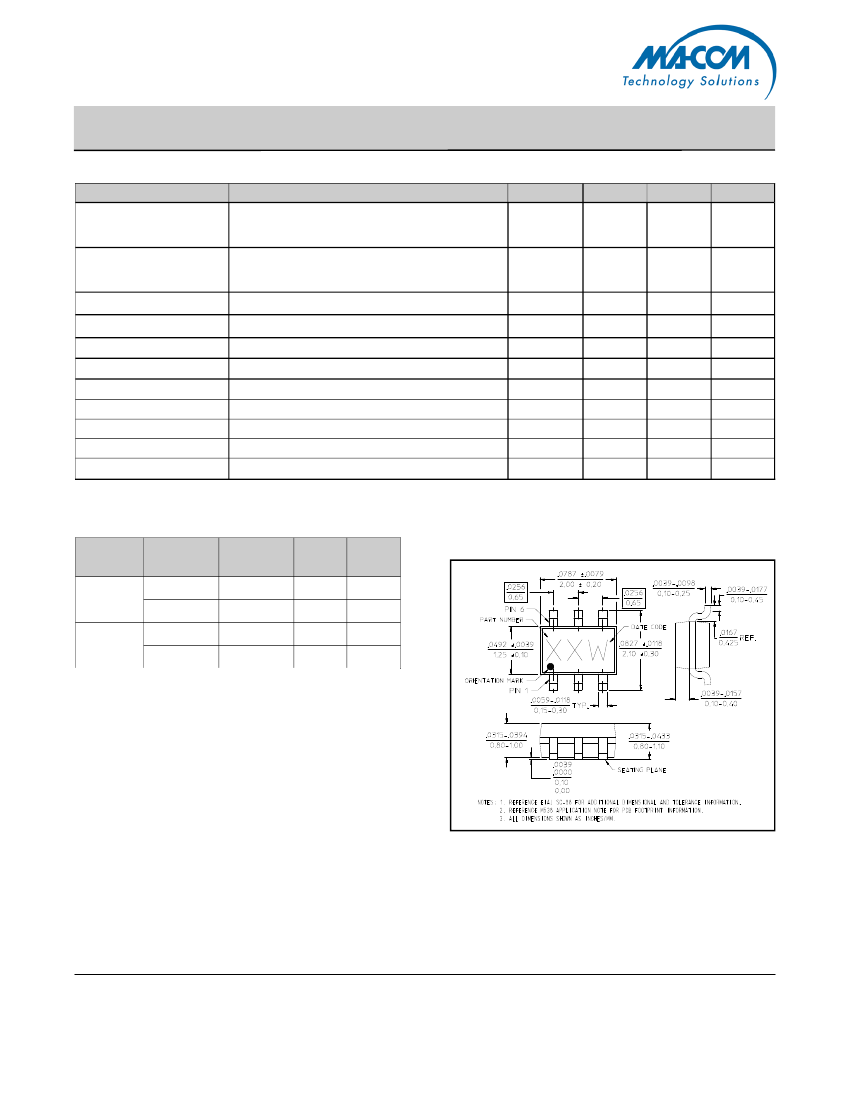

Electrical Specifications:
T
A
= 25°C, V
CTL
= 0, -2.3 volts (unless otherwise specified) , Z
0
= 50
Test Conditions
DC - 1 GHz
1 - 2 GHz
2 - 3 GHz
DC - 1 GHz
1 - 2 GHz
2 - 3 GHz
DC - 3 GHz
500 MHz - 3 GHz
500 MHz - 3 GHz
2-Tone 900 MHz, 5 MHz spacing (3.0 V)
2-Tone 900 MHz, 5 MHz spacing (3.0 V)
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF, Control to 10% RF
In-Band
V
CTL
= -2.3 V
Units
dB
dB
dB
dB
dB
dB
Ratio
dBm
dBm
dBm
dBm
ns
ns
mV
µA
Min.
—
—
—
20
15
10
—
—
—
—
—
—
—
—
—
Typ.
0.35
0.45
0.56
22
17
12
1.2:1
21
27
81
52
25
25
25
4
Max.
0.5
0.6
0.8
—
—
—
1.4:1
—
—
—
—
—
—
—
15
Isolation
V
SWR
P
1dB
(2.3V supply)
P
1dB
(3V supply)
Input IP
2
Input IP
3
Trise, Tfall
Ton, Toff
Transients
Control Current
4. External DC blocking capacitors are required on all RF ports when using positive voltage control.
5. Insertion loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 MHz - 1 GHz, 39 pF for 0.5 GHz - 3 GHz.
Truth Table
Mode
(Control)
Positive
6
V1
0 ± 0.2 V
+2.3 to +8 V
V2
+2.3 to +8 V
0 ± 0.2 V
-2.3 V to -8 V
0 ± 0.2 V
RFC -
RF1
Off
On
On
Off
RFC -
RF2
On
Off
Off
On
Lead-Free
SC-70 (SOT-363)
†
Negative
7
0 ± 0.2 V
-2.3 V to -8 V
6. External DC blocking capacitors are required on all RF ports.
1000 pF capacitors used for positive control voltage. For
higher frequency operation, smaller value DC blocking ca-
pacitors can be substituted.
7. If negative control is used, DC blocking capacitors are not
required on RF ports.
Qualification
Qualified to M/A-COM
Process Flow –2.
specification
REL-201,
Handling Procedures
Please observe the following precautions to avoid
damage:
†
Reference Application Note M538 for lead-free solder reflow
recommendations.
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these devices.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASW-007221
GaAs SPDT Switch
DC - 3.0 GHz

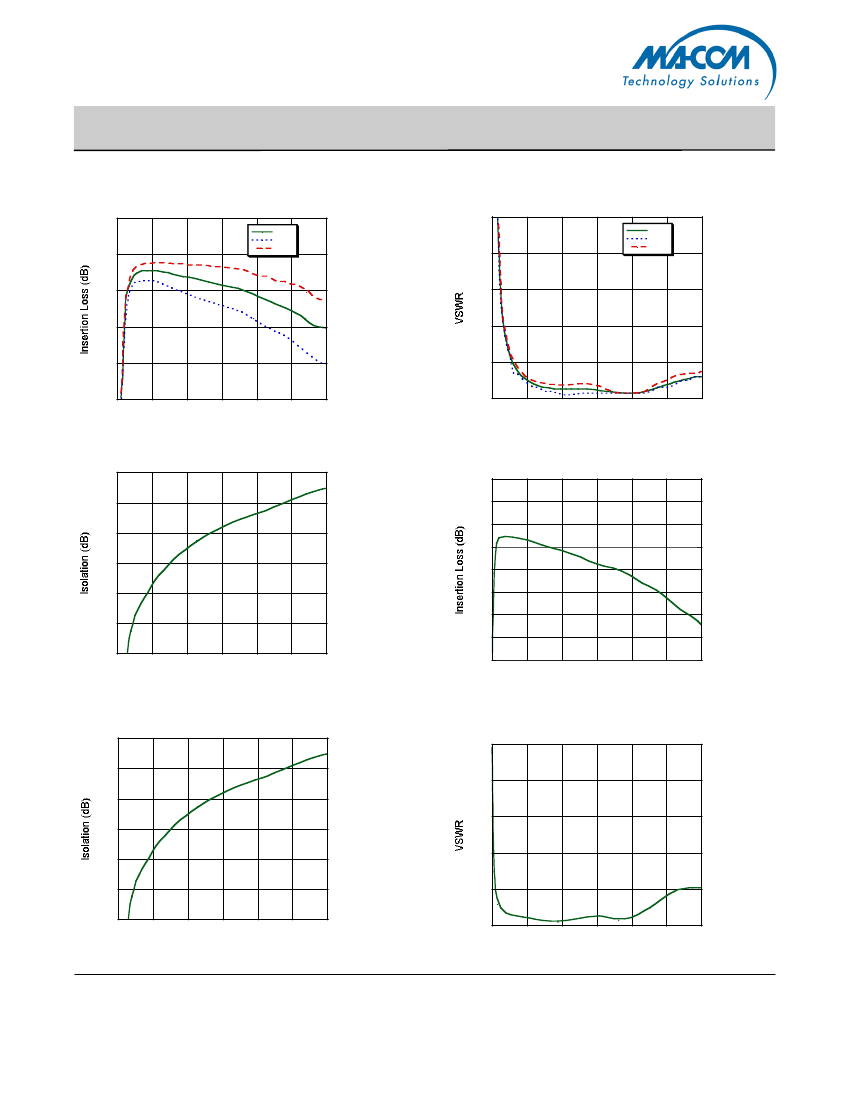

Typical Performance Curves
Insertion Loss vs. Frequency Over Temperature
0.0
+25 C
-40 C
+85 C
Rev. V1
VSWR Over Temperature
2.0
+25 C
-40 C
+85 C
-0.2
1.8
-0.4
1.6
-0.6
1.4
-0.8
1.2
-1.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
1.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
Isolation vs. Frequency Over Temperature
-10
Insertion Loss vs. Frequency
(+2.3 V Control, 1000 pF Capacitor on RF Ports)
0.0
-0.1
-0.2
-15
-20
-0.3
-25
-0.4
-0.5
-0.6
-35
-0.7
-40
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-0.8
0.0
0.5
1.0
1.5
2.0
2.5
3.0
-30
Frequency (GHz)
Frequency (GHz)
Isolation vs. Frequency
(+2.3 V Control, 1000 pF Capacitor on RF Ports)
-10
VSWR vs. Frequency
(+2.3 V Control, 1000 pF Capacitor on RF Ports)
2.0
-15
1.8
-20
1.6
-25
-30
1.4
-35
1.2
-40
0.0
0.5
1.0
1.5
2.0
2.5
3.0
1.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
