SAW components
SAW RF filter
Data sheet
Table of contents
B4360
2441.75 MHz
1
Application.........................................................................................................................................
3
2
Features............................................................................................................................................
3
3
Package............................................................................................................................................
4
4
Pin configuration................................................................................................................................
4
5
Matching circuit.................................................................................................................................
5
6
Characteristics...................................................................................................................................
6
7
Maximum ratings...............................................................................................................................
7
8
Transmission coefficient....................................................................................................................
8
9
Reflection coefficients........................................................................................................................
9
10
Packing material............................................................................................................................
10
11
Marking..........................................................................................................................................
13
12
Soldering profile.............................................................................................................................
14
13
ESD protection of SAW filters........................................................................................................15
14
Annotations...................................................................................................................................
16
15
Cautions and warnings..................................................................................................................
17
Important notes.................................................................................................................................
18
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 18
December 02, 2016
SAW components
SAW RF filter
Data sheet
1
Application
Low-loss RF filter for bluetooth
No external matching components required
Usable pass band 83.5 MHz
2
Features
Package size 1.1±0.1 mm × 0.9±0.1 mm
Package height 0.45 mm (max.)
Approximate weight 2 mg
RoHS compatible
Package for Surface Mount Technology (SMT)
Ni/Au-plated terminals
Filter surface passivated
Electrostatic Sensitive Device (ESD)
AEC-Q200 qualified component family
(Grade 1: −40 °C to +125 °C)
B4360
2441.75 MHz

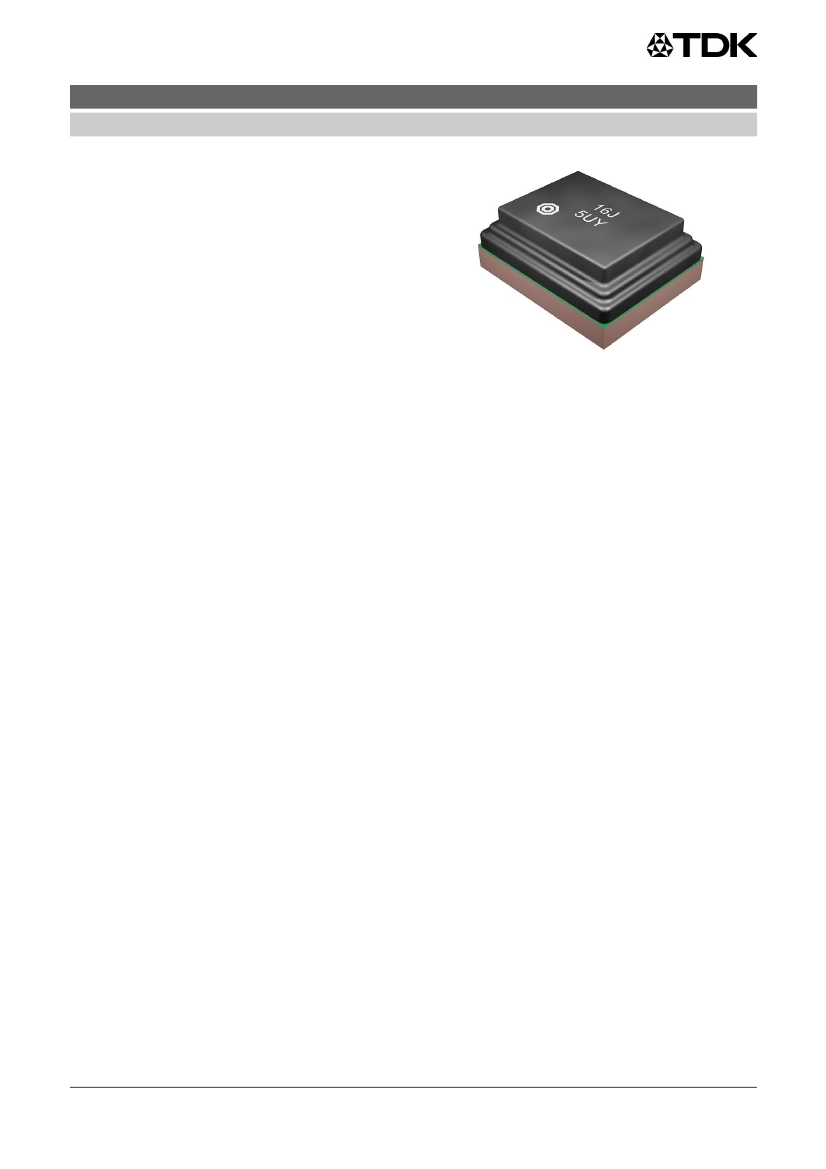

Figure 1:
Picture of component
with example of product marking.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 18
December 02, 2016
