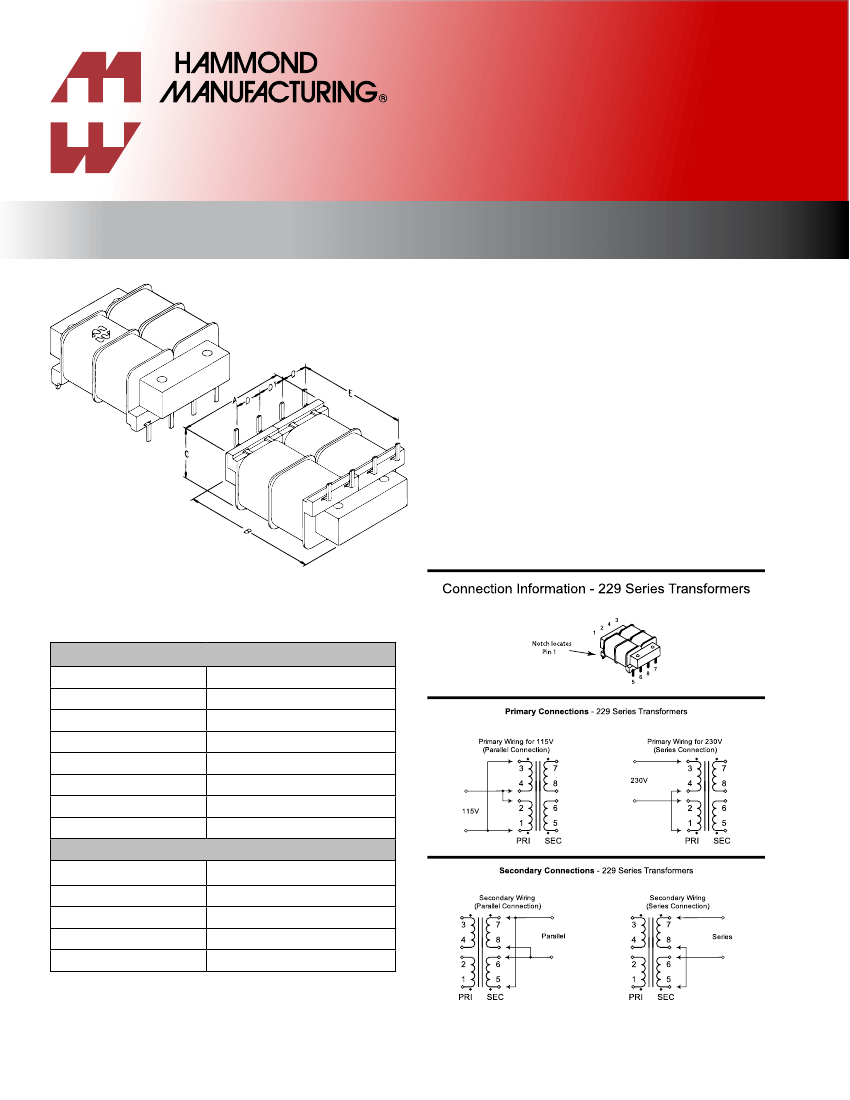

www.hammondmfg.com
229D24
Power Transformer - Dual Primary
Low Voltage PC Board Mount - Low Profile
Features
•
•
Low profile mounting, dual - split bobbin design.
Low primary to secondary coupling, balanced wind-
ings, no electrostatic shield required and low EMF
radiation due to semi-toroidal design.
•
•
•
•
Universal dual primary 115/230V - 50/60 Hz.
High insulation - Hipot of 1,750V RMS.
Class B insulation - 130 degrees C.
C UL US recognized.
Mechanical
A
B
C
D
D1
E
PC Board Spacing
Pin Size
Size (VA)
Primary
Secondary (RMS) Series
Secondary (RMS) Parallel
Regulation
2.50” (64 mm)
3.12” (79 mm)
1.38” (35 mm)
0.60” (15 mm)
0.66” (17 mm)
2.18” (55 mm)
1.50” (38 mm)
0.04” x 0.04” (1 mm x 1 mm)
Electrical
48
115 /230V, 50 /60Hz
24V C.T. @ 2A
12V @ 4A
15%
