WWW.PHIHONG.COM

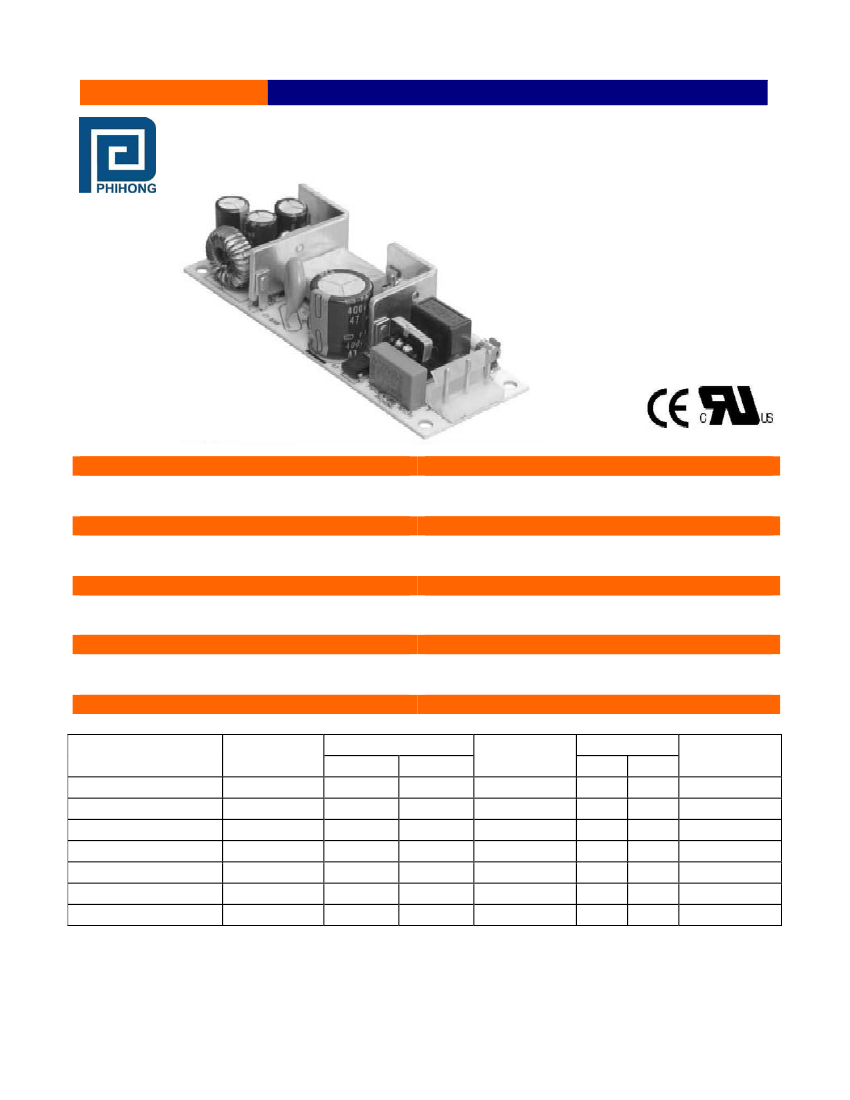

15W Universal Input, Compact PCB, 3.3 to 24V DC

PSA15LN3 Single Output OEM Open Frame

Features



Compact 1.57 x 4.33 PCB



Cispr 22B; FCC B EMI

Applications



Networking



Compact Equipment

Safety Approvals



cUL/UL

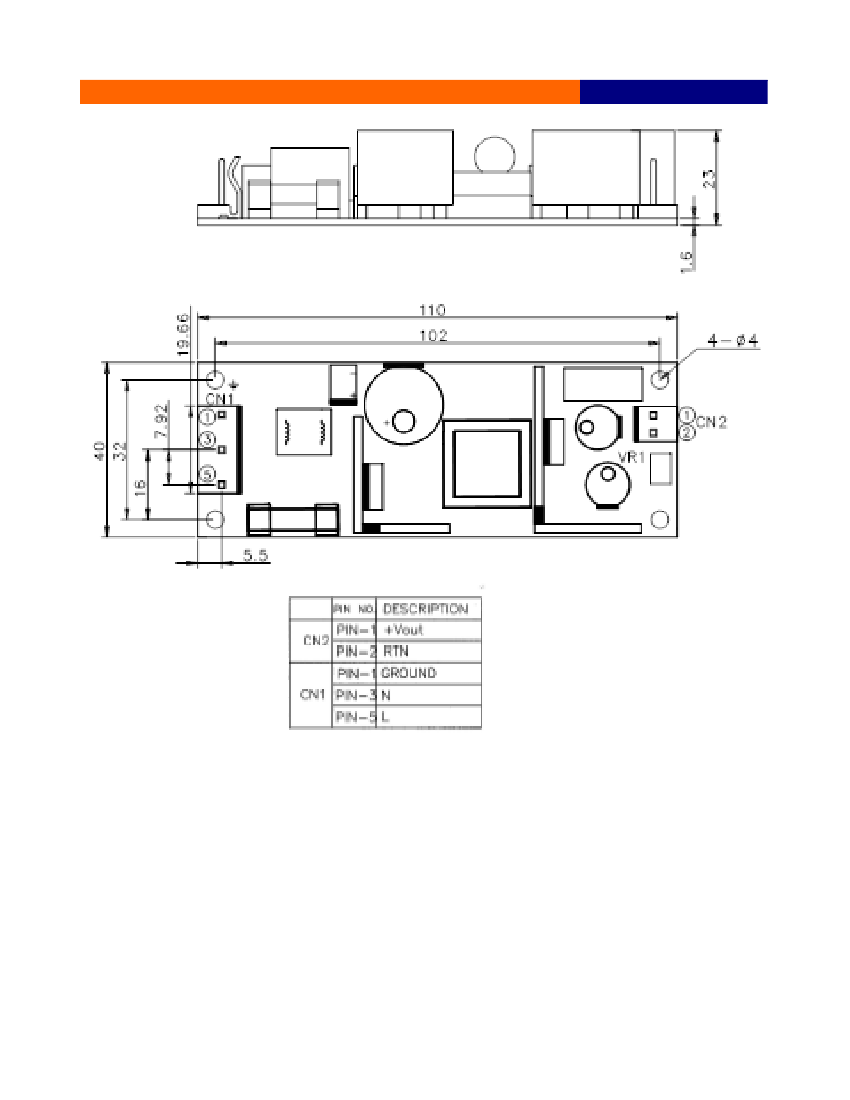

Mechanical Characteristics



Length: 110mm (4.33in)



Width: 40mm (1.57in)

Output Specifications

Model

(3 Wire Version)

PSA15LN3-033**

PSA15LN3-050**

PSA15LN3-090**

PSA15LN3-120**

PSA15LN3-150**

PSA15LN3-180**

PSA15LN3-240**

DC Output

Voltage

3.3V

5.0V

9.0V

12V

15V

18V

24V

Load

Min.

0A



Low 1 Inch Profile

+/-5% Voltage Ajustement

Peripherals and Terminals

Microcomputers

CE

Height: 25.4mm (1.00in)

Weight: 100g (3.5oz)

Max.

3.0A

1.67A

1.25A

1.00A

0.83A

0.63A

Ripple*

P-P (max.)

50mV

90mV

120mV

150mV

180mV

240mV

Regulation

Line Load

±1% ±3%

±1% ±2%

Max

Power

10W

15W

*Measured at maximum load by using a 12-inch twisted pair, terminated with a 10mfd capacitor and 0.1mfd ceramic in

parallel.

**Special Order Items. Minimum order of 2000 pieces required. Please contact Phihong USA Sales for more

information.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revised 10/16/2013

PSA15LN3-150 Related Products

	PSA15LN3-150	PSA15LN3-090	PSA15LN3-033
Description	AC-DC Regulated Power Supply Module, 15W	AC-DC Regulated Power Supply Module, 15W	AC-DC Regulated Power Supply Module, 10W
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, UL	CE, UL	CE, UL
Efficiency (main output)	65%	65%	65%
high	23 mm	23 mm	23 mm
Maximum input voltage	264 V	264 V	264 V
Minimum input voltage	90 V	90 V	90 V
length	110 mm	110 mm	110 mm
Maximum grid adjustment rate	1%	1%	1%
Maximum load regulation	2%	2%	3%
Maximum operating temperature	50 °C	50 °C	50 °C
Maximum output current	1 A	1.67 A	3 A
Nominal output voltage	15 V	9 V	3.3 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Maximum total power output	15 W	15 W	10 W
width	40 mm	40 mm	40 mm
Base Number Matches	1	1	1
