PSA110-105: DescriptionAC-DC Regulated Power Supply Module, 110W; CategoryPower/power management The power supply circuit; File Size148KB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric View All

PSA110-105 Overview

AC-DC Regulated Power Supply Module, 110W

PSA110-105 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, CSA, TUV, UL
Efficiency (main output)	70%
high	43.6 mm
Maximum input voltage	264 V
Minimum input voltage	90 V
length	172.72 mm
Maximum grid adjustment rate	2%
Maximum load regulation	2%
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum output current	22 A
Nominal output voltage	5 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple voltage (main output)	0.01768 Vrms
Maximum total power output	110 W
Warm up time	0.016 s
width	93.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

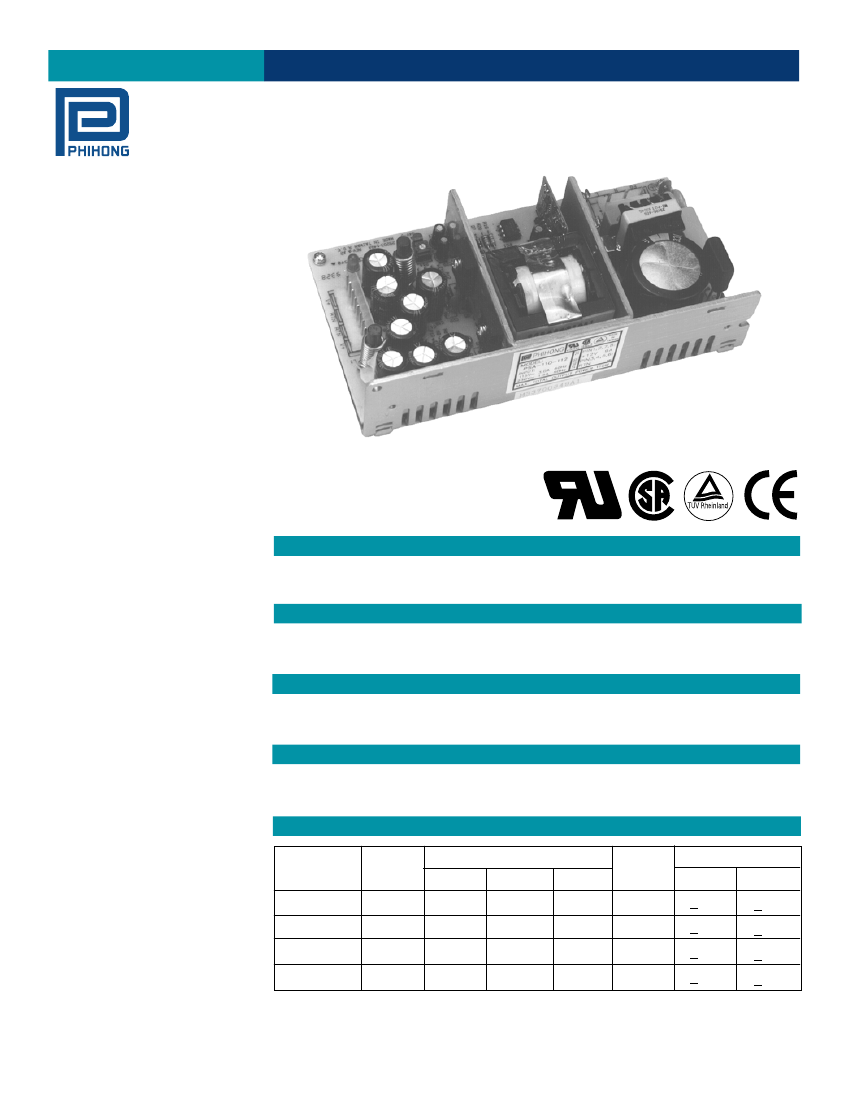

WWW.PHIHONG.COM

110W Universal Industrial Series

PSA110 Single Output L-Bracket

Features

• Integral EMI filter

• 100% Burn-In

Applications

• Network

• Computer Peripherals

Safety Approvals

• UL 1950

• CSA 22.2 234

• Low Profile Design

• Over Voltage Protection

• Low Profile Racks

• Business Machines

• TUV EN 60950

• CE (Low Voltage Directive)

• Height: 43.6mm (1.7in)

• Weight: 0.72kgm (1.6Ib)

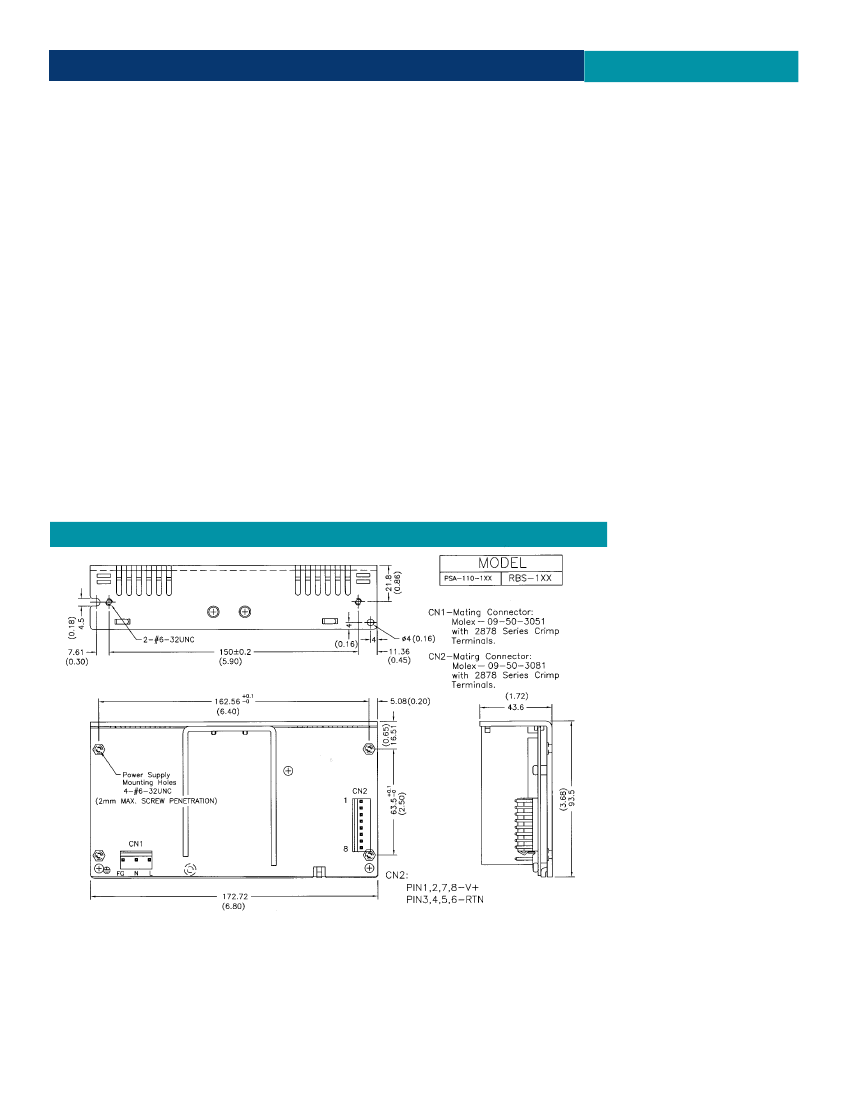

Mechanical Characteristics

Dimensions: • Length: 172.7mm (6.81in)

• Width: 93.5mm (3.7in)

Output Specifications

Model

DC Output

Voltage

Min.

Load

Convection

Ripple

Max.

(2)

P-P

Regulation

Line

Load

PSA110-105

PSA110-112

PSA110-115

PSA110-124

+5V

+12V

+15V

+24V

16A

3.3A

22A

7.3A

4.5A

50mV

120mV

150mV

240mV

+2%

(1) Measured by using a 12 inch twisted pair terminated with a 10mfd capacitor and 0.1mfd ceramic

capacitor in parallel with primary and secondary ground holes connected together.

(2) Forced air 30CFM required.
