3-202020G: DescriptionHeat Sink, 2.6ohm, Fin, Pin Fin Array, Omnidirect, Aluminum, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size77KB，1 Pages; ManufacturerCool Innovations Inc

Download Datasheet Parametric Compare View All

3-202020G Overview

Heat Sink, 2.6ohm, Fin, Pin Fin Array, Omnidirect, Aluminum, ROHS COMPLIANT

3-202020G Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
structure	FIN
fin direction	OMNIDIRECT
high	50.8 mm
length	50.8 mm
contour	PIN FIN ARRAY
Thermal resistance	2.6 Ω
Heat Resistant Support Device Type	HEAT SINK
weight	93 g
width	50.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

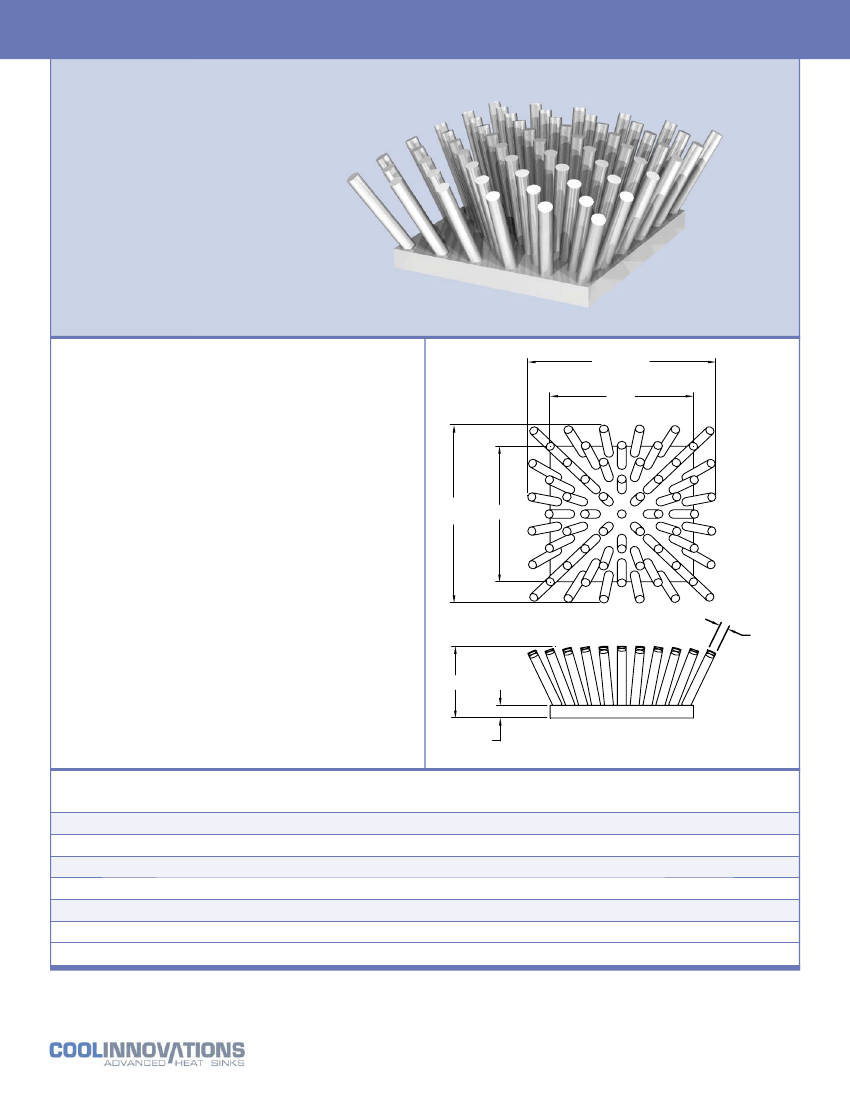

2.00” X 2.00”

G TYPE

FLARED PIN CONFIGURATION

2.6 MAX.

Flared Aluminum Pin Fin Heat Sinks

•

Designed for natural convection cooling

Generate exceptional cooling power

Forged from highly conductive aluminum

Lapped to achieve exceptional base surface ﬁnish

and ﬂatness

Overall height can be customized to any dimension

between 1.0” to 2.0”

Single or multiple pins can be removed to meet

application-speciﬁc requirements

Secondary operations available

(e.g. through holes, threads)

Plating options: Anodize (black/clear), Electroless Nickel

RoHS compliant

2.00

2.6

MAX.

2.00

0.13 DIA.

H

0.19

P/N

3-202010G

3-202012G

3-202014G

3-202016G

3-202018G

3-202020G

Length

in(mm)

2.00(50.8)

Width

in(mm)

2.00(50.8)

Height

in(mm)

1.00(25.4)

1.20(30.5)

1.40(35.6)

1.60(40.6)

1.80(45.7)

2.00(50.8)

Weight

lbs(g)

0.1322(60.0)

0.1468(66.6)

0.1613(73.2)

0.1759(79.8)

0.1905(86.4)

0.2051(93.0)

# of

pins

61

TR (°C/W)

Natural Convection (0 LFM)

5.03

4.23

3.65

3.22

2.88

2.60

Please see Disclaimer at www.coolinnovations.com

www.coolinnovations.com • sales@coolinnovations.com •

Tel:

(905) 760-1992 •

Fax:

(905) 760-1994
