32C9301-CGT datasheet, PDF - EEWORLD Datasheet

32C9301-CGT: DescriptionFixed Disk Controller, 6MBps, CMOS, PQFP100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size686KB，23 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric View All

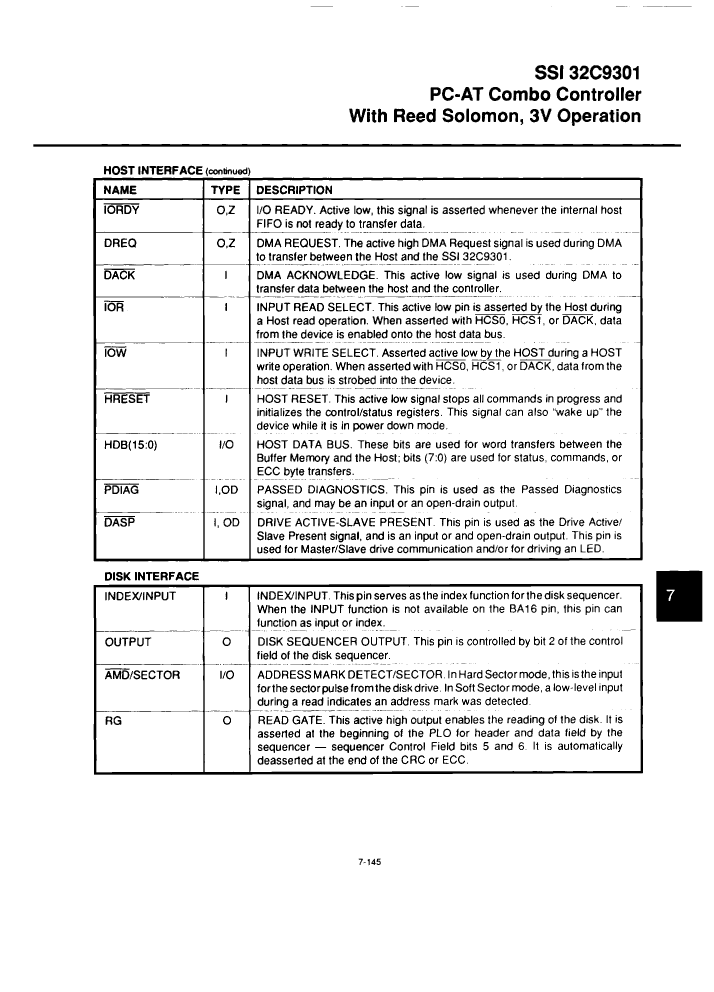

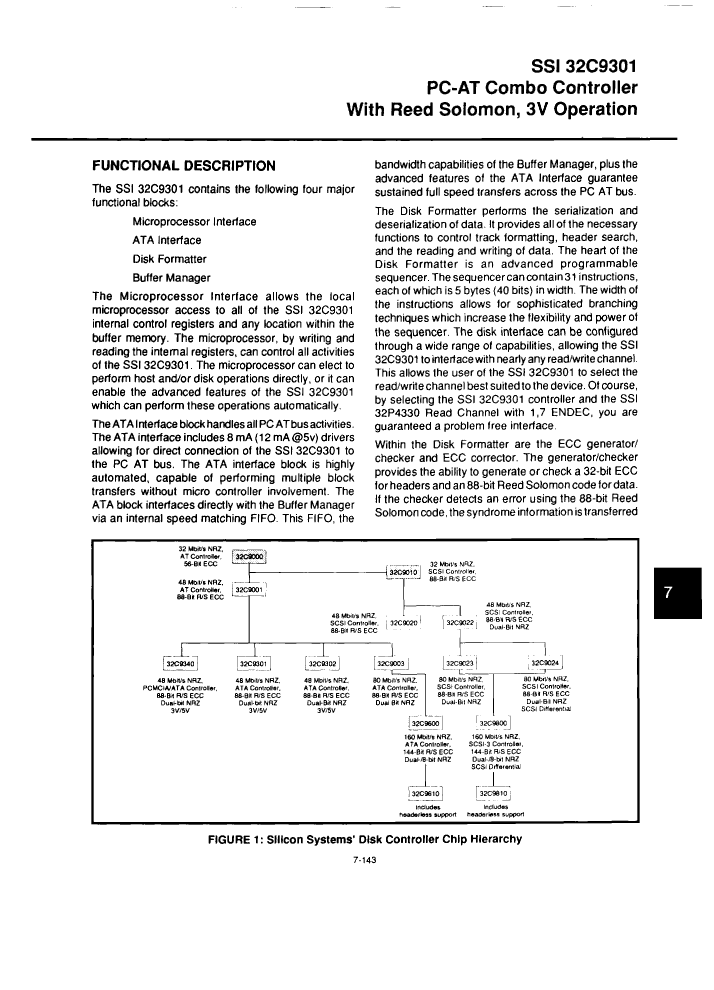

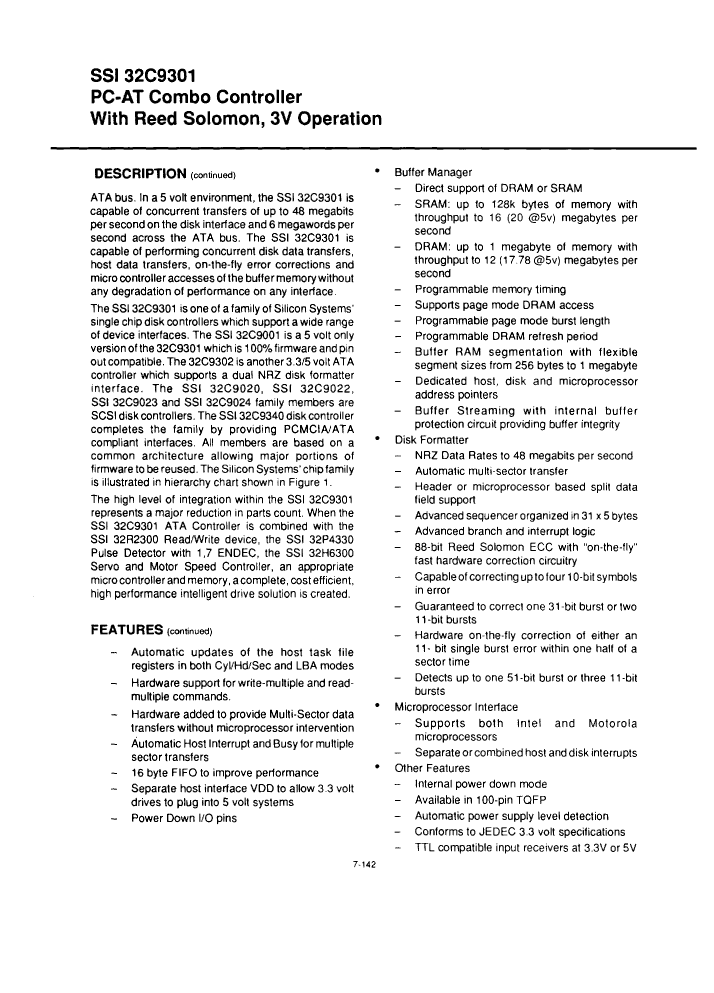

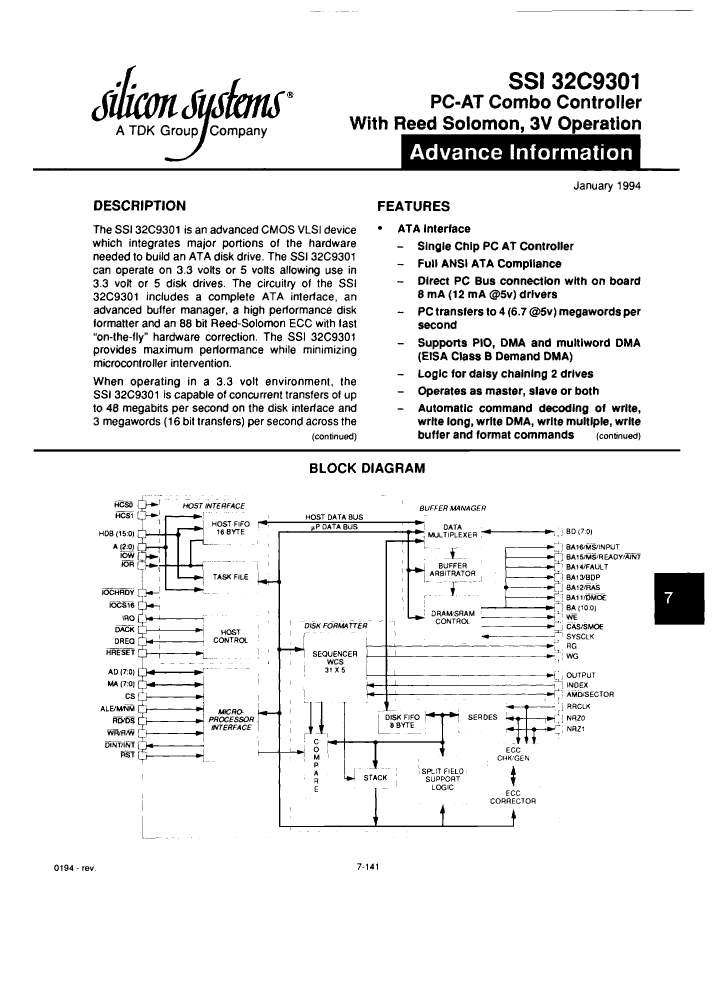

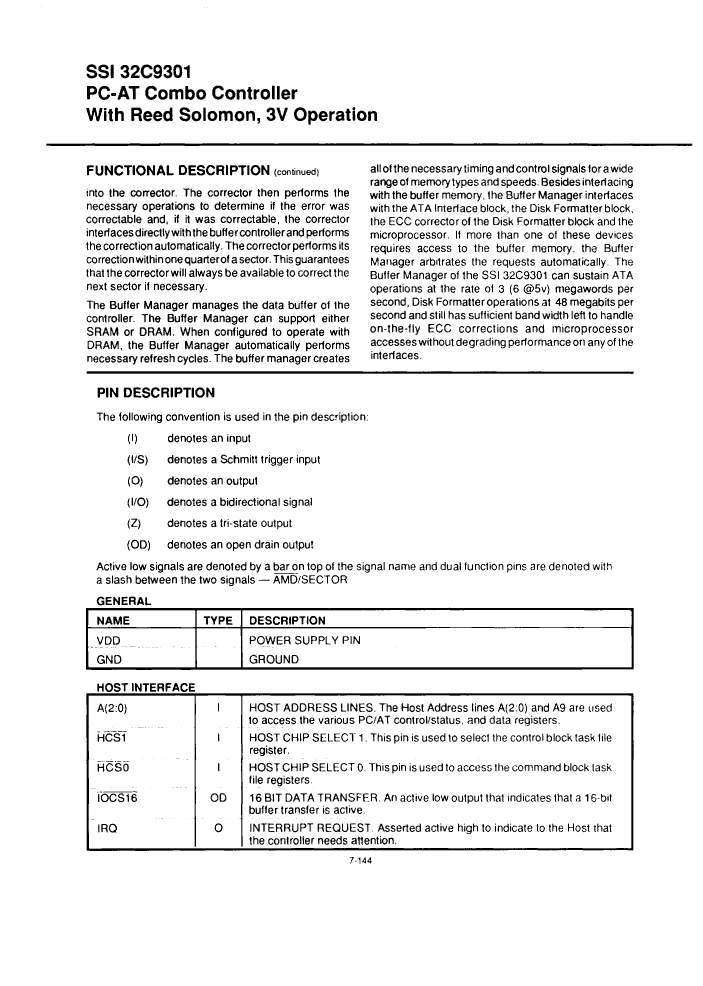

32C9301-CGT Overview

Fixed Disk Controller, 6MBps, CMOS, PQFP100

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Maximum data transfer rate	6 MBps
External data bus width	16
Maximum host data transfer rate	12 MBps
Host interface standard	ATA; PC-AT
JESD-30 code	S-PQFP-G100
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1
