LCA220 is a common input 1- Form 2A solid state relay
which has two independent optically couple MOSFETs
controlled by a common input signal. The efficient MOS-
FET switches and photovoltaic die use Clare’s patented
OptoMOS architecture to provide 3750 V
RMS
of input to
output isolation. The optically coupled input is controlled
by highly efficient GaAIAs infrared LEDs. Common input
OptoMOS relays can replace standard dual pole relays in
a variety of applications. The common input relay elimi-
nates the need to make an external circuit connection
when both poles are controlled by a common signal.
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LCA220
LCA220S
LCA220STR
Description
8 Pin DIP (50/Tube)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1,000/Reel)
Pin Configuration
LCA220 Pinout
NC
+ Control
Ð Control
NC
1
2
3
4
8
7
6
5
Load - Switch #1
Load - Switch #1
Load - Switch #2
Load - Switch #2
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA220-R6
www.clare.com
1
LCA220
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Flatpack/Surface Mount
Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
100 mA
-
1
A
-
5
V
2
mW
- 800
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera-
tional sections of this data sheet is not implied. Exposure
of the device to the absolute maximum ratings for an
extended period may degrade the device and effect its
reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
Peak Load Current
On-Resistance
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
*Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
10ms max
I
L
=120 mA
V
L
=250V
I
F
=10mA, V
L
=10V
I
F
=10mA, V
L
=10V
50V; f=1MHz
I
L
=120mA
-
I
F
=10mA
-
V
R
=5V
-
-
Symbol
V
L
I
L
I
LPK
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
F
-
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
10
0.8
0.9
-
-
-
3750
Typ
-
-
-
-
-
-
-
50
-
1.4
1.2
-
-
3
-
Max
250
120
340
20
1
5
5
-
100
-
1.4
5
20
-
-
Units
V
mA
mA
W
mA
mS
mS
pF
mA
mA
V
V
mA
pF
V
RMS
*Input characteristics represent requirements of two parallel connected LEDs.
2
www.clare.com
Rev. 6
LCA220

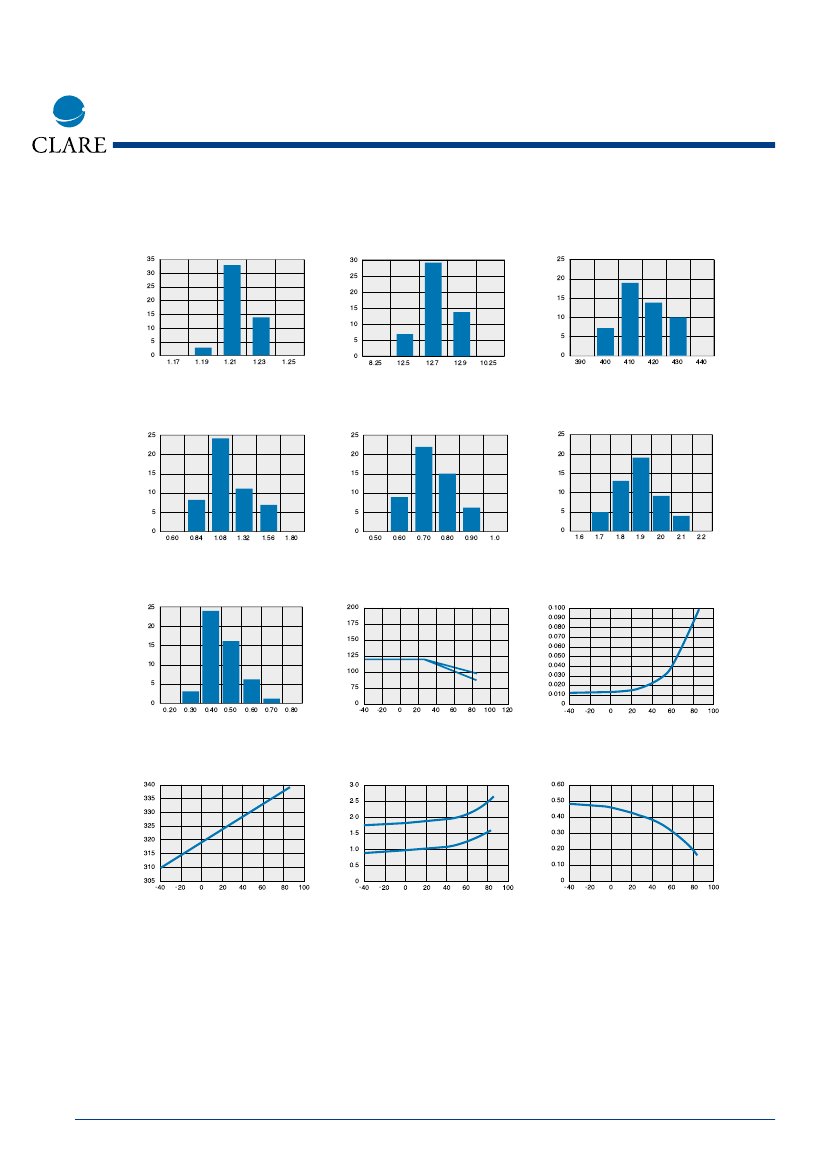

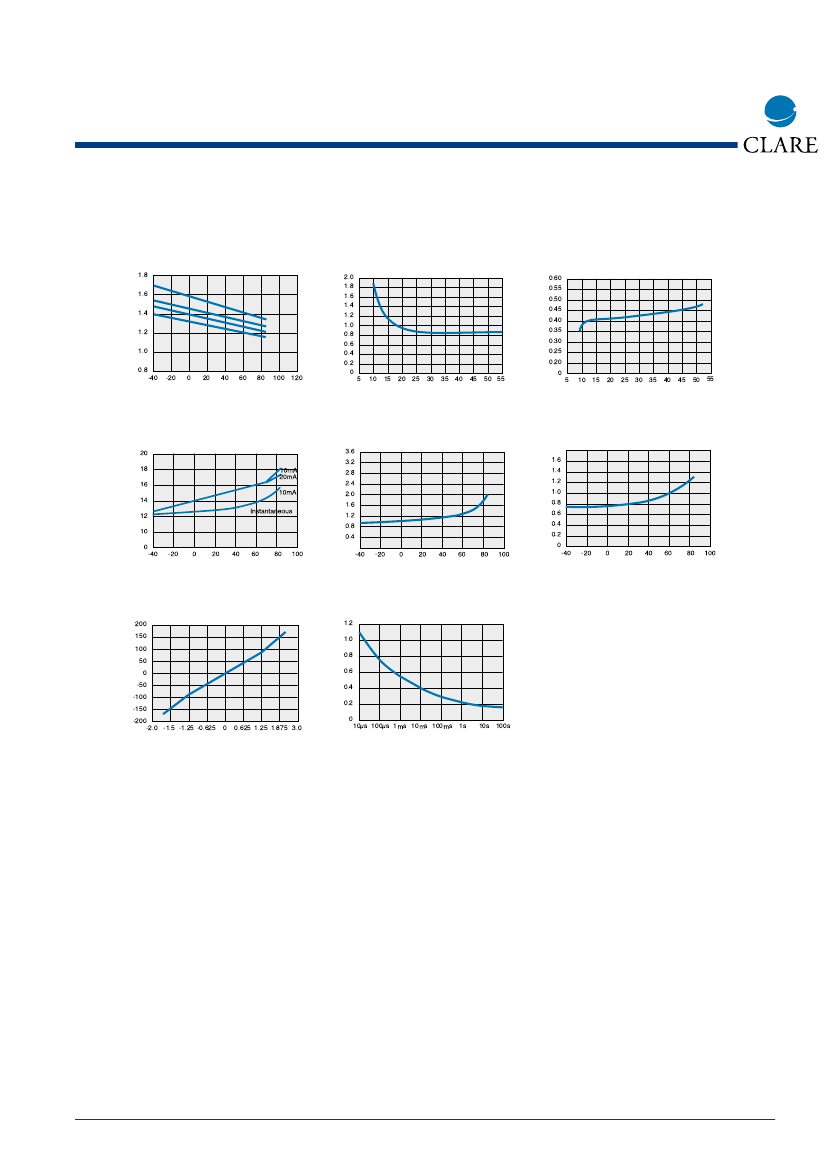

PERFORMANCE DATA*
LCA220
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 10mADC
35
30
LCA220
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 10mADC)
30
25
#
Device Count (N)
LCA220
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
Device Count (N)
#
#
!'
"
"
"
"!
""
20
15
10
5
0
8.25
12.5
12.7
12.9
10.25
LED Forward Voltage Drop (V)
On-Resistance (Ω)
Blocking Voltage (V)
LCA220
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
25
LCA220
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
LCA220
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 10mADC)
25
20
Device Count (N)
Device Count (N)
Device Count (N)
20
20
15
15
15
10
10
10
5
5
5
0
0.60
0.84
1.08
1.32
1.56
1.80
0
0.50
0.60
0.70
0.80
0.90
1.0
0
1.6
1.7
1.8
1.9
2.0
2.1
2.2
LED Current (mA)
LED Current (mA)
Turn-On (ms)
LCA220
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 10mADC)
25
20
200
Load Current (mA)
LCA220
Typical Load Current vs. Temperature
Device Count (N)
175
125
100
75
0
-40 -20
0
20
40
60
20mA
10mA
Leakage (µA)
15
150
10
5
0
0.20
0.30
0.40
0.50
0.60
0.70
0.80
80 100 120
0.100
0.090
0.080
0.070
0.060
0.050
0.040
0.030
0.020
0.010
0
-40
LCA220
Typical Leakage vs. Temperature
(Measured across Pins 5 & 6 or 7 & 8)
-20
0
20
40
60
80
100
Turn-Off (ms)
Temperature (°C)
Temperature (°C)
340
335
330
325
320
315
310
305
LCA220
Typical Blocking Voltage
vs. Temperature
3.0
2.5
Turn-On (ms)
LCA220
Typical Turn-On vs. Temperature
(Load Current = 80mADC)
0.60
0.50
Turn-Off (ms)
LCA220
Typical Turn-Off vs. Temperature
(Load Current = 80mADC)
Blocking Voltage (V
RMS
)
2.0
1.5
1.0
0.5
0
10mA
0.40
0.30
0.20
0.10
0
10mA
20mA
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
Temperature (°C)
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 6
www.clare.com
3
LCA220
PERFORMANCE DATA*
LCA220
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
1.4
1.2
50mA
30mA
20mA
10mA
1.0
0.8
-40
-20
0
20
40
60
80
100
120
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
LCA220
Typical Turn-On vs. LED Forward Current
(Load Current = 120mADC)
5 10 15 20 25 30 35 40 45 50 55
LED Forward Current (mA)
0.60
0.55
0.50
0.45
0.40
0.35
0.30
0.25
0.20
0
LCA220
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
Turn-On (ms)
Turn-Off (ms)
5 10 15 20 25 30 35 40 45 50 55
LED Forward Current (mA)
Temperature (°C)
LCA220
Typical On-Resistance vs. Temperature
(Load Current = max rated over temp)
20
18
16
10mA
14
12
10
0
-40
-20
0
20
40
60
80
100
Instantaneous
10mA
20mA
3.6
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
LCA220
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = max rated over temp)
LCA220
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = max rated over temp)
-40
-20
0
20
40
60
80
100
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
On-Resistance (Ω)
LED Current (mA)
LED Current (mA)
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
Temperature (°C)
200
150
100
50
0
-50
-100
-150
-200
-2.0 -1.5 -1.25 -0.625 0 0.625 1.25 1.875 3.0
Load Voltage (V)
LCA220
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 10mADC
1.2
1.0
Load Current (A)
LCA220
Energy Rating Curve
Load Current (mA)
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms 1s
Time
10s 100s
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 6
LCA220

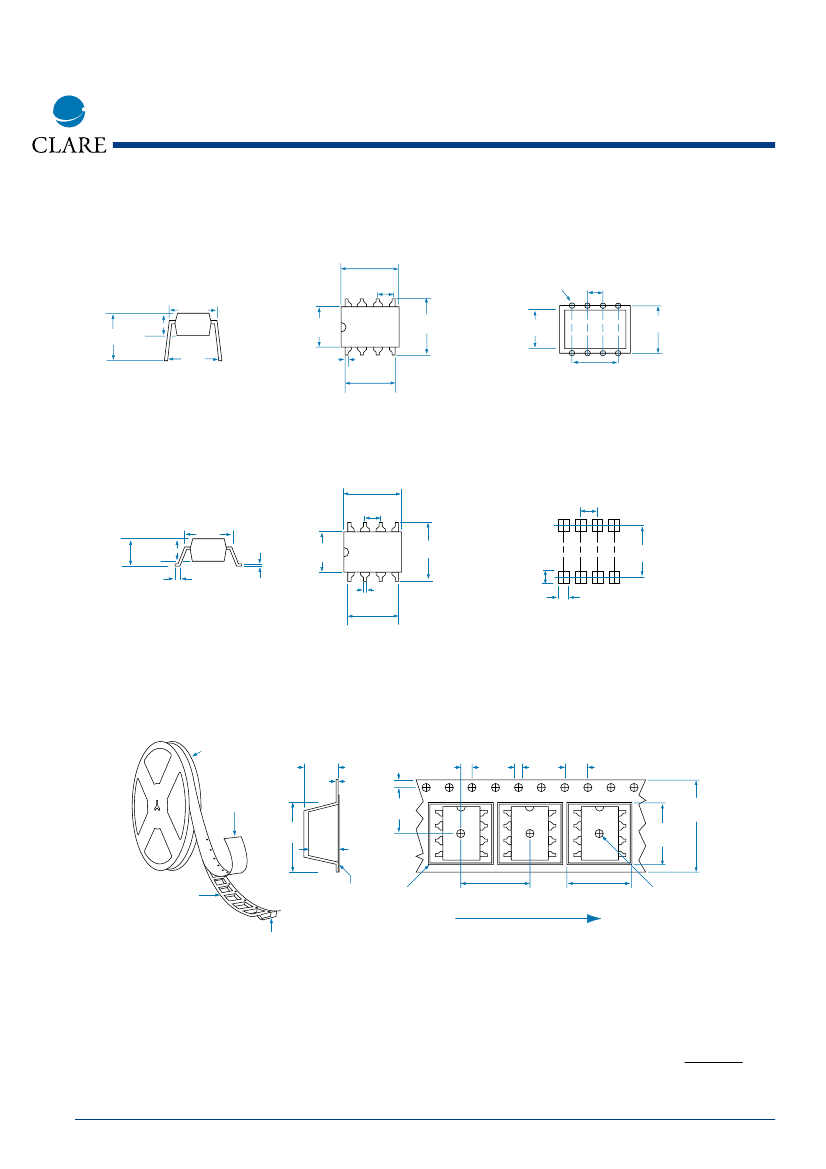

Mechanical Dimensions
8 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
9.144 TYP.
(.360)
6.350
±
.127
(.250
±
.005)
9.652
±
.381
(.380
±
.015)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
8-.800 DIA. (.100
±
.005)
(8-.031 DIA.)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
9.144
±
.508
(.360
±
.020)
6.350
±
.127
(.250
±
.005)
.457
±
.076
(.018
±
.003)
8.077
±
.127
(.318
±
.005 )
7.620
±
.127
(.300
±
.005)
8 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
9.652
±
.381
(.380
±
.015)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
.457
±
.076
(.018
±
.003)
8.077
±
.127
(.318
±
.005)
1.498
±
.127
(.059
±
.005)
8.305
±
.127
(.327
±
.005)
Tape and Reel Packaging for 8 Pin Surface Mount Package
I have a program here void LCD_SetWindows(uint16_t xStart,uint16_t yStart,uint16_t xLong,uint16_t yLong) { LCD_SetCursor(xStart,yStart); LCD_WriteReg(0x0050,xStart); /* Horizontal GRAM starting positi...
Share VS-RD-RK3288 Android platform description: Android system compilation of the entire source code package has very high requirements for PC hardware. It is not recommended to use virtual machine c...
My host computer uses Windows API, ReadFile to read the information returned by the HID device, and can only receive 64 bytes. It cannot read less than 64 bytes. The data sent by my lower computer is ...
IoT Moment: The True Definition of IoT : https://training.eeworld.com.cn/course/5080Want a quick minute? Our new video series "IoT Minute" features Qorvo General Manager Cees Links, who helps provide ...
High efficiency and low standby power consumption are two major challenges in today's switching power supply design. Resonant topology or LLC topology is becoming increasingly popular because it ca...[Details]
1 Introduction
With the acceleration of the pace of urban modernization, society has higher requirements for urban road lighting and urban lighting projects. The state has clearly required tha...[Details]
With the development and widespread application of computer technology, especially in the field of industrial control, computer communication is particularly important. Although serial communication g...[Details]
Vertical cavity surface emitting lasers (VCSELs) are gradually replacing traditional edge emitting lasers, especially in low bandwidth and short-distance communication systems where cost factors ar...[Details]
1. System Structure
This system is a simulation system of indoor air-conditioning temperature/humidity control system. The data acquisition and control center collects temperature/humidity...[Details]
1 Introduction
PROFIBUS is an international, open, and manufacturer-independent fieldbus standard. It is widely used in manufacturing automation, process industry automation, and automatio...[Details]
This week, Microsoft held its 2012 Microsoft Worldwide Partner Conference (WPC) in Toronto, Canada. At the conference, Microsoft showed its new products and services to partners around the world. A...[Details]
VP2188 is a color STN LCD module produced by Jingdian Pengyuan. This module is a dot matrix transmissive color STN display screen with a color scale of 65 k colors and white LED backlight. Its core...[Details]
OC faults may be the most frequent and the most frequent of all faults in the inverter. They alarm during the startup process, during the shutdown process, during operation, and even when powered o...[Details]
Preface
In recent years, white light LEDs have gradually replaced incandescent bulbs and fluorescent lamps because they have unparalleled advantages over traditional light sources in terms...[Details]
LED guardrail lights use fluorescent tubes or LEDs as light sources and continuous guardrails as carriers to form an approximately linear guardrail light strip. This article mainly introduces...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
0 Introduction
Under normal circumstances, the three-phase power in the power system is symmetrical, and they meet certain amplitude and phase conditions; but when the load changes, the syst...[Details]
Renesas Electronics MCUs
京公网安备 11010802033920号
EEWORLD
