LCA126 is a 250V, 170mA, 15Ω 1-Form-A relay. It fea-
tures enhanced on-resistance.
Features
•
Small 6 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
3750V
RMS
Input/Output Isolation
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel Versions Available
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Part #
LCA126
LCA126S
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
Pin Configuration
LCA126 Pinout
AC/DC Configuration
1
2
3
6
5
4
LCA126 Pinout
DC Only Configuration
1
2
3
6
5
4
+ Control
– Control
Do Not Use
Load
Do Not Use
Load
+ Control
– Control
Do Not Use
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA126-R3
www.clare.com
1
LCA126
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
50
mA
-
1
A
-
5
V
2
mW
- 800
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Capacitance
Input to Output
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Common Characteristics @ 25°C
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
-
10ms
I
L
=170mA
I
L
=300mA
V
L
=250V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
-
I
L
=170mA
-
I
F
=5mA
-
V
R
=5V
-
-
Symbol
V
L
I
L
I
L
I
LPK
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
-
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
-
-
-
5
0.4
0.9
-
-
-
3750
Typ
-
-
-
-
10
4
-
-
-
50
3
-
0.7
1.2
-
-
3
-
Max
250
170
300
400
15
5
1
5
5
-
-
50
-
1.4
5
10
-
-
Units
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
pF
mA
mA
V
V
µA
pF
V
RMS
2
www.clare.com
Rev. 3
LCA126
PERFORMANCE DATA*
35
30
Device Count (N)
LCA126
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
35
30
Device Count (N)
LCA126
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
LCA126
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
35
30
Device Count (N)
25
20
15
10
5
0
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
25
20
15
10
5
0
6.5
7.5
8.5
9.5
10.5
On-Resistance (Ω)
305
315
325
335
345
355
365
Blocking Voltage (V)
LCA126
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
25
20
15
10
5
0
0.3
0.5
0.7
0.9
1.1
1.3
1.5
LED Current (mA)
25
20
15
10
5
0
LCA126
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
25
20
15
10
LCA126
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
Device Count (N)
Device Count (N)
Device Count (N)
5
0
0.15
0.45
0.75
1.05
1.35
1.65
1.95
0.625 0.875 1.125 1.375 1.625 1.875 2.125
Turn-On (ms)
LED Current (mA)
LCA126
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
25
LCA126
Typical Load Current vs. Temperature
250
Load Current (mA)
200
150
100
50
0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
0.0250
0.0200
LCA126
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
20
15
10
5
0
0.335 0.525 0.715 0.905 1.095 1.285 1.475
Turn-Off (ms)
20mA
10mA
5mA
Leakage (µA)
0.0150
0.0100
0.0050
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
LCA126
Typical Blocking Voltage vs. Temperature
350
LCA126
Typical Turn-On vs. Temperature
(Load Current = 170mADC)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-40
-20
0
20
40
60
Temperature (°C)
0.700
LCA126
Typical Turn-Off vs. Temperature
(Load Current = 170mADC)
0.600
Blocking Voltage (V
RMS
)
345
5mA
Turn-Off (ms)
Turn-On (ms)
340
335
330
325
320
315
-40
-20
0
20
40
60
80
100
Temperature (°C)
0.500
0.400
0.300
0.200
0.100
0
-40
-20
0
20
40
60
5mA
10mA
20mA
80
100
80
100
Temperature (°C)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 3
www.clare.com
3
LCA126
PERFORMANCE DATA*
LCA126
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
Turn-On (ms)
LCA126
Typical Turn-On vs. LED Forward Current
(Load Current = 170mADC)
1.4
1.2
Turn-Off (ms)
LCA126
Typical Turn-Off vs. LED Forward Current
(Load Current = 170mADC)
0.410
0.400
0.390
0.380
0.370
0.360
0.350
0.340
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
50mA
30mA
20mA
10mA
5mA
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
60.000
On-Resistance (Ω)
50.000
LCA126
Typical On-Resistance vs. Temperature
(Load Current = 170mADC; I
F
= 5mADC)
2.500
2.000
1.500
1.000
0.500
0
LCA126
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 170mADC)
LCA126
Typical I
F
for Switch Dropout vs. Temperature
(Load Current = 170mADC)
2.500
2.000
1.500
1.000
0.500
0
LED Current (mA)
40.000
30.000
20.000
10.000
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
-40
-20
0
20
40
60
80
100
LED Current (mA)
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
200
150
LCA126
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 5mADC
LCA126
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms
Time
Load Current (mA)
100
50
0
-50
-100
-150
-200
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
1s
10s 100s
Load Voltage (V)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 3
LCA126

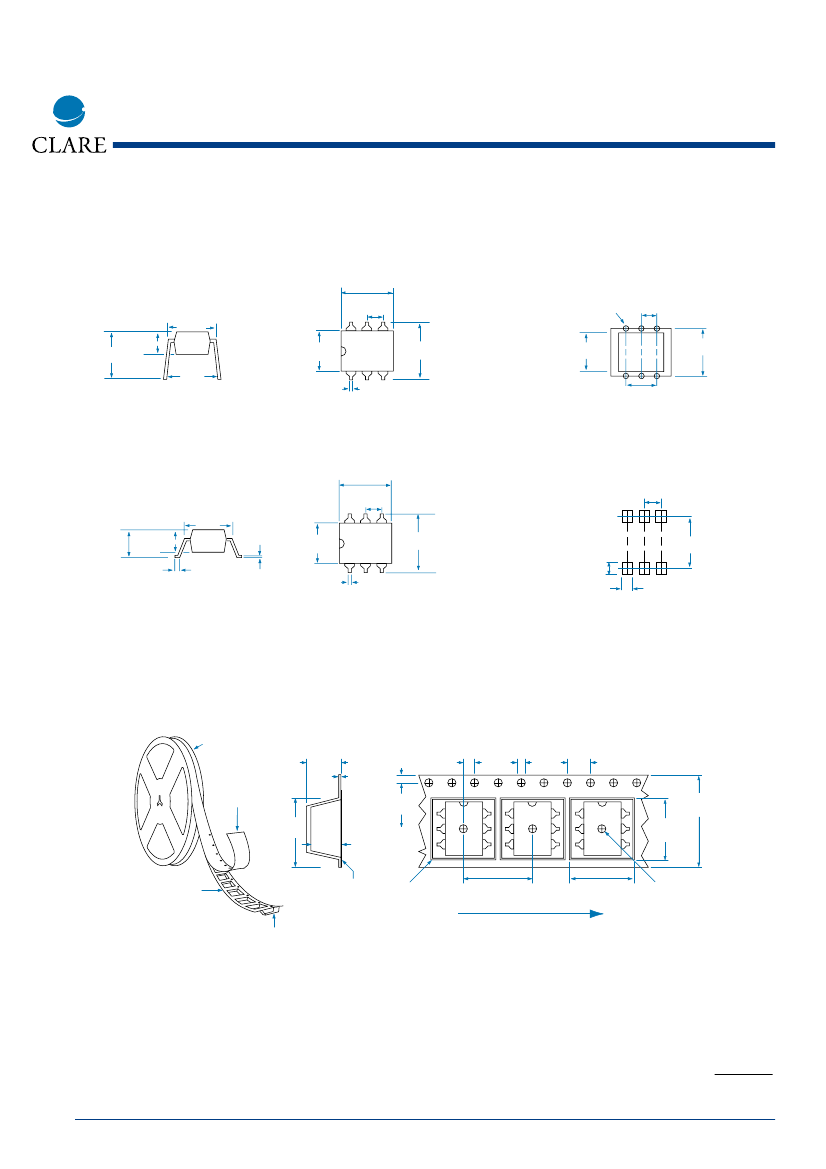

Mechanical Dimensions
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
