LCA125L is a 300V, 170mA, 20Ω 1-Form-A relay. It fea-
tures enhanced peak load current capability with a 300V
peak load voltage. Current limiting version is available.
(“L” suffix)
Features
•
Small 6 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
3750V
RMS
Input/Output Isolation
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Current Limiting Surface Mount and Tape & Reel
Versions Available
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Part #
LCA125L
LCA125LS
LCA125LSTR
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
LCA125/LCA125L Pinout
AC/DC Configuration
1
2
3
6
5
4
LCA125/125L Pinout
DC Only Configuration
1
2
3
6
5
4
+ Control
– Control
Do Not Use
Load
Do Not Use
Load
+ Control
– Control
Do Not Use
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA125L-R4
www.clare.com
1
LCA125L
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
-
-
-
-
-
-
-
-
-
-
150
1
50
1
5
800
2
-
+85
+125
+260
+220
mW
mA
A
V
mW
V
RMS
°C
°C
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Load Current Limiting
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Input to Output Capacitance
Input to Output Isolation
I
L
=170mA
-
I
F
=5mA
-
V
R
=5V
-
-
I
F
-
V
F
V
R
I
R
C
I/O
V
I/O
5
0.4
0.9
-
-
-
3750
-
0.7
1.2
-
-
3
-
50
-
1.4
5
10
-
-
mA
mA
V
V
µA
pF
V
RMS
-
-
-
10ms
I
L
=170mA
I
L
=300mA
V
L
=300V
I
F
=5mA, V
L
=10V
I
F
=5mA, v
L
=10V
50V; f=1MHz
V
L
I
L
I
L
I
L
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
CL
-
-
-
-
-
-
-
-
-
-
190
-
-
-
-
12
4
-
-
-
50
235
300
170
300
-
20
6
1
5
5
-
280
V
mA
mA
mA
Ω
Ω
µA
ms
ms
-pF
mA
Conditions
Symbol
Min
Typ
Max
Units
2
www.clare.com
Rev. 4
LCA125L
PERFORMANCE DATA*
35
30
Device Count (N)
LCA125L
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
35
30
Device Count (N)
LCA125L
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mA)
LCA125L
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
35
30
Device Count (N)
25
20
15
10
5
0
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
25
20
15
10
5
0
14.0
14.4
14.8
15.2
15.6
On-Resistance (Ω)
380
384
388
392
396
400
Blocking Voltage (V)
LCA125L
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
40
35
Device Count (N)
Device Count (N)
25
20
15
10
5
0
0.73
0.88
1.03
1.18
1.33
1.48
1.63
LCA125L
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
30
25
Device Count (N)
0.3
0.5
0.7
0.9
1.1
1.3
1.5
20
15
10
LCA125L
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
30
25
20
15
10
5
0
LED Current (mA)
5
0
0.23
0.32
0.41
0.50
0.59
0.68
0.77
LED Current (mA)
Turn-On (ms)
35
30
25
20
15
10
LCA125L
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
Load Current (mA)
LCA125L
Typical Load Current vs. Temperature
300
250
200
150
100
50
0
Leakage (µA)
0.18
0.16
0.14
0.12
0.10
0.08
0.06
-40
-20
0
20
40
60
80
100
120
-40
LCA125L
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
20mA
10mA
5mA
5
0
0.06
0.10
0.14
0.18
0.22
0.26
0.30
Turn-Off (ms)
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
LCA125L
Typical Blocking Voltage
vs. Temperature
400
Blocking Voltage (V
RMS
)
395
Turn-On (ms)
390
385
380
375
-40
-20
0
20
40
60
80
100
Temperature (°C)
0.6
0.5
0.4
0.3
0.2
0.1
0
-40
LCA125L
Typical Turn-On vs. Temperature
(Load Current = 170mADC)
0.30
5mA
0.25
Turn-Off (ms)
10mA
LCA125L
Typical Turn-Off vs. Temperature
(Load Current = 170mADC)
0.20
0.15
0.10
0.05
20mA
-20
0
20
40
60
80
100
0
-40
-20
0
20
40
60
Temperature (°C)
5mA
80
100
Temperature (°C)
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 4
www.clare.com
3
LCA125L
PERFORMANCE DATA*
LCA125L
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
Turn-On (ms)
LCA125L
Typical Turn-On vs. LED Forward Current
(Load Current = 170mADC)
0.40
0.35
0.30
0.25
0.20
0.15
0.10
LCA125L
Typical Turn-Off vs. LED Forward Current
(Load Current = 170mADC)
0.160
0.150
Turn-Off (ms)
0
2
4
6
8
10
12
14
16
18
20
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
0.140
0.130
0.120
0.110
0.100
0
2
4
6
8
10
12
14
16
18
20
50mA
30mA
20mA
10mA
5mA
LED Forward Current (mA)
LED Forward Current (mA)
60
On-Resistance (Ω)
LCA125L
Typical On-Resistance vs. Temperature
(Load Current = 170mADC; I
F
= 5mADC)
LCA125L
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 170mADC)
3.000
2.500
LED Current (mA)
LED Current (mA)
2.000
1.500
1.000
0.500
0
3.000
2.500
2.000
1.500
1.000
0.500
0
-40
-20
0
20
40
60
80
100
-40
LCA125L
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 170mADC)
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
200
150
LCA125L
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 5mADC
LCA125L
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms
Time
1s
10s 100s
Current (mA)
400
350
300
250
200
150
100
50
0
LCA125L
Typical Current Limiting vs. Temperature
I
F
= 5mADC
Load Current (mA)
100
50
0
-50
-100
-150
-200
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
-40
-20
0
20
40
60
80
100
Load Voltage (V)
Temperature (°C)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 4
LCA125L

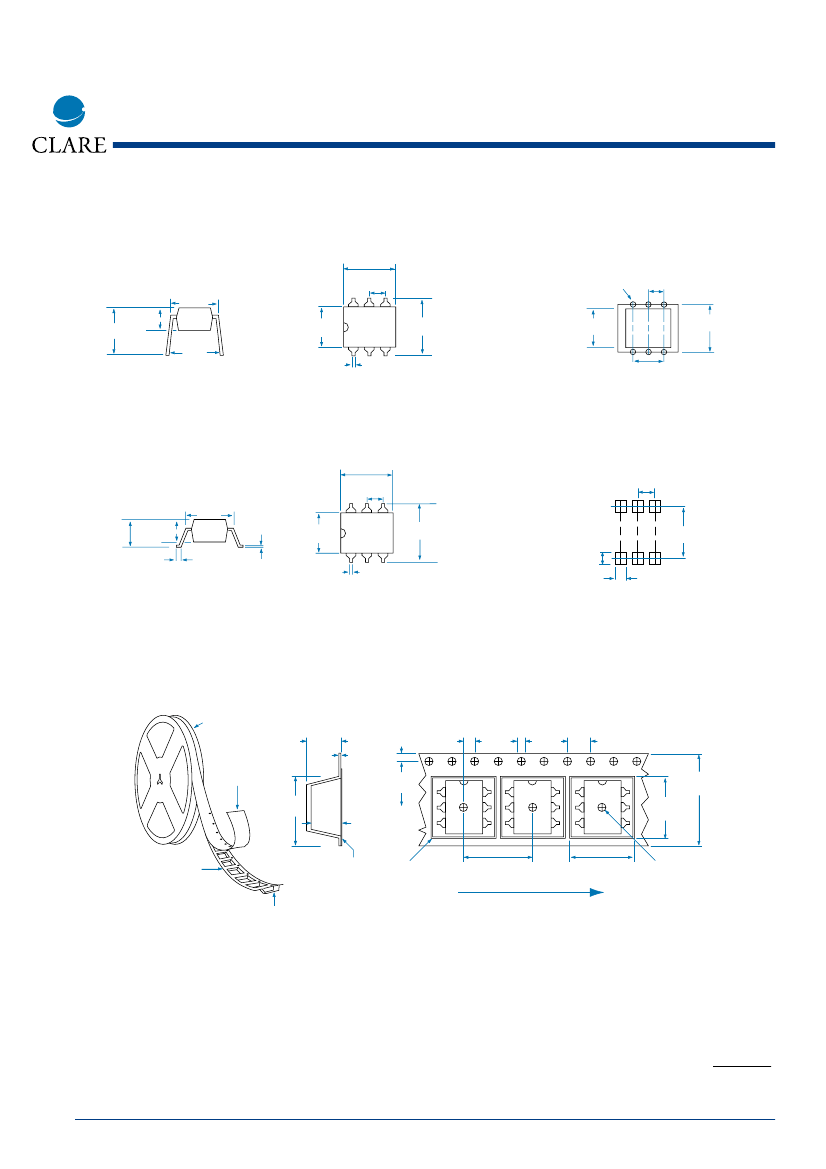

Mechanical Dimensions
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
In recent years, the debate about 3G has been endless. Most manufacturers have been ready to go, and lobbyists have shown their talents, but the government has not moved. Some say it is to wait for TD...
1. DSP serial interface technology
DSP is a unique microprocessor that processes large amounts of information using digital signals. Its working principle is to receive analog signals and convert th...
As the title says! I want to add a header file of my own definition to the assembly program, just like C language. Is it possible to add my successful program to the new program? If so, how to do it?T...
Using Protues simulation, LPC2124 debugs 24C02 (I2C bus control), the project and code are all referenced from Zhou Runjing's "Development of ARM Virtual Technology Based on Protues". . According to c...
If the ultimate form of a car is a silicon-based life form, then in
the field of
intelligent driving
, it has gradually taken on the appearance of a "veteran driver." In
the field of
the ...[Details]
Robotics
has become
LiDAR
's "second growth curve."
While LiDAR was still battling with its "pure vision" rivals in the automotive field, another field ignited the demand f...[Details]
The all-new MG4 was recently officially announced on the Ministry of Industry and Information Technology's (MIIT) new vehicle announcement. The all-new MG4's semi-solid-state battery version addres...[Details]
On August 21st, BYD announced the launch of its next-generation "Little White Pile" product, the "Lingchong"
charging
pile
, which is now available for general sale. This charging pile feat...[Details]
Cadence and NVIDIA Collaborate to Revolutionize Power Analysis Technology, Accelerating Development of Billion-Gate AI Designs
Cadence's new Palladium Dynamic Power Analysis applicat...[Details]
As in-vehicle audio and video entertainment features become increasingly diverse, the demand for digital transmission of audio and video information is urgent. Traditional protocols such as IEEE 13...[Details]
In machine vision systems, light sources play a crucial role. Choosing the right light source is a key factor in determining the success or failure of the entire system. The main purpose of the lig...[Details]
Bourns®
PEC04
, PEC05, and PEC06 model series, with IP40 protection rating, provide a rugged, space-saving position sensing solution for a variety of electronic devices.
August 1...[Details]
3D-SLISE, a quasi-solid-state electrolyte developed by the Institute of Science Tokyo, enables the production of safe and fast-charging 2.35 V lithium-ion batteries at room temperature and pressure...[Details]
Hesai Technology (Nasdaq: HSAI), a leading global lidar developer and manufacturer, today announced it has been awarded a production contract for lidar systems for a Toyota Motor joint venture. Toy...[Details]
This article uses a heavy-duty off-road vehicle as an example to design a gateway and body control software based on a domain controller (DC). The article also examines the feasibility of u...[Details]
In 1799, Alessandro Volta demonstrated electrical energy storage technology; a century later, Guglielmo Marconi proved that radio waves could transmit across oceans.
The IEEE ...[Details]
Through the collaboration between humans and intelligent machines, the intellectual labor of human experts in the manufacturing process is expanded, extended, and partially replaced. It updates the...[Details]
1. How vibration sensors measure vibration
Vibration sensors are mainly used in gas equipment. They can sense disasters such as earthquakes and cut off gas or power supply in time to prevent s...[Details]
PCI Express is a system interconnect interface standard developed from PCI. While PCI and PCI-X are both based on 32-bit and 64-bit parallel buses, PCI Express uses a high-speed serial bus. PCI Exp...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
