LC89925 datasheet, PDF - EEWORLD Datasheet

LC89925: DescriptionPAL 1H Delay Line　; CategoryOther integrated circuit (IC) Consumption circuit; File Size75KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

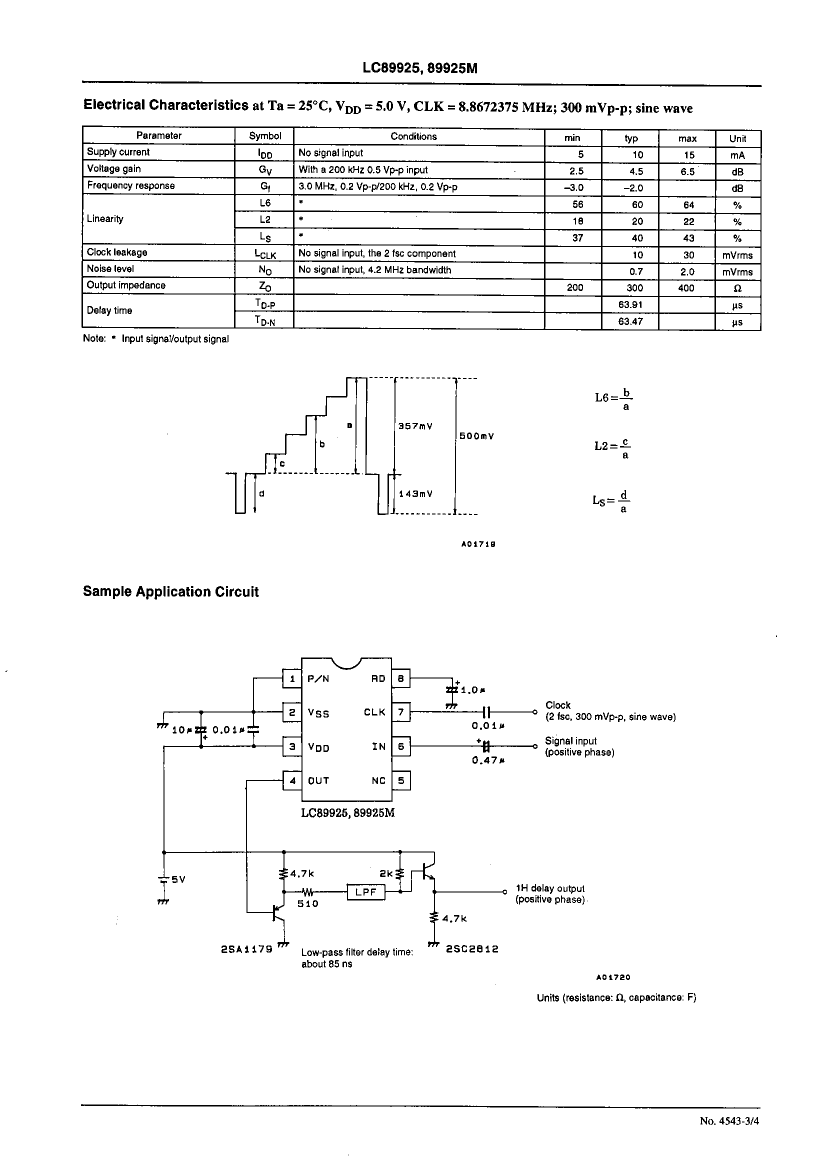

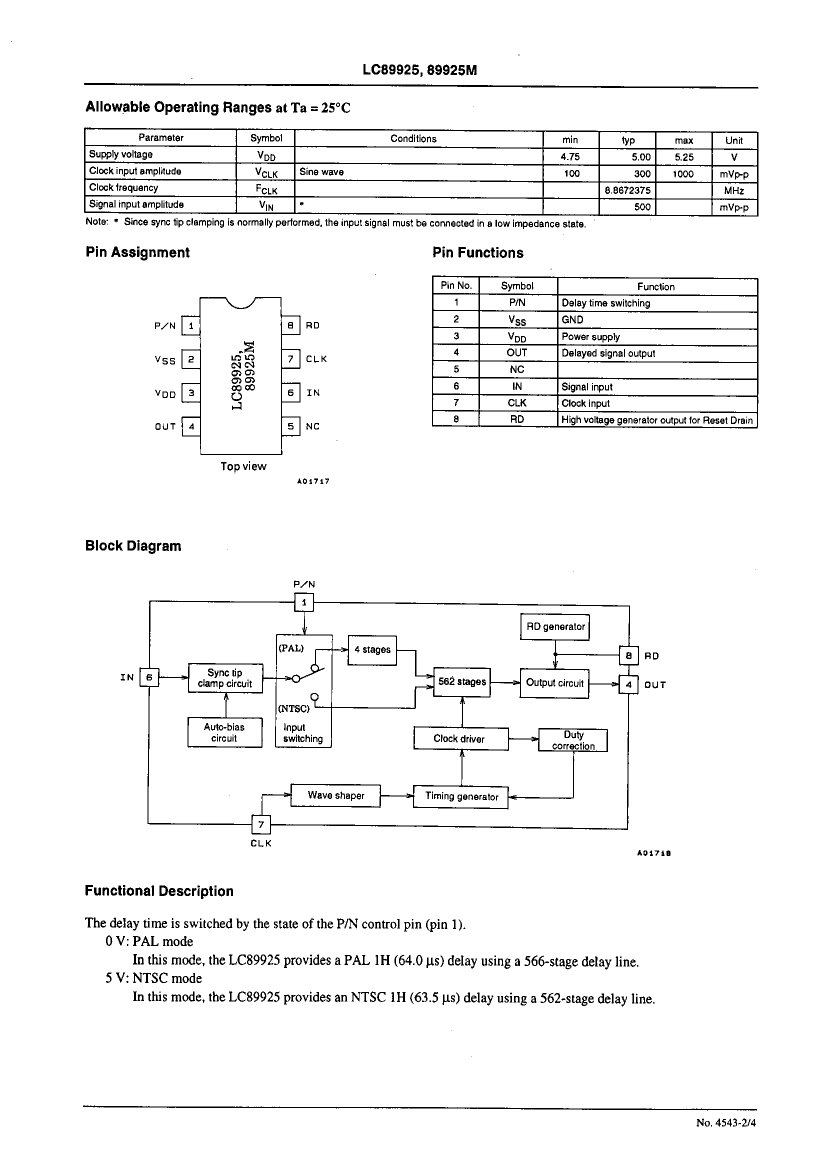

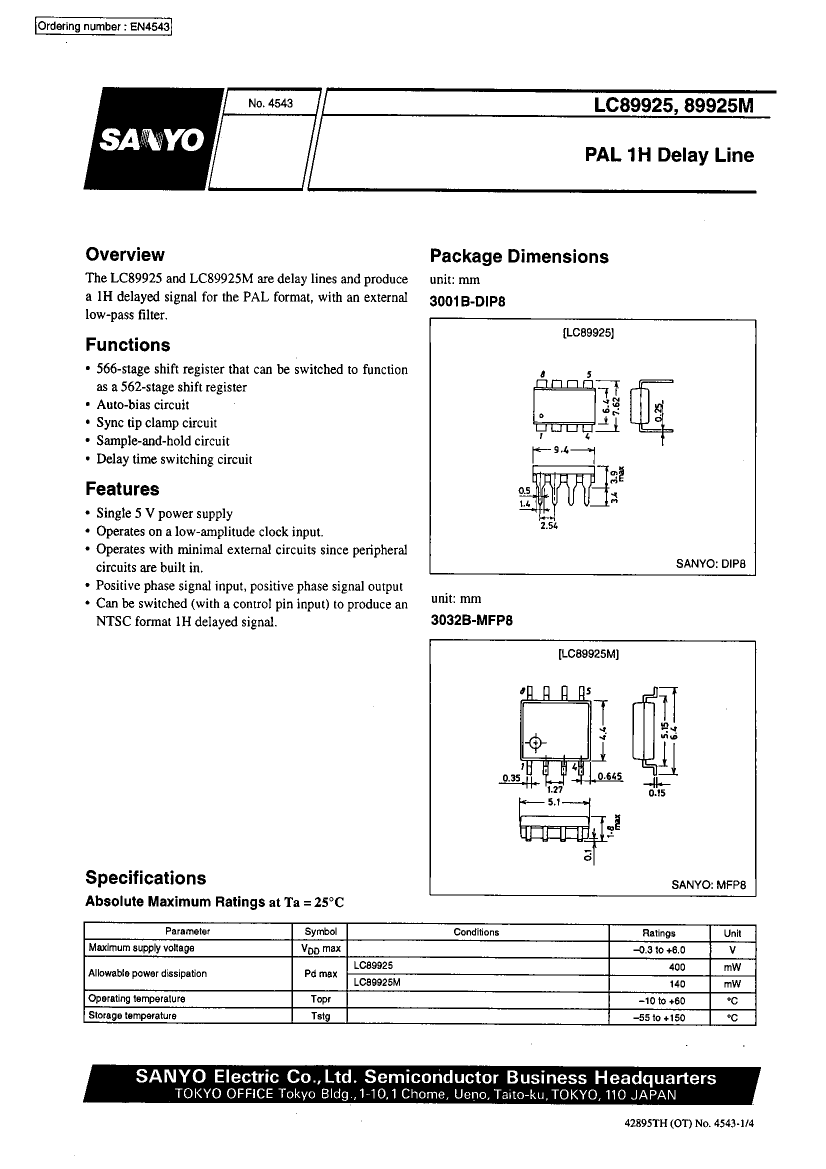

LC89925 Overview

PAL 1H Delay Line　

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.4 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.9 mm
Maximum slew rate	15 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

	LC89925	LC89925M
Description	PAL 1H Delay Line	PAL 1H Delay Line
Is it Rohs certified?	incompatible	incompatible
Maker	SANYO	SANYO
Parts packaging code	DIP	SOIC
package instruction	DIP, DIP8,.3	SOP, SOP8,.25
Contacts	8	8
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0
length	9.4 mm	5.1 mm
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.9 mm	1.8 mm
Maximum slew rate	15 mA	15 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
surface mount	NO	YES
technology	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	4.4 mm
