Part Number

Search

LC89971

Description
Multi-system CCD Delay Line
CategoryOther integrated circuit (IC)    Consumption circuit
File Size181KB,9 Pages
ManufacturerSANYO
Websitehttp://www.semic.sanyo.co.jp/english/index-e.html
Download Datasheet Parametric Compare View All

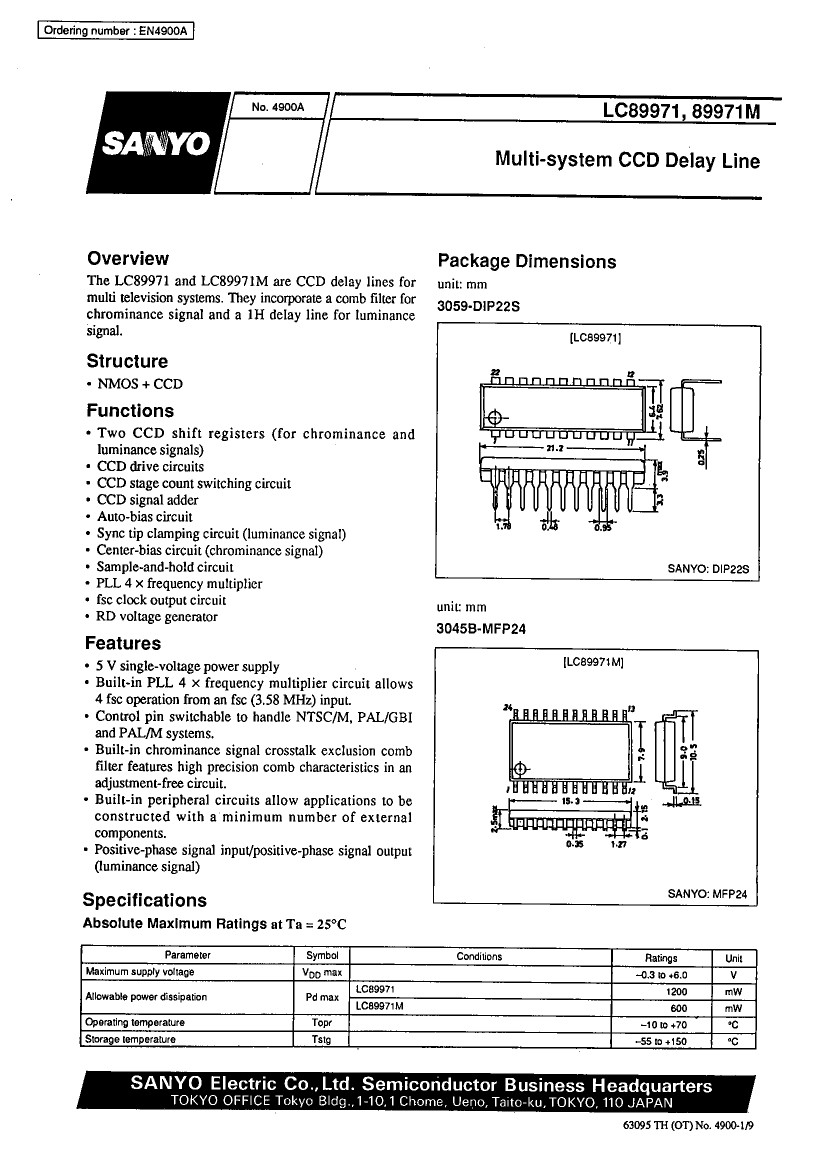

LC89971 Overview

Multi-system CCD Delay Line

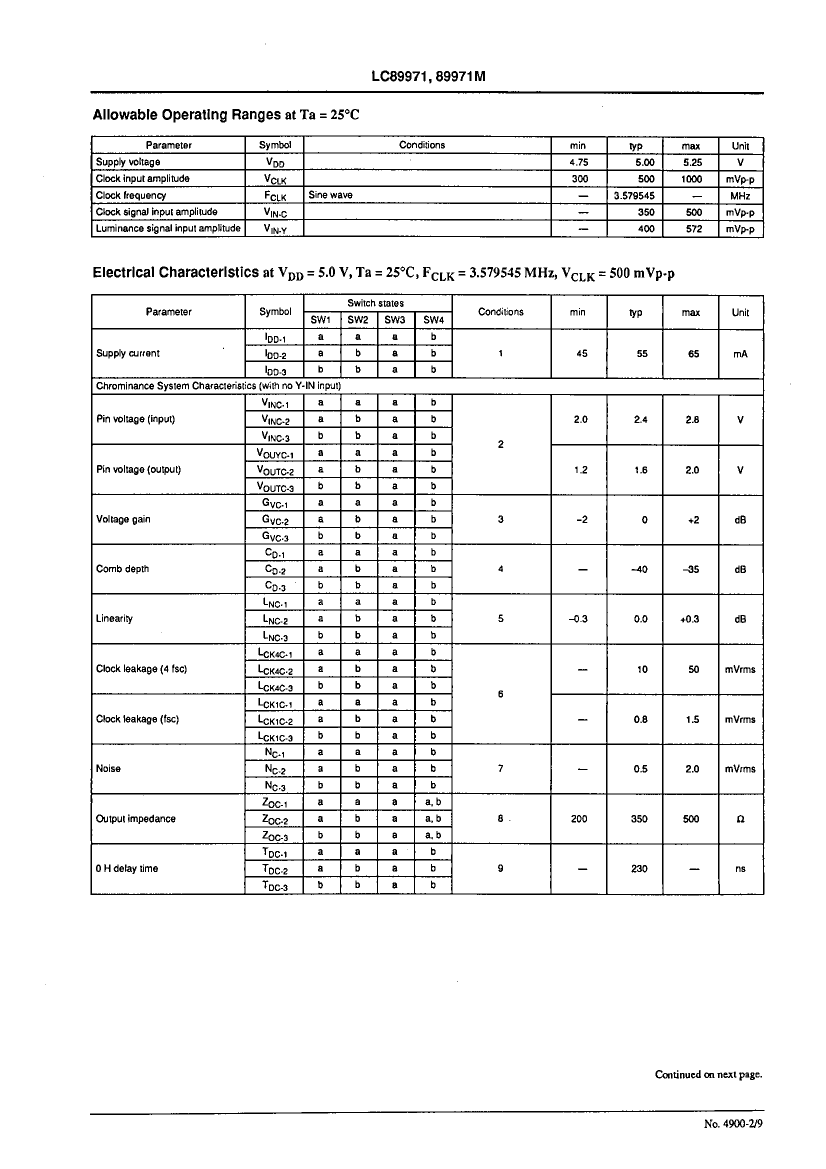

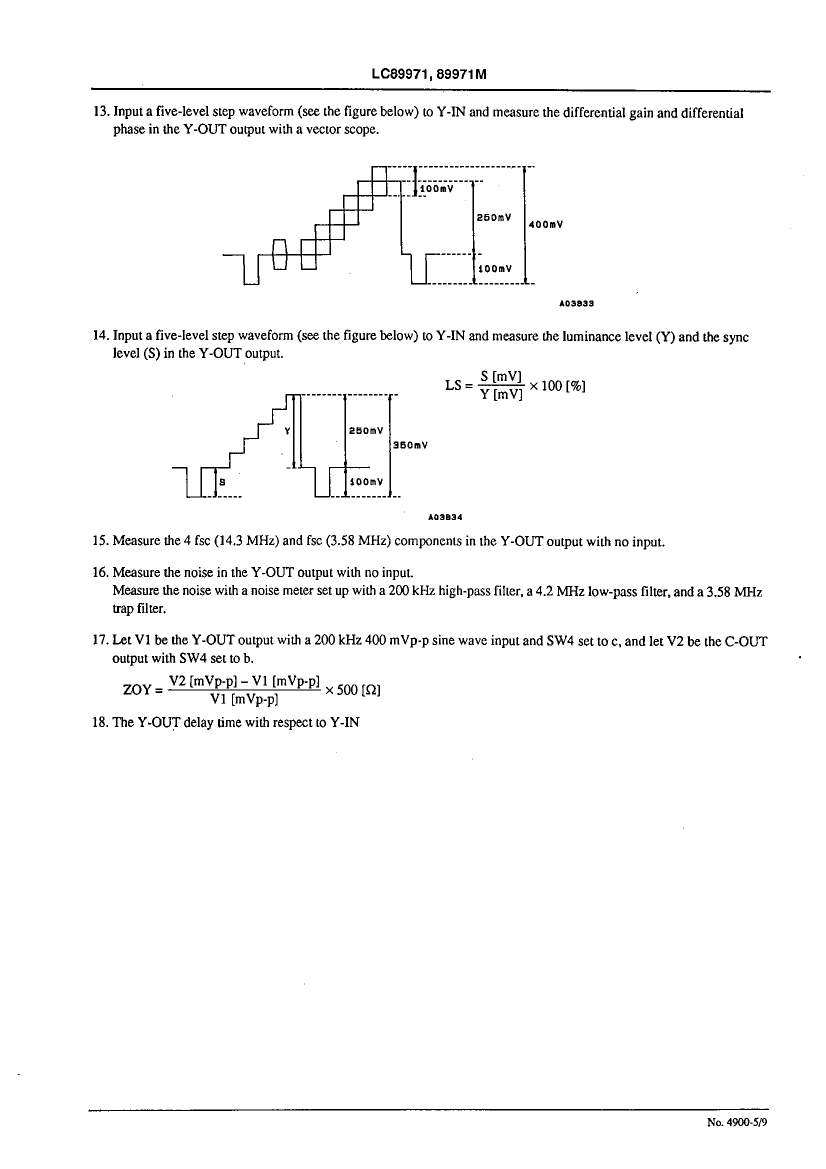

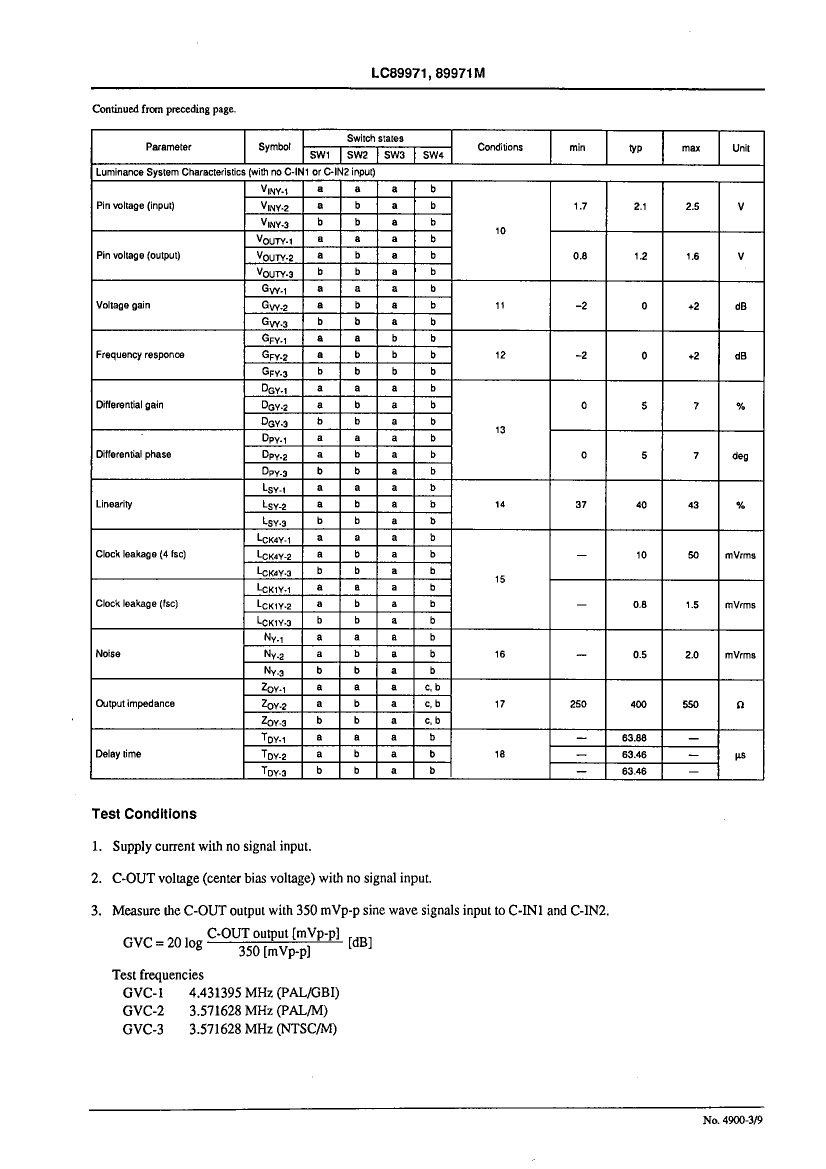

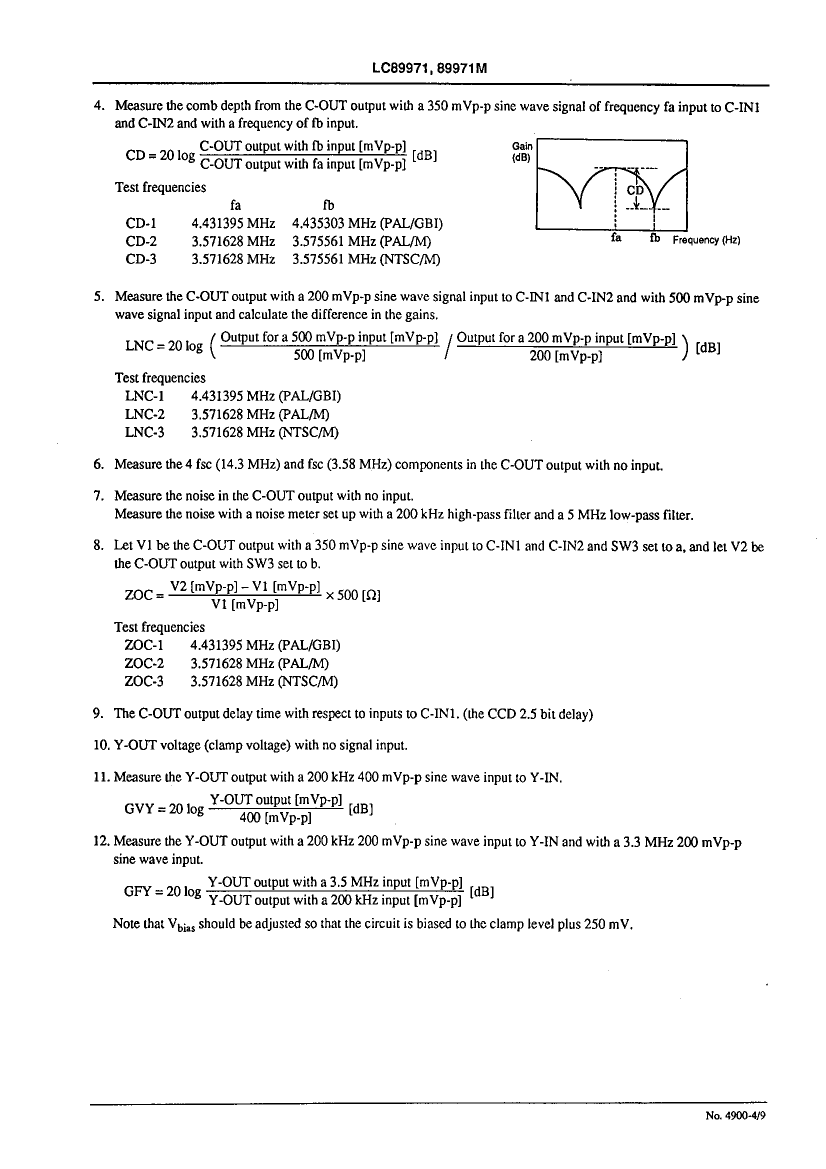

LC89971 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSANYO
Parts packaging codeDIP
package instructionSDIP, SDIP22,.3
Contacts22
Reach Compliance Codeunknow
Commercial integrated circuit typesCONSUMER CIRCUIT
JESD-30 codeR-PDIP-T22
JESD-609 codee0
length21.2 mm
Number of functions1
Number of terminals22
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSDIP
Encapsulate equivalent codeSDIP22,.3
Package shapeRECTANGULAR
Package formIN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum seat height3.9 mm
Maximum slew rate65 mA
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
surface mountNO
technologyMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch1.778 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm

LC89971 Related Products

LC89971 LC89971M
Description Multi-system CCD Delay Line  Multi-system CCD Delay Line
Is it Rohs certified? incompatible incompatible
Maker SANYO SANYO
Parts packaging code DIP DFP
package instruction SDIP, SDIP22,.3 SOP, SOP24,.4
Contacts 22 24
Reach Compliance Code unknow unknow
Commercial integrated circuit types CONSUMER CIRCUIT CONSUMER CIRCUIT
JESD-30 code R-PDIP-T22 R-PDSO-G24
JESD-609 code e0 e0
length 21.2 mm 15.3 mm
Number of functions 1 1
Number of terminals 22 24
Maximum operating temperature 70 °C 70 °C
Minimum operating temperature -10 °C -10 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SDIP SOP
Encapsulate equivalent code SDIP22,.3 SOP24,.4
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE, SHRINK PITCH SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
Certification status Not Qualified Not Qualified
Maximum seat height 3.9 mm 2.5 mm
Maximum slew rate 65 mA 65 mA
Maximum supply voltage (Vsup) 5.25 V 5.25 V
Minimum supply voltage (Vsup) 4.75 V 4.75 V
surface mount NO YES
technology MOS MOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE GULL WING
Terminal pitch 1.778 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 7.62 mm 7.9 mm
