Ordering number : EN5741
CMOS LSI
LC89902V
CMOS Driver for VGA-Format Image Sensors
Overview
The LC89902V is a vertical driver CMOS IC specifically
designed for use with VGA-format CCD image sensors.
Package Dimensions
unit: mm
3175A-SSOP24
[LC89902V]
Applications
• Image input units and similar products
Features
• CMOS structure supporting low power dissipation.
• Level shifter circuits provided on chip to minimize the
number of external components required.
• Miniature package (24-pin SSOP)
Functions
• Inverting drivers: 6 channels
— Converts input pulses to V
CC
1, V
CC
2, and V
CC
3, as
well as V
EE
1 and V
EE
2 levels (inverting).
— Generates the drive levels required for the image
sensor imaging and storage sections.
• Inverting drivers: 2 channels
— These drivers convert input pulses to V
CC
1, V
CC
2,
and V
CC
3, as well as V
EE
1 and V
EE
2 levels
(inverting).
— These drivers generate the drive levels required for
the image sensor transfer gate.
SANYO: SSOP24
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage
Input and voltages
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
CC
max
V
EE
max
V
IN
Pd max
Topr
Tstg
V
CC
1, V
CC
2, V
CC
3
V
EE
1, V
EE
2
All input pins
Condition
Ratings
–0.3 to +6.0
–11.0 to +0.3
–0.3 to V
CC
+ 0.3
350
–10 to +70
–40 to +125
Unit
V
V
V
mA
°C
°C
Allowable Operating Ranges
at Ta = 25°C
Parameter
Supply voltage
Input voltage range
Symbol
V
CC
V
EE
V
IN
V
CC
1, V
CC
2, V
CC
3
V
EE
1, V
EE
2
All input pins
Conditions
Ratings
4.5 to 5.5
–10.5 to 0
0 to V
CC
Unit
V
V
V
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
93097HA (OT) No. 5741-1/5
LC89902V

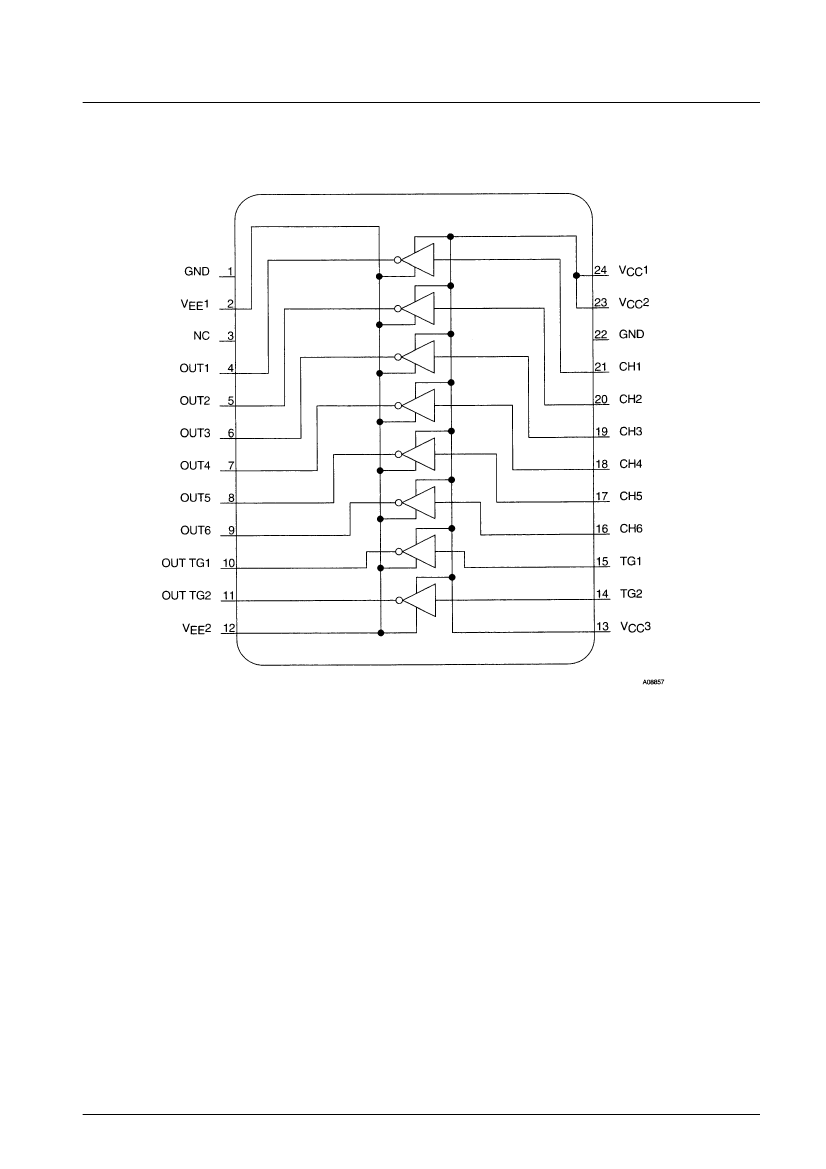

Block Diagram
