Part Number

Search

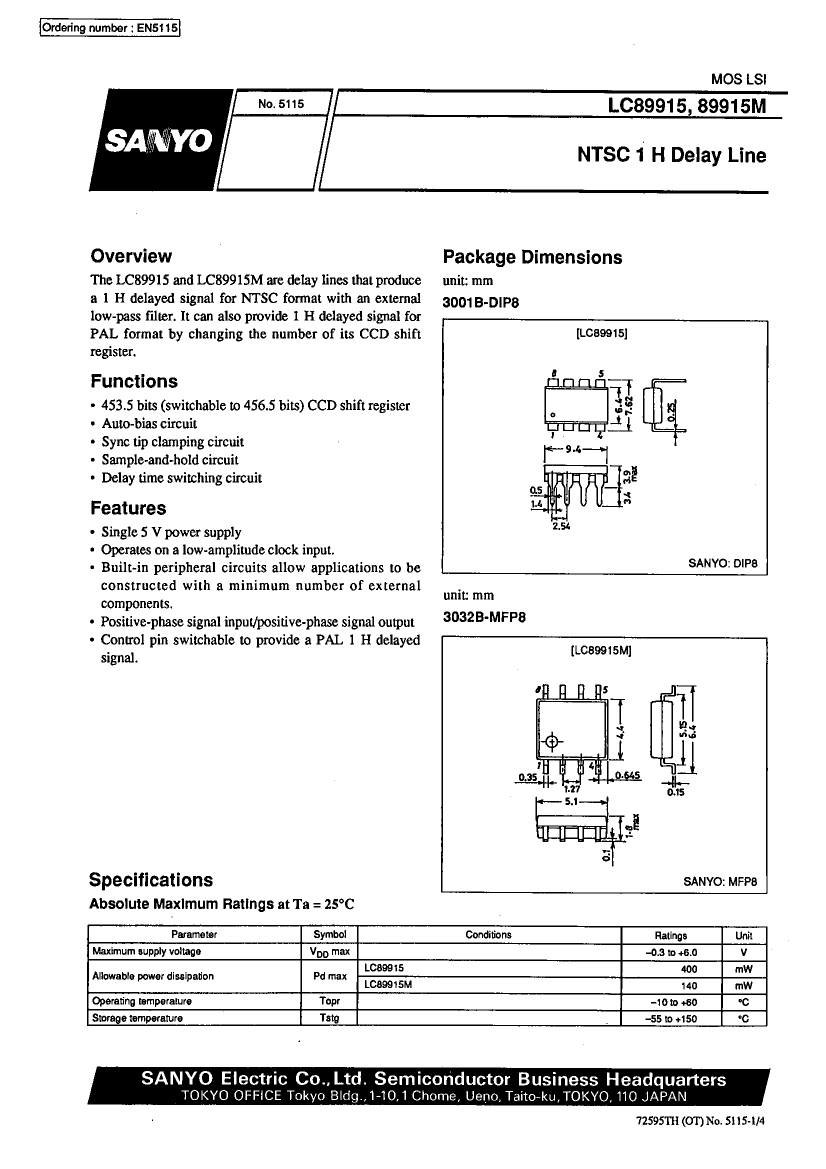

LC89915

Description
NTSC 1H Delay Line
CategoryOther integrated circuit (IC)    Consumption circuit
File Size76KB,4 Pages
ManufacturerSANYO
Websitehttp://www.semic.sanyo.co.jp/english/index-e.html
Download Datasheet Parametric Compare View All

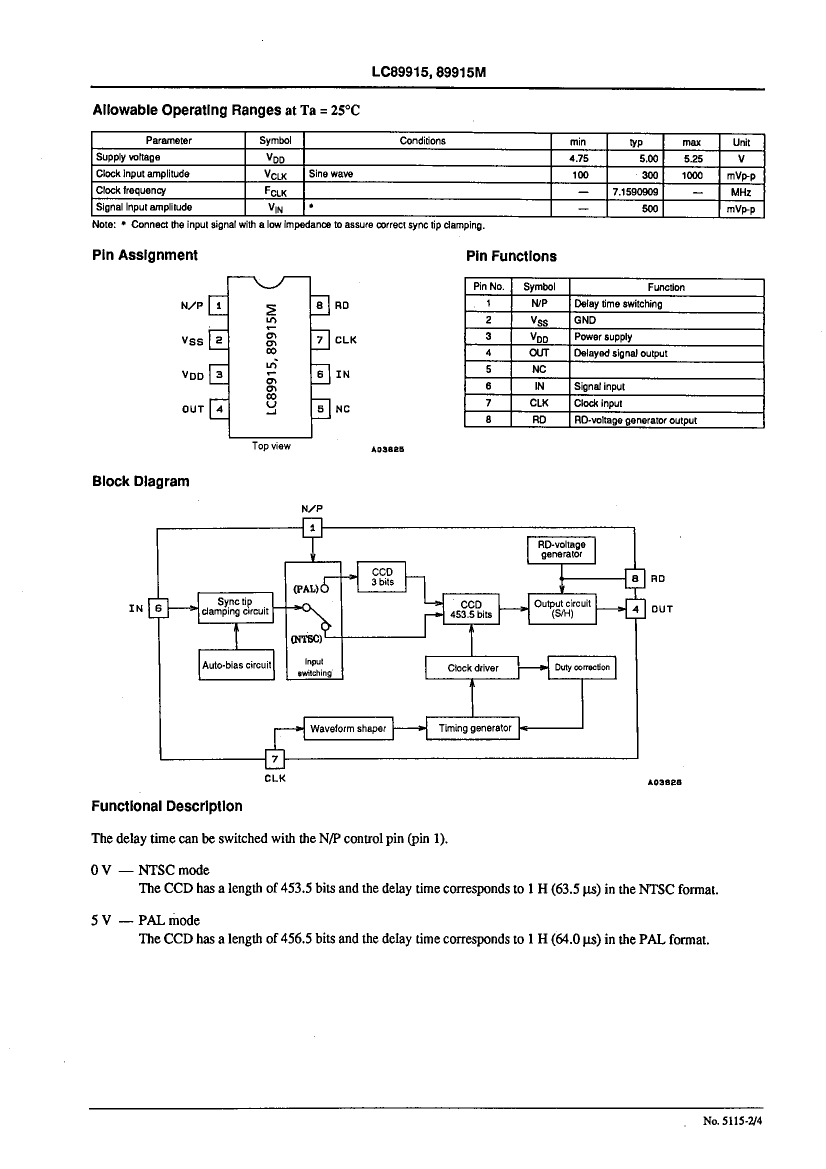

LC89915 Overview

NTSC 1H Delay Line

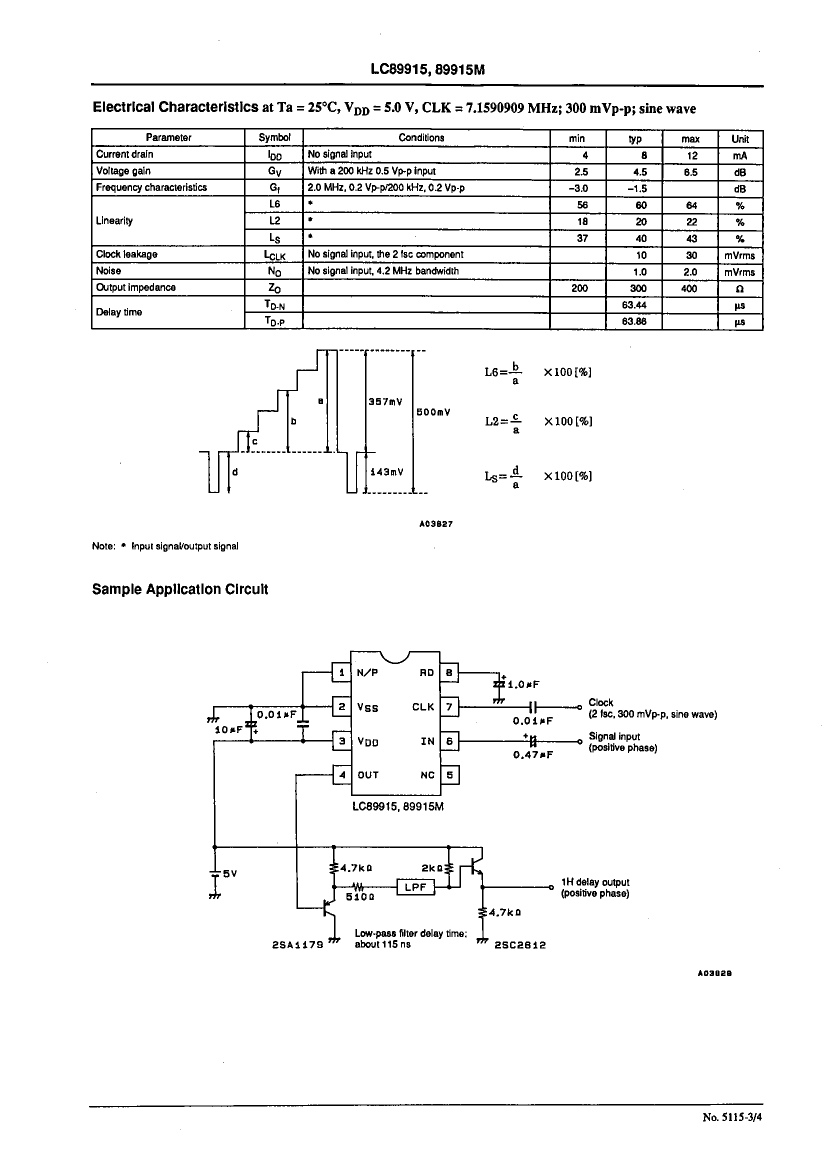

LC89915 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSANYO
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Reach Compliance Codeunknow
Commercial integrated circuit typesCONSUMER CIRCUIT
JESD-30 codeR-PDIP-T8
JESD-609 codee0
length9.4 mm
Number of functions1
Number of terminals8
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum seat height3.9 mm
Maximum slew rate12 mA
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
surface mountNO
technologyMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm

LC89915 Related Products

LC89915 LC89915M
Description NTSC 1H Delay Line NTSC 1H Delay Line
Is it Rohs certified? incompatible incompatible
Maker SANYO SANYO
Parts packaging code DIP SOIC
package instruction DIP, DIP8,.3 SOP, SOP8,.25
Contacts 8 8
Reach Compliance Code unknow unknow
Commercial integrated circuit types CONSUMER CIRCUIT CONSUMER CIRCUIT
JESD-30 code R-PDIP-T8 R-PDSO-G8
JESD-609 code e0 e0
length 9.4 mm 5.1 mm
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 60 °C 60 °C
Minimum operating temperature -10 °C -10 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP SOP
Encapsulate equivalent code DIP8,.3 SOP8,.25
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
Certification status Not Qualified Not Qualified
Maximum seat height 3.9 mm 1.8 mm
Maximum slew rate 12 mA 12 mA
Maximum supply voltage (Vsup) 5.25 V 5.25 V
Minimum supply voltage (Vsup) 4.75 V 4.75 V
surface mount NO YES
technology MOS MOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE GULL WING
Terminal pitch 2.54 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 7.62 mm 4.4 mm
