LC8905V

Description
Digital Audio Interface Receiver
CategoryOther integrated circuit (IC)    Consumption circuit
File Size206KB,16 Pages
ManufacturerSANYO
Websitehttp://www.semic.sanyo.co.jp/english/index-e.html
Download Datasheet Parametric View All

LC8905V Overview

Digital Audio Interface Receiver

LC8905V Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSANYO
Parts packaging codeSSOP
package instructionLSSOP, SSOP24,.3
Contacts24
Reach Compliance Codeunknow
Commercial integrated circuit typesCONSUMER CIRCUIT
JESD-30 codeR-PDSO-G24
JESD-609 codee0
length8 mm
Number of functions1
Number of terminals24
Maximum operating temperature75 °C
Minimum operating temperature-30 °C
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Encapsulate equivalent codeSSOP24,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum seat height1.6 mm
Maximum slew rate15 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width5.6 mm
Ordering number : EN*5237
CMOS LSI
LC8905V
Digital Audio Interface Receiver
Preliminary
Overview
The LC8905V is for use in IEC 958 and EIAJ CP-1201
format data transmission between digital audio equipment.
This LSI is used on the receiving side, and handles
synchronization with the input signal and demodulation of
that signal to a normal format signal.
Package Dimensions
unit: mm
3175A-SSOP24
[LC8905V]

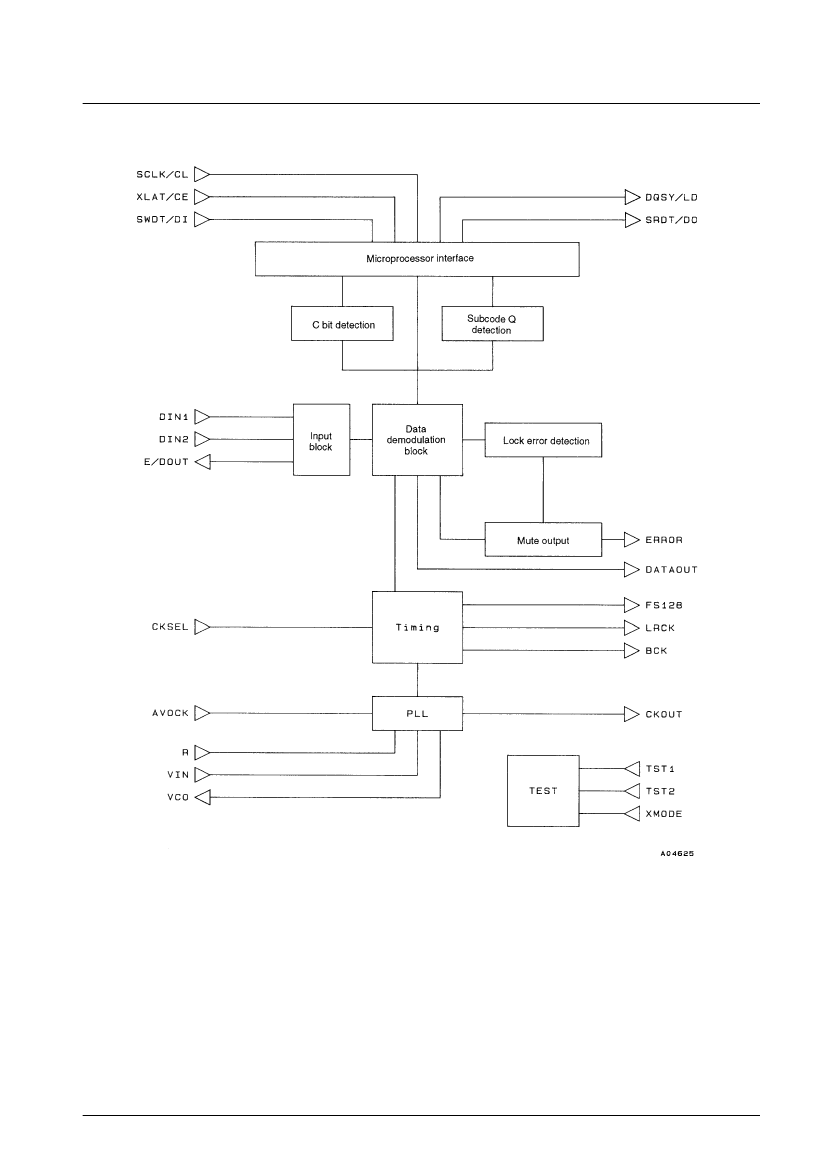

Features
• On-chip PLL circuit synchronizes with the transmitted
IEC 958 and EIAJ CP-1201 format signal.
• Provides 128fs, bit, and L/R clock outputs.
• System clock can be selected to be either 384fs or 512fs.
• Microprocessor interface code settings for different
output types
— Input pin, emphasis output, input bi-phase data
output, and validity flag output settings
— Audio data output format setting
— Channel status output (32-bit output for consumer
products)
— Subcode Q output with CRC flags (80 bits)
• Start ID and shortening ID detection for DAT (Digital
Audio Tape recorder) that use subcodes
• CMOS, single-voltage power supply
• Miniature package: SSOP-24
SANYO: SSOP24
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
D3095HA (OT) No. 5237-1/16
