LC895196K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> LC895196K

LC895196K: DescriptionATA-PI Compatible CD-ROM Decoder IC; CategoryOther integrated circuit (IC) Consumption circuit; File Size105KB，12 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

LC895196K Overview

ATA-PI Compatible CD-ROM Decoder IC

LC895196K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	QFP
package instruction	LFQFP, QFP144,.87SQ,20
Contacts	144
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
length	20 mm
Number of functions	1
Number of terminals	144
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP144,.87SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	20 mm

Preview

Download Datasheet

View All

Ordering number : EN

*5852

CMOS LSI

LC895196K

ATA-PI Compatible CD-ROM Decoder IC

Preliminary

Overview

The LC895196K is a large scale integrated circuit

equipped with CD-ROM functions and an internal ATA-

PI (IDE) interface.

decoding, CD-R compatibility)

• Built in subcode P-W buffering function (NO-ECC) and

CD-TEXT compatibility

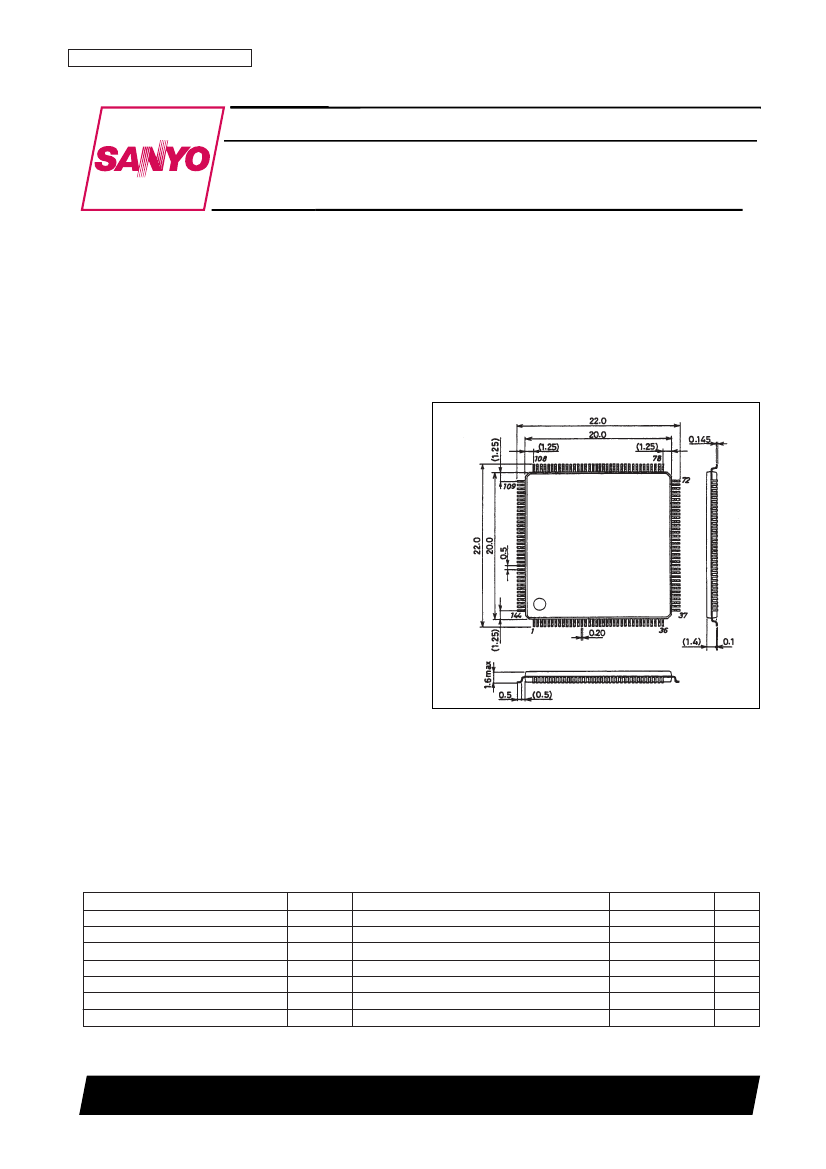

Package Dimensions

unit: mm

3214-SQFP144

[LC895196K]

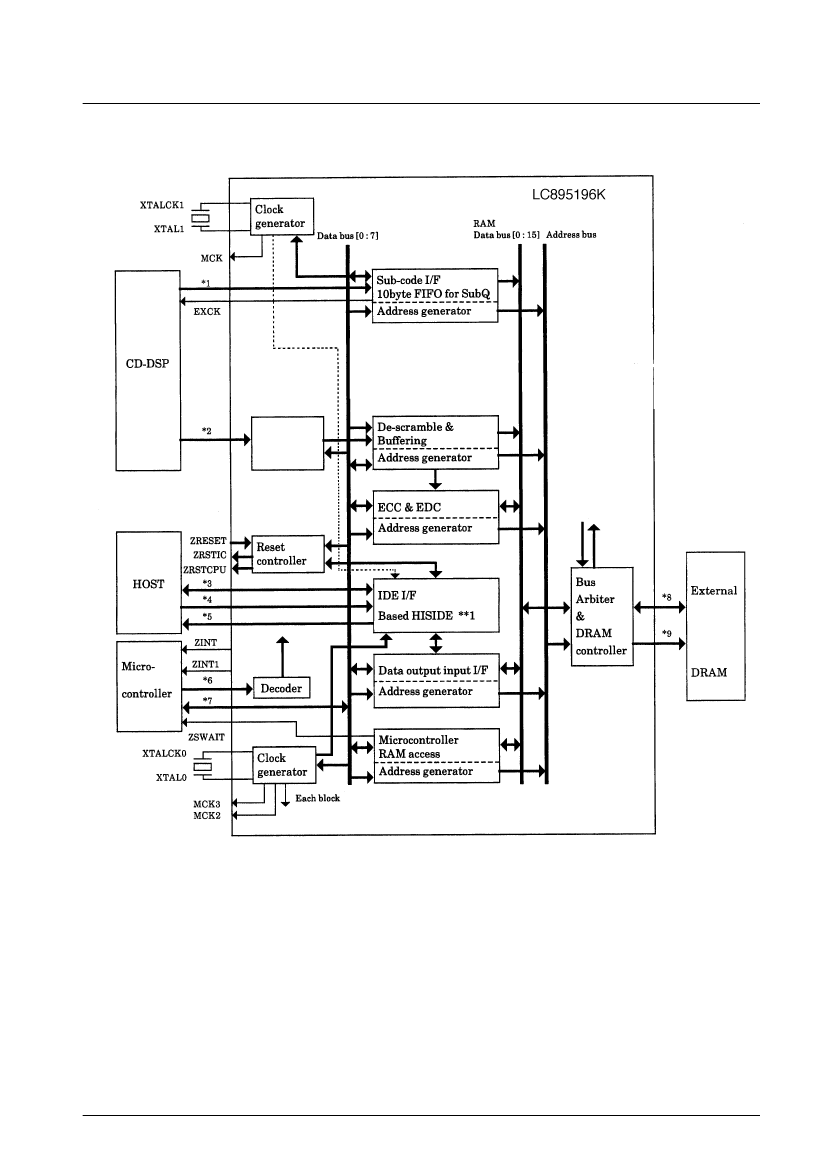

Functions

• CD-ROM ECC functions, SUB-CODE read function,

ATA-PI (IDE) interface (Registers, etc.).

Features

• Built-in ATA-PI (IDE) interface.

• 32× speed supported

Uses the EDO-DRAM (× 16, 50 ns)

16.6 Mbyte/s (with IORDY)

Operating frequency: 33.8688 MHz

• 24× speed supported

Uses the EDO-DRAM (× 16, 60 ns)

16.6 Mbyte/s (without IORDY)

Operating frequency: 33.8688 MHz

• Supports between 1 Mbit and 4 Mbit of buffer RAM

when DRAM is used

• The user can flexibly set the CD main channel, the C2

flags, and the subcode regions in the buffer RAM

• Built-in batch transfer function. (Where the batch

transfer function is a function that transmit the CD main

channel, C2 flags, subcodes, etc. all at once.)

• Built-in multitransmit function. (Where the

multitransmit function is a function that automatically

transmits multiple blocks at once.)

• Built-in intelligent functions (auto buffering, auto

SANYO: SQFP144

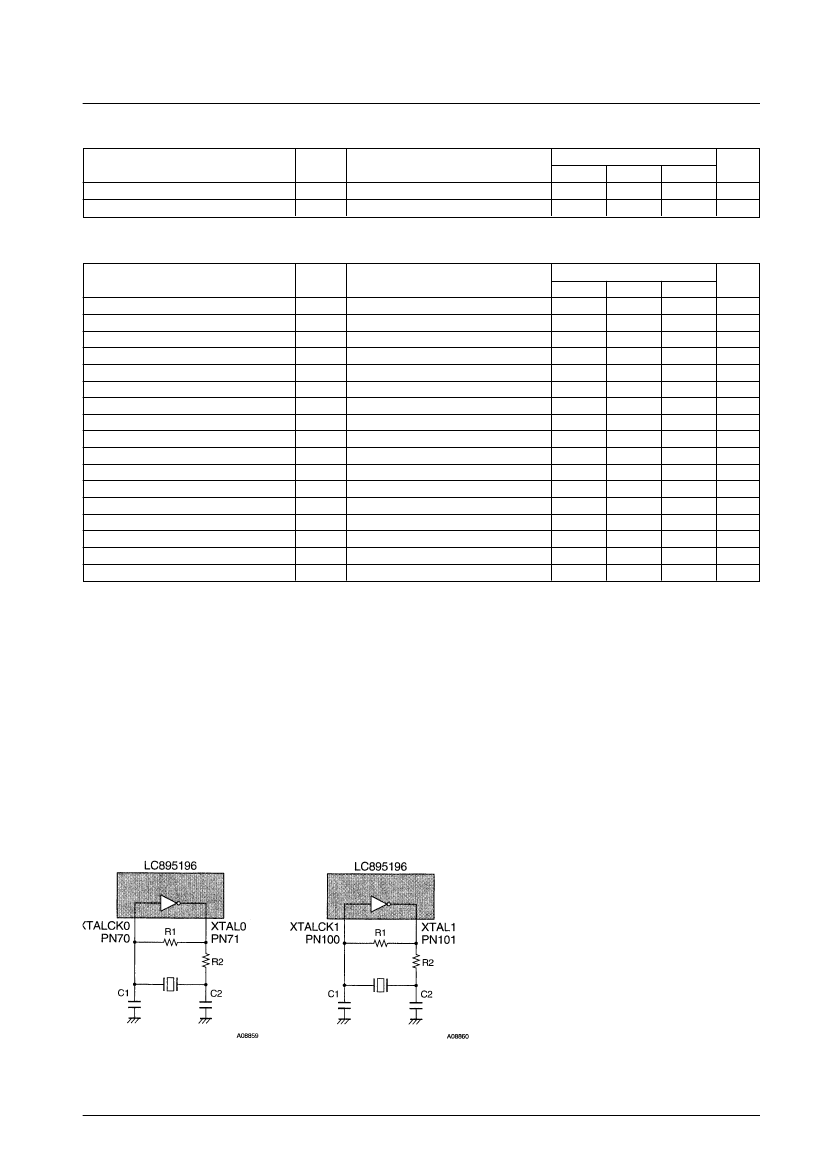

Specifications

Absolute Maximum Ratings

at V

= 0 V

Parameter

Maximum power supply voltage

I/O voltage

Allowable power dissipation

Operating temperatures

Storage temperatures

Soldering temperature (terminals only)

I/O current

Note:

Per basic I/O cell

, I

max

Symbol

max

, V

Pd max

Topr

Tstg

For 10 seconds

Ta = 25°C

≤

70°C

Condition

Ratings

–0.3 to +7.0

–0.3 to V

+ 0.3

550

–30 to +70

–55 to +125

235

±20*

Unit

°C

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN

D3097HA (OT) No. 5852-/12
