LC866032B datasheet, PDF - EEWORLD Datasheet

LC866032B: Description8-bit single chip microcomputer　　; CategoryThe embedded processor and controller Microcontrollers and processors; File Size394KB，20 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

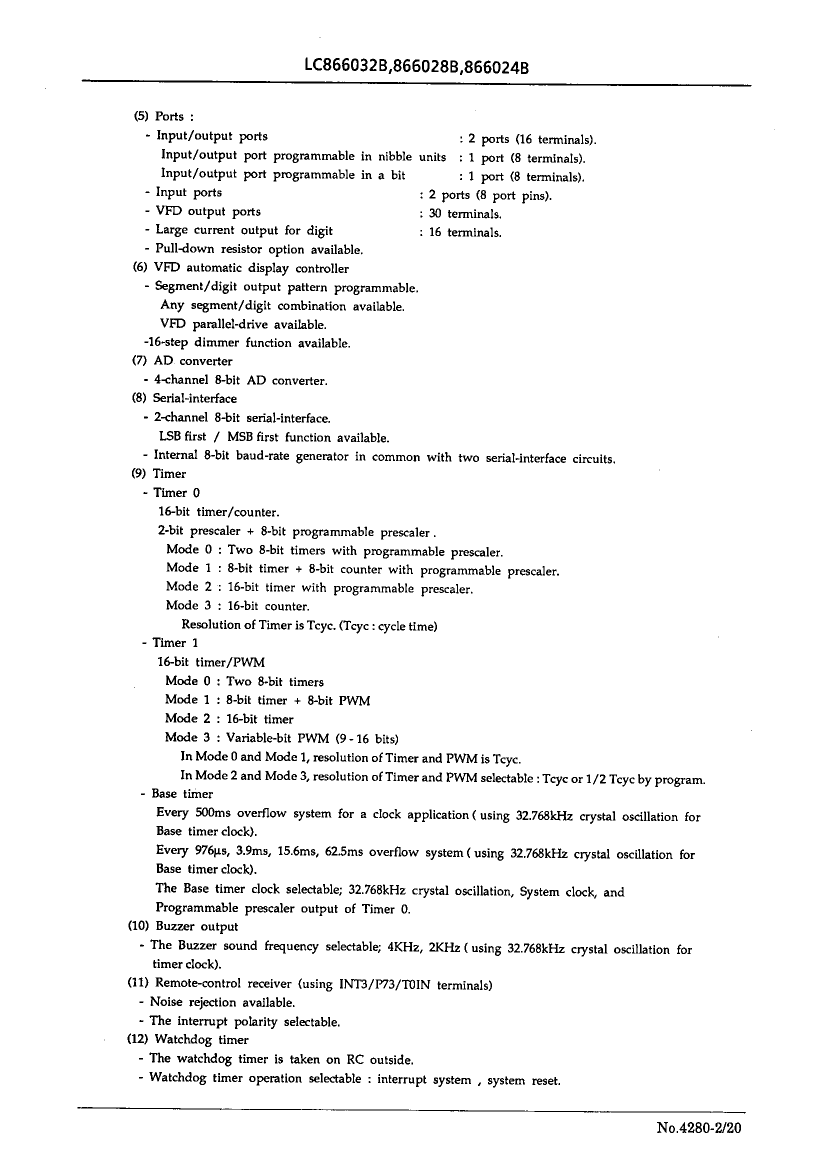

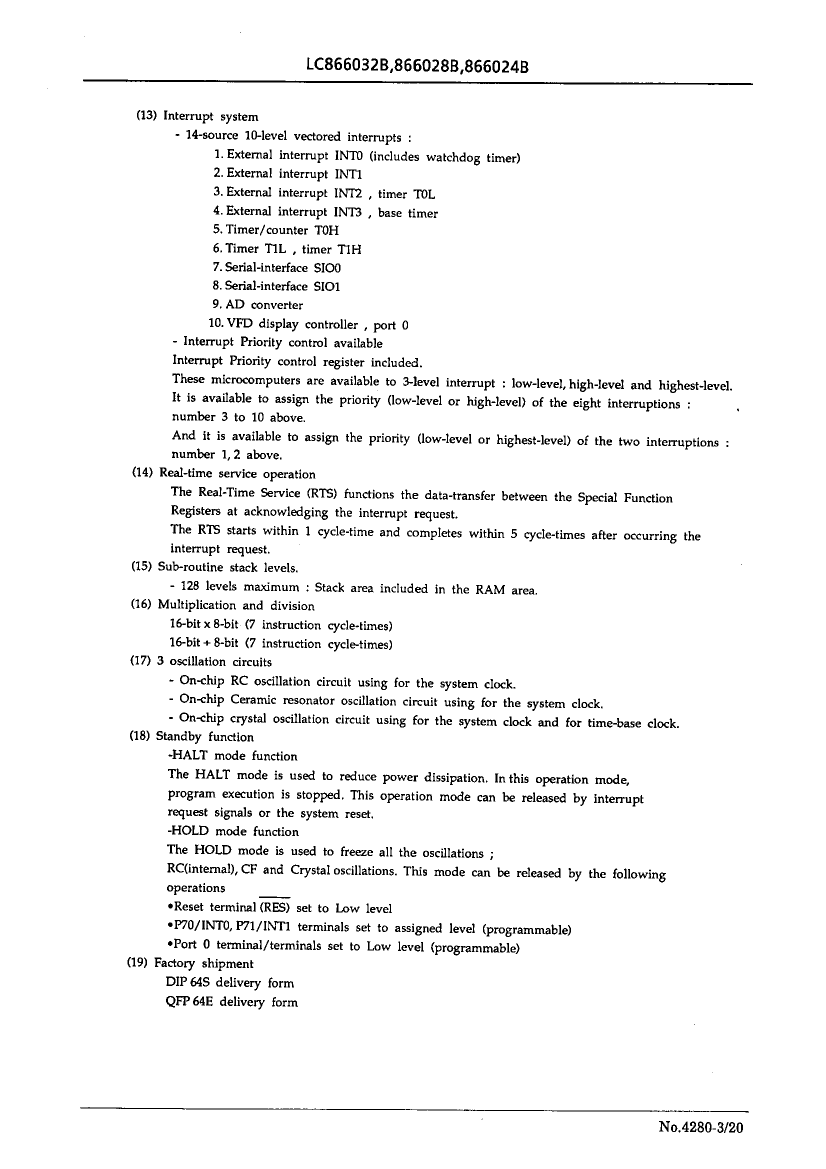

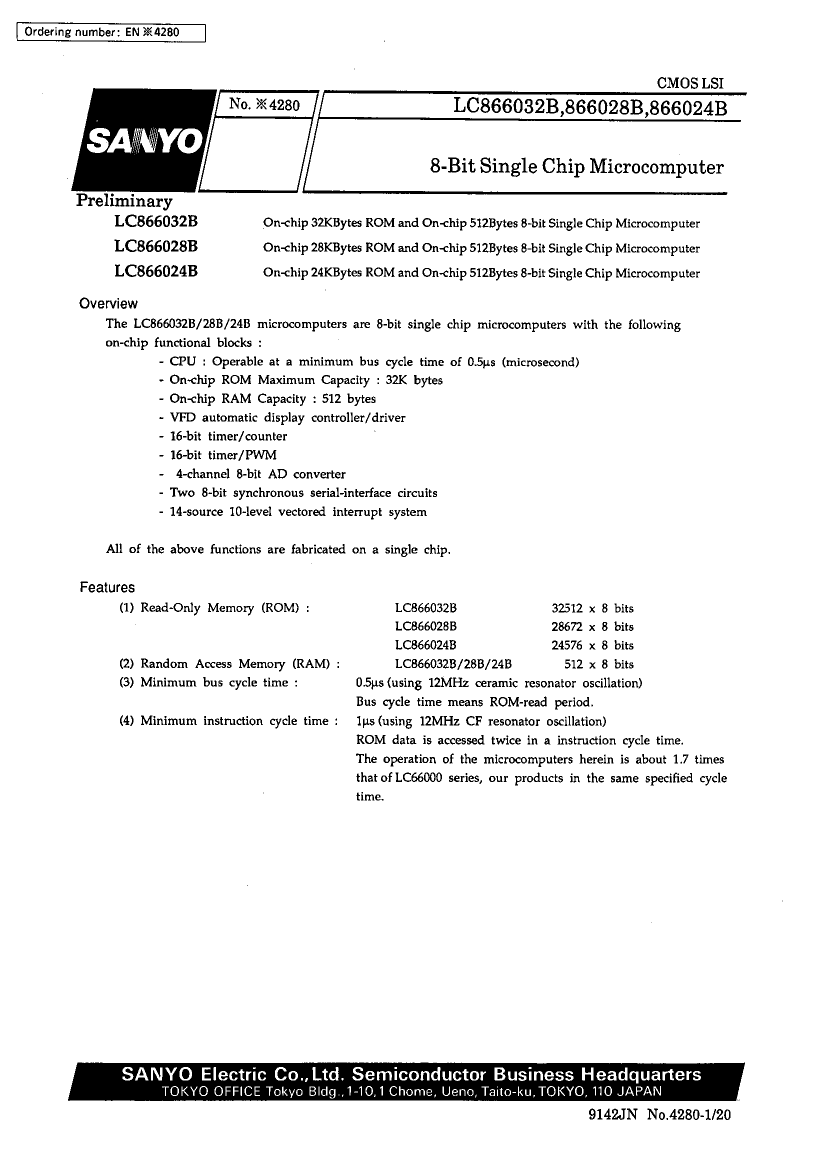

LC866032B Overview

8-bit single chip microcomputer　　

Parameter Name	Attribute value
Maker	SANYO

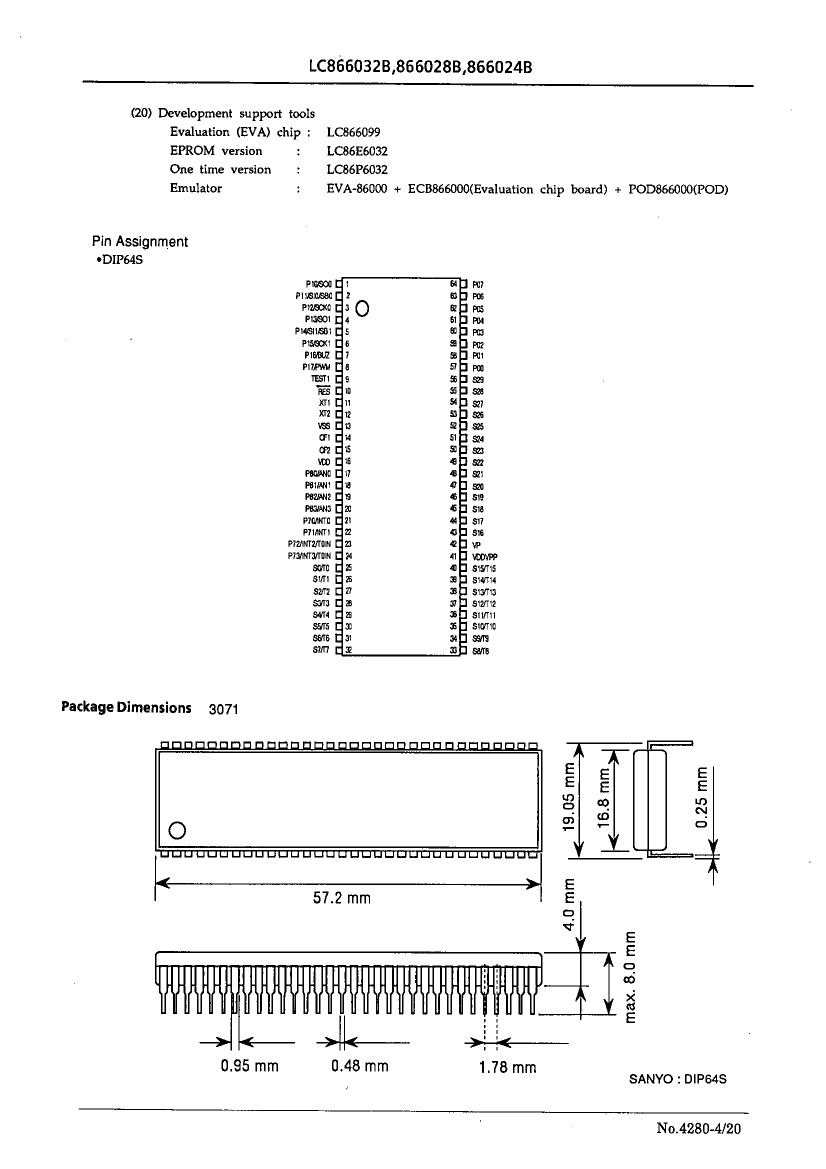

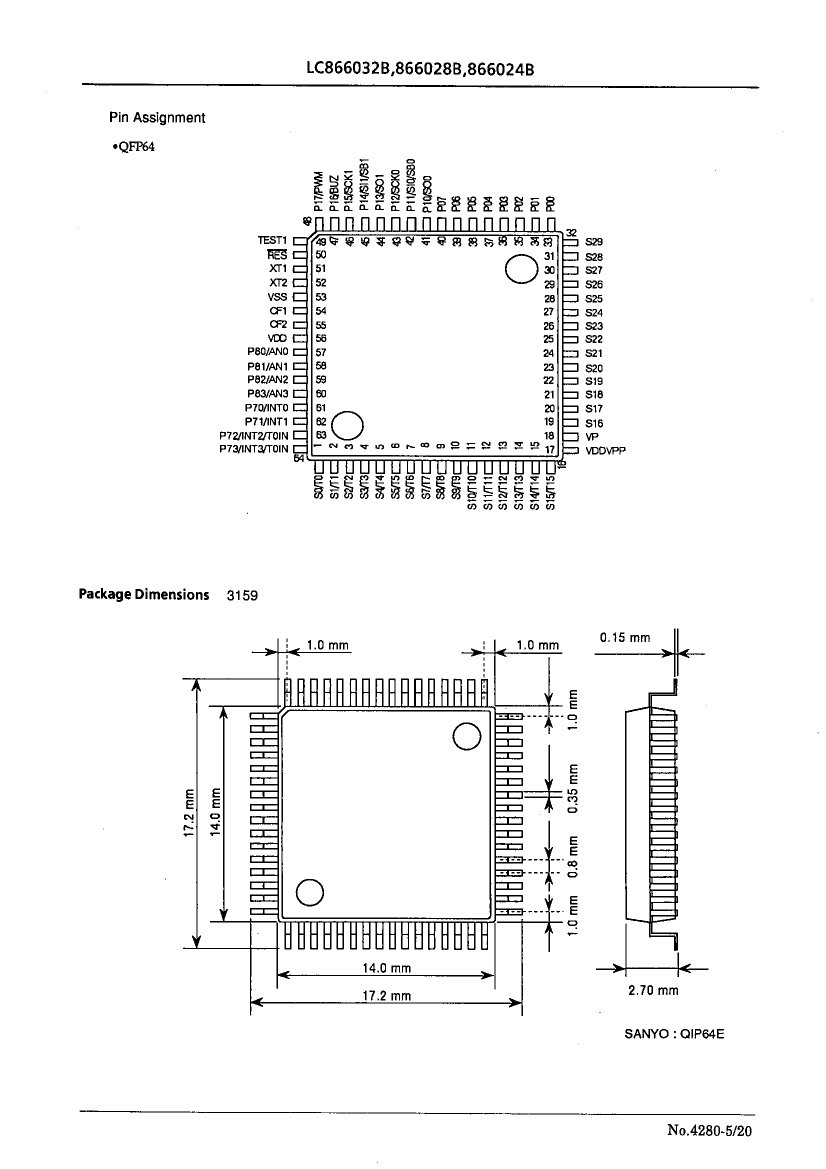

Parts packaging code	DIP
package instruction	DIP,
Contacts	64
Reach Compliance Code	unknown
Has ADC	YES
Other features	CAN ALSO OPERATE AT 2.5V MINIMUM SUPPLY
Address bus width
bit size	8
maximum clock frequency	12.24 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
Number of I/O lines	24
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
speed	12.24 MHz
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	LC866032B	LC866028B	LC866024B
Description	8-bit single chip microcomputer	8-bit single chip microcomputer	8-bit single chip microcomputer
Maker	SANYO	SANYO	SANYO
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	64	64	64
Reach Compliance Code	unknown	unknown	unknown
Has ADC	YES	YES	YES
Other features	CAN ALSO OPERATE AT 2.5V MINIMUM SUPPLY	CAN ALSO OPERATE AT 2.5V MINIMUM SUPPLY	CAN ALSO OPERATE AT 2.5V MINIMUM SUPPLY
bit size	8	8	8
maximum clock frequency	12.24 MHz	12.24 MHz	12.24 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDIP-T64	R-PDIP-T64	R-PDIP-T64
Number of I/O lines	24	24	24
Number of terminals	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM
speed	12.24 MHz	12.24 MHz	12.24 MHz
Maximum supply voltage	6 V	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1
