LC7936A datasheet, PDF - EEWORLD Datasheet

LC7936A: Description32-Bit PPC LED Erasing Head Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size99KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

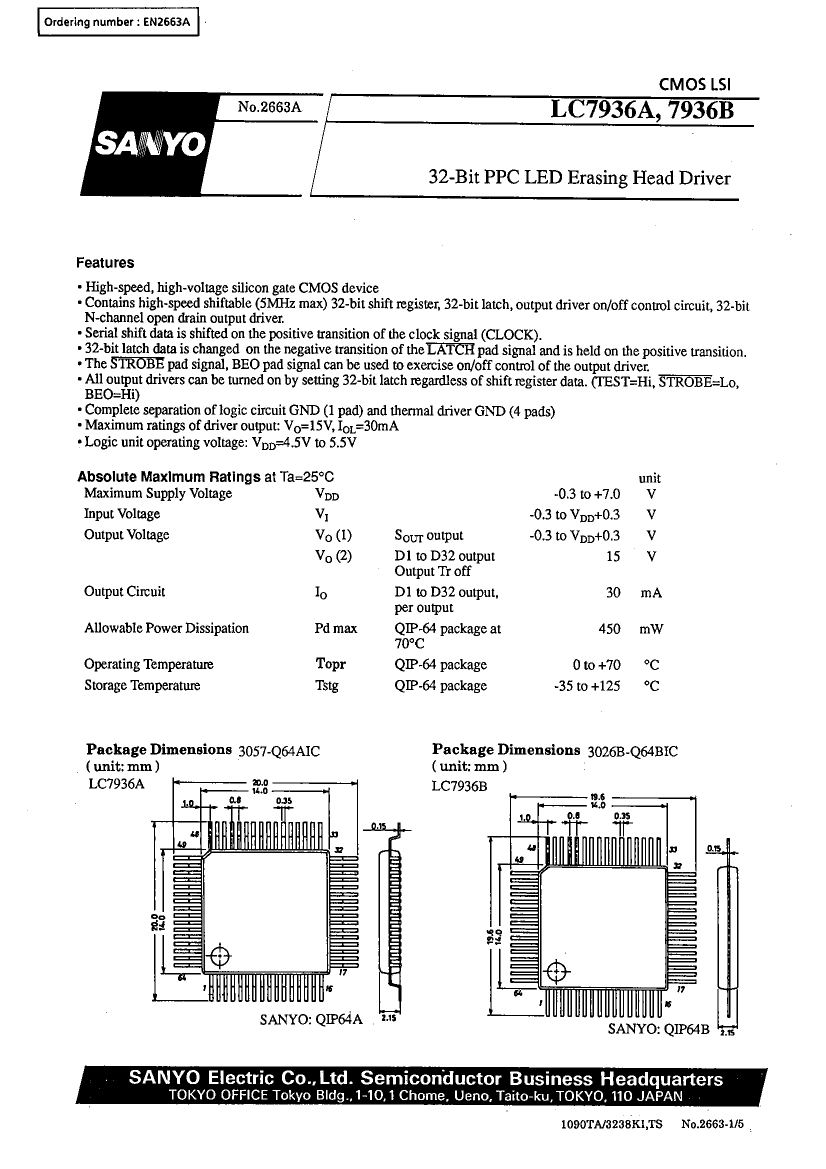

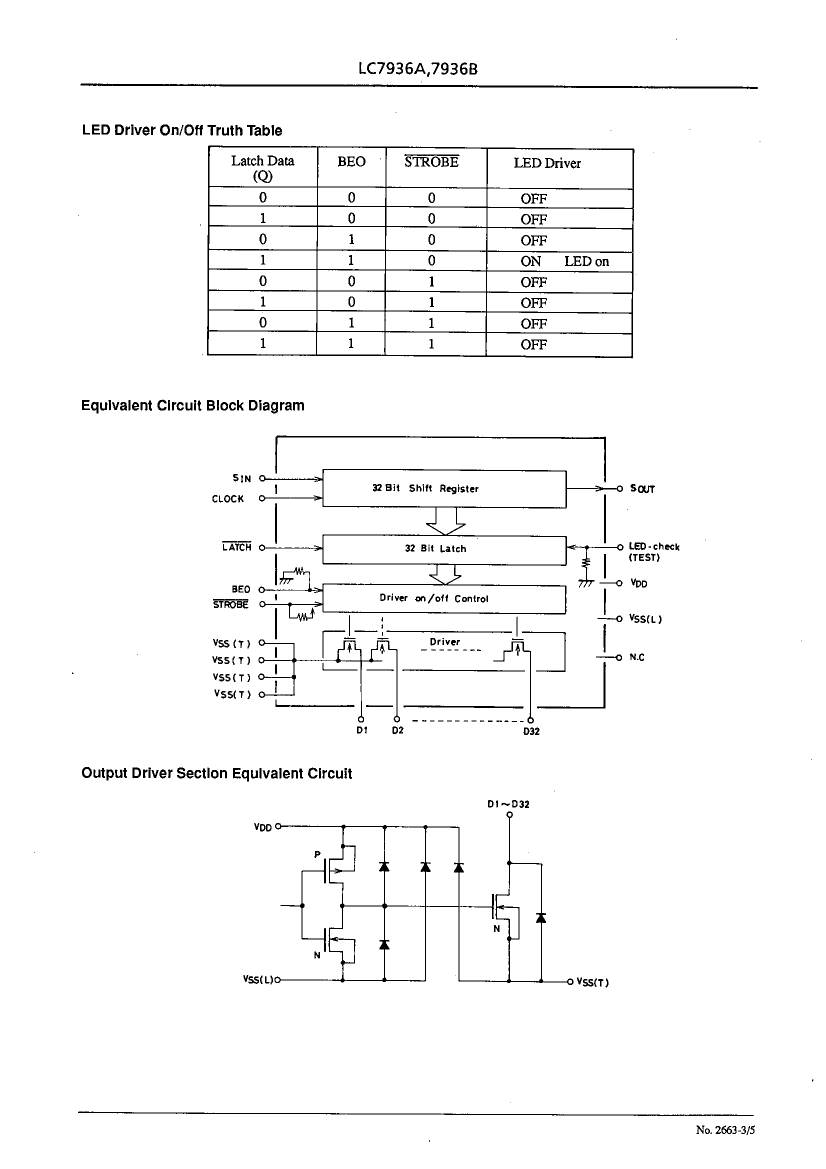

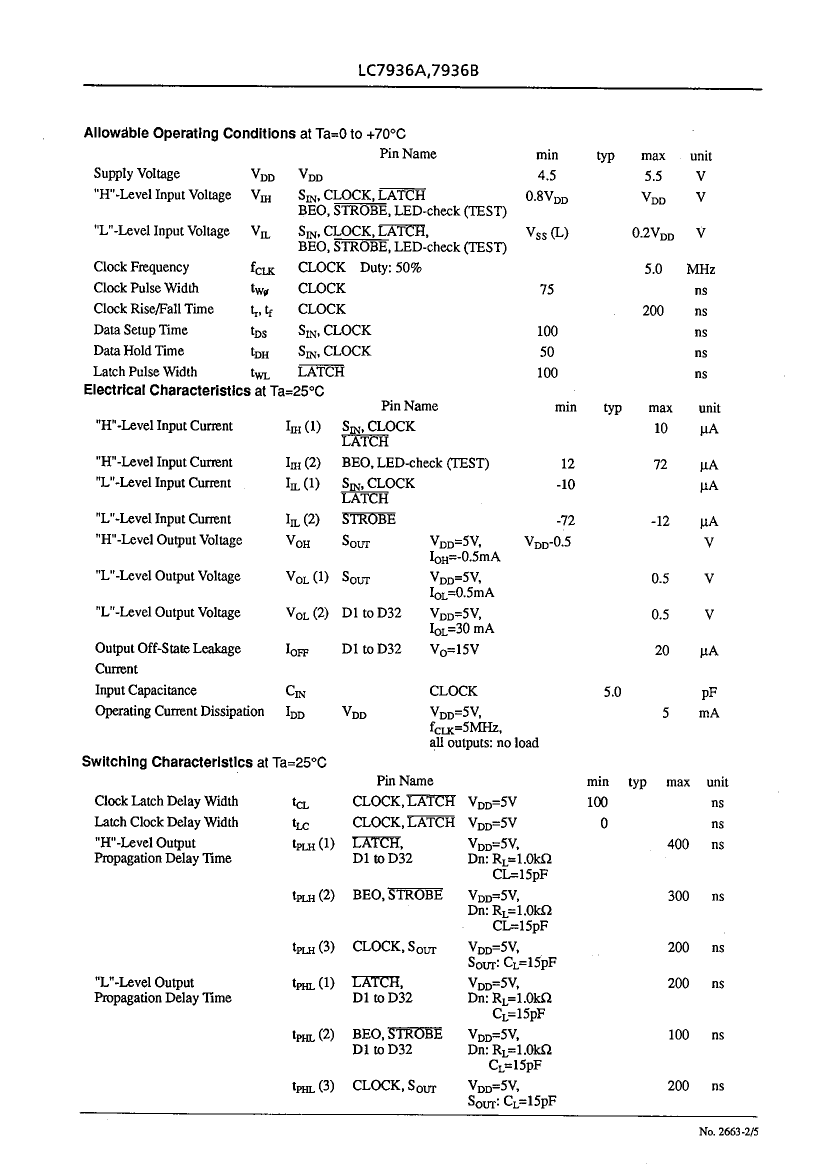

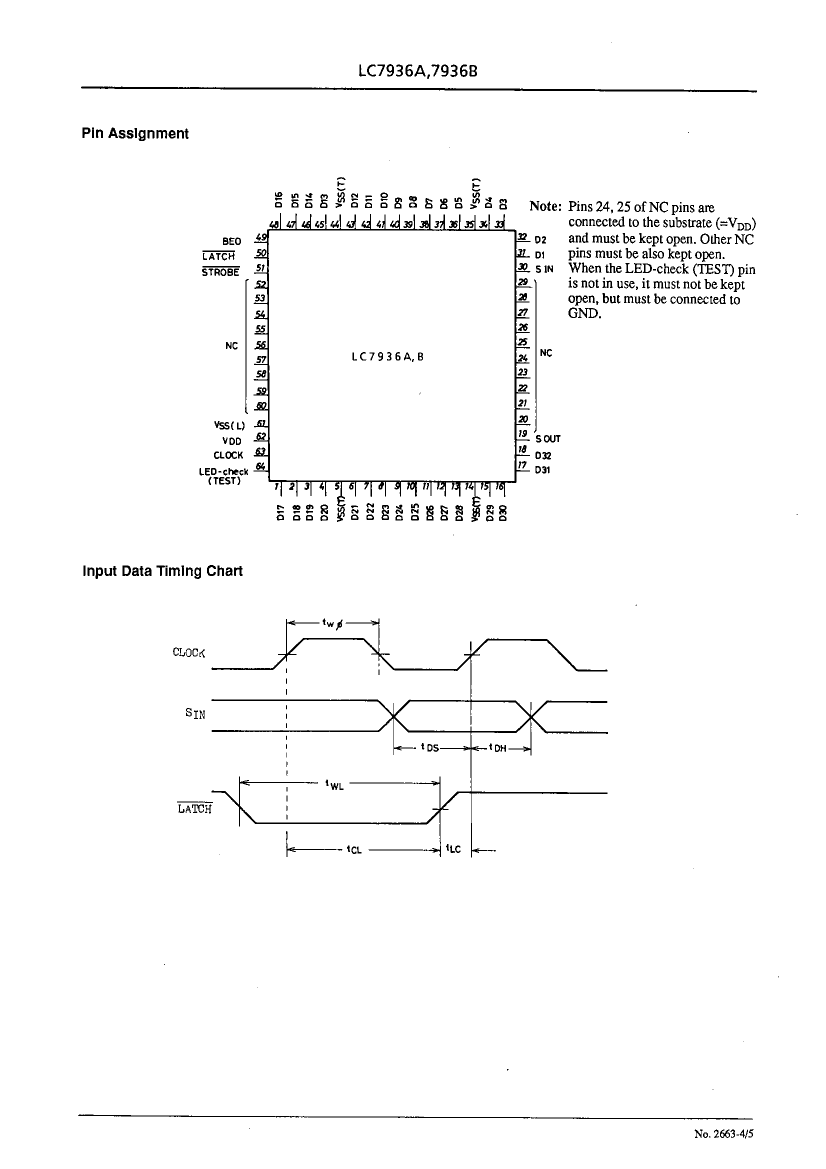

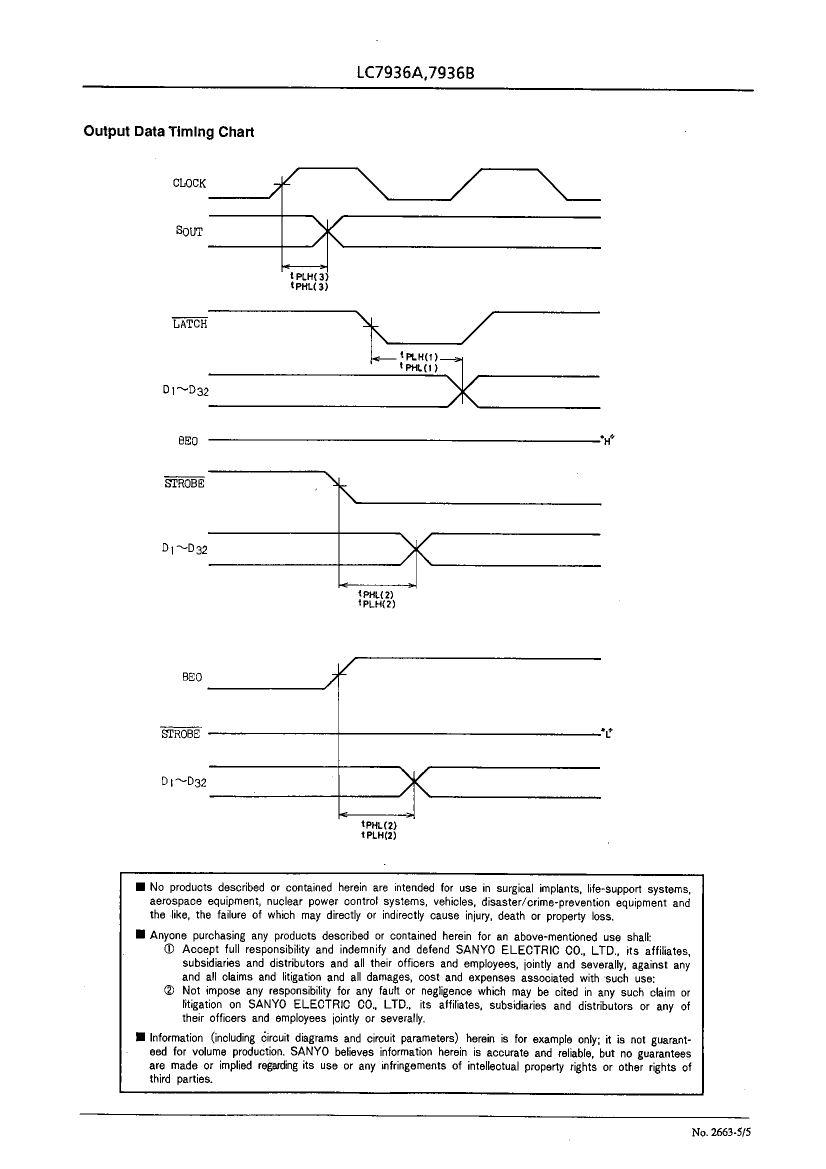

LC7936A Overview

32-Bit PPC LED Erasing Head Driver

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	QFP
package instruction	QFP, QFP64,.8SQ,32
Contacts	64
Reach Compliance Code	unknow
Interface integrated circuit type	HEAD POSITIONING CIRCUIT
JESD-30 code	S-PQFP-G64
length	14 mm
Number of digits/characters	32-DIGIT
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.8SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm

	LC7936A	LC7936	LC7936B
Description	32-Bit PPC LED Erasing Head Driver	32-Bit PPC LED Erasing Head Driver	32-Bit PPC LED Erasing Head Driver
Maker	SANYO	-	SANYO
Parts packaging code	QFP	-	QFP
package instruction	QFP, QFP64,.8SQ,32	-	QFF, QFP64,.8SQ,32
Contacts	64	-	64
Reach Compliance Code	unknow	-	unknow
Interface integrated circuit type	HEAD POSITIONING CIRCUIT	-	HEAD POSITIONING CIRCUIT
JESD-30 code	S-PQFP-G64	-	S-PQFP-F64
length	14 mm	-	14 mm
Number of digits/characters	32-DIGIT	-	32-DIGIT
Number of functions	1	-	1
Number of terminals	64	-	64
Maximum operating temperature	70 °C	-	70 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	QFP	-	QFF
Encapsulate equivalent code	QFP64,.8SQ,32	-	QFP64,.8SQ,32
Package shape	SQUARE	-	SQUARE
Package form	FLATPACK	-	FLATPACK
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	2.15 mm	-	2.15 mm
Maximum supply voltage	5.5 V	-	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal form	GULL WING	-	FLAT
Terminal pitch	0.8 mm	-	0.8 mm
Terminal location	QUAD	-	QUAD
width	14 mm	-	14 mm
