LC75822W datasheet, PDF - EEWORLD Datasheet

LC75822W: DescriptionLCD Display Drivers　; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size132KB，10 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

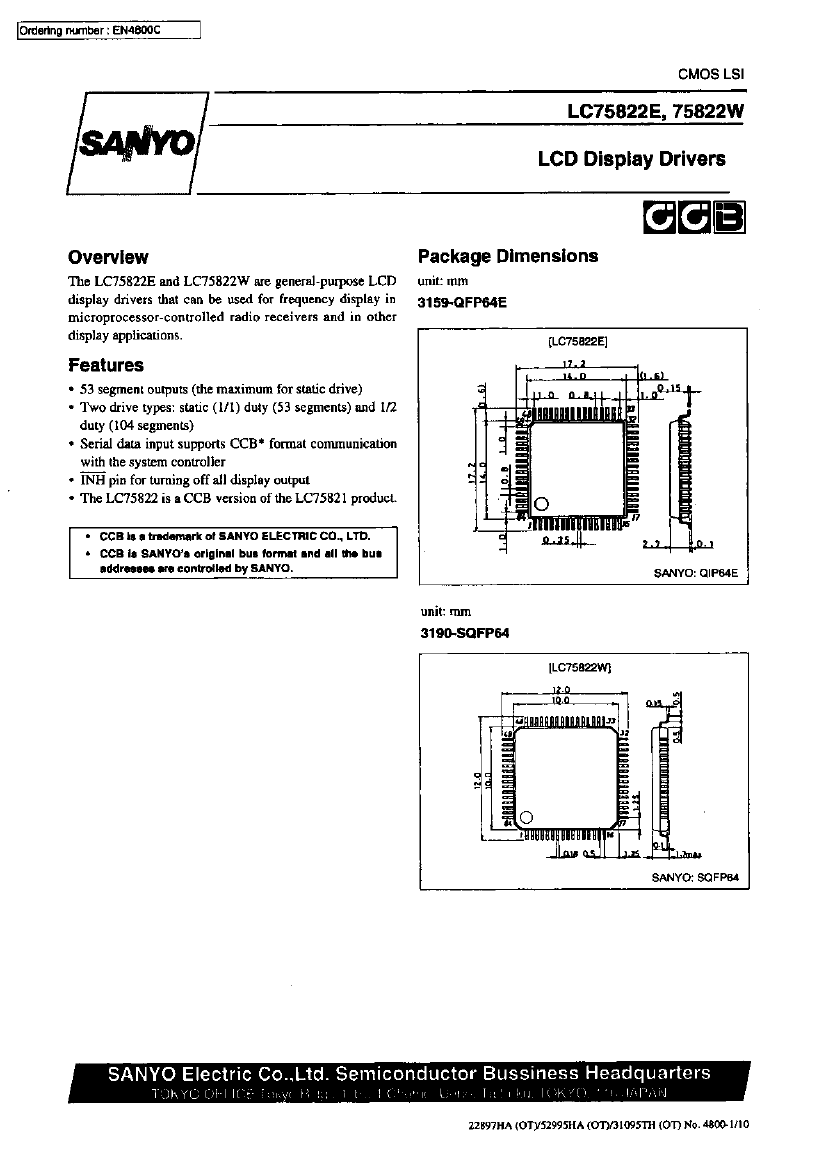

LC75822W Overview

LCD Display Drivers　

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	QFP
package instruction	LFQFP, QFP64,.47SQ,20
Contacts	64
Reach Compliance Code	unknow
ECCN code	EAR99
data entry mode	SERIAL
display mode	SEGMENT
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64
length	10 mm
Multiplex display function	YES
Number of base plates	2-BP
Number of functions	1
Number of segments	55
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP64,.47SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum slew rate	0.6 mA
Maximum supply voltage	6.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
Supply voltage 1-max	6.5 V
Mains voltage 1-minute	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	10 mm
minfmax	0.1 MHz

	LC75822W	LC75822E
Description	LCD Display Drivers	LCD Display Drivers
Maker	SANYO	SANYO
Parts packaging code	QFP	QFP
package instruction	LFQFP, QFP64,.47SQ,20	QFP, QFP64,.66SQ,32
Contacts	64	64
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
data entry mode	SERIAL	SERIAL
display mode	SEGMENT	SEGMENT
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G64	S-PQFP-G64
length	10 mm	14 mm
Multiplex display function	YES	YES
Number of base plates	2-BP	2-BP
Number of functions	1	1
Number of segments	55	55
Number of terminals	64	64
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	QFP
Encapsulate equivalent code	QFP64,.47SQ,20	QFP64,.66SQ,32
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	3 mm
Maximum slew rate	0.6 mA	0.6 mA
Maximum supply voltage	6.5 V	6.5 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	6.5 V	6.5 V
Mains voltage 1-minute	3 V	3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.8 mm
Terminal location	QUAD	QUAD
width	10 mm	14 mm
minfmax	0.1 MHz	0.1 MHz
