5962-9065901HXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 5962-9065901HXC

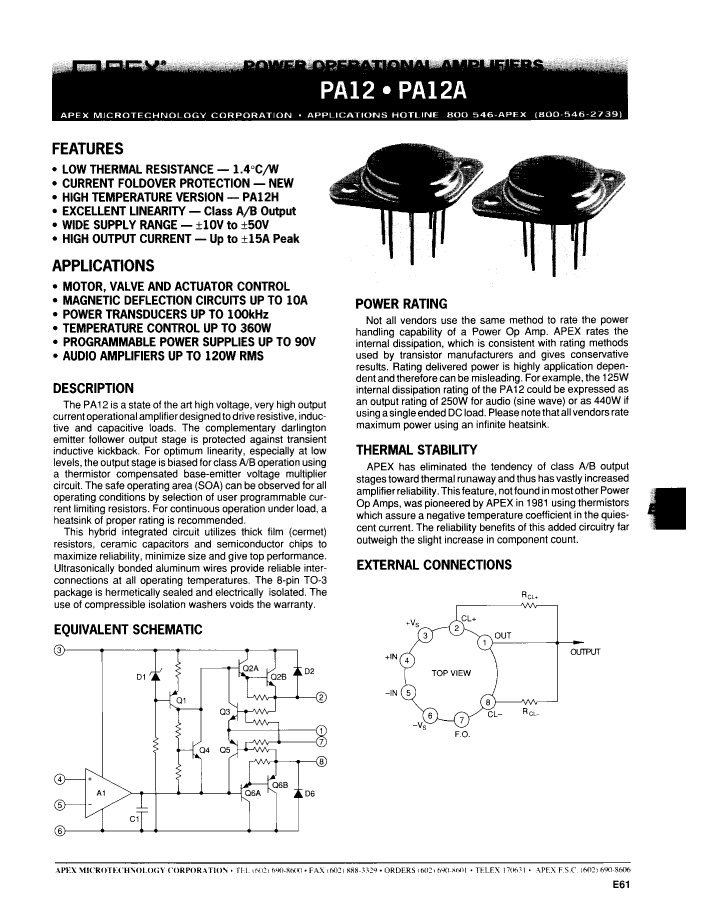

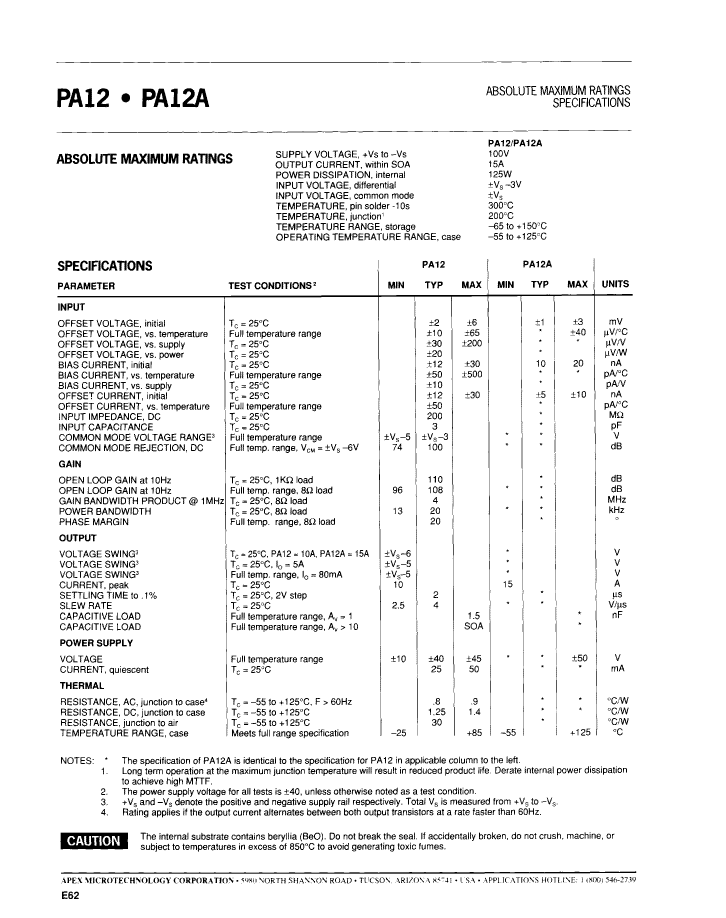

Preview

5962-9065901HXC: Description5962-9065901HXC amplifier basic information: 5962-9065901HXC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are, 5962-9065901HXC amplifier core information: The minimum operating temperature of the 5962-9065901HXC is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.03 µA When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9065901HXC gain becomes 0.707 times the low-frequency gain is 4000 kHz. The nominal supply voltage of 5962-9065901HXC is 40 V, and its corresponding nominal negative supply voltage is -40 V. The input offset voltage of 5962-9065901HXC is 12000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of 5962-9065901HXC: 5962-9065901HXC has 8 terminals. Its terminal position type is: BOTTOM. 5962-9065901HXC amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The corresponding JESD-609 code is: e4. The material of the 5962-9065901HXC package is mostly METAL. And its package shape is ROUND. 5962-9065901HXC package pin format is: FLANGE MOUNT. Its terminal forms are: PIN/PEG.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size237KB，4 Pages; ManufacturerApex [Apex Microtechnology]; Alternative parts：5962-9065901HXC

Download Datasheet Parametric Compare View All

5962-9065901HXC Overview

5962-9065901HXC amplifier basic information:

5962-9065901HXC is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

5962-9065901HXC amplifier core information:

The minimum operating temperature of the 5962-9065901HXC is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.03 µA

When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9065901HXC gain becomes 0.707 times the low-frequency gain is 4000 kHz.

The nominal supply voltage of 5962-9065901HXC is 40 V, and its corresponding nominal negative supply voltage is -40 V. The input offset voltage of 5962-9065901HXC is 12000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-9065901HXC:

5962-9065901HXC has 8 terminals. Its terminal position type is: BOTTOM.

5962-9065901HXC amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The corresponding JESD-609 code is: e4. The material of the 5962-9065901HXC package is mostly METAL. And its package shape is ROUND.

5962-9065901HXC package pin format is: FLANGE MOUNT. Its terminal forms are: PIN/PEG.

5962-9065901HXC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.03 µA
Nominal Common Mode Rejection Ratio	74 dB
Maximum input offset voltage	12000 µV
JESD-30 code	O-MBFM-P8
JESD-609 code	e4
Negative supply voltage upper limit	-50 V
Nominal Negative Supply Voltage (Vsup)	-40 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Supply voltage upper limit	50 V
Nominal supply voltage (Vsup)	40 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	4000 kHz
Base Number Matches	1

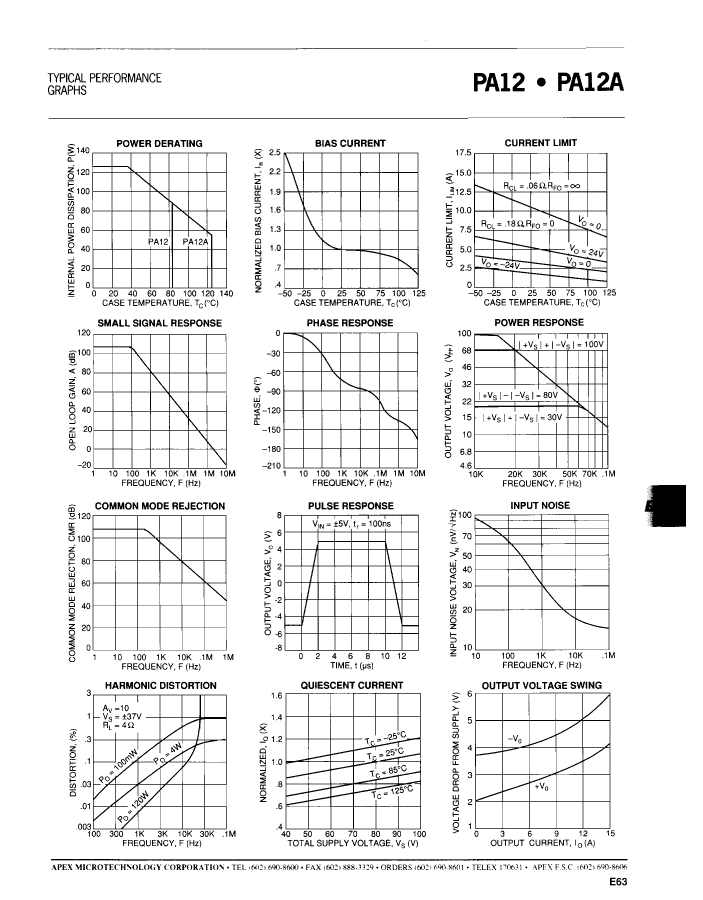

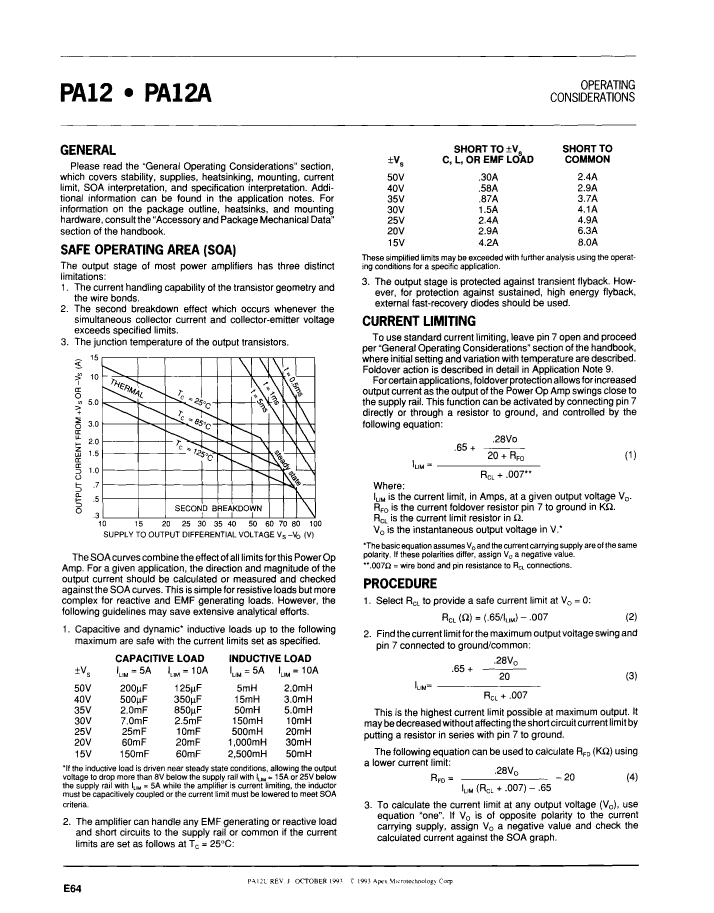

Preview

Download Datasheet

View All

5962-9065901HXC Related Products

	5962-9065901HXC	5962-9065901HXA
Description	Operational Amplifier, 1 Func, 12000uV Offset-Max, MBFM8,	Operational Amplifier, 1 Func, 12000uV Offset-Max, Hybrid, MBFM8,
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.03 µA	0.03 µA
Nominal Common Mode Rejection Ratio	74 dB	74 dB
Maximum input offset voltage	12000 µV	12000 µV
JESD-30 code	O-MBFM-P8	O-MBFM-P8
JESD-609 code	e4	e0
Negative supply voltage upper limit	-50 V	-50 V
Nominal Negative Supply Voltage (Vsup)	-40 V	-40 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Qualified
Supply voltage upper limit	50 V	50 V
Nominal supply voltage (Vsup)	40 V	40 V
surface mount	NO	NO
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
Nominal Uniform Gain Bandwidth	4000 kHz	4000 kHz
Base Number Matches	1	1
