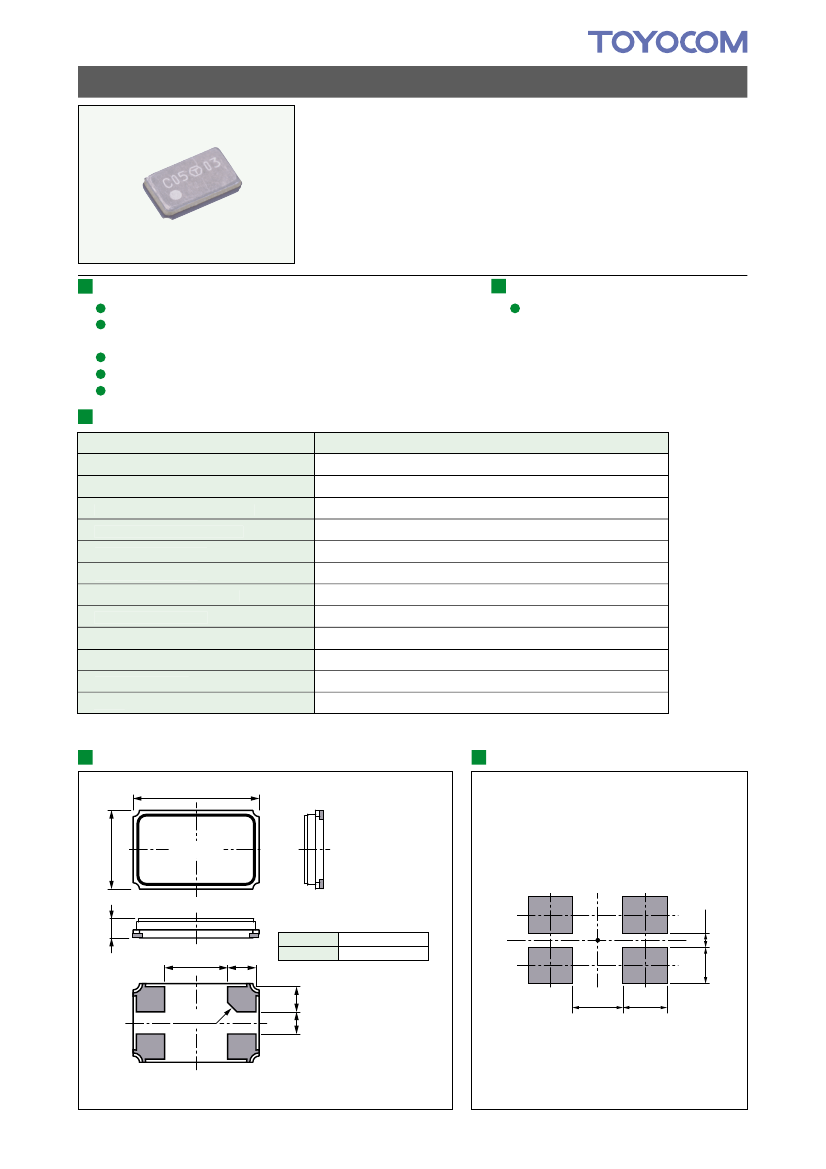

Crystal Units
TSX10A-26057
For the CSR Bluetooth products
Features
Ceramic Seam Weld
Ultra miniature size low profile unit
(4.0 x 2.5 x 0.7 mm max.)
Excellent shock-proof characteristics (10,000 G min.)
High reliable LCC package
Available to Surface Mount Technology and IR-reflow process
Toyocom Spec. No.
No.TN4-26057
Specifications
Part Number
Nominal frequency
Resonance mode
Operating temperature range
Storage temperature range
Frequency tolerance
Frequency stability
Equivalent resistance (R1)
Operating drive level
Load capacitance
Shunt capacitance (C0)
Pulling sensitivity
Aging
TSX10A-26057
16.000000 MHz
Fundamental
-20
°C
to +75
°C
-30
°C
to +85
°C
±10 ppm (at +25
°C
±2°C)
±9 ppm (-20
°C
to +75
°C,
Ref. 25
°C±2°C)
40
Ω
max.
0.1 mW max.
9 pF
1.0 pF typ.
±15 ppm / pF min. (at 9±1pF)
±1 ppm max. / year (at +25
°C
±2°C)
Package Outlines
[Dimensions in mm]
4.0
±0.15
Footprint
[Dimensions in mm]
2.5
±0.15
Marking
0.7max.
2.0
#1
C 0.3 min.
0.9
#2
0.7 0.8
1.6
1.4
#4
#3
1.15
Pin connection
#1, #3
IN/OUT
#2, #4
GND
0.45
(2003. 5.)
