0905-0-15-20-75-14-11-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0905-0-15-20-75-14-11-0

0905-0-15-20-75-14-11-0: DescriptionContact Probes Std. Stroke Hi-Pro SMT .693; CategoryThe connector terminals; File Size806KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

0905-0-15-20-75-14-11-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0905-0-15-20-75-14-11-0	-	-	View	Buy Now

0905-0-15-20-75-14-11-0 Overview

Contact Probes Std. Stroke Hi-Pro SMT .693

0905-0-15-20-75-14-11-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

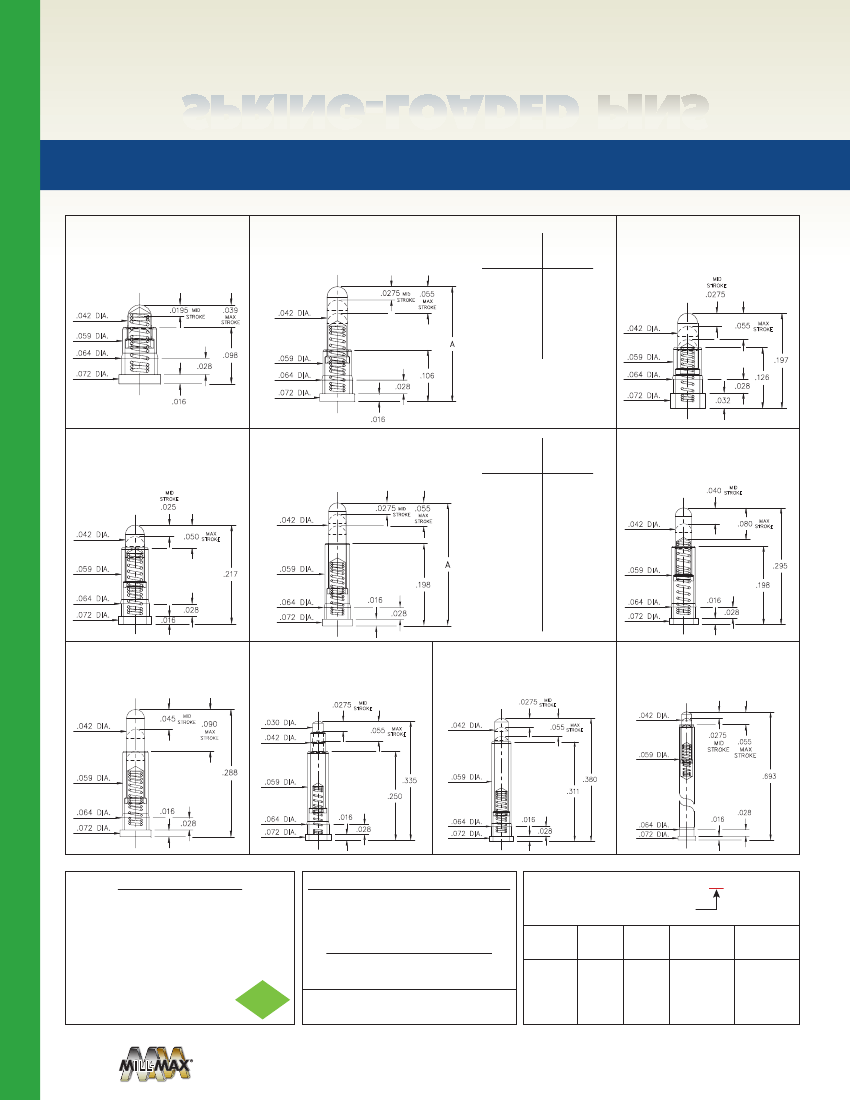

SPRING-LOADED

PINS

DISCRETE SPRING-

LOADED CONTACTS • SURFACE MOUNT

0900-0

0900-0-15-20-76-14-11-0

0900-1[4,8

“Legacy P/N 0900-0-00-00-00-00-11-0”

Short stroke, Surface mount

0900-X-15-20-75-14-11-0

“Legacy P/N 0900-X-00-00-00-00-11-0”

Standard stroke, Surface mount

.0275

.055

Basic Part

Number

Length

0934

0934-0-15-20-74-14-26-0

Standard stroke, Surface mount

.0275

.042 DIA.

.059 DIA.

.064 DIA.

.072 DIA.

.0195

.039

.042 DIA.

.098

.028

.059 DIA.

.064 DIA.

.072 DIA.

.028

.106

0900-1

0900-2

0900-3

0900-4

0900-8

.177

.197

.217

.236

.155

.042 DIA.

.055

.059 DIA.

.064 DIA.

.028

.072 DIA.

.032

.126

0900-8 has a .0195 Mid.

Stroke & .039 Max. Stoke

Order as:

0900-8-15-20-76-14-11-0

.197

.016

0936

0936-0-15-20-7X-14-11-0

Standard stroke, Surface mount

.025

0907-0[9

0907-X-15-20-75-14-11-0

Standard stroke, Surface mount, Mid profile

Also available with insulated sleeve, see page 19.4

.0275

.042 DIA.

.055

Basic Part

Number

Length

0928

0928-0-15-20-77-14-11-0

Long stroke, Surface mount

.040

.042 DIA.

.050

.059 DIA.

.217

.059 DIA.

.198

.064 DIA.

.072 DIA.

.028

.016

.064 DIA.

.072 DIA.

.016

.028

0907-0

0907-1

0907-2

0907-3

0907-4

0907-5

0907-6

0907-7

0907-8

0907-9

.255

.275

.295

.315

.335

.350

.370

.390

.410

.430

.042 DIA.

.080

.059 DIA.

.198

.064 DIA.

.072 DIA.

.016

.028

.295

0913

0913-0-15-20-77-14-11-0

.045

0925

.090

.030 DIA.

.042 DIA.

0925-0-15-20-73-14-26-0

Standard stroke, Surface mount

Reduced plunger

.0275

0927

0927-0-15-20-7X-14-11-0

.0275

.042 DIA.

0905

.042 DIA.

.055

0905-0-15-20-7X-14-11-0

Long stroke, Surface mount, Mid profile

Standard stroke, Surface mount, Mid profile

“Legacy P/N 0905-0-00-00-00-00-11-0”

Standard stroke, Surface mount, High profile

.042 DIA.

.055

.0275

.059 DIA.

.055

PAGE 23 | SPRING-LOADED CONNECTORS

.059 DIA.

.288

.059 DIA.

.335

.250

.059 DIA.

.311

.380

.693

.064 DIA.

.072 DIA.

.016

.028

.064 DIA.

.072 DIA.

.016

.028

.064 DIA.

.072 DIA.

.016

.028

.064 DIA.

.072 DIA.

.016

.028

Material Specifications:

Sleeve & Plunger Material:

Copper Alloy

Spring Material:

Beryllium Copper

Sleeve & Plunger Finish:

μ”

Gold over Nickel

Spring Finish:

μ”

Gold over Nickel

Dimensions: Inches

Tolerances On:

Lengths: ± .006

Diameters: ± .002

Angles:

±2°

Mechanical & Electrical Specifications:

Durability:

Up to 1,000,000 cycles

Current Rating:

2A continuous, 3A peak

Contact Resistance:

20 mW max.

Order Code: 09XX - X - 15 - 20 -

- 14 - XX - 0

Spring Number

Spring

Number

Mid.

Stroke

.0275

.0195

.045

Max.

Stroke

.055

.039

.090

Initial Force

Force @

Mid. Stroke (Pre-Load)

60 g

50 g

60 g

25 g

15 g

25 g

Environmental Specifications:

Operating temperature range:

-55/+125° C (discontinuous)

73, 74, 75, 76, 77

Springs are not

interchangeable

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
