PCI-1714U
PCI-1714UL
30 MS/s, 12-bit, Simultaneous 4-ch
Analog Input Universal PCI Card
10 MS/s, 12-bit, Simultaneous 4-ch
Analog Input Universal PCI Card
Features
4 single-ended analog input channels
12-bit A/D converter, with up to 30 MHz sampling rate
Programmable gain
Onboard FIFO memory (PCI-1714U: 32,768 samples each channel;
PCI-1714UL: 8,192 samples, each channel)
4 A/D converters simultaneously sampling
Multiple A/D triggering modes
Programmable pacer/counter
BoardID™ switch
Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals)
PCI-1714U
PCI-1714UL
RoHS
2002/95/EC
COMPLIANT
Introduction
PCI-1714U and PCI-1714UL are advanced high-performance data acquisition cards based on the PCI bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate
of PCI-1714U can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. The low-cost PCI-1714UL
offers 10 MS/s on each channel at a stable rate, and has also been equipped with a universal PCI interface.
Specifications
Analog Input
Channels
Resolution
Max. Sampling Rate
4 single-ended
12 bits
PCI-1741U: 30 MS/s per channel
PCI-1741UL: 10 MS/s per channel
FIFO Size
PCI-1714U: 32,768 samples each channel
PCI-1714UL: 8,192 samples each channel
Overvoltage Protection
30 Vp-p
Input Impedance
50
W/1
MW/Hi Z jumper selectable/100 pF
Sampling Modes
Software polling, pacer
Trigger Modes
Post-trigger, pre-trigger, delay-trigger, about-trigger
Input Range (V, software programmable) & Absolute Accuracy
±5
0.1
±2.5
0.2
±1
0.2
±0.5
0.4
Ordering Information
PCI-1714U
PCI-1714UL
30 MS/s, 12-bit, Simultaneous 4-ch AI PCI Card
10 MS/s, 12-bit, Simultaneous 4-ch AI PCI Card
Accessories
ADAM-3909
PCL-1010B-1E
PCL-10901-1E
PCL-10901-3E
DB9 DIN-rail Wiring Board
BNC to BNC Wiring Cable, 1 m
DB9 to PS/2 Cable, 1 m
DB9 to PS/2 Cable, 3 m

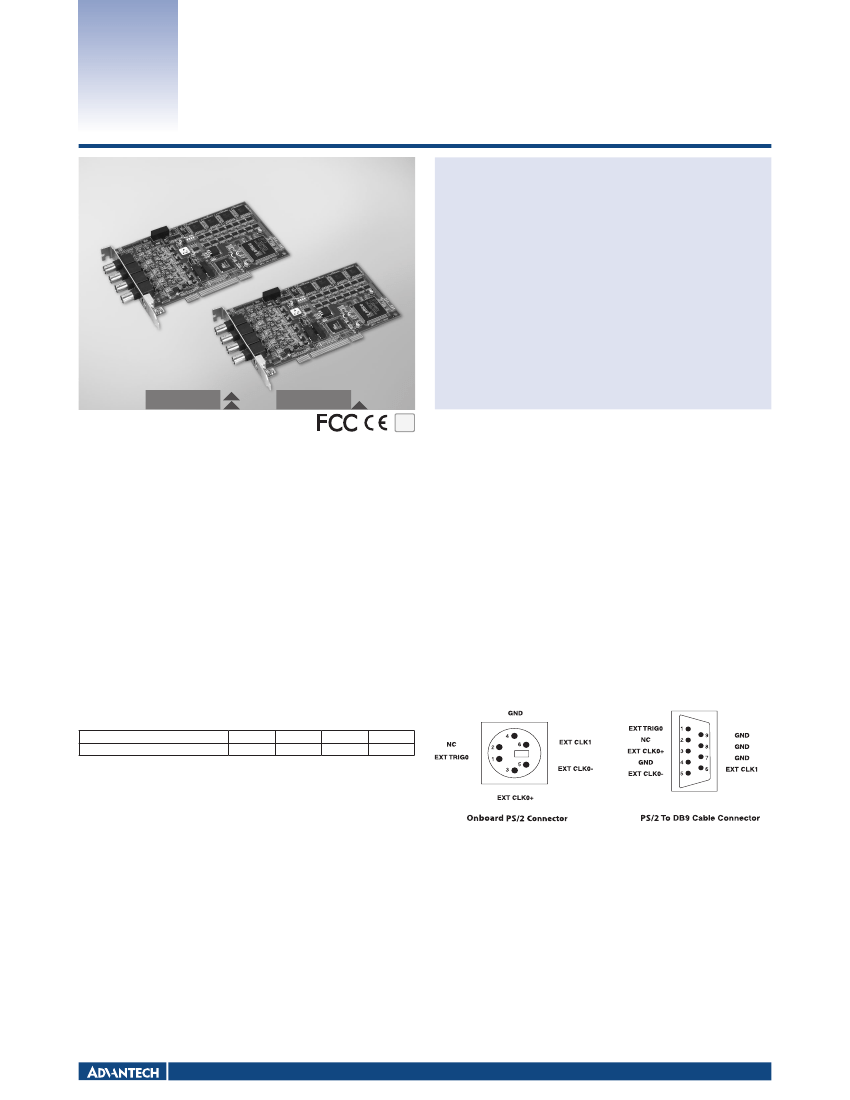

Pin Assignments
Bipolar
Absolute Accuracy (% of FSR)*
* ±1 LSB is added as the derivative for absolute accuracy
General
Bus Type
I/O Connectors
Universal PCI V2.2
4 x BNC connector (for AI)
1 x PS/2 connector (for Ext. clock and trigger)
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 850 mA ; 12 V @ 600 mA
Max.: 5 V @ 1 A; 12 V @ 700m A
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 85°C (-4 ~ 185°F)
Storage Humidity
5 ~ 95% RH, non-condensing
Data Acquisition Boards
All product specifications are subject to change without notice
Last updated : 5-May-2015
