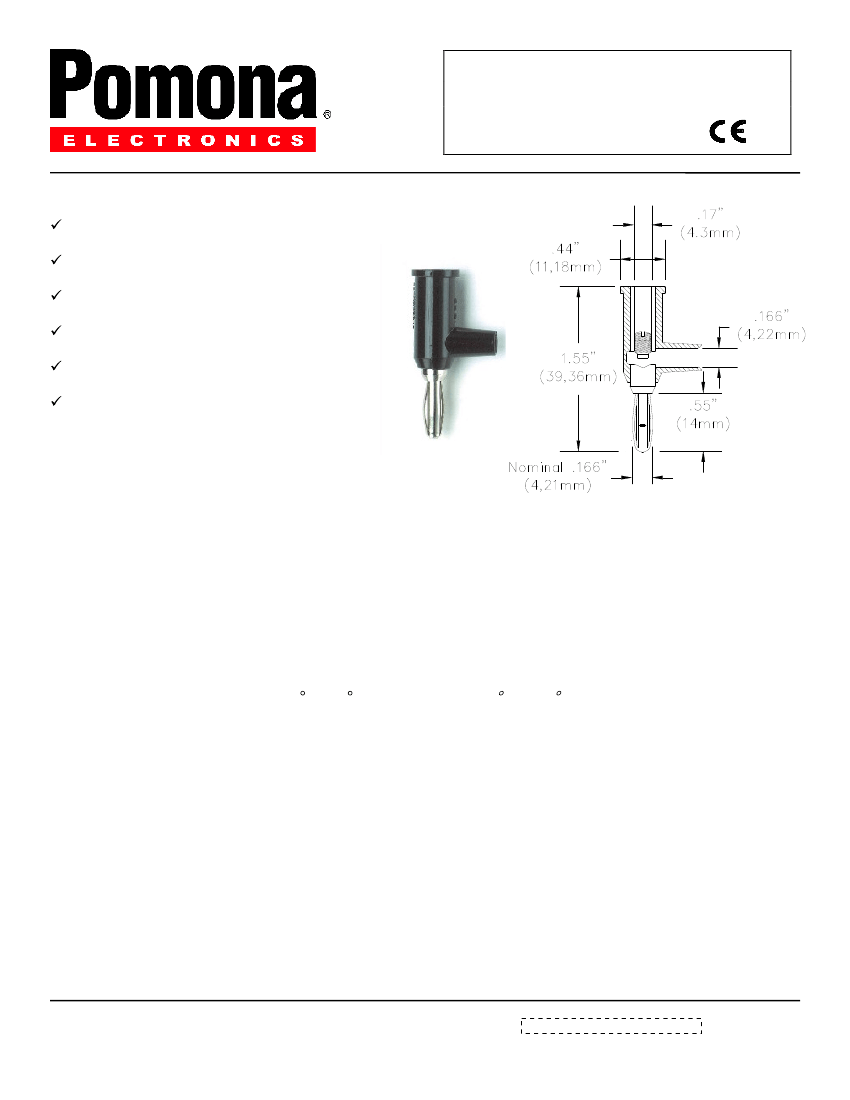

Model 1825, 4897, 4899, 6545
Standard Banana Jacks, Solderless
and Stackable
FEATURES:
Designed to fit on the end of any 22 AWG to
18 AWG wire.
Cross hole wire entry fits wires up to .12”
(3mm) diameter
Available with tarnish resistant nickel or gold
plating for very low contact resistance
Model 4899 is rated to temperatures up to
+302°F (+150°C)
Set screw simplifies assembly of test leads and
jumpers by using a flat blade screwdriver
Fits standard panel and binding post banana
jacks .161” to .166” (4,0mm to 4,2mm)
diameter
MATERIALS:
Banana Jack: Beryllium Copper, Gold Plated
Banana Plug: Body – Brass, Nickel Plated (Model 4897 Gold
Plated)
Spring – Beryllium Copper, Nickel Plated (Model 4897 Gold Plated)
Insulation: ABS (Model 4899 Polyphenylene Sulfide)
Set Screw: Steel, Zinc Plated, 8-32 Single Slot
RATINGS:
Hands free testing in controlled voltage environments: 5000 Vrms Max.
For CE compliance:
not intended for
hand-held use at voltages above 33 Vrms/70 Vdc.
Current: 15 Amps
Maximum Operating Temperature: +122 F (+50 C).
Model 4899: +302 F (+150 C)
ORDERING INFORMATION:
Model: 1825-color Nickel Plated Banana with ABS Insulation
Color:
0=Black, 1=Brown, 2=Red, 3=Orange, 4=Yellow, 5=Green, 6=Blue, 7=Violet, 8=Gray, 9=White
Ordering example: 1825-5 (1825 with green ABS insulation)
Model: 6545 Package of ten 1825, one of each color.
Model: 4897-0 Gold Plated Banana Plug with ABS Black Insulation
Model: 5897-2 Gold Plated Banana Plug with ABS Red Insulation
Model: 4899-0 Nickel Plated Banana with High Temperature Black Insulation (
Polyphenylene Sulfide)
Model: 4899-6 Nickel Plated Banana with High Temperature Blue Insulation (
Polyphenylene Sulfide)
Model: 4914 Replacement Set Screws, package of 100.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Voltage:
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093787
Page 1 of 1
