2443-K-24 Overview

Test Leads DOUBLE BANANA PL

2443-K-24 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	NO. OF CONTACTS: 2, APPLICABLE CABLE: RG 174/U, PLUG-PLUG
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

Pomona

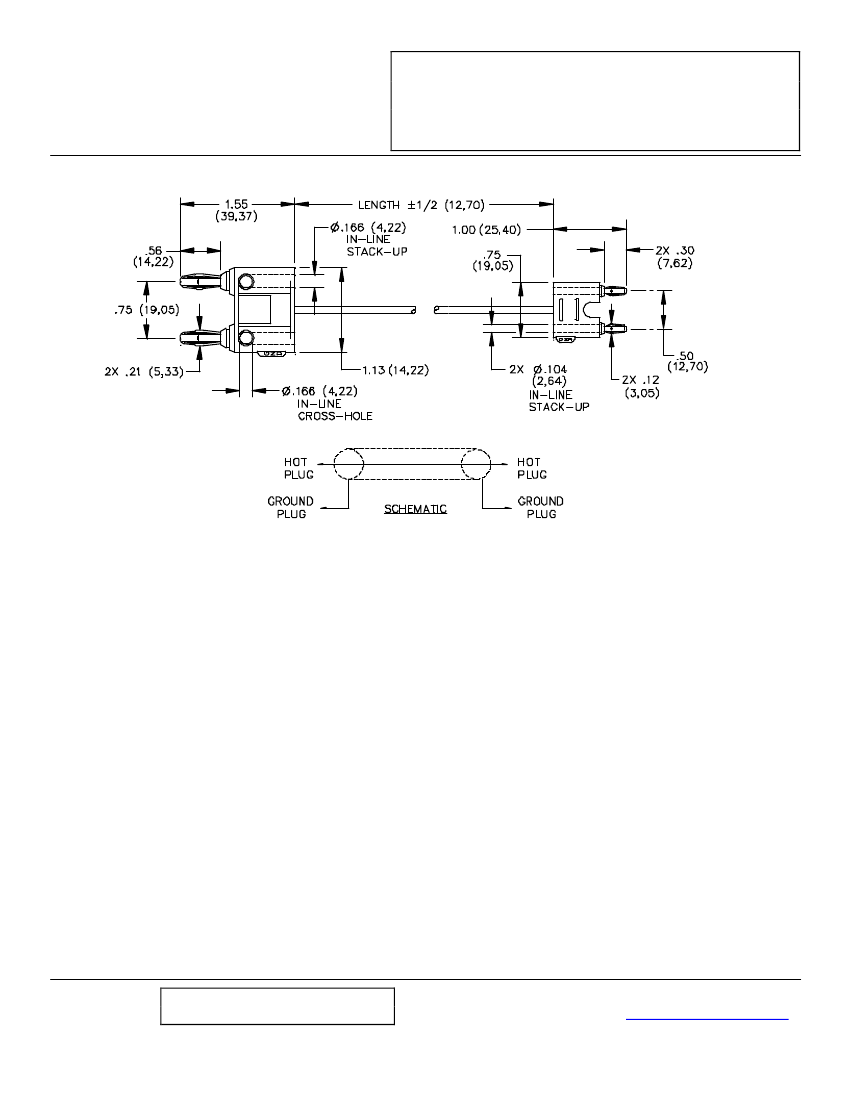

Model 2443K

Patch Cord, Double Banana Plug To

Miniature Double Banana Plug

½ Hard.

MATERIALS:

Connector: 1

End - Double Banana Plug

Spring: Beryllium Copper per QQ-C-533, Alloy

C172, Cond. HT.

Plug Body: Brass per QQ-B-626, Alloy 360, ½

hard.

Finish: Nickel plated per QQ-N-290 Class 2, 200/300

microinches.

Insulation: Polypropylene, molded to banana plug

bodies and cable. Color matches color of cable.

Marking: “POMONA ELECTRONICS, CALIF.”

Cable Type: RG174/U, .100” O.D.

Cap. Pf./ft.: 30.8

Nominal Impedance: 50 Ohms

Connector: 2

End – Miniature Double Banana Plug

Spring - Beryllium Copper per QQ-C-533,

Berylco 25, Cond. H.T.

Plug Body – Brass per QQ-B-626, Alloy 360,

Finish: Gold plated per MIL-G-45204, Type II,

Class 00 over electroless nickel per MIL-C-26074,

Class 1, 200/300 microinches.

Insulation: Same as double banana plug.

Marking: “POMONA ELECTRONICS CALIF.”

RATINGS:

Operating Temperature: +55°C. (+131°F.) Max.

Operating Voltage: 1000 VRMS

ORDERING INFORMATION:

Model 2443-K-

XX = Length in inches. Std. Lengths: 24” (60,96 cm),

36” (91,44 cm), 48” (121,92 cm) & 60” (152,40 cm).

Additional lengths can be quoted upon request.

Ordering Example: 2443-K-36, Cable length will be

36” (9,44 mm) long.

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90822

(800) 444-6785 or (425) 446-6010

More drawings available at

www.pomonaelectronics.com

Page 1 of 1

S:\Engineering \Release\DataSheets\FlukeDataSheet\d2443_1_01.doc
