5454 datasheet, PDF - EEWORLD Datasheet

5454: DescriptionTest Clips PLCC TEST ADAPTER; CategoryTopical application Test and measurement; File Size84KB，5 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/

Download Datasheet Parametric View All

5454 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5454	-	-	View	Buy Now

Test Clips PLCC TEST ADAPTER

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pomona Electronics Inc.
Product Category	Test Clips
RoHS	Details
Product	PLCC Test Clips
Type	Socket breakout
Features	PLCC socket is included to replace the PLCC chip in the circuit

Pomona

Models 5450,5451,5452,5453,

5454, 5455 & 5878

PLCC Socket Breakouts

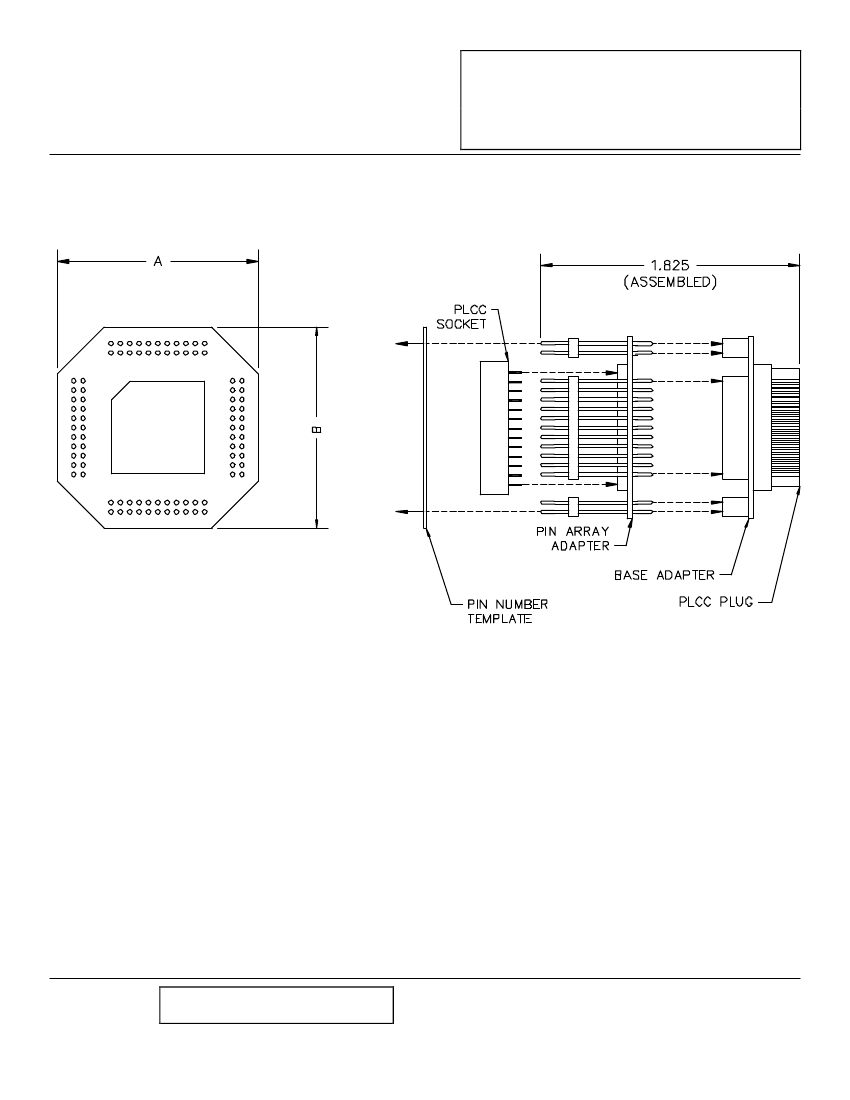

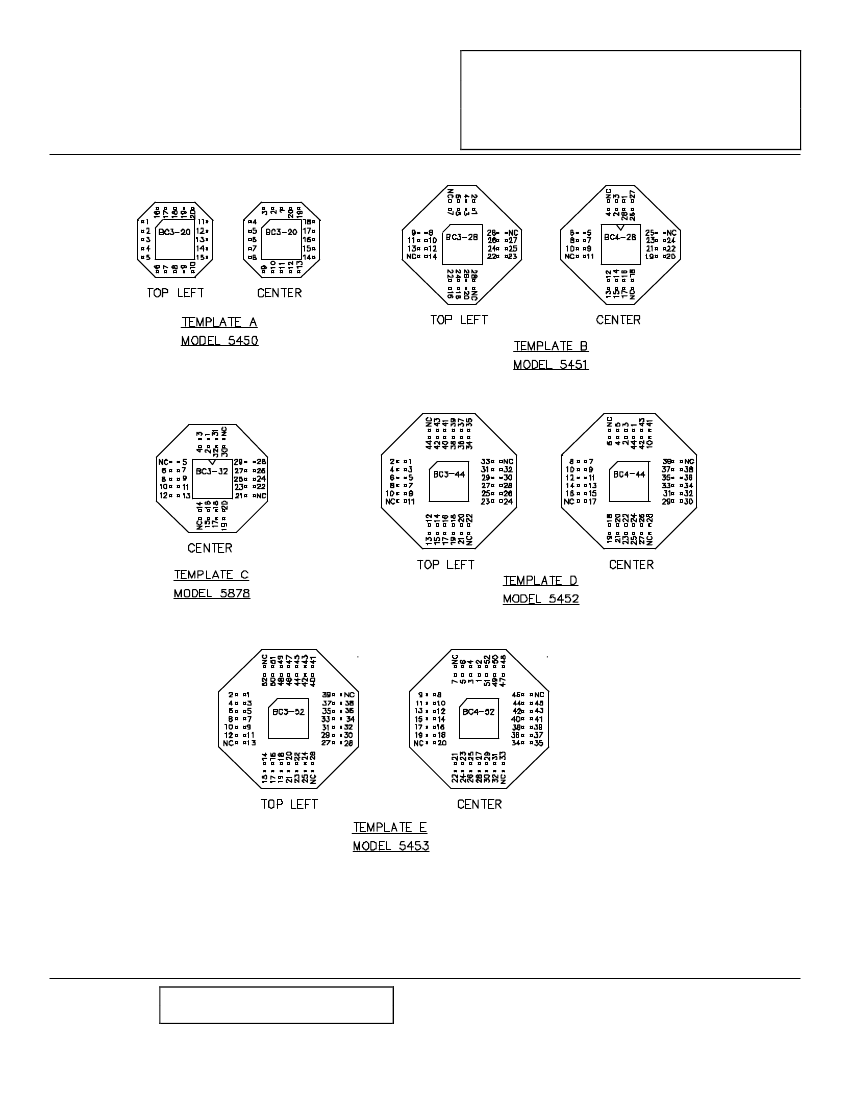

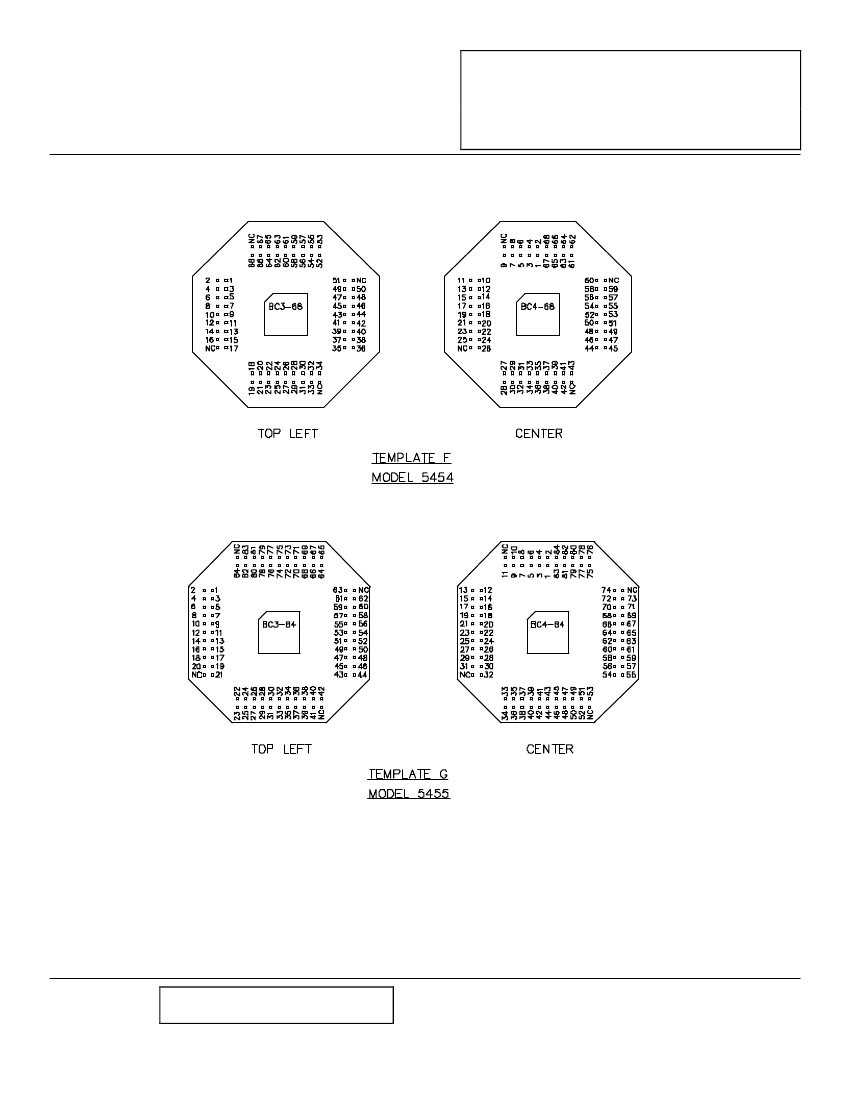

PLCC socket breakouts fit into any PLCC socket and provide wire wrap pins for connection to your instrument. Gold

plated contacts assure noise free connections. A template (shown at right) is included which provides PLCC pin

numbers. One side is for chips with pin #1 in the top center position, the other side is for chips with pin #1 in the top left

position.

•

Interfaces directly with board mounted PLCC sockets in place of the PLCC chip.

PLCC socket is included to replace the PLCC chip in the circuit.

Gold plated wire wrap pins and socket contacts assure noise free connections.

Pomona’s PLCC socket breakouts are perfect for use with logic analyzers, for field service testing, failure analysis, and

for use with emulators.

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90333

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 5

C:\Laura Goldberg\FlukeDataSheet\d5450-55_5878_PLCC_Breakouts_4_01.DOC
