5962-8770801QX Overview

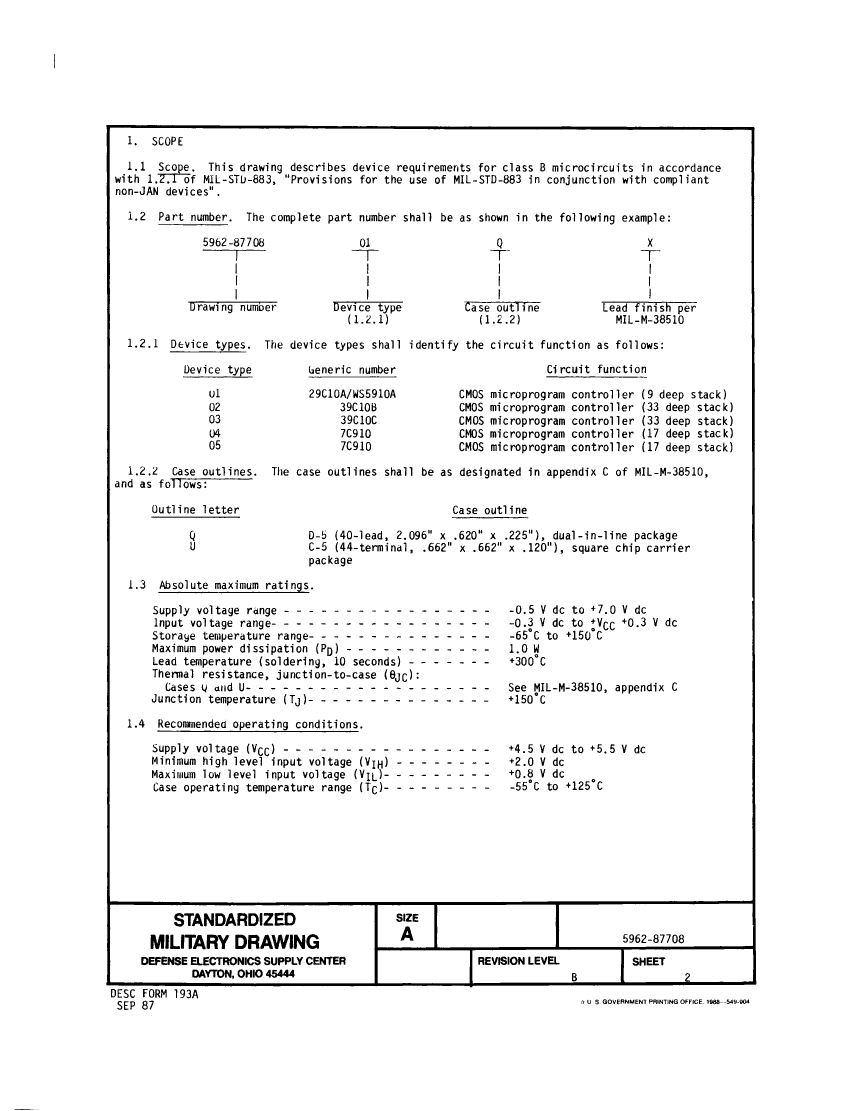

Microprogram Sequencer, 12-Bit, CMOS, CDIP40, 2.096 X 0.620 INCH, 0.225 INCH, DIP-40

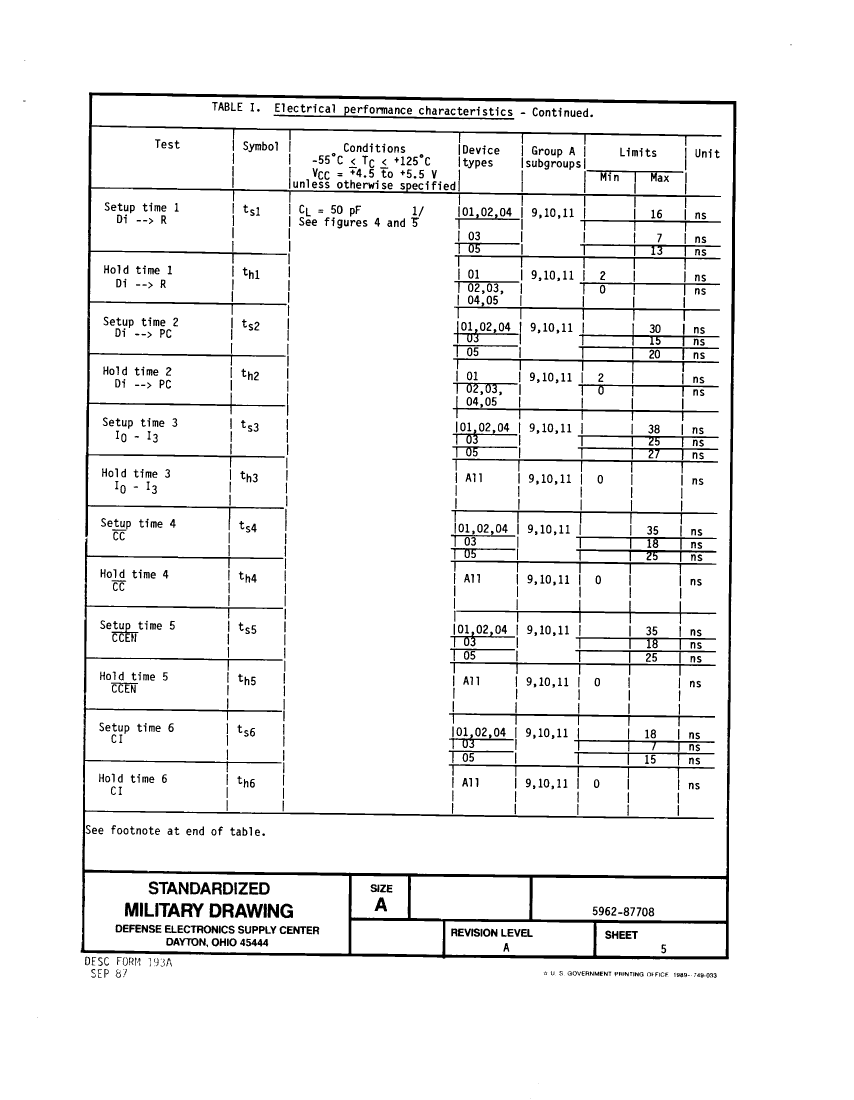

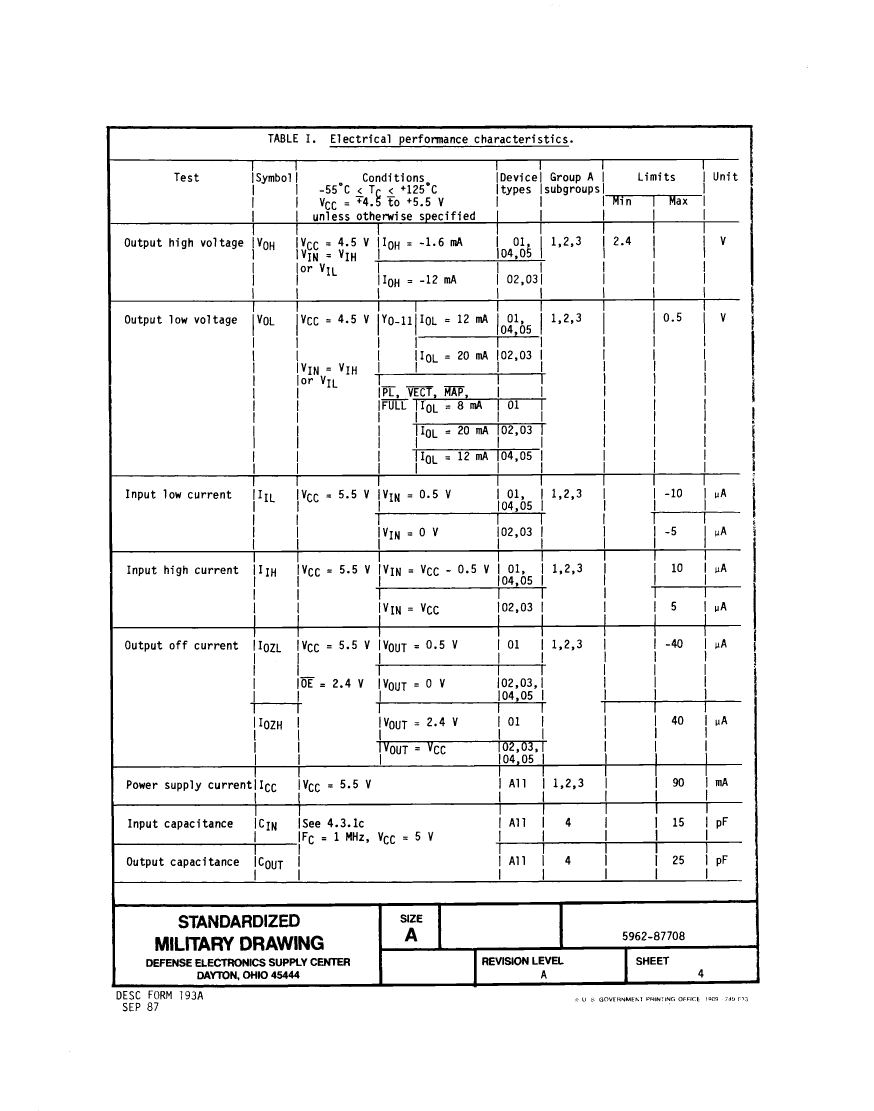

Parameter Name	Attribute value
package instruction	2.096 X 0.620 INCH, 0.225 INCH, DIP-40
Reach Compliance Code	unknown
External data bus width	12
JESD-30 code	R-GDIP-T40
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified

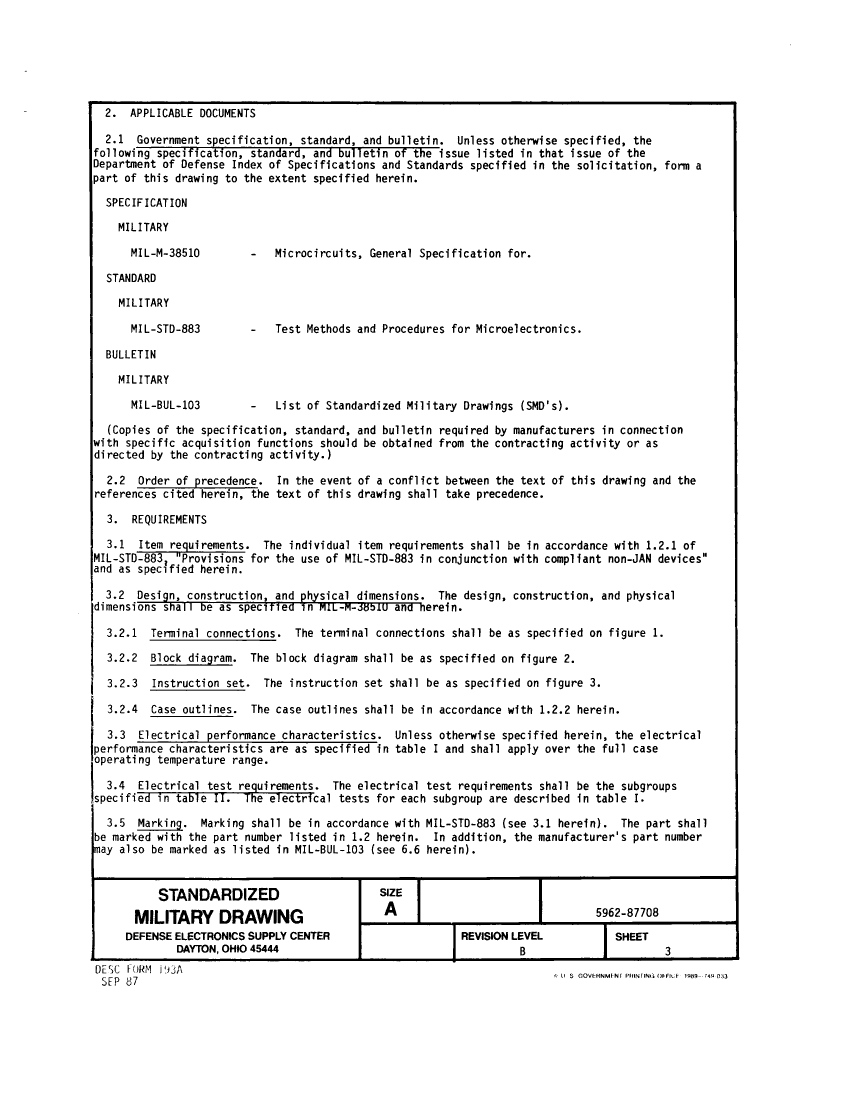

Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	BIT-SLICE PROCESSOR, MICROPROGRAM SEQUENCER
Base Number Matches	1
