Modular Plugs for Specialty Cables
Loadbar and wire aligner system provide for consistent assembly and stable electrical performance.
Loadbar and wire aligner system provide for consistent assembly and stable electrical performance.

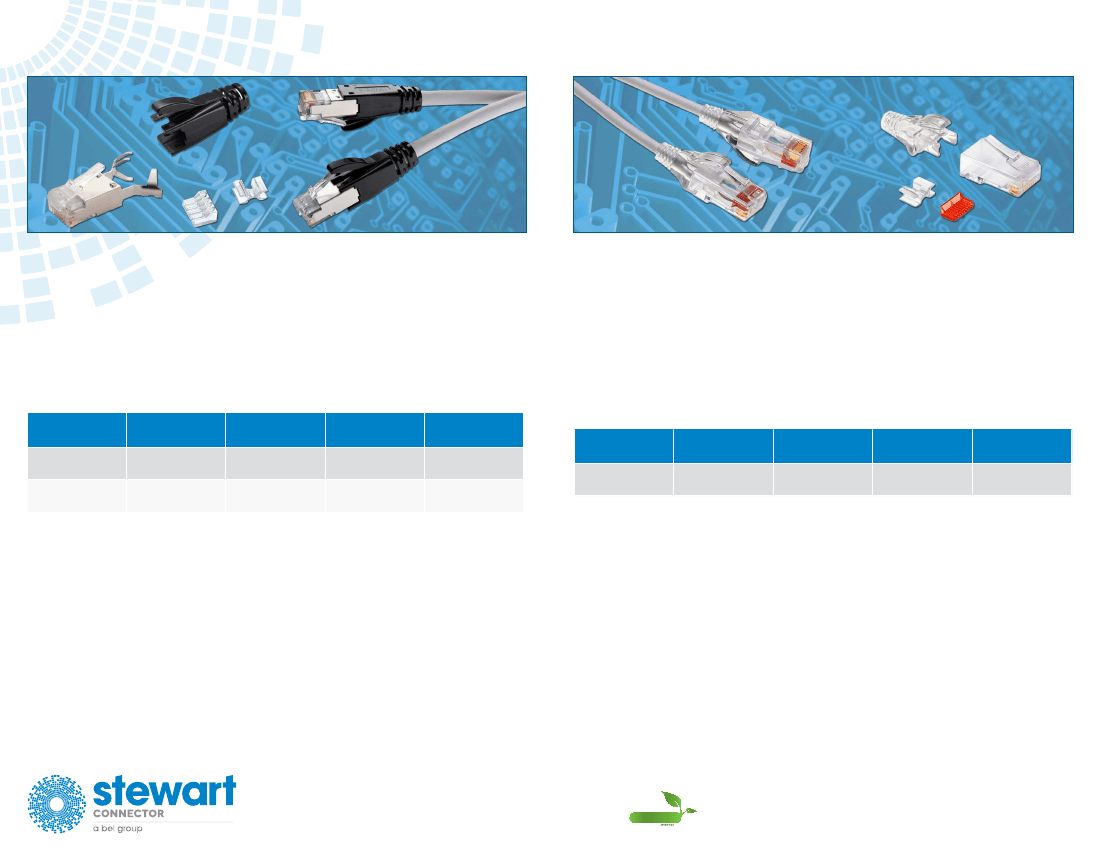

CAT6a Large Diameter Plugs
• Field installable plug for cable conductors up to 0.048” and overall diameters up to .295”
• Suitable for CAT6a and CAT6 applications delivering 10G Base-T and Gigabit Ethernet
•
Low profile design allows for use in high density switches and routers
• Anti-snag boot prevents plug tab damage during installation
•
Packaging available for both field installation and factory terminations
• Can be used to terminate both shielded and unshielded cabling
Part Number
SS-39200-027
SS-39200-030
CAT6 Small Diameter Plugs
• Accommodates a cable diameter up to .160”
• Accommodates AWG 28 and AWG 30 copper conductors with overall insulated
conductor diameters of 0.025” – 0.030”
• Proprietary contact design reliably terminates solid or stranded conductors
• 50 μin Gold plated electro-polished contacts
•
Capable of field or factory terminations with standard Stewart crimp tools
Packaging
Individually
Bagged
Bulk
Performance
CAT6a
CAT6a
Conductor
Diameter
.042"-.048" [1.07
- 1.22]
.042"-.048" [1.07
- 1.22]
Cable
Diameter
.270"-.295" [6.86
- 7.49]
.270"-.295" [6.86
- 7.49]
Part Number
SS-39100-039
Performance
CAT6
Conductor
Diameter
.025”-.030” [0.64
- 0.76]
Cable
Diameter
.160” [4.06] Max
Packaging
Bulk
Stewart Connector’s Large Diameter modular plug
is
designed to terminate directly to CAT6a and CAT6 large diameter solid conductor
cabling. Typical modular plugs are designed for use on patch cable assemblies and
therefore are designed to terminate to stranded conductors of wire sizes from AWG 24
through AWG 26. However, in many direct connect, or consolidation point applications
where link lengths exceed 10 Meters, a horizontal cable type is specified. Horizontal
cable is normally made with solid conductor copper wire in the diameter range of AWG
23 through AWG 24. This larger copper size translates into larger conductor diameters
which make terminating to a traditional modular plug problematic. Stewart’s unique
loadbar and contact design accommodates this large diameter cabling in the form factor
of a standard RJ45 plug. To learn more visit
www.stewartconnector.com.
Stewart Connector’s CAT6 UTP modular plug
allows users to
build patch cables using small diameter AWG28 and AWG30 cabling. Most traditional
patch cables are built using AWG 24 and AWG 26 cable, so industry standard plug
designs are not suitable to terminate to smaller AWG28 and AWG30 cable. The Stewart
design uses a unique, proprietary contact design and wire alignment system to insure
proper cable to plug terminations providing reliable long term connections. The wire
manager included in the plug kit allows for precise conductor placement which results
in repeatable consistent assemblies and patch cord performance. Included in the
plug kit is a new low profile boot design which accommodates smaller diameter cable
and strain relief protection from exceeding cable manufacturer’s minimum bend radius
requirements. To learn more visit
www.stewartconnector.com.
RoHS
Stewart Connector
11118 Susquehanna Trail South
Glen Rock, PA 17327-9199 USA
© 2015 Bel Connector, Inc.
+1 717.235.7512
techhelp@belf.com
stewartconnector.com
US/LIT-ModPlugSpCabv03.15
Compliant

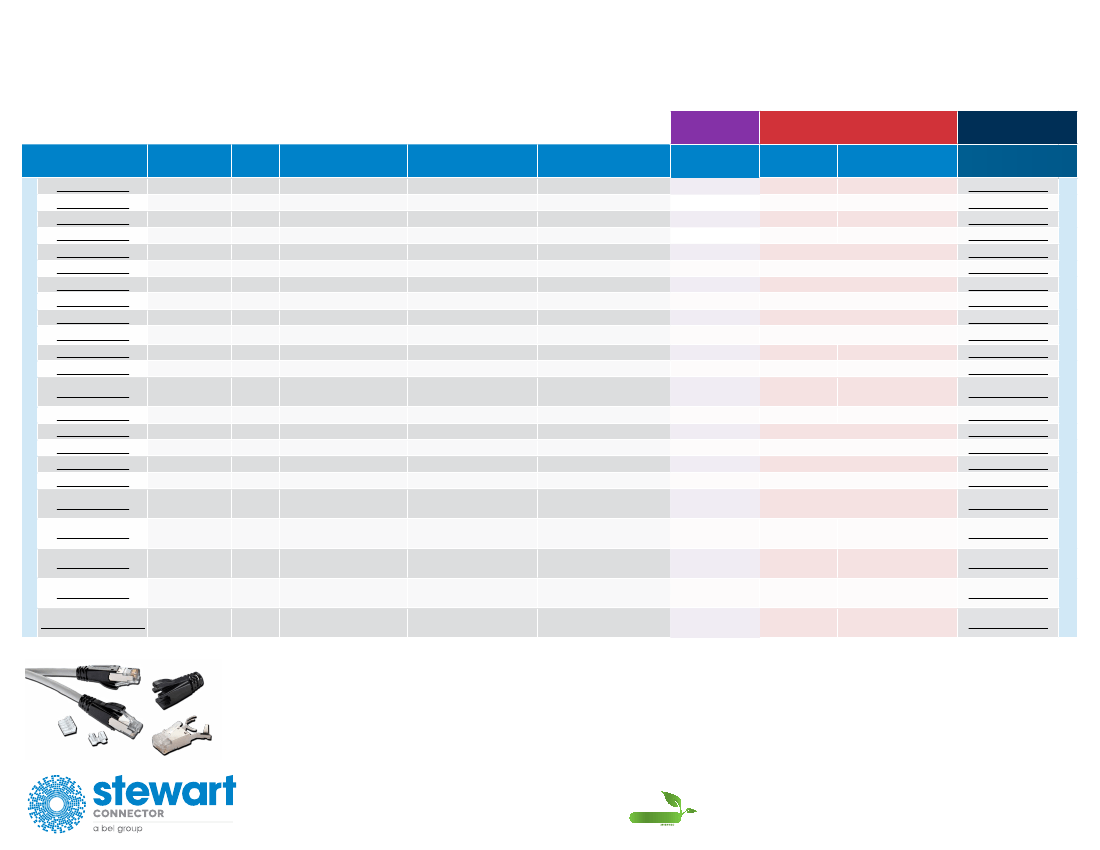

Stewart Connector Modular Plug
Quick Reference Guide
Low Volume
Terminations
Part Number
SS-39100-028
SS-39100-029
SS-39100-030
SS-39100-031
SS-39200-020
SS-39200-021
SS-39200-022
SS-39200-023
SS-39200-024
SS-39200-027
Click for web page
SS-39100-008
SS-39100-011
SS-39100-021
SS-39100-039
SS-39200-010
SS-39200-011
SS-39200-012
SS-39200-015
SS-39200-019
SS-37000-007
SS-37000-009
SS-37200-028
940-SP-3088R-A133
Performance
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6a
CAT6
CAT6
CAT6
CAT6
CAT6
CAT6
CAT6
CAT6
CAT6
CAT5E
CAT5E
CAT5E
Cat5 / T1
Shield
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
Yes
Yes
Yes
Yes
Yes
No
No
Yes
No
Strain Relief Boot
Slimline Included
Not Included
Not Included
Slimline Included
Slimline Included
Not Included
Slimline Included
Not Included
Slimline Included
Slimline Included
Slimline Included
Slimline Included
Not included - See boot
PN: 450-034
Slimline Included
Not Included
Included
Not Included
Included
Not included - See boot
PN: 39200-883
Not included - See boot
PN: 450-034
Not included - See boot
PN: 450-034
Not included - See boot
PN: 450-011
Not included - See boot
PN: 450-011
Cable Diameter
.300” [7.62] Max
.235” [5.97] Max
.235” [5.97] Max
.300” [7.62] Max
.220”-.240” [5.59 - 6.10]
.220”-.240” [5.59 - 6.10]
.230”-.250” [5.84 - 6.35]
.230”-.250” [5.84 - 6.35]
.230”-.250” [5.84 - 6.35]
.270”-.295” [6.86 - 7.49]
Conductor Diameter
.033”-.038” [0.84 - 0.97]
.037”-.042” [0.94 - 1.07]
.033”-.038” [0.84 - 0.97]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.033”-.038” [0.84 - 0.97]
.042”-.048” [1.07 - 1.22]
Installation
Hand Tool Kit
2990003-01
2990003-01
2990003-01
2990003-01
N/A
N/A
N/A
N/A
N/A
N/A
2990009-01
2990009-01
2990003-01
2990003-01
N/A
N/A
N/A
N/A
N/A
2990003-01
2990003-01
2990003-01
2990003-01
High Volume Factory Terminations
Production
Hand Tool
Production Die Set
Termination
Instructions
MN390014.PDF
MN390014.PDF
MN390014.PDF
MN390014.PDF
MN390011.PDF
MN390011.PDF
MN390011.PDF
MN390011.PDF
MN390011.PDF
MN390015.PDF
MN390006.PDF
MN390006.PDF
MN390010.PDF
MN390017.PDF
MN390009.PDF
MN390009.PDF
MN390009.PDF
MN390009.PDF
MN390009.PDF
MN370053.PDF
MN370053.PDF
MN370058.PDF
MN300015.PDF
2940231-01
2905014-01
2940231-01
2905014-01
2940231-01
2905014-01
2940231-01
2905014-01
2980070-01*
2980070-01*
2980075-01*
2980075-01*
2980075-01*
2980078-01*
2940231-01
2940231-01
2940231-01
2905029-01
2905029-01
2905014-01
.220”- .230” [5.59 - 5.84] .037”-.042” [0.94 - 1.07]
.240”-.250” [6.10 - 6.35] .037”-.042” [0.94 - 1.07]
.235” [5.97] Max
.160” [4.06] Max
.240”-.260” [6.10 - 6.60]
.232”-.248” [5.90 - 6.30]
.220”-.240” [5.59 - 6.10]
.220”-.240” [5.59 - 6.10]
.270”-.295” [6.86 - 7.49]
.235” [5.97] Max
.235” [5.97] Max
.235” [5.97] Max
.235” [5.97] Max
.037”-.042” [0.94 - 1.07]
.025”-.030” [0.64 - 0.76]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.037”-.042” [0.94 - 1.07]
.042”-.048” [1.07 - 1.22]
.037”-.042” [0.94 - 1.07]
.035”-.040” [0.89 - 1.02]
Click for PDF
2940231-01
2905014-01
2980075-01*
2980075-01*
2980070-01*
2980070-01*
2980078-01*
2940231-01
2940231-01
2940231-01
2940231-01
2905014-01
2905014-01
2905014-01
2905005-01
Termination Instructions available at
stewartconnector.com
* Tool kits including Hand Tool and Die Set
Stewart has the widest selection of high performance modular plugs available on the market today, visit
stewartconnector.com
for our full product line offering.
