LC6546C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LC6546C

LC6546C: DescriptionCMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS　; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，41 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC6546C Overview

CMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS　

LC6546C Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DIP
package instruction	DIP,
Contacts	30
Reach Compliance Code	unknow
Has ADC	NO
Other features	ALSO AVAILABLE IN MFP30S PACKAGE; CAN ALSO OPERATE AT 3V MIN SUPPLY
Address bus width
bit size	4
maximum clock frequency	4.33 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T30
Number of I/O lines	25
Number of terminals	30
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
speed	1.444 MHz
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

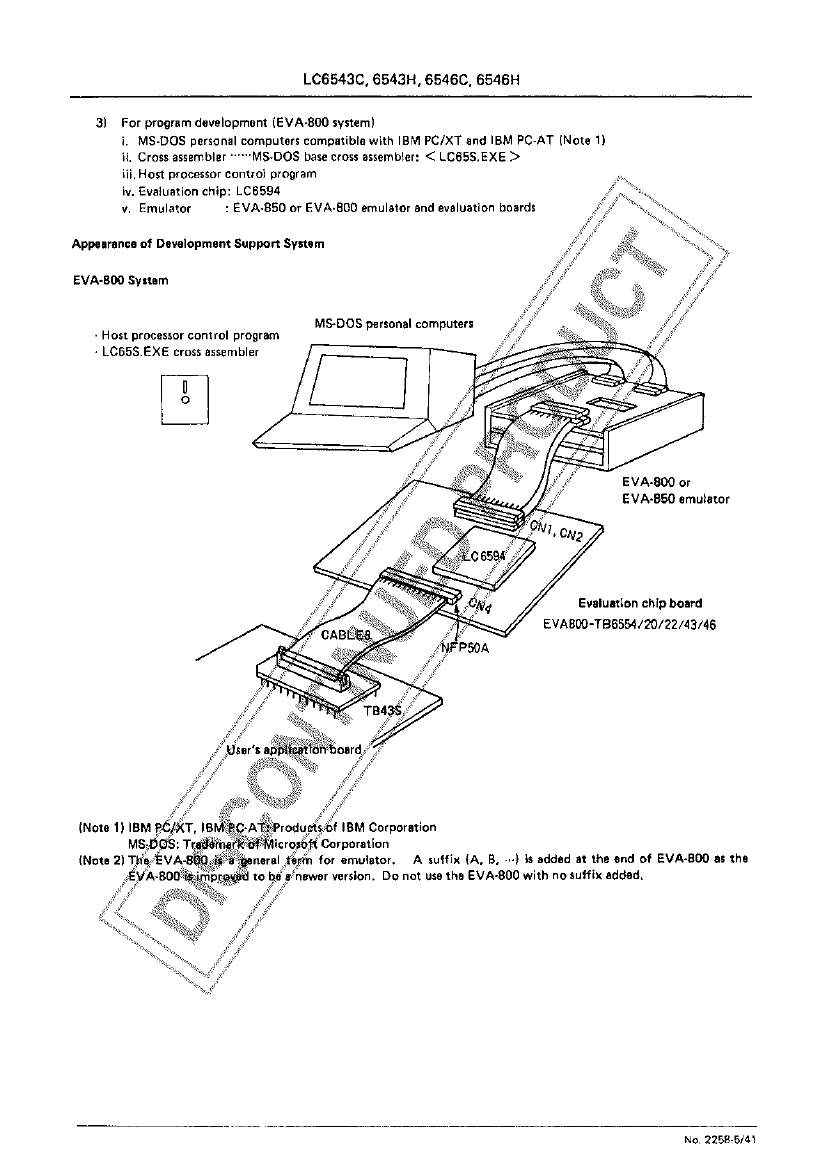

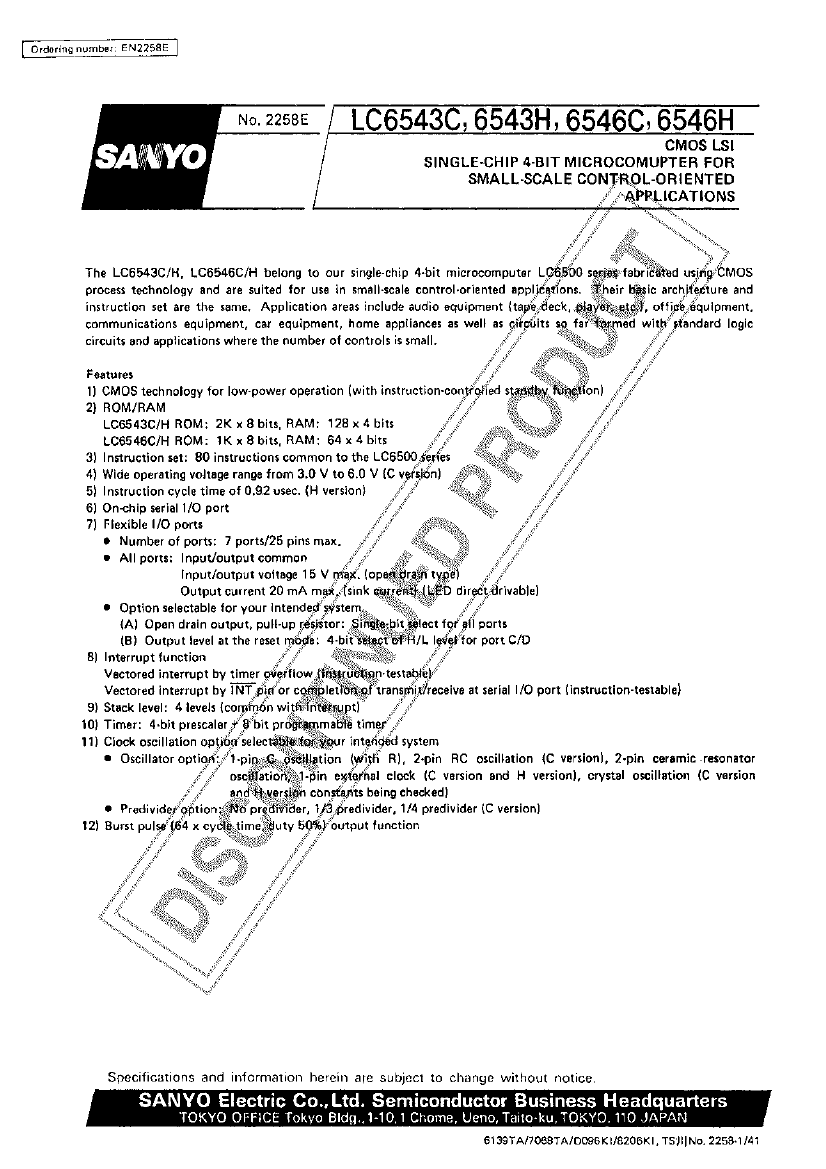

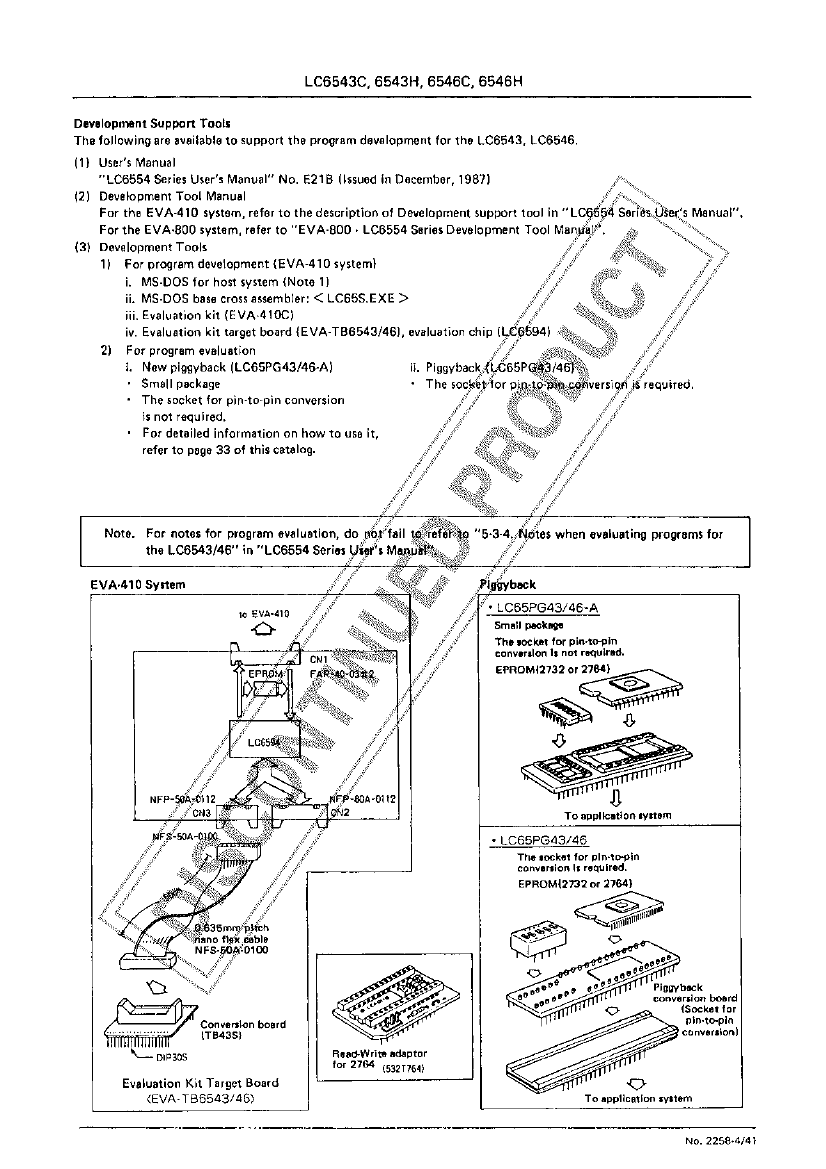

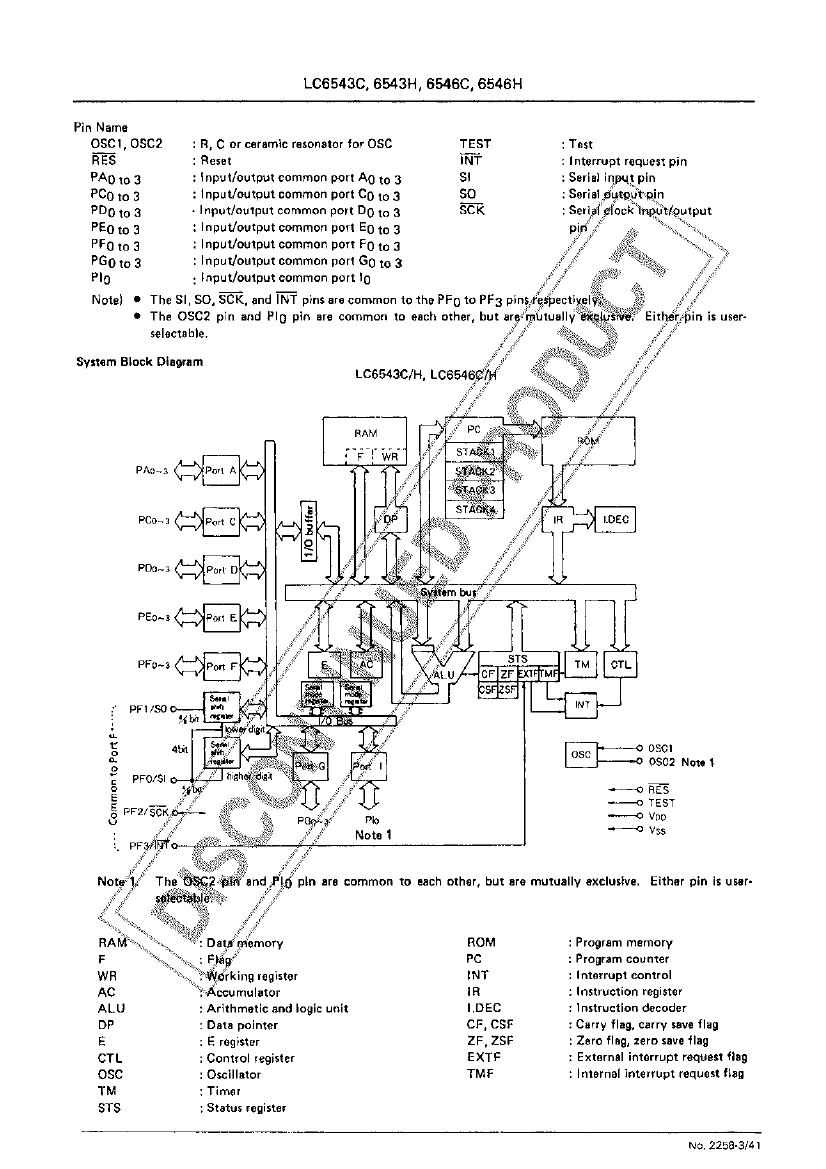

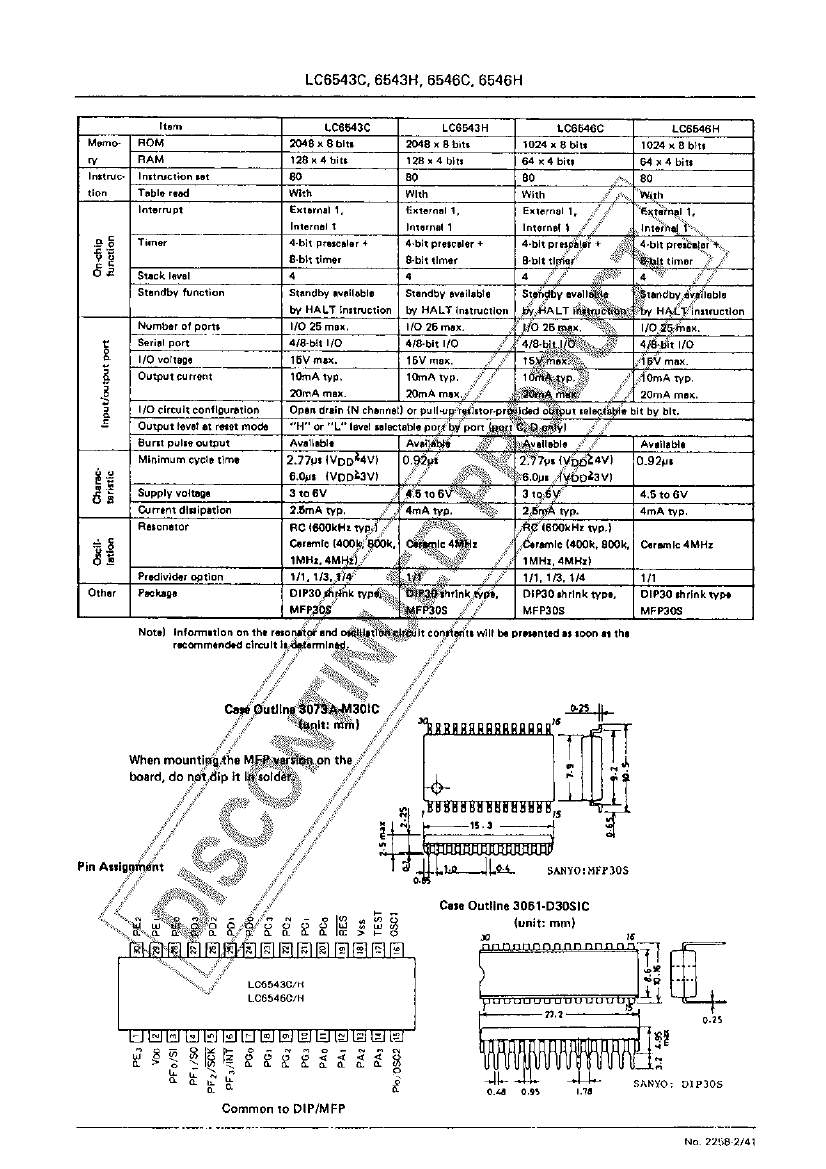

Preview

Download Datasheet

View All

LC6546C Related Products

	LC6546C	LC6546H	LC6543H	LC6543C
Description	CMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS	CMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS	CMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS	CMOS LSI SINGLE-CHIP 4-BIT MICROCOMPUTER FOR SMALL-SCALE CONTROL-ORIENTED APPLICATIONS
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,
Contacts	30	30	30	30
Reach Compliance Code	unknow	unknow	unknow	unknow
Has ADC	NO	NO	NO	NO
Other features	ALSO AVAILABLE IN MFP30S PACKAGE; CAN ALSO OPERATE AT 3V MIN SUPPLY	ALSO AVAILABLE IN MFP30S PACKAGE	ALSO AVAILABLE IN MFP30S PACKAGE	ALSO AVAILABLE IN MFP30S PACKAGE; CAN ALSO OPERATE AT 3V MIN SUPPLY
bit size	4	4	4	4
maximum clock frequency	4.33 MHz	4.33 MHz	4.33 MHz	4.33 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	R-PDIP-T30	R-PDIP-T30	R-PDIP-T30	R-PDIP-T30
Number of I/O lines	25	25	25	25
Number of terminals	30	30	30	30
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM
speed	1.444 MHz	4.33 MHz	4.33 MHz	1.444 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4.5 V	4.5 V	4 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
