BZX84B3V0-G3-18

Description
Zener Diodes 3.0Volt 0.35Watt 2%
CategoryDiscrete semiconductor    diode
File Size122KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

BZX84B3V0-G3-18 Online Shopping

Suppliers Part Number Price MOQ In stock
BZX84B3V0-G3-18 - - View Buy Now

BZX84B3V0-G3-18 Overview

Zener Diodes 3.0Volt 0.35Watt 2%

BZX84B3V0-G3-18 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.3 W
GuidelineAEC-Q101
Nominal reference voltage3 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
Maximum voltage tolerance2%
Working test current5 mA
Base Number Matches1
BZX84-G-Series

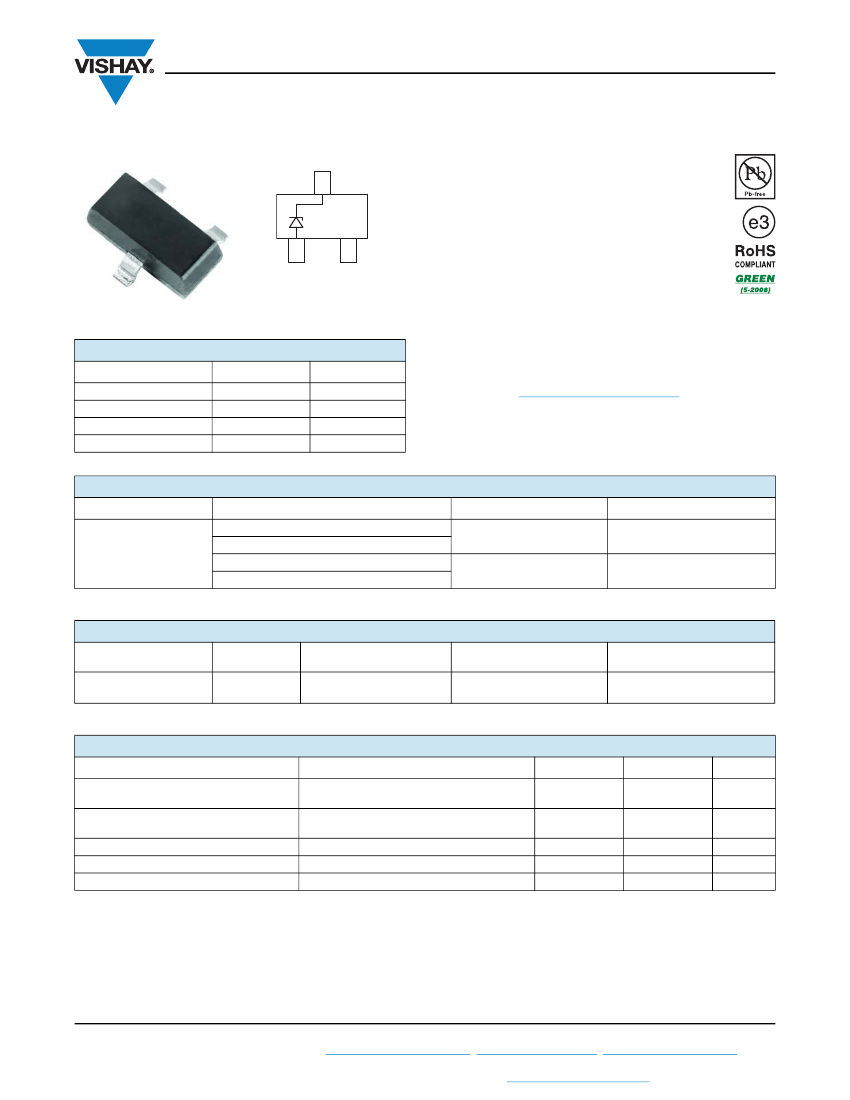

www.vishay.com
Vishay Semiconductors
Small Signal Zener Diodes
FEATURES
3
• Silicon planar Zener diodes
• The Zener voltages are graded according to the
international E24 standard. Standard Zener
voltage tolerance is ± 5 %, indicated by the “C”
in the ordering code. Replace “C” with “B” for
± 2 % tolerance.
• AEC-Q101 qualified
• ESD capability acc. to AEC-Q101:
human body model: > 8 kV,
machine model: > 800 V
1
2
20421
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
Z
specification
Int. construction
VALUE
2.4 to 75
2; 5
Pulse current
Single
UNIT
V
mA
• Base P/N-G3 - green, commercial grade
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
ORDERING INFORMATION
DEVICE NAME
ORDERING CODE
BZX84C2V4-G3-08 to BZX84C75-G3-08
BZX84-G-series
BZX84B2V4-G3-08 to BZX84B75-G3-08
BZX84C2V4-G3-18 to BZX84C75-G3-18
BZX84B2V4-G3-18 to BZX84B75-G3-18
TAPED UNITS PER REEL
3000 (8 mm tape on 7" reel)
10 000 (8 mm tape on 13" reel)
MINIMUM ORDER QUANTITY
15 000
10 000
PACKAGE
PACKAGE NAME
SOT-23
WEIGHT
8.1 mg
MOLDING COMPOUND
FLAMMABILITY RATING
UL 94 V-0
MOISTURE SENSITIVITY
LEVEL
MSL level 1
(according J-STD-020)
SOLDERING CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Power dissipation
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
Operating temperature range
TEST CONDITION
T
amb
= 25 °C, device on fiberglass substrate,
acc. layout on page 7
T
amb
= 25 °C, device on fiberglass substrate,
acc. layout on page 7
SYMBOL
P
tot
R
thJA
T
j
T
stg
T
op
VALUE
300
420
150
- 65 to + 150
- 55 to + 150
UNIT
mW
K/W
°C
°C
°C
Rev. 1.2, 28-Feb-13
Document Number: 83458
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
