HCF4520BM1: DescriptionCounter Shift Registers Dual Bin Up Counter; Categorylogic logic; File Size922KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HCF4520BM1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HCF4520BM1	-	-	View	Buy Now

HCF4520BM1 Overview

Counter Shift Registers Dual Bin Up Counter

HCF4520BM1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SO-16
Contacts	16
Reach Compliance Code	compliant
Is Samacsys	N
Other features	GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	9.9 mm
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	1500000 Hz
Operating mode	SYNCHRONOUS
Humidity sensitivity level	3
Number of digits	4
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TUBE
Peak Reflow Temperature (Celsius)	260
power supply	5/15 V
propagation delay (tpd)	560 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	4 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

HCF4520B

DUAL BINARY UP COUNTER

MEDIUM SPEED OPERATION :

6MHz (Typ.) at 10V

POSITIVE -OR NEGATIVE- EDGE

TRIGGERING

SYNCHRONOUS INTERNAL CARRY

PROPAGATION

QUIESCENT CURRENT SPECIF. UP TO 20V

5V, 10V AND 15V PARAMETRIC RATINGS

INPUT LEAKAGE CURRENT

= 100nA (MAX) AT V

= 18V T

= 25°C

100% TESTED FOR QUIESCENT CURRENT

MEETS ALL REQUIREMENTS OF JEDEC

JESD13B "STANDARD SPECIFICATIONS

FOR DESCRIPTION OF B SERIES CMOS

DEVICES"

DIP

SOP

ORDER CODES

PACKAGE

DIP

SOP

TUBE

HCF4520BEY

HCF4520BM1

DESCRIPTION

HCF4520B is a monolithic integrated circuit

fabricated in Metal Oxide Semiconductor

technology available in DIP and SOP packages.

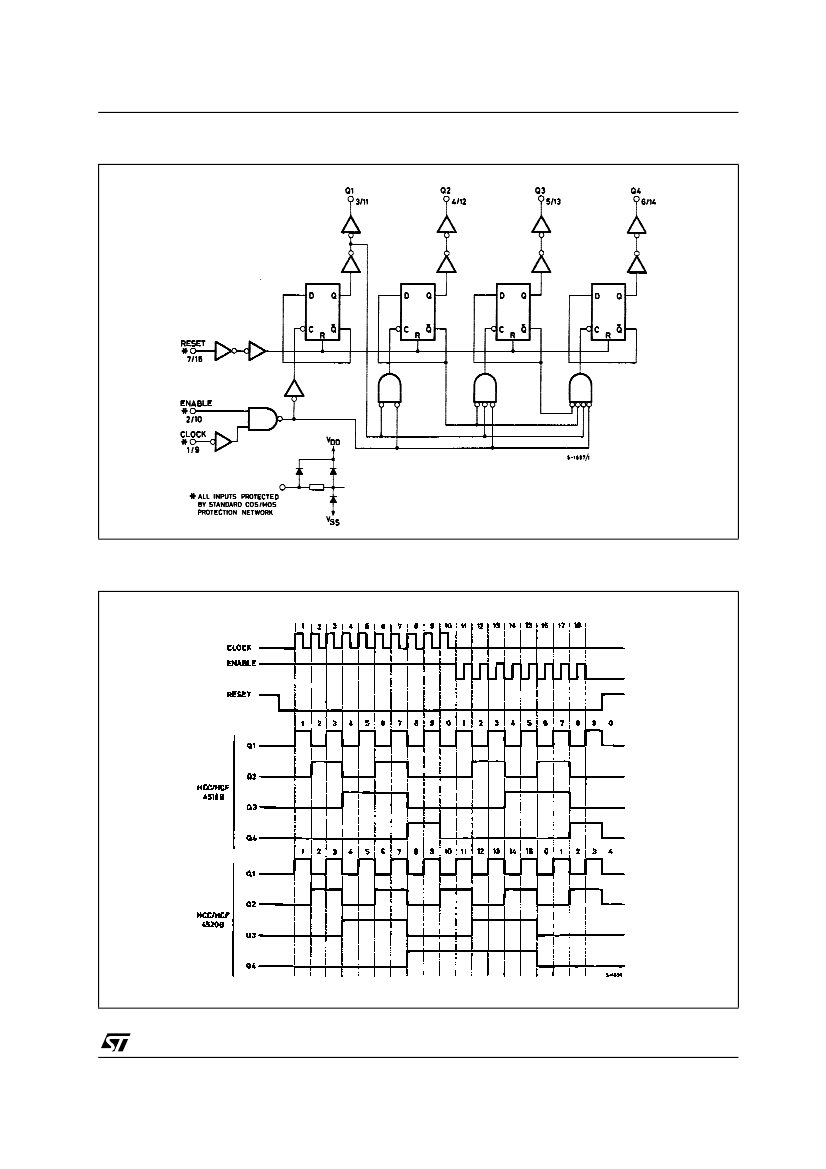

HCF4520B, a Dual Binary Up Counter, consists of

two identical, internal 4-stage counters. The

counter stages are D-type Flip-Flops having

interchangeable Clock and Enable lines for

PIN CONNECTION

-O

incrementing on either the positive-going or

negative going transitions. For single-unit

operations the Enable input is maintained High

and the counter advances on each positive going

transition of the Clock. The counters are cleared

by high levels on their Reset lines. The counter

can be cascaded in the ripple mode by connecting

Q4 to the enable input of the subsequent counter

while the clock input of the latter is held low.

HCF4520M013TR

T&R

October 2002

1/12
