PK-21N30P: DescriptionAudio Indicators & Alerts PC MOUNT 1.5-30V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size94KB，1 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/

Download Datasheet Parametric View All

PK-21N30P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PK-21N30P	-	-	View	Buy Now

PK-21N30P Overview

Audio Indicators & Alerts PC MOUNT 1.5-30V

PK-21N30P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory
Product Category	Audio Indicators & Alerts
RoHS	No -; RoHS Version Available
Sound Pressure Level	80 dBA
Tone	Continuous
Frequency	3 kHz
Voltage Rating	12 VDC
Current Rating	12 mA
Diameter	24 mm
Mounting	PCB

Preview

Download Datasheet

View All

Mallory Sonalert Products Inc.

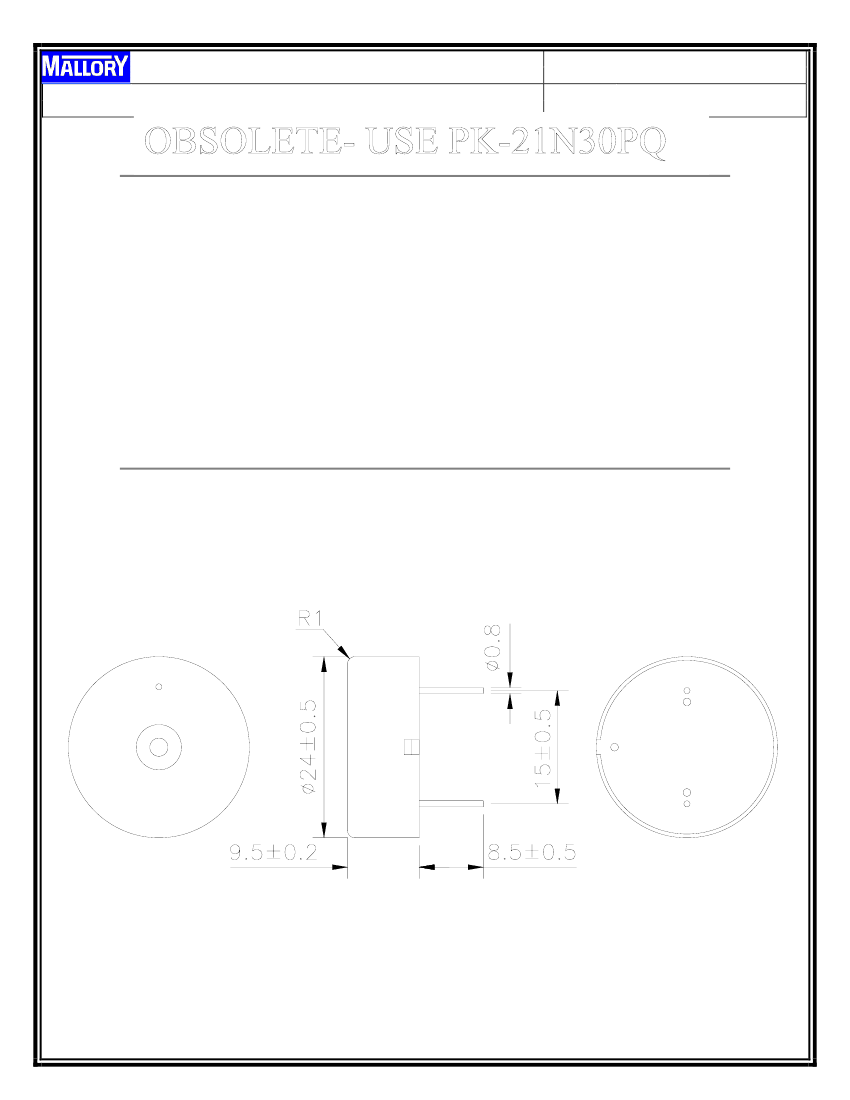

Sales Outline Drawing

Specifications:

Resonant Frequency (Hz)

Operating Voltage (Vdc)

Rated Voltage (Vdc)

Current Consumption Max. (mA)

Sound Pressure Level Min. (dB)

Tone/Pulse Rate

Operating Temperature (°C)

Storage Temperature (°C)

Housing

Leading Pin

Weight (Grams)

Options

Part #

PK-21N30P

Revision

A

3000 ± 500

1.5 ~ 30

12

12 at Rated Voltage

80 at 30cm at Rated Voltage

Constant

-20 ~ +70

-30 ~ +80

ABS 777D UL94HB plastic resin

(Color: Black)

Tin Plated Brass

2.6

For other options contact factory

Dimensions:

(units: mm)

4411 South High School Road, Indianapolis, Indiana 46241 USA

●

Phone (317) 612-1000

●

Fax (317) 612-1010

●

http://www.mallory-sonalert.com
