New Product
Pushbutton Switches
A30NZ-M@@-@@A
30-mm Pushbutton Switches
Universal Design.
Emphasis on Color Coding, Workability,
and Safety.
Easy to Use
• You can connect up to three Contact Blocks in one stage for
multistage expansion.
• The terminals can be retightened when Contact Blocks are
stacked.
• Contact Blocks can be attached in any direction for easy
assembly.
• Screw terminal structure is compatible with round crimp
terminals.
Safety
• Easy-to-operate lock lever for secure locking.
• Easy-mounting Contact Blocks provide finger protection.
• Different colors of Contract Blocks (NO: blue, NC: orange)
help prevent wiring errors.
Product Lineup
• Meet global safety standards.
• Many color variations.
Refer to
Safety Precautions for All Pushbutton Switch-
es/Indicators
and
Safety Precautions
on page 9.

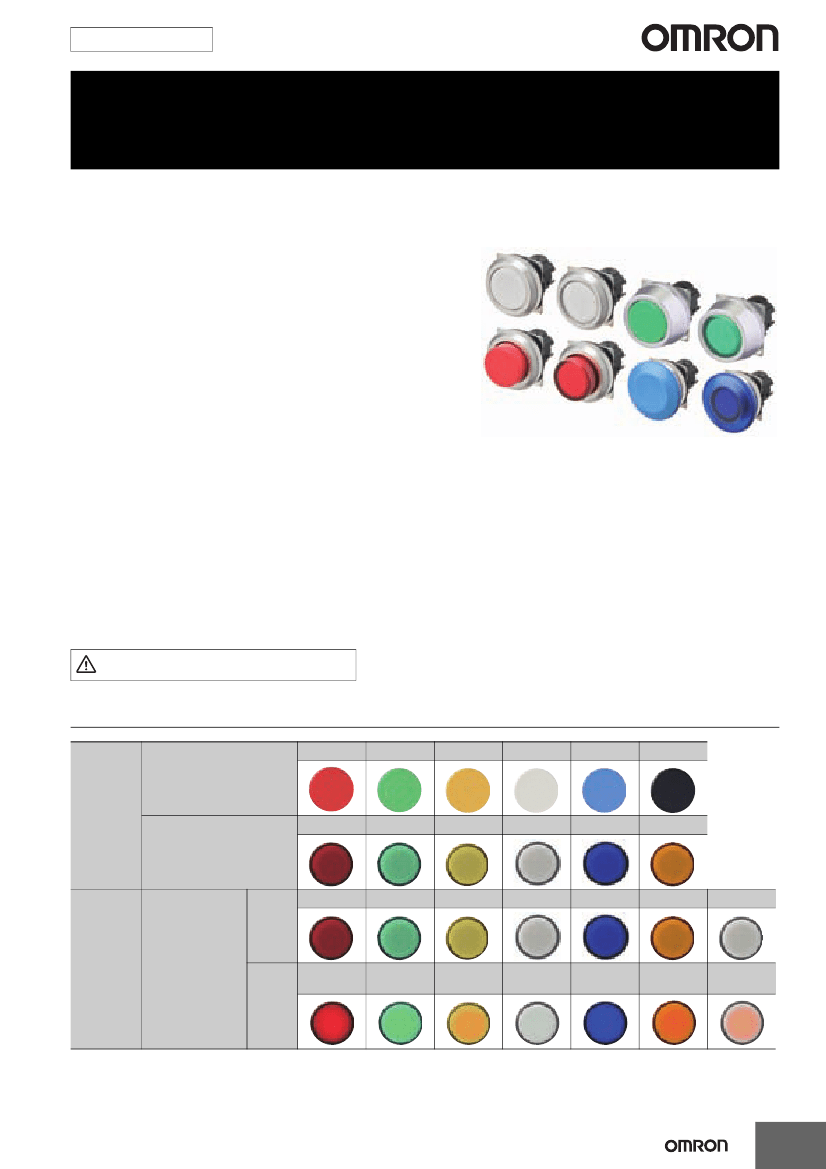

Button Colors
Red
A30NZ-M
-N A
Opaque
Non-lighted
Switches
A30NZ-M
-U A
Transparent
Green
Yellow
White
Blue
Black
Red
Green
Yellow
White
Blue
Orange
Red
When
not lit
Lighted
Switches
A30NZ-M
-T A
Transparent
When
lit
Green
Yellow
White
Blue
Orange
White
Red
Green
Yellow
White
Blue
Orange
Opaque
white*
*
The colors when the Switches are lit are for transparent white buttons (code: TW) and yellow LED Lamps (code: Y).
1
A30NZ-M
-
A
Structure

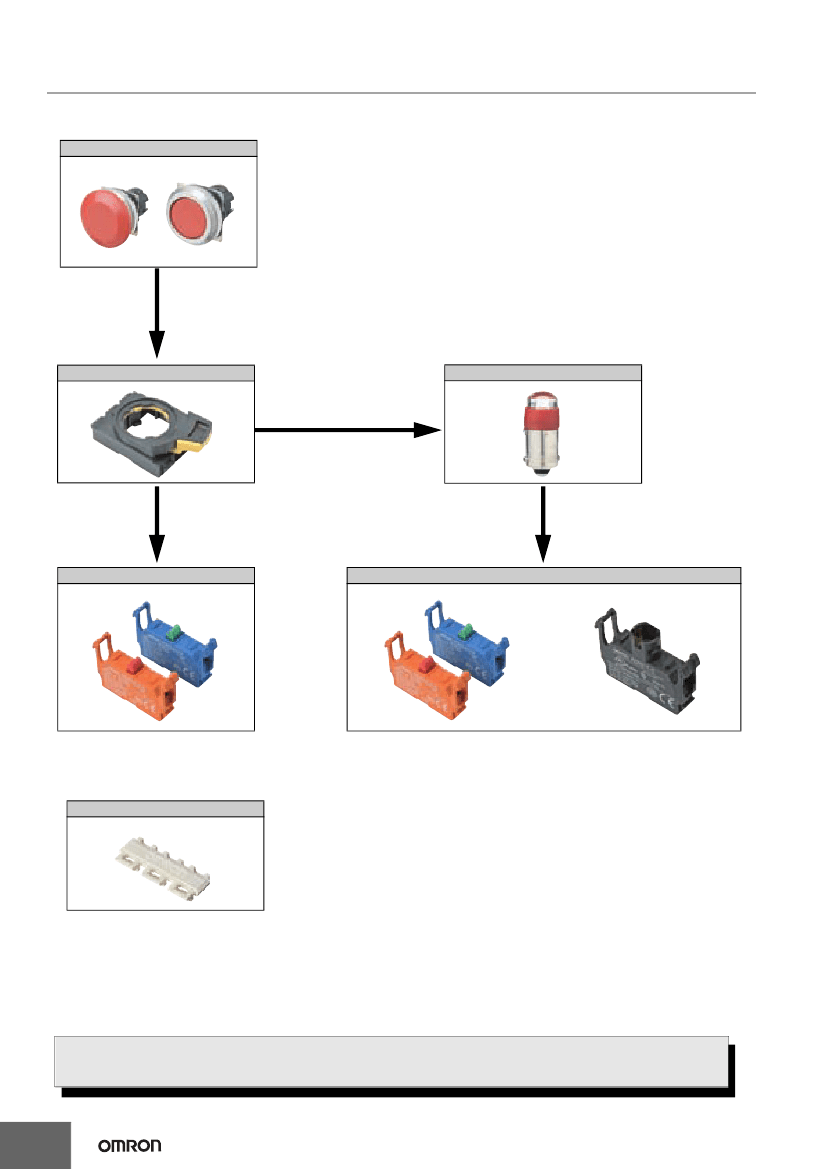

Switch Structure
- - - - Order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. The same LED Lamps,
Mounting Collars, and Contact Blocks are also used for the A22N Series.
Brushed Meal Operation Units
Mounting Collar
LED Lamp
Lighted models
Non-lighted
models
Contact Blocks
Contact Blocks + Lighting Unit
Note:
Use a Reinforcement Plate for greater strength.
Reinforcement Plate
■
Specifications: Refer to page 6.
■
Accessories and tools: Refer to the A22NN/A22NL.
■
Dimensions: Refer to page 8.
2
A30NZ-M
-
A
Model Number Structure
Model Number Legend
Subassemblies
(1)
(2)
(3)
(4)
(5)
- -Order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. The same LED
Lamps, Mounting Collars, and Contact Blocks are also used for the A22N Series.
A30N Z - MN M - NR A
(1) Type
Code
Z
Type
Subassembly
(4) Button Transparency and Color
Lighted/non-
lighted
Code
NR
Transparency
Opaque
Opaque
Opaque
Opaque
Opaque
Opaque
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Color
Red
Green
Yellow
White
Blue
Black
Red
Green
Yellow
White
Blue
Orange
Red
Green
Yellow
White
Blue
Orange
(2) Bezel Material and Button Shape
Code
MN
MP
MG
MM
Bezel material
Brushed metal
Brushed metal
Brushed metal
Brushed metal
Button shape
Flat
Projected
Full guard
Mushroom
Non-lighted
NG
NY
NW
NA
NB
UR
UG
UY
UW
UA
UO
TR
TG
Lighted
TY
TW
TA
TO
(3) Switch Action
Code
M
A
Description
Momentary
Alternate
(5) Degree of Protection
Code
A
Description
IP66
■
Specifications: Refer to page 6.
■
Dimensions: Refer to page 8.
■
Precautions for correct use: Refer to page 9.
■
Accessories and tools: Refer to the A22NN/A22NL.
3
A30NZ-M
-
A
Ordering Information
Subassemblies
- - - - - - - - - - - Order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. The same LED
Lamps, Mounting Collars, and Contact Blocks are also used for the A22N Series.

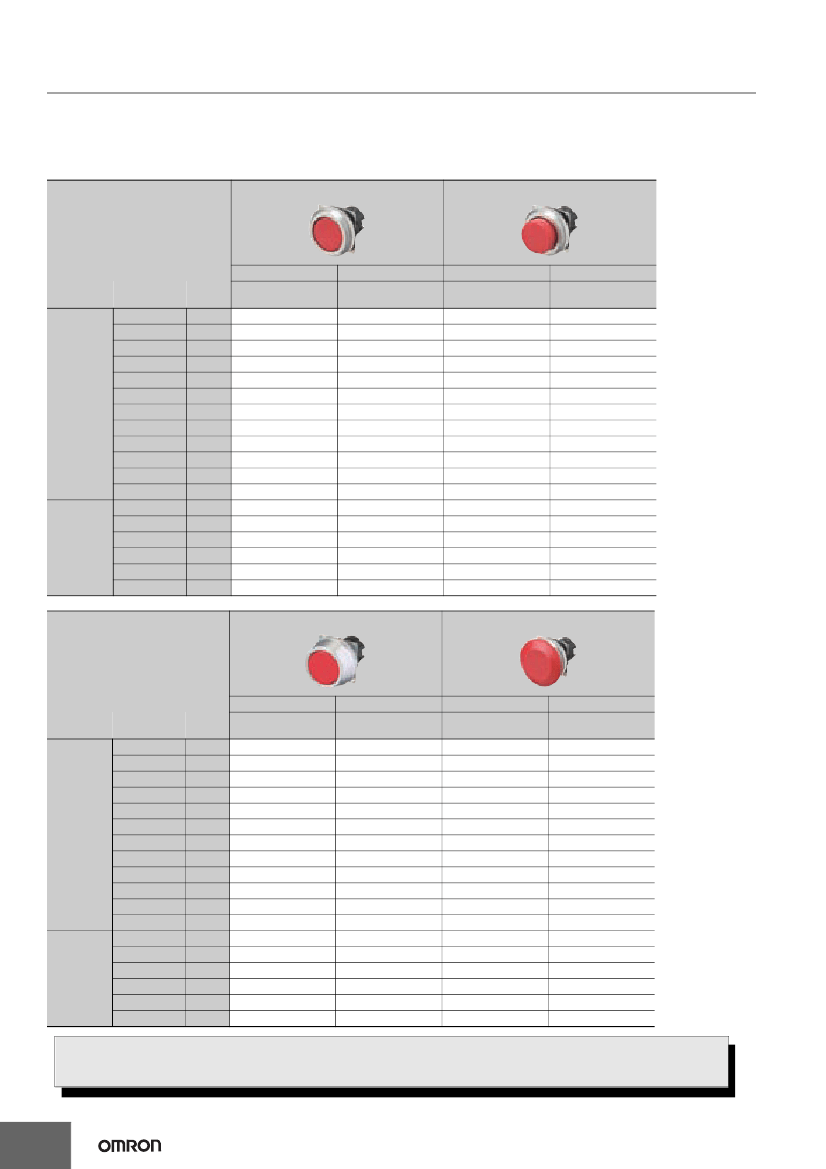

Operation Units
Brushed metal, flat
Brushed metal, projected
Bezel material and button shape
Switch Action
Lighted/
non-lighted
Transparency
Opaque
Opaque
Opaque
Opaque
Opaque
Non-lighted
Opaque
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Lighted
Transparent
Transparent
Transparent
Transparent
Color
Red
Green
Yellow
White
Blue
Black
Red
Green
Yellow
White
Blue
Red
Green
Yellow
White
Blue
Momentary
Model
A30NZ-MNM-NRA
A30NZ-MNM-NGA
A30NZ-MNM-NYA
A30NZ-MNM-NWA
A30NZ-MNM-NAA
A30NZ-MNM-NBA
A30NZ-MNM-URA
A30NZ-MNM-UGA
A30NZ-MNM-UYA
A30NZ-MNM-UWA
A30NZ-MNM-UAA
A30NZ-MNM-TRA
A30NZ-MNM-TGA
A30NZ-MNM-TYA
A30NZ-MNM-TWA
A30NZ-MNM-TAA
Alternate
Model
A30NZ-MNA-NRA
A30NZ-MNA-NGA
A30NZ-MNA-NYA
A30NZ-MNA-NWA
A30NZ-MNA-NAA
A30NZ-MNA-NBA
A30NZ-MNA-URA
A30NZ-MNA-UGA
A30NZ-MNA-UYA
A30NZ-MNA-UWA
A30NZ-MNA-UAA
A30NZ-MNA-UOA
A30NZ-MNA-TRA
A30NZ-MNA-TGA
A30NZ-MNA-TYA
A30NZ-MNA-TWA
A30NZ-MNA-TAA
A30NZ-MNA-TOA
Momentary
Model
A30NZ-MPM-NRA
A30NZ-MPM-NGA
A30NZ-MPM-NYA
A30NZ-MPM-NWA
A30NZ-MPM-NAA
A30NZ-MPM-NBA
A30NZ-MPM-URA
A30NZ-MPM-UGA
A30NZ-MPM-UYA
A30NZ-MPM-UWA
A30NZ-MPM-UAA
A30NZ-MPM-UOA
A30NZ-MPM-TRA
A30NZ-MPM-TGA
A30NZ-MPM-TYA
A30NZ-MPM-TWA
A30NZ-MPM-TAA
A30NZ-MPM-TOA
Alternate
Model
A30NZ-MPA-NRA
A30NZ-MPA-NGA
A30NZ-MPA-NYA
A30NZ-MPA-NWA
A30NZ-MPA-NAA
A30NZ-MPA-NBA
A30NZ-MPA-URA
A30NZ-MPA-UGA
A30NZ-MPA-UYA
A30NZ-MPA-UWA
A30NZ-MPA-UAA
A30NZ-MPA-UOA
A30NZ-MPA-TRA
A30NZ-MPA-TGA
A30NZ-MPA-TYA
A30NZ-MPA-TWA
A30NZ-MPA-TAA
A30NZ-MPA-TOA
Orange A30NZ-MNM-UOA
Orange A30NZ-MNM-TOA
Brushed metal, full-guard
Brushed metal, mushroom
Bezel material and button shape
Switch Action
Lighted/
non-lighted
Transparency
Opaque
Opaque
Opaque
Opaque
Opaque
Non-lighted
Opaque
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Lighted
Transparent
Transparent
Transparent
Transparent
Color
Red
Green
Yellow
White
Blue
Black
Red
Green
Yellow
White
Blue
Red
Green
Yellow
White
Blue
Momentary
Model
A30NZ-MGM-NRA
A30NZ-MGM-NGA
A30NZ-MGM-NYA
A30NZ-MGM-NWA
A30NZ-MGM-NAA
A30NZ-MGM-NBA
A30NZ-MGM-URA
A30NZ-MGM-UGA
A30NZ-MGM-UYA
A30NZ-MGM-UWA
A30NZ-MGM-UAA
A30NZ-MGM-TRA
A30NZ-MGM-TGA
A30NZ-MGM-TYA
A30NZ-MGM-TWA
A30NZ-MGM-TAA
Alternate
Model
A30NZ-MGA-NRA
A30NZ-MGA-NGA
A30NZ-MGA-NYA
A30NZ-MGA-NWA
A30NZ-MGA-NAA
A30NZ-MGA-NBA
A30NZ-MGA-URA
A30NZ-MGA-UGA
A30NZ-MGA-UYA
A30NZ-MGA-UWA
A30NZ-MGA-UAA
A30NZ-MGA-UOA
A30NZ-MGA-TRA
A30NZ-MGA-TGA
A30NZ-MGA-TYA
A30NZ-MGA-TWA
A30NZ-MGA-TAA
A30NZ-MGA-TOA
Momentary
Model
A30NZ-MMM-NRA
A30NZ-MMM-NGA
A30NZ-MMM-NYA
A30NZ-MMM-NWA
A30NZ-MMM-NAA
A30NZ-MMM-NBA
A30NZ-MMM-URA
A30NZ-MMM-UGA
A30NZ-MMM-UYA
A30NZ-MMM-UWA
A30NZ-MMM-UAA
A30NZ-MMM-UOA
A30NZ-MMM-TRA
A30NZ-MMM-TGA
A30NZ-MMM-TYA
A30NZ-MMM-TWA
A30NZ-MMM-TAA
A30NZ-MMM-TOA
Alternate
Model
A30NZ-MMA-NRA
A30NZ-MMA-NGA
A30NZ-MMA-NYA
A30NZ-MMA-NWA
A30NZ-MMA-NAA
A30NZ-MMA-NBA
A30NZ-MMA-URA
A30NZ-MMA-UGA
A30NZ-MMA-UYA
A30NZ-MMA-UWA
A30NZ-MMA-UAA
A30NZ-MMA-UOA
A30NZ-MMA-TRA
A30NZ-MMA-TGA
A30NZ-MMA-TYA
A30NZ-MMA-TWA
A30NZ-MMA-TAA
A30NZ-MMA-TOA
Orange A30NZ-MGM-UOA
Orange A30NZ-MGM-TOA
■
Specifications: Refer to page 6.
■
Dimensions: Refer to page 8.
■
Accessories and tools: Refer to the A22NN/A22NL.
4
A30NZ-M
-
A
Ordering Information
Subassemblies

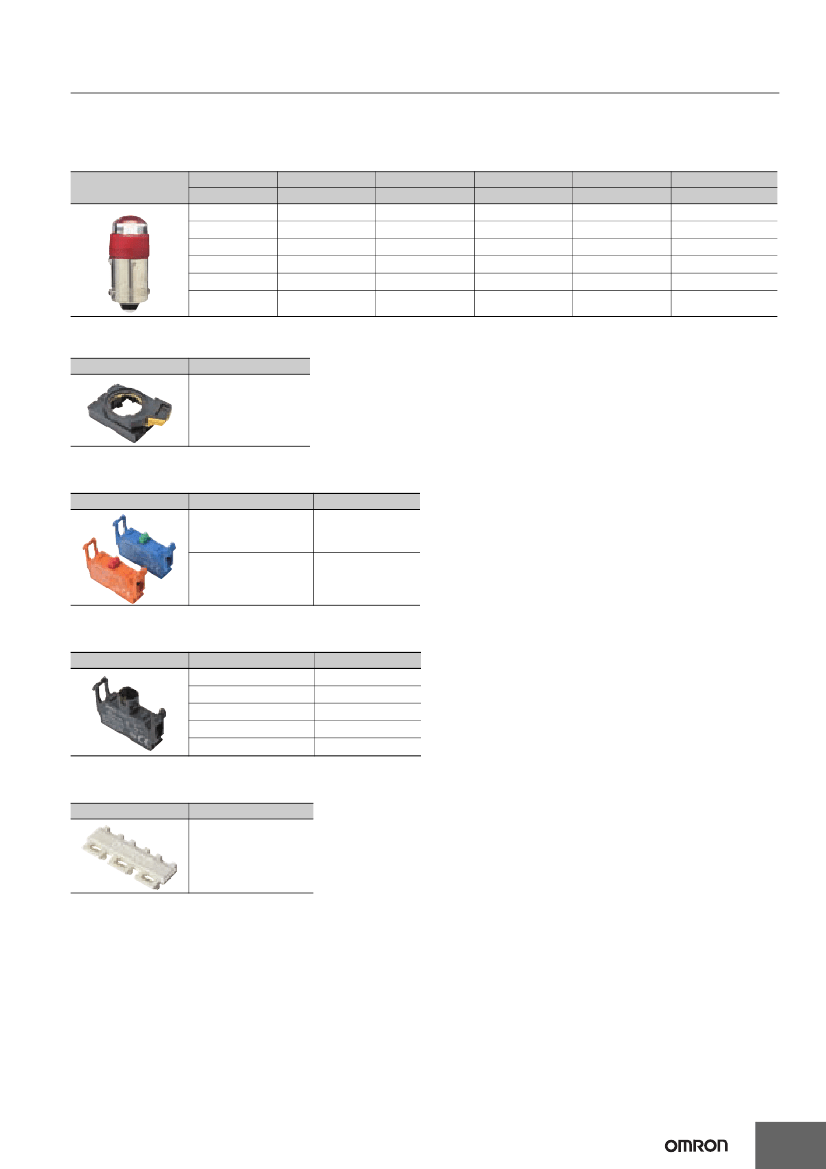

LED Lamps
Appearance
Applied voltage
Color
Red
Green
Yellow
White
Blue
Orange
6 VAC/DC
Model
A22NZ-L-RA
A22NZ-L-GA
A22NZ-L-YA
A22NZ-L-WA
A22NZ-L-AA
A22NZ-L-OA
12 VAC/DC
Model
A22NZ-L-RB
A22NZ-L-GB
A22NZ-L-YB
A22NZ-L-WB
A22NZ-L-AB
A22NZ-L-OB
24 VAC/DC
Model
A22NZ-L-RC
A22NZ-L-GC
A22NZ-L-YC
A22NZ-L-WC
A22NZ-L-AC
A22NZ-L-OC
100/110/120 VAC
Model
A22NZ-L-RD
A22NZ-L-GD
A22NZ-L-YD
A22NZ-L-WD
A22NZ-L-AD
A22NZ-L-OD
200/220/230/240 VAC
Model
A22NZ-L-RE
A22NZ-L-GE
A22NZ-L-YE
A22NZ-L-WE
A22NZ-L-AE
A22NZ-L-OE
- - Order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. The same LED Lamps,
Mounting Collars, and Contact Blocks are also used for the A22N Series.
Mounting Collar
Appearance
Model
A22NZ-H-01
Contact Blocks
Appearance
Contacts
SPST-NO (blue)
Model
A22NZ-S-G1A
SPST-NC (orange)
A22NZ-S-G1B
Lighting Units
Appearance
Applied voltage
6 VAC/DC
12 VAC/DC
24 VAC/DC
100/110/120 VAC
200/220/230/240 VAC
Model
A22NZ-T-A
A22NZ-T-B
A22NZ-T-C
A22NZ-T-D
A22NZ-T-E
Reinforcement Plate
Appearance
Model
A22NZ-A-C01
5
