PE-0402CC820JTT

Description
Fixed Inductors CERAMIC RF CHIP 82nH Tol5% TIN
CategoryPassive components
File Size424KB，3 Pages
ManufacturerPulse A Technitrol Company
Websitehttp://www.pulseeng.com
Download Datasheet Parametric View All

PE-0402CC820JTT Online Shopping

Suppliers Part Number Price MOQ In stock
PE-0402CC820JTT - - View Buy Now

PE-0402CC820JTT Overview

Fixed Inductors CERAMIC RF CHIP 82nH Tol5% TIN

PE-0402CC820JTT Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPulse A Technitrol Company
Product CategoryFixed Inductors
RoHSDetails
Inductance82 nH
Tolerance5 %
Maximum DC Current150 mA
Maximum DC Resistance1.3 Ohms
Q Minimum8
Test Frequency100 MHz
ProductRF Inductors
Termination StyleSMD/SMT
Termination-
Package / Case0402 (1005 metric)
Length1 mm
Width0.5 mm
Height0.5 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Self Resonant Frequency600 MHz
Case Code - in0402
Case Code - mm1005
Factory Pack Quantity10000
Unit Weight0.000023 oz

Preview

Download Datasheet

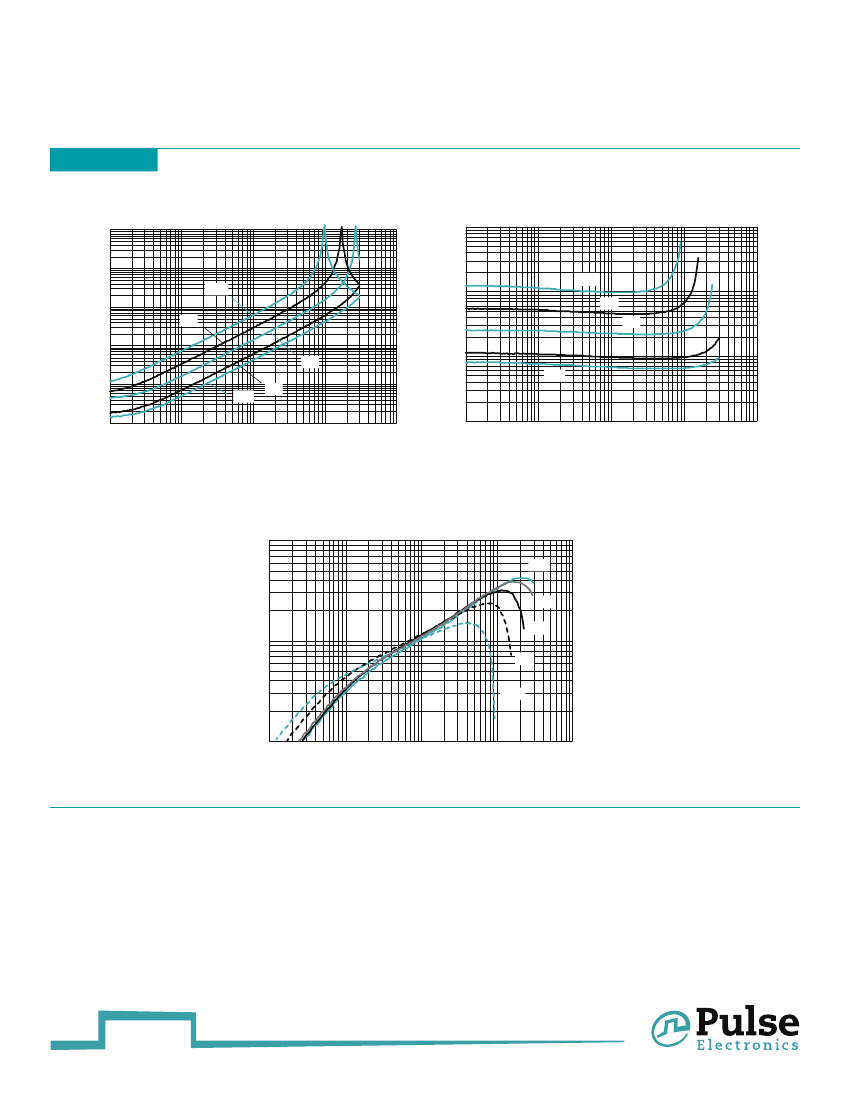

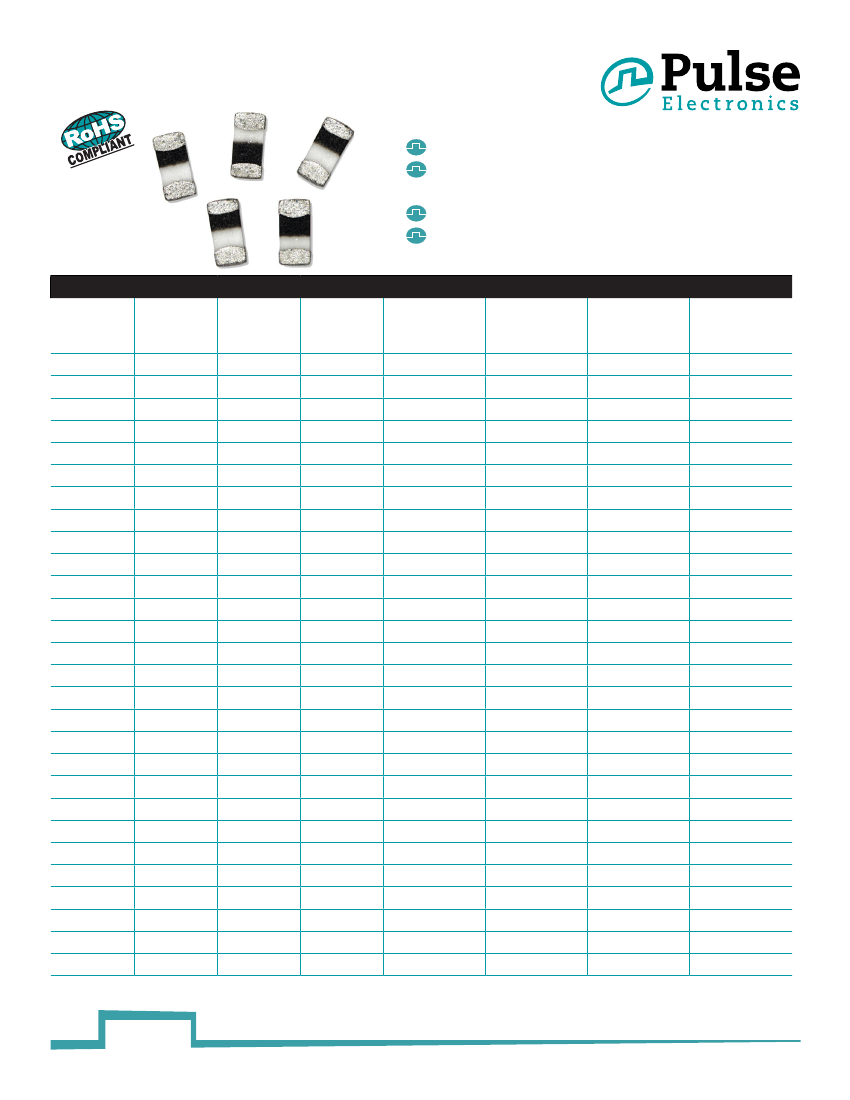

CERAMIC RF CHIP
INDUCTORS – 0402CC SERIES
Monolithic inorganic material construction
Low DC resistance and high Q Values at
high frequency
High Self Resonant Frequency
Industry Standard 0402 (1005) Surface Mount
Land Pattern
Electrical Specifications @ 25°C
Part
Number
PE-0402CC1N0STT
PE-0402CC1N2STT
PE-0402CC1N5STT
PE-0402CC1N8STT
PE-0402CC2N0STT
PE-0402CC2N2STT
PE-0402CC2N4STT
PE-0402CC2N7STT
PE-0402CC3N0STT
PE-0402CC3N3STT
PE-0402CC3N6STT
PE-0402CC3N9STT
PE-0402CC4N36STT
PE-0402CC4N7STT
PE-0402CC5N1STT
PE-0402CC5N6STT
PE-0402CC6N2STT
PE-0402CC6N8JTT
PE-0402CC7N5JTT
PE-0402CC8N2JTT
PE-0402CC9N1JTT
PE-0402CC100JTT
PE-0402CC120JTT
PE-0402CC150JTT
PE-0402CC180JTT
PE-0402CC220JTT
PE-0402CC270JTT
PE-0402CC330JTT
Inductance
(nH)
1.0
1.2
1.5
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
12
15
18
22
27
33
Standard
Tolerance
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
Q
(Min.)
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
Test
Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz MIN)
10000
10000
6000
6000
6000
6000
6000
6000
6000
6000
5000
4000
4000
4000
4000
4000
3900
3900
3700
3600
3400
3200
2700
2300
2100
1900
1600
1300
R
DC
(Ω MAX)
0.08
0.09
0.1
0.12
0.12
0.13
0.13
0.13
0.16
0.16
0.20
0.21
0.20
0.21
0.21
0.23
0.25
0.25
0.25
0.28
0.30
0.31
0.4
0.46
0.55
0.6
0.7
0.8
I
DC
(mA MAX)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
WC704.A (2/14)
