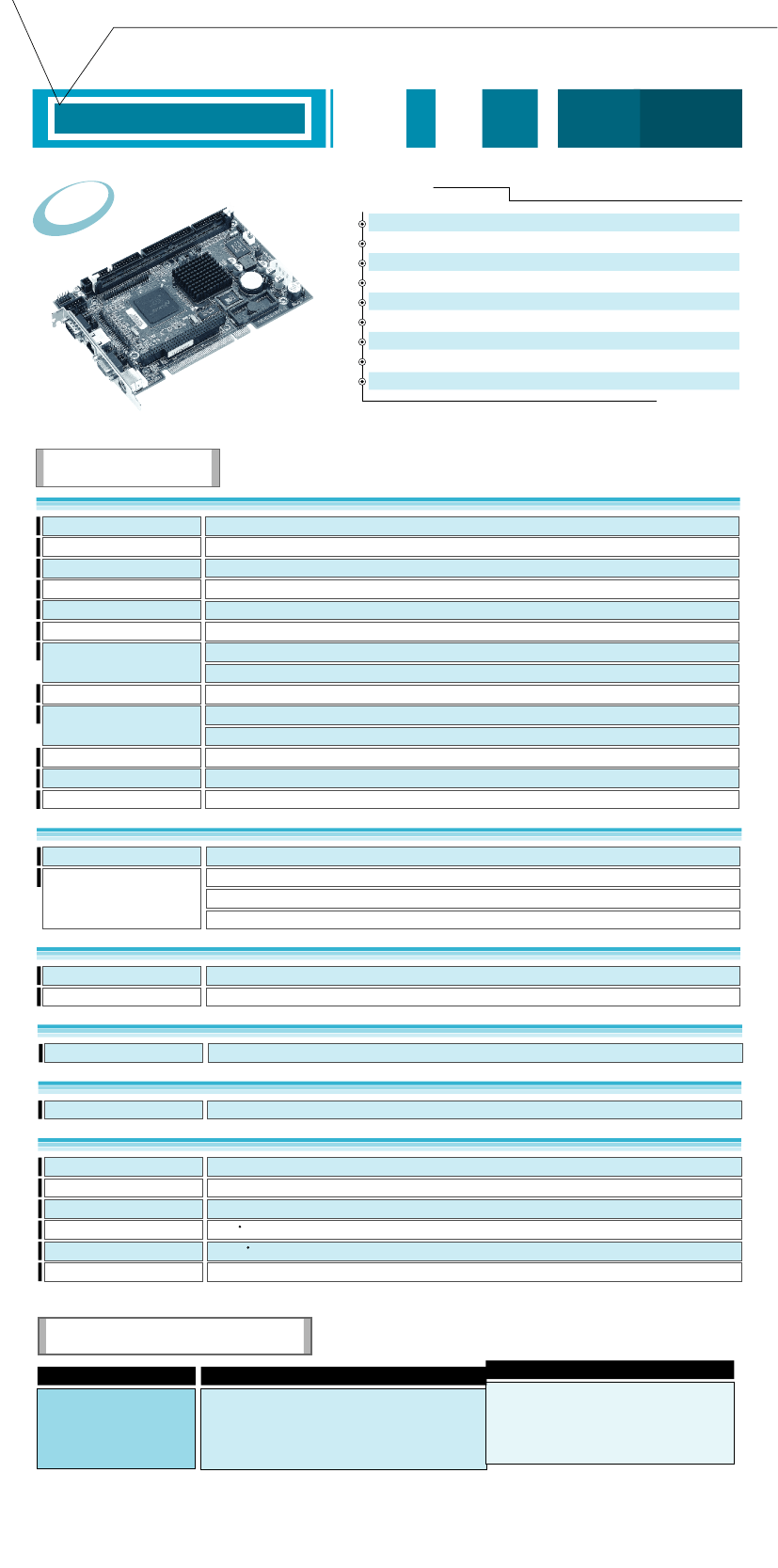

Half-size NS Geode GX1 PCI-bus CPU Card with VGA (CRT/LCD),
LAN, DOC, Compact Flash (Optional)
AR-B1543
NEW
Features
On-board NS Geode GX1 300MHz
NS CS5530A chipset
On-board one 168-pin DIMM socket supports SDRAM memory up to 128MB
Supports Compact Flash interface and one socket for Disk On Chip (DOC)
Built-in CRT/LCD Display interface
On-board 10/100M Base-T Ethernet function
Supports two USB ports
PCI standard compliant
PCB size: 185 mm x 122 mm (7.3" x 4.8")
Specifications
General
CPU
Chipset
BIOS
System Memory
Watchdog
RTC
Serial Port
On-board NS Geode GX1 300MHz
NS CS5530A
AWARD
One 168-pin DIMM socket, supports 128MB SDRAM memory maximum
Software programmable 1~63 seconds
Chipset including, supports ACPI function with 7 years data retention
One RS-232C COM A shared with RS-485
One RS-232C COM B shared with IrDA and Touch Screen
Parallel Port
Enhanced IDE
One parallel port, support SSP/EPP/ECP modes
One IDE 40-pin port, supports two Ultra DMA/33 3.5" IDE devices
One IDE 44-pin port, support 2.5" HDD or Compact Flash interface <AR-B9462A>(Optional)
FDD interface
USB
Keyboard and PS/2 mouse
Supports one FDC port
Supports two USB connectors, USB 1.0 compliant
Supports PS/2 compatible connector and mini-DIN connector located at bracket
VGA display
Chipset
Interface
NS CS5530A on-chip VGA, shared system memory 1~4MB
CRT - D-sub 15-pin female connector at bracket
LCD - supports 18-bit TFT LCD Panel with TTL interface, 2.00mm 2x22-pin header connector
LVDS interface, 2.00mm 2x13-pin header connector
LAN
Chipset
Interface
Realtek RTL8100B
Supports 10/100Mbps Base-T with RJ-45 connector built-in LED
Solid State Disk
Solid State Disk
One socket for Disk On Chip (DOC) memory capacity 8~288 MB
Expansion Slot
Expansion Slot
One PC/104 expansion ISA bus
Mechanical and Environmental:
Power requirements
Dimensions
PC Board
Operating temperature
Storage Temperature
Operating humidity
+5V, supports ATX power function
185 mm x 122 mm (7.3" x 4.8")
6 layers
0~60 C
-20~80 C
0% ~ 90% Relative humidity non-condensing
Ordering information:
Model No.
AR-B1543
Description
Half-size NS Geode GX1 PCI-bus CPU Card with VGA
(CRT/LCD), LAN, DOC, Compact Flash (Optional)
Accessories
1.Cable: HDD/FDD CablesParallel/COM port Cables
PS/2 Y Cable for keyboard & mouse
2.AR-B9462A compact flash (Option)
3.CD drivers: IDE, VGA, LAN, drivers for
Windows 95/98, NT, OS/2, Linux
