5425BL07A0200T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 5425BL07A0200T

5425BL07A0200T: DescriptionSignal Conditioning 5.4 GHz WIFI Balun Mini SMD; CategoryPassive components; File Size146KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric View All

5425BL07A0200T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5425BL07A0200T	-	-	View	Buy Now

5425BL07A0200T Overview

Signal Conditioning 5.4 GHz WIFI Balun Mini SMD

5425BL07A0200T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Johanson Technology
Product Category	Signal Conditioning
RoHS	Details
Product	Baluns
Frequency	5400 MHz
Frequency Range	4900 MHz to 5950 MHz
Impedance	50 Ohms, 200 Ohms
Termination Style	SMD/SMT
Package / Case	0402 (1005 metric)
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Mounting	SMD/SMT
Operating Temperature Range	- 40 C to + 85 C
Type	High Frequency Ceramic Ultra Low Profile
Insertion Loss	1.2 dB
Factory Pack Quantity	10000
Unit Weight	0.000023 oz

Preview

Download Datasheet

View All

Preliminary

"High Frequency Ceramic Solutions"

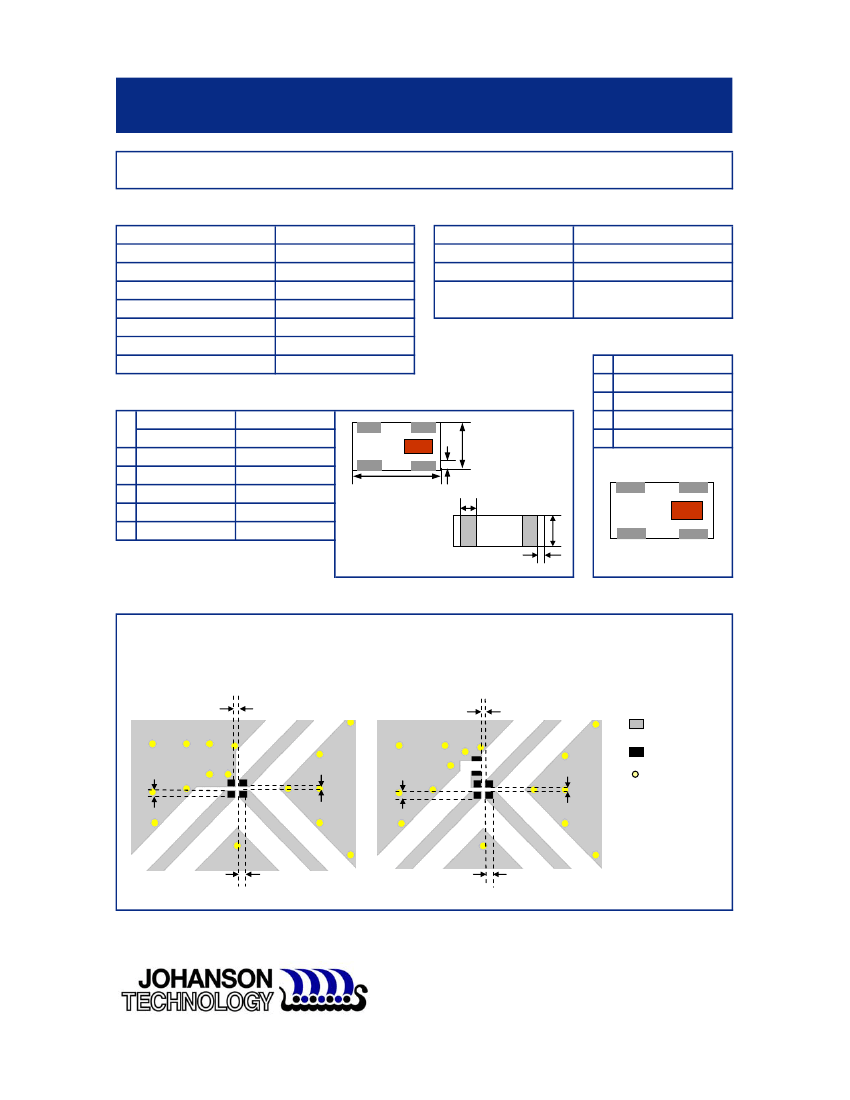

P/N 5425BL07A0200

Page 1 of 2

5.4 GHz EIA 0402 Ultra Low Profile 50:200Ω Balun

Detail Specification: 06/23/09

General Specifications

Part Number

Frequency (MHz)

Unbalanced Impedance

Balanced Impedance

Insertion Loss

Return Loss

Phase Difference (degree)

Amplitude Difference

5425BL07A0200

4900 - 5950

Ω

200

Ω

1.2 dB max.

9.5 dB min.

180 ± 15

2.0 dB max.

Reel Quanity

Power Capacity

Operating Temperature

Storage Temperature

10,000

2W max.

-40 to +85°C

+5 ~ +35 °C, 12 mos max.

Humidity 45~75%RH

Terminal Configuration

No.

Function

Unbalanced Port (IN)

Balanced Port (OUT1)

Balanced Port (OUT2)

Mechanical Dimensions

0.039

0.020

0.015

± 0.004

± 0.002

1.00

0.50

0.37

0.10

0.25

0.10

GND or DC feed + RF GND

± 0.10

± 0.05

+0.1/-0.05

0.004 +.004/-.002

0.010 +.004/-.002

0.004 +.004/-.002

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide proper impedance matching characteristics.

By-pass capacitor should be connected when feeding DC power.

Without DC Feed

With DC Feed

0.25

0.35

0.25

Solder Resist

Land

Through-hole

(

0.3)

Units: mm

0.4

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
