Not Recommended for New Designs - Use MKP338 6 Y2
MKP336 6 Y2
www.vishay.com
Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
• 10 mm to 15 mm lead pitch
• Supplied loose in box, taped on reel
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Y2 class
For Y2 electromagnetic interference suppression between
line and ground applications (50 Hz/60 Hz) with a maximum
mains voltage of 300 V
AC
.
For application limitations refer to section “Application
Notes”.
QUICK REFERENCE DATA
Capacitance range (E12 series)
Capacitance tolerance
Climatic testing class according to EN60068-1
Rated AC voltage
Permissible DC voltage
Maximum application temperature
Reference standards
Dielectric
Electrodes
0.001 μF to 0.047 μF (preferred values acc. to E6)
± 20 %; ± 10 %
55/105/56/C for product volumes
1750 mm
3
55/105/56/B for product volumes > 1750 mm
3
300 V
AC
; 50 Hz to 60 Hz
1000 V
DC
105 °C
IEC 60384-14 ed-4 (2013) edition and EN132400
IEC 60065 requires, pass. flamm. class B for volumes > 1750 mm
3
UL 60384-14; ENEC
Polypropylene film
Metallized film
Series construction (for > 10 mm pitch)
Construction
Triple construction (for > 7.5 mm and 10 mm pitch)
Encapsulation
Leads
Marking
Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
Tinned wire
C-value; tolerance; rated voltage; sub-class; manufacturer’s type designation;
code for dielectric material; manufacturer location; year and week
Note
• For more detailed data and test requirements, contact:
rfi@vishay.com
DIMENSIONS
in millimeters
l
w
h
l
t
P ± 0.4
Ø d
t
Revision: 21-Sep-16
Document Number: 28115
1
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs - Use MKP338 6 Y2
MKP336 6 Y2
www.vishay.com
COMPOSITION OF CATALOG NUMBER
TYPE AND PITCHES
336 6
Y2
10.0 mm
15.0 mm
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.1
1
2
3
Vishay BCcomponents
Example:
103
=
10 x 1
=
10 nF
BFC2 336 6X XX X
2222
(*)
336 6X XX X
(*) Old ordering code
TYPE
336 6
PACKAGING
Loose in box
LEAD CONFIGURATION
Lead length 3.5 mm + 1 mm/- 0.5 mm (pitch = 10 mm) or
3.5 mm ± 0.3 mm (pitch = 15 mm)
Lead length 25.0 mm ± 2.0 mm
LEAD CONFIGURATION
Lead length 3.5 mm + 1 mm/- 0.5 mm (pitch = 10 mm) or
3.5 mm ± 0.3 mm (pitch = 15 mm)
Lead length 25.0 mm ± 2.0 mm
H = 18.5 mm; P
0
=
12.7 mm;
reel diameter 500 mm
C-TOL.
± 20 %
C-TOL.
± 10 %
± 20 %
± 10 %
PREFERRED TYPES
BFC2 336 60...
BFC2 336 66...
ON REQUEST
BFC2 336 61...
BFC2 336 67...
BFC2 336 63...
BFC2 336 64...
Y2
TYPE
PACKAGING
Loose in box
336 6
Y2
Taped on reel
(1)
Note
(1)
For detailed tape specification refer to packaging information:
www.vishay.com/doc?28139
SPECIFIC REFERENCE DATA
DESCRIPTION
Rated AC voltage (U
RAC
)
Permissible DC voltage (U
RDC
)
Tangent of loss angle
Rated voltage pulse slope (dU/dt)
R
at 420 V
DC
R between leads, for C
0.33 μF at 100 V; 1 min
R between leads and case; 100 V; 1 min
Withstanding (DC) voltage (cut off current 10 mA)
(1)
; rise time
1000 V/s
Withstanding (AC) voltage between leads and case
Note
(1)
See “Voltage Proof Test for Metalized Film Capacitors”:
www.vishay.com/doc?28169
VALUE
300 V
1000 V
at 10 kHz
10
x 10
-4
200 V/μs
> 15 000 M
> 30 000 M
3400 V; 1 min
2100 V; 1 min
Revision: 21-Sep-16
Document Number: 28115
2
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs - Use MKP338 6 Y2
MKP336 6 Y2
www.vishay.com
Vishay BCcomponents
CATALOG NUMBER BFC2 336 6..... AND PACKAGING
ELECTRICAL DATA AND ORDERING CODE
LOOSE IN BOX
MASS
(g)
(3)
l
t
= 3.5 mm + 1 mm/- 0.5 mm (10 mm)
OR 3.5 mm ± 0.3 mm (= 15 mm)
LAST 5 DIGITS OF
CATALOG NUMBER
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.0068
0.010
0.015
0.022
0.033
0.047
0.0010
0.0012
0.0015
300
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
6.0 x 12.0 x 17.5
1.4
5.0 x 11.0 x 17.5
1.0
5.0 x 11.0 x 12.5
1.1
4.0 x 10.0 x 12.5
0.6
5.0 x 11.0 x 12.5
0.82
4.0 x 10.0 x 12.5
0.6
60102
60152
60222
60332
60472
60682
69005
60103
60153
60223
60333
60473
61102
61122
61152
61182
61222
61272
61332
61392
61472
61562
69001
61682
61822
61103
61123
61153
61183
61223
61273
61333
61393
61473
500
750
1000
1000
1000
1000
1000
SPQ
l
t
= 25.0 mm ± 2.0 mm
REEL
(500 mm)
(1)(2)
H = 18.5 mm;
P
0
= 12.7 mm
U
RAC
(V)
CAP.
(μF)
DIMENSIONS
wxhxl
(mm)
LAST 5 DIGITS OF
LAST 5 DIGITS OF
SPQ
SPQ
CATALOG NUMBER
CATALOG NUMBER
66102
66152
66222
66332
66472
66682
69009
66103
66153
66223
66333
66473
67102
67122
67152
67182
67222
67272
67332
67392
67472
67562
69007
67682
67822
67103
67123
67153
67183
67223
67273
67333
67393
67473
450
500
1000
1000
1250
1000
1000
1250
63102
63152
63222
63332
63472
63682
69006
63103
63153
63223
63333
63473
64102
64122
64152
64182
64222
64272
64332
64392
64472
64562
69003
64682
64822
64103
64123
61153
64183
64223
64273
64333
61393
64473
900
1100
1100
1400
1100
1400
PITCH = 10.0 mm ± 0.4 mm; d
t
= 0.6 mm ± 0.06 mm; C-TOL. = ± 20 %
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.6 mm ± 0.06 mm; C-TOL. = ± 20 %
5.0 x 11.0 x 17.5
6.0 x 12.0 x 17.5
7.0 x 13.5 x 17.5
8.5 x 15.0 x 17.5
10.0 x 16.5 x 17.5
1.0
1.4
1.8
2.4
3.0
1100
900
800
650
600
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.8 mm ± 0.08 mm; C-TOL. = ± 20 %
750
500
500
450
PITCH = 10.0 mm ± 0.4 mm; d
t
= 0.6 mm ± 0.06 mm; C-TOL. = ± 10 %
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 10 %
PITCH = 15.0 mm ± 0.4 mm; d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 10 %
7.0 x 13.5 x 17.5
8.5 x 15.0 x 17.5
10.0 x 16.5 x 17.5
1.8
2.4
3.0
800
650
600
Notes
• SPQ = Standard packing quantity
(1)
H = In-tape height; P = Sprocket hole distance; for detailed specifications refer to packaging information:
www.vishay.com/doc?28139
0
(2)
Reel diameter = 365 mm is available on request
(3)
Weight for short lead product only
Revision: 21-Sep-16
Document Number: 28115
3
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs - Use MKP338 6 Y2
MKP336 6 Y2
www.vishay.com
Vishay BCcomponents
VALUE
1 nF to 47 nF
1 nF to 47 nF
1 nF to 47 nF
1 nF to 47 nF
FILE NUMBERS
FI 2016038
E354331
E354331
FI 9219
LINKS
www.vishay.com/doc?28204
www.vishay.com/doc?28189
www.vishay.com/doc?28203
APPROVALS
SAFETY APPROVALS Y2
EN 60384-14 (ENEC)
(= IEC 60384-14 ed-4 (2013))
UL 60384-14
CSA-E384-14
CB-test-certificate
VOLTAGE
300 V
AC
300 V
AC
300 V
AC
300 V
AC
The ENEC-approval together with the CB-certificate replace all national marks of the following countries (they have already signed the
ENEC-agreement): Austria; Belgium; Czech. Republic; Denmark; Finland; France; Germany; Greece; Hungary; Ireland; Italy; Luxembourg;
Netherlands; Norway; Portugal; Slovenian; Spain; Switzerland and United Kingdom.
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to packaging information:
www.vishay.com/doc?28139
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board:
• The capacitors shall be mechanically fixed by the leads
Space Requirements on Printed Circuit Board
The maximum space for length (I
max.
), width (w
max.
) and height (h
max.
) of film capacitors to take in account on the printed circuit
board is shown in the drawings.
• For products with pitch
15 mm,
w
=
l
= 0.3 mm;
h
= 0.1 mm
Eccentricity defined as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product
concerned.
w
max.
= W +
Δ
Eccentricity
I
max.
= I +
Δ
CBA116
h
max.
= h +
Δ
Seating plane
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the application note:
“Soldering Guidelines for Film Capacitors”:
www.vishay.com/doc?28171
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient temperature of 23 °C ± 1 °C, an atmospheric pressure of
86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 21-Sep-16
Document Number: 28115
4
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs - Use MKP338 6 Y2
MKP336 6 Y2
www.vishay.com
CHARACTERISTICS
ΔC/C
(%)
4
Dissipation
Factor (x 10
- 4
)
10
3
Vishay BCcomponents
2
typical
0
10
2
-2
10
-4
min.
-6
- 50
0
50
T
amb
(°C) 100
10
0
10
1
10
2
10
3
1
F
47 n
C
≤
F<
10 n
≤
10 nF
C
10
4
f (Hz)
10
5

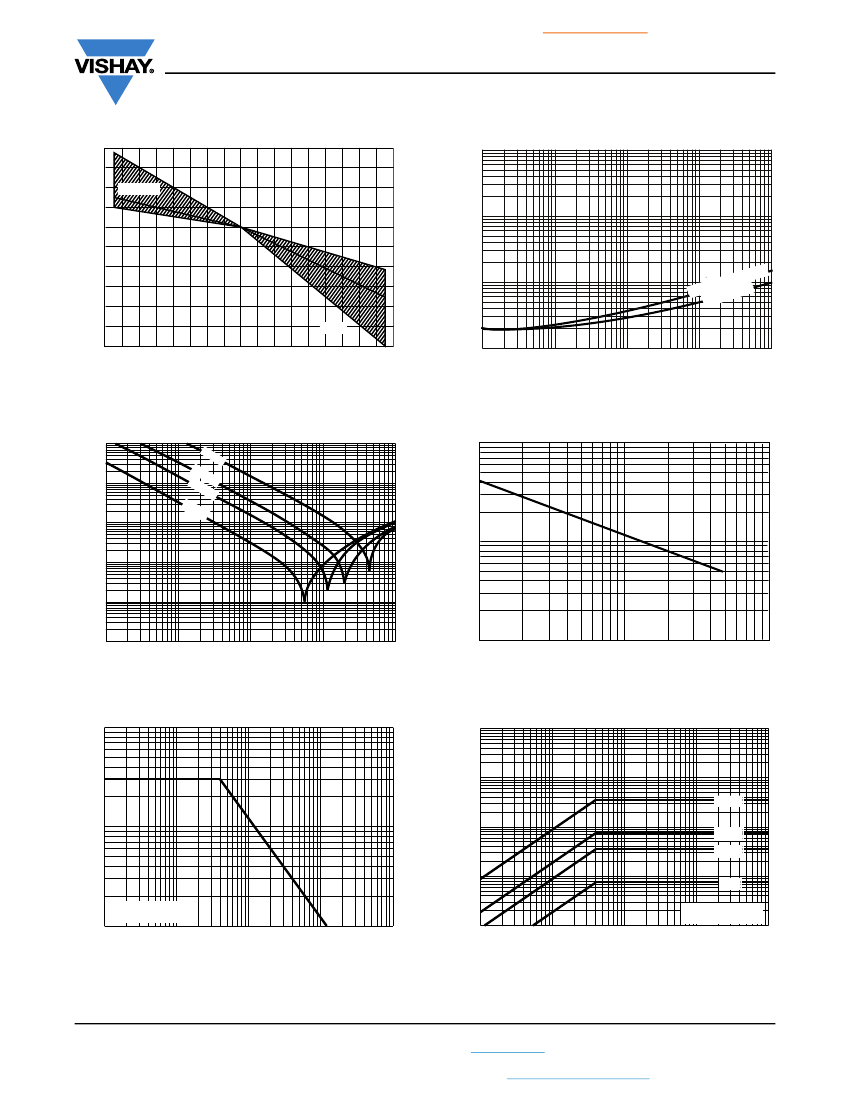

Capacitance as a function of ambient temperature
(typical curve)
Tangent of loss angle as a function of frequency
(typical curve)
10
3
Impedance
(Ω)
4.7
n
10 F
nF
10
1
47
nF
10
1
Y2
10
0
10
-1
f (MHz)
10
0
1n
F
10
2
10
-2
10
4
10
5
10
6
10
7
f (Hz)
10
8
1
10
47
C (nF)
Impedance as a function of frequency
(typical curve)
Resonant frequency as a function of capacitance
(typical curve)
10
3
AC voltage
(V)
10
3
AC current
(mA)
47 nF
10 nF
4.7 nF
10
2
10
1
10
0
T
amb
≤
105 °C
10
1
1nF
T
amb
≤
105 °C
10
10
1
10
2
-1
10
3
10
4
f (Hz)
10
5
10
1
10
2
10
3
10
4
f (Hz) 10
5
Max. RMS voltage as a function of frequency
Max. RMS current as a function of frequency
Revision: 21-Sep-16
Document Number: 28115
5
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
