2R5TAE220M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 2R5TAE220M

2R5TAE220M: DescriptionTantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 2917, CHIP; CategoryPassive components capacitor; File Size54KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

2R5TAE220M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2R5TAE220M	-	-	View	Buy Now

2R5TAE220M Overview

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 2917, CHIP

2R5TAE220M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1847461494
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	40 weeks
Samacsys Description	CAP TANT POLY 220UF 2.5V 2917
Samacsys Manufacturer	Panasonic
Samacsys Modified On	2021-10-03 23:37:58
YTEOL	7.9
Other features	ESR IS MEASURED AT 100 KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ, 45CEL
capacitance	220 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	25 mΩ
high	1.8 mm
leakage current	0.055 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
ripple current	2400 mA
size code	2917
surface mount	YES
Delta tangent	0.10
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

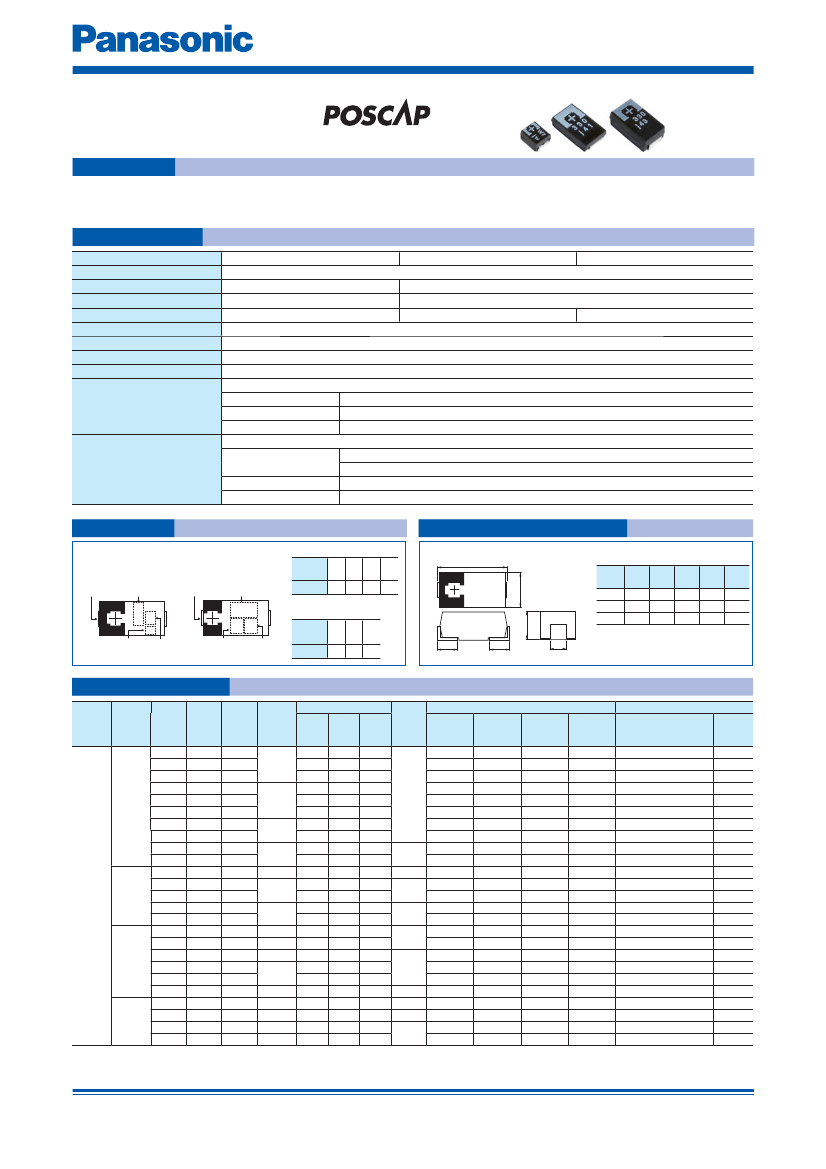

Conductive Polymer Tantalum Solid Capacitors

Surface Mount Type

Series :

Features

●

Guaranteed at 85 °C 85 %RH

●

RoHS compliance, Halogen free

Specifications

Size code

Category temperature range

Rated voltage range

Category voltage range

Rated capacitance range

Capacitance tolerance

Leakage current

Dissipation factor (tan

Surge voltage (V.DC)

Endurance

D2E

D3L

–55 °C to +105 °C

4 V.DC to 10 V.DC

2.5 V.DC to 10 V.DC

4 V.DC to 10 V.DC

2.5 V.DC to 10 V.DC

47μF to 100 μF

68 μF to 470 μF

150 μF to 680 μF

±20 % (120 Hz / + 20 °C)

Please see the attached characteristics list

Rated voltage

1.15

+105 °C, 2000 h, (B2 size : 1000 h) rated voltage applied

Capacitance change Within ±20 % of the initial value

tan

1.5 times of the initial limit

DC leakage current Within the initial limit

+85 °C, 85 % to 90 %, 500 h, rated voltage applied

Within +50 %, −20 % of the initial value (2R5TAE470M(F), 2R5TAE330M(F, I), 2R5TAE220M(F, 9))

Capacitance change

Within +40 %, −20 % of the initial value (Except for above model)

tan

1.5 times of the initial limit

DC leakage current Within the initial limit

Damp heat

(Steady State)

Marking

D2E, D3L Size

Polarity

marking(+) R.Cap. code

Dimensions (not to scale)

B2 Size

Polarity

marking(+) R.Cap. code

R. Voltage

2.5 4.0 6.3 10.0

(V.DC)

Code e g j A

Unit : mm

B2 Size

R. Voltage code Lot. No.

R. Voltage code

Lot. No.

R. Cap.

47 68 100

(μF)

Code S7 W7 A8

Size

Code

D2E

D3L

L±0.3

½1

W±0.2 H±0.2

2.8

4.3

½2

S±0.2 W1±0.1

0.8

1.3

2.2

2.4

3.5

7.3

1.9

1.8

2.8

Externals of ﬁgure are the reference.

1 ±0.2 : B2

2 ±0.1 : B2, D2E

Characteristics list

Series

Rated

Rated Rated Category Category

temp. capacitance

voltage temp. voltage

(°C) (V.DC) (°C)

(V.DC)

(μF)

Case size (mm)

Size

code

Specifications

Ripple

½1

ESR

½2

current

tan

½3

(mΩ max.)

(mAr.m.s.)

Standard

(μA)

½4

Part number

Min.

Packaging Q'ty

(pcs)

2.5

6.3

105

2.5

4.0

6.3

10.0

105

220

330

470

680

100

220

470

150

220

330

150

220

7.3

3.8

7.3

3.5

7.3

3.5

7.3

4.3

2.8

4.3

2.8

4.3

2.8

4.3

1.8

2.8

1.9

1.8

2.8

1.9

1.8

2.8

1.9

1.8

2.8

D2E

D3L

D2E

D3L

D2E

D3L

D2E

D3L

3900

3100

2400

3100

2800

2400

3100

2400

3100

2400

1100

2800

2400

2800

2400

1100

2400

2800

2400

1100

2400

0.10

0.08

0.10

0.08

0.10

0.08

0.10

110.0

55.0

82.5

117.5

170.0

40.0

88.0

188.0

29.6

42.8

94.5

138.6

207.9

47.0

68.0

150.0

220.0

2R5TAE220M9

2R5TAE220MF

2R5TAE220M

2R5TAE330MF

2R5TAE330MI

2R5TAE330M

2R5TAE470MF

2R5TAE470M

2R5TAE680MFL

2R5TAE680ML

4TAB100M

4TAE220MI

4TAE220M

4TAE470MIL

4TAE470ML

6TAB47M

6TAB68M

6TAE150M

6TAE220MI

6TAE220M

6TAE330ML

10TAB47M

10TAE68M

10TAE150ML

10TAE220ML

3000

2500

2000

3000

2500

2000

3000

2500

2000

3000

2500

½1

Ripple current (100 kHz/ +45 °C ),

½2

ESR (100 kHz/+20 °C)

½3

tan

(120 Hz/+20 °C)

½4

After 5 minutes

◆

Please refer to each page in this catarog for “Reflow conditions” and “Taping specifications”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Nov. 2015
