LQH2HPN3R3MJ0L

Description
Fixed Inductors 1008 3.3uH 20%
CategoryPassive components
File Size1MB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

LQH2HPN3R3MJ0L Online Shopping

Suppliers Part Number Price MOQ In stock
LQH2HPN3R3MJ0L - - View Buy Now

LQH2HPN3R3MJ0L Overview

Fixed Inductors 1008 3.3uH 20%

LQH2HPN3R3MJ0L Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMurata
Product CategoryFixed Inductors
RoHSDetails
Inductance3.3 uH
Tolerance20 %
Maximum DC Current1500 mA
Maximum DC Resistance0.23 Ohms
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
ProductPower Inductors
ShieldingUnshielded
Termination StyleSMD/SMT
Termination-
Mounting StyleSMD/SMT
Package / Case1008 (2520 metric)
Length2.5 mm
Width2 mm
Height1.1 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
TypeWound Type Chip Coil Chip Inductors
Core MaterialFerrite Core
Self Resonant Frequency10 MHz
Case Code - in1008
Case Code - mm2520
Factory Pack Quantity2000

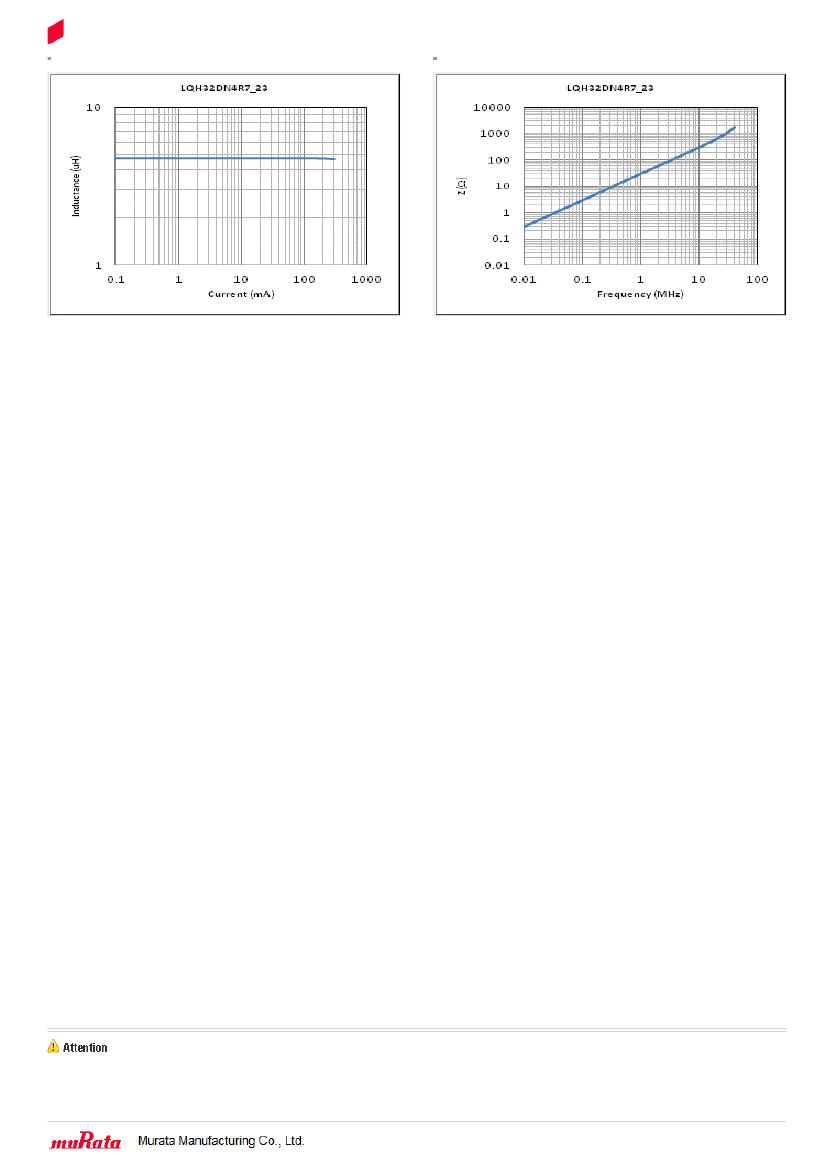

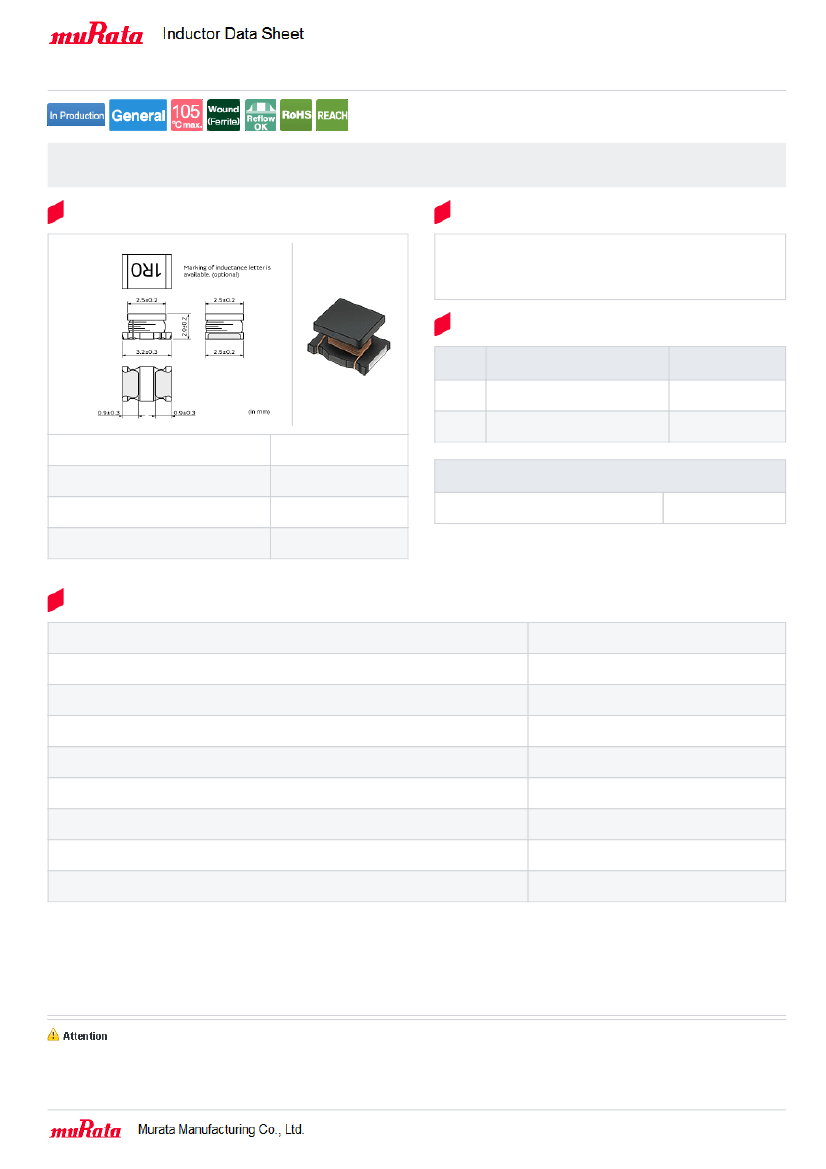

LQH32DN4R7M23#
< List of part numbers with package codes >
“#” indicates a package specification code.
LQH32DN4R7M23L , LQH32DN4R7M23K
Shape
Notes
When rated current is applied to the products, self-temperature rise shall
be limited to 20°C max and inductance will be within ±10% of initial
inductance value.
References
Packaging
code
L
K
L size
W size
T size
Size code in inch (mm)
3.2 ±0.3mm
2.5 ±0.2mm
2.0 ±0.2mm
1210 (3225)
1 piece
Mass (Typ.)
0.060g
Specifications
φ180mm
Embossed taping
φ330mm
Embossed taping
Minimum quantity
2000
7500
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Avg. of DC resistance
Self resonance frequency (min.)
Operating temperature range
Class of magnetic shield
Series
4.7µH ±20%
1MHz
450mA
0.26Ω
0.20Ω ±30%
43MHz
-40〜105℃
No Shield
LQH32DN_23
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/10/30
